juce::WebToggleButtonRelay Class Reference

Helper class that relays audio parameter information to an object inside a WebBrowserComponent. More...

#include <juce_WebControlRelays.h>

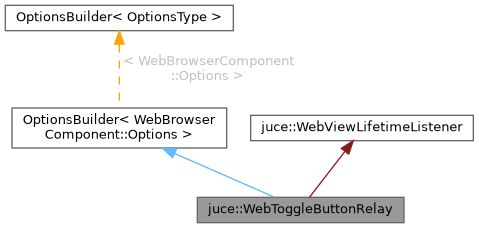

Inheritance diagram for juce::WebToggleButtonRelay:

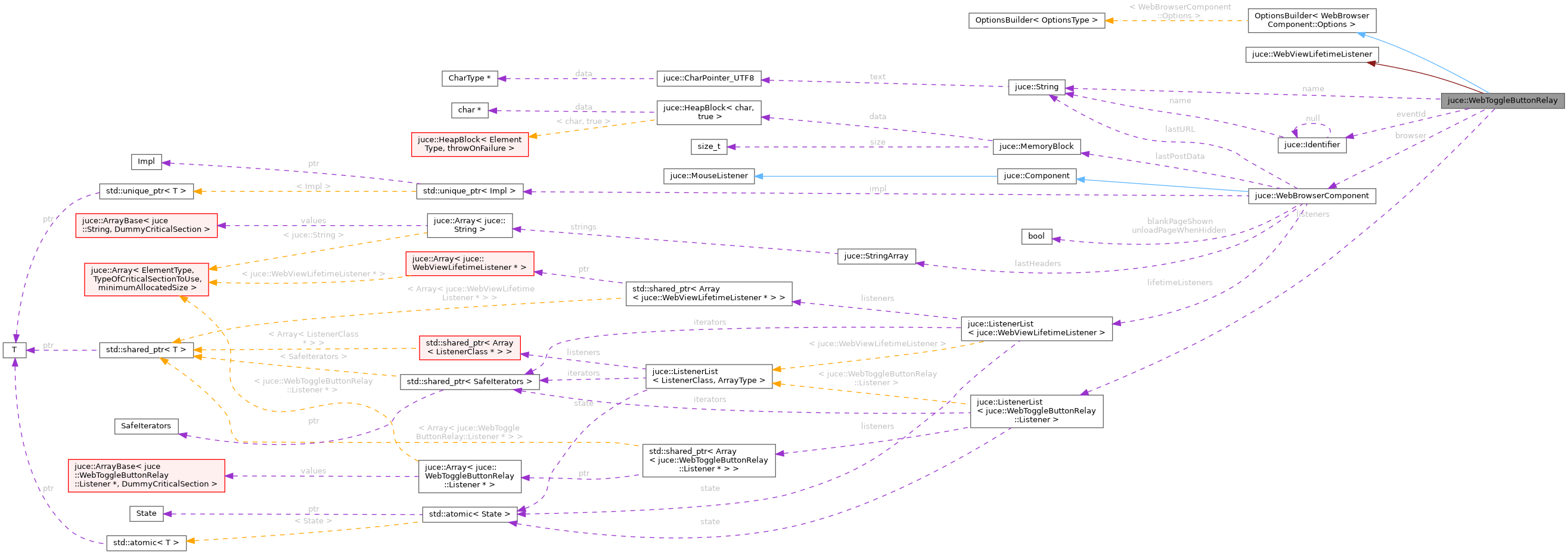

Collaboration diagram for juce::WebToggleButtonRelay:

Classes
struct	Listener

Public Member Functions
	WebToggleButtonRelay (StringRef nameIn)
	Creating a relay will ensure that a Javascript object under the provided name will be available in the specified WebBrowserComponent's context.
void	addListener (Listener *l)
WebBrowserComponent::Options	buildOptions ()
WebBrowserComponent::Options	buildOptions (const WebBrowserComponent::Options &initialOptions) override
virtual WebBrowserComponent::Options	buildOptions (const WebBrowserComponent::Options &initialOptions)=0
void	emitEvent (const var &payload)
void	removeListener (Listener *l)
void	setToggleState (bool newState)

Private Member Functions
void	handleEvent (const var &event)
void	webViewConstructed (WebBrowserComponent *) override
	Called from the WebBrowserComponent constructor.
void	webViewDestructed (WebBrowserComponent *) override
	Called from the WebBrowserComponent destructor.

Private Attributes
WebBrowserComponent *	browser = nullptr
Identifier	eventId { "__juce__toggle" + name }
ListenerList< Listener >	listeners
String	name

Detailed Description

Helper class that relays audio parameter information to an object inside a WebBrowserComponent.

In order to create a relay you need to specify an identifier for the relayed state. This will result in a Javascript object becoming available inside the WebBrowserComponent under the provided identifier.

Pass the relay object to WebBrowserComponent::Options::withOptionsFrom() to associate it with a WebBrowserComponent instance.

You can then use a WebToggleButtonParameterAttachment as you would a ButtonParameterAttachment, to attach the relay to a RangedAudioParameter. This will synchronise the state and events of the Javascript object with the audio parameter at all times.

// Add a relay to your AudioProcessorEditor members
WebToggleButtonRelay muteToggleRelay { "muteToggle" };
WebBrowserComponent webComponent { WebBrowserComponent::Options{}::withOptionsFrom (muteToggleRelay) };

// In your Javascript GUI code you obtain an object from the framework
import * as Juce from "juce-framework-frontend";
const checkboxState = Juce.getToggleState("muteToggle");

See also

WebToggleButtonParameterAttachment

@tags{GUI}

Constructor & Destructor Documentation

WebToggleButtonRelay()

juce::WebToggleButtonRelay::WebToggleButtonRelay

(

StringRef

nameIn

)

Creating a relay will ensure that a Javascript object under the provided name will be available in the specified WebBrowserComponent's context.

Use the frontend framework's getToggleState function with the same name to get a hold of this object.

Member Function Documentation

addListener()

void juce::WebToggleButtonRelay::addListener

(

Listener *

l

)

buildOptions() [1/3]

WebBrowserComponent::Options OptionsBuilder< WebBrowserComponent::Options >::buildOptions ( )

inlineinherited

buildOptions() [2/3]

WebBrowserComponent::Options juce::WebToggleButtonRelay::buildOptions ( const WebBrowserComponent::Options &  initialOptions )

override

buildOptions() [3/3]

virtual WebBrowserComponent::Options OptionsBuilder< WebBrowserComponent::Options >::buildOptions ( const WebBrowserComponent::Options &  initialOptions )

pure virtualinherited

emitEvent()

void juce::WebToggleButtonRelay::emitEvent

(

const var &

payload

)

handleEvent()

void juce::WebToggleButtonRelay::handleEvent ( const var &  event )

private

removeListener()

void juce::WebToggleButtonRelay::removeListener

(

Listener *

l

)

setToggleState()

void juce::WebToggleButtonRelay::setToggleState

(

bool

newState

)

webViewConstructed()

void juce::WebToggleButtonRelay::webViewConstructed ( WebBrowserComponent *  )

overrideprivatevirtual

Called from the WebBrowserComponent constructor.

Implements juce::WebViewLifetimeListener.

webViewDestructed()

void juce::WebToggleButtonRelay::webViewDestructed ( WebBrowserComponent *  )

overrideprivatevirtual

Called from the WebBrowserComponent destructor.

Implements juce::WebViewLifetimeListener.

Member Data Documentation

browser

WebBrowserComponent* juce::WebToggleButtonRelay::browser = nullptr

private

eventId

Identifier juce::WebToggleButtonRelay::eventId { "__juce__toggle" + name }

private

listeners

ListenerList<Listener> juce::WebToggleButtonRelay::listeners

private

name

String juce::WebToggleButtonRelay::name

private

---

The documentation for this class was generated from the following file:

• juce_WebControlRelays.h
