juce::dsp::Limiter< SampleType > Class Template Reference

A simple limiter with standard threshold and release time controls, featuring two compressors and a hard clipper at 0 dB. More...

#include <juce_Limiter.h>

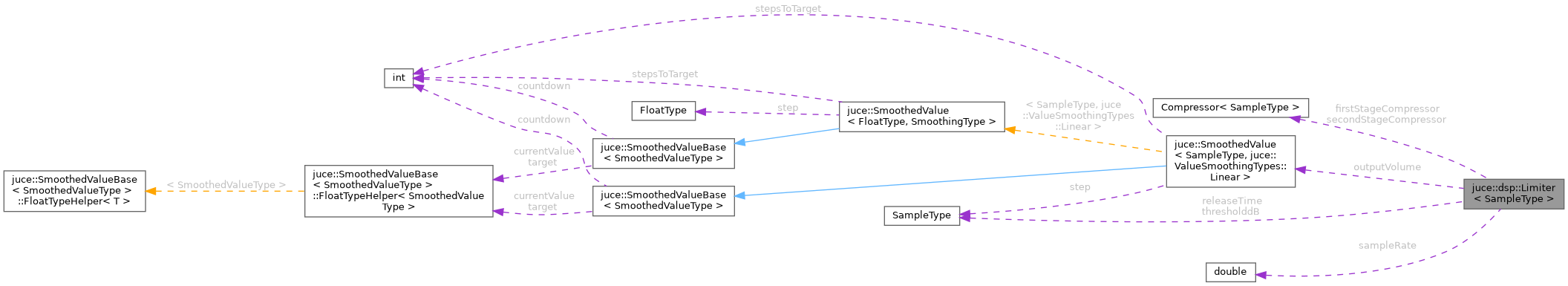

Collaboration diagram for juce::dsp::Limiter< SampleType >:

Public Member Functions
	Limiter ()=default
	Constructor.
void	prepare (const ProcessSpec &spec)
	Initialises the processor.
template<typename ProcessContext >
void	process (const ProcessContext &context) noexcept
	Processes the input and output samples supplied in the processing context.
void	reset ()
	Resets the internal state variables of the processor.
void	setRelease (SampleType newRelease)
	Sets the release time in milliseconds of the limiter.
void	setThreshold (SampleType newThreshold)
	Sets the threshold in dB of the limiter.

Private Member Functions
void	update ()

Private Attributes
Compressor< SampleType >	firstStageCompressor
SmoothedValue< SampleType, ValueSmoothingTypes::Linear >	outputVolume
SampleType	releaseTime = 100.0
double	sampleRate = 44100.0
Compressor< SampleType >	secondStageCompressor
SampleType	thresholddB = -10.0

Detailed Description

template<typename SampleType>
class juce::dsp::Limiter< SampleType >

A simple limiter with standard threshold and release time controls, featuring two compressors and a hard clipper at 0 dB.

@tags{DSP}

Constructor & Destructor Documentation

Limiter()

template<typename SampleType >

juce::dsp::Limiter< SampleType >::Limiter ( )

default

Constructor.

Member Function Documentation

prepare()

template<typename SampleType >

void juce::dsp::Limiter< SampleType >::prepare

(

const ProcessSpec &

spec

)

Initialises the processor.

process()

template<typename SampleType >

template<typename ProcessContext >

void juce::dsp::Limiter< SampleType >::process ( const ProcessContext &  context )

inlinenoexcept

Processes the input and output samples supplied in the processing context.

References juce::dsp::Limiter< SampleType >::firstStageCompressor, jassert, juce::dsp::Limiter< SampleType >::outputVolume, and juce::dsp::Limiter< SampleType >::secondStageCompressor.

reset()

template<typename SampleType >

void juce::dsp::Limiter< SampleType >::reset

(

)

Resets the internal state variables of the processor.

setRelease()

template<typename SampleType >

void juce::dsp::Limiter< SampleType >::setRelease

(

SampleType

newRelease

)

Sets the release time in milliseconds of the limiter.

setThreshold()

template<typename SampleType >

void juce::dsp::Limiter< SampleType >::setThreshold

(

SampleType

newThreshold

)

Sets the threshold in dB of the limiter.

update()

template<typename SampleType >

void juce::dsp::Limiter< SampleType >::update ( )

private

Member Data Documentation

firstStageCompressor

template<typename SampleType >

Compressor<SampleType> juce::dsp::Limiter< SampleType >::firstStageCompressor

private

Referenced by juce::dsp::Limiter< SampleType >::process().

outputVolume

template<typename SampleType >

SmoothedValue<SampleType, ValueSmoothingTypes::Linear> juce::dsp::Limiter< SampleType >::outputVolume

private

Referenced by juce::dsp::Limiter< SampleType >::process().

releaseTime

template<typename SampleType >

SampleType juce::dsp::Limiter< SampleType >::releaseTime = 100.0

private

sampleRate

template<typename SampleType >

double juce::dsp::Limiter< SampleType >::sampleRate = 44100.0

private

secondStageCompressor

template<typename SampleType >

Compressor<SampleType> juce::dsp::Limiter< SampleType >::secondStageCompressor

private

Referenced by juce::dsp::Limiter< SampleType >::process().

thresholddB

template<typename SampleType >

SampleType juce::dsp::Limiter< SampleType >::thresholddB = -10.0

private

---

The documentation for this class was generated from the following file:

• juce_Limiter.h
