juce::midi_ci::ProfileHost Class Reference

Acting as a ResponderListener, instances of this class can formulate appropriate replies to profile transactions initiated by remote devices. More...

#include <juce_CIProfileHost.h>

Inheritance diagram for juce::midi_ci::ProfileHost:

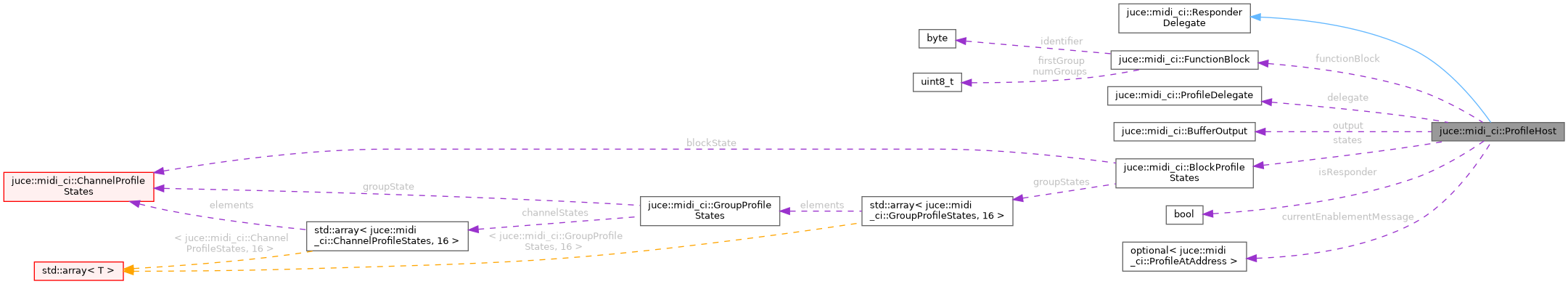

Collaboration diagram for juce::midi_ci::ProfileHost:

Public Member Functions
	ProfileHost (FunctionBlock fb, ProfileDelegate &d, BufferOutput &o)
void	addProfile (ProfileAtAddress, int maxNumChannels=1)
	Adds support for a profile on the specified group/channel with a maximum number of channels that may be activated.
const BlockProfileStates &	getProfileStates () const
	Returns the profile states (supported/active) for all groups and channels.
SupportedAndActive	getState (ProfileAtAddress profileAtAddress) const
	Returns the number of supported and active channels for the given profile on the specified group/channel.
void	removeProfile (ProfileAtAddress)
	Removes support for a profile on the specified group/channel.
void	setProfileEnablement (ProfileAtAddress, int numChannels)
	Activates or deactivates a profile on the specified group/channel.
bool	tryRespond (ResponderOutput &, const Message::Parsed &) override

Private Member Functions
void	disableProfileImpl (ProfileAtAddress)
void	enableProfileImpl (ProfileAtAddress, int)
template<typename Body >
bool	profileEnablementReceived (ResponderOutput &, const Body &)

Private Attributes
std::optional< ProfileAtAddress >	currentEnablementMessage
ProfileDelegate &	delegate
FunctionBlock	functionBlock
bool	isResponder = false
BufferOutput &	output
BlockProfileStates	states

Detailed Description

Acting as a ResponderListener, instances of this class can formulate appropriate replies to profile transactions initiated by remote devices.

ProfileHost instances also contains methods to inform remote devices about changes to local profile state.

Stores the current state of profiles on the local device.

@tags{Audio}

Constructor & Destructor Documentation

ProfileHost()

juce::midi_ci::ProfileHost::ProfileHost ( FunctionBlock  fb, ProfileDelegate &  d, BufferOutput &  o  )

inline

Rather than constructing one of these objects yourself, you should configure a Device with profile support, and then use Device::getProfileHost() to retrieve a profile host that has been set up to work with that device.

Member Function Documentation

addProfile()

void juce::midi_ci::ProfileHost::addProfile	(	ProfileAtAddress	,
		int	maxNumChannels = 1
	)

Adds support for a profile on the specified group/channel with a maximum number of channels that may be activated.

disableProfileImpl()

void juce::midi_ci::ProfileHost::disableProfileImpl ( ProfileAtAddress  )

private

enableProfileImpl()

void juce::midi_ci::ProfileHost::enableProfileImpl ( ProfileAtAddress  , int    )

private

getProfileStates()

const BlockProfileStates & juce::midi_ci::ProfileHost::getProfileStates ( ) const

inline

Returns the profile states (supported/active) for all groups and channels.

References states.

getState()

SupportedAndActive juce::midi_ci::ProfileHost::getState ( ProfileAtAddress  profileAtAddress ) const

inline

Returns the number of supported and active channels for the given profile on the specified group/channel.

If the supported channels is 0, then the profile is not supported on the group/channel.

If the active channels is 0, then the profile is inactive on the group/channel.

References juce::midi_ci::ProfileAtAddress::address, juce::midi_ci::BlockProfileStates::getStateForDestination(), juce::midi_ci::ProfileAtAddress::profile, and states.

profileEnablementReceived()

template<typename Body >

bool juce::midi_ci::ProfileHost::profileEnablementReceived ( ResponderOutput &  , const Body &    )

private

removeProfile()

void juce::midi_ci::ProfileHost::removeProfile

(

ProfileAtAddress

)

Removes support for a profile on the specified group/channel.

setProfileEnablement()

void juce::midi_ci::ProfileHost::setProfileEnablement	(	ProfileAtAddress	,
		int	numChannels
	)

Activates or deactivates a profile on the specified group/channel.

The profile should previously have been added with addProfile(). A positive value of numChannels will enable the profile, and a non-positive value will disable it. This includes group and function-block profiles; passing any positive value will enable the profile on the entire group or block.

tryRespond()

bool juce::midi_ci::ProfileHost::tryRespond ( ResponderOutput &  , const Message::Parsed &    )

overridevirtual

Implements juce::midi_ci::ResponderDelegate.

Member Data Documentation

currentEnablementMessage

std::optional<ProfileAtAddress> juce::midi_ci::ProfileHost::currentEnablementMessage

private

delegate

ProfileDelegate& juce::midi_ci::ProfileHost::delegate

private

functionBlock

FunctionBlock juce::midi_ci::ProfileHost::functionBlock

private

isResponder

bool juce::midi_ci::ProfileHost::isResponder = false

private

output

BufferOutput& juce::midi_ci::ProfileHost::output

private

states

BlockProfileStates juce::midi_ci::ProfileHost::states

private

Referenced by getProfileStates(), and getState().

---

The documentation for this class was generated from the following file:

• juce_CIProfileHost.h
