juce::midi_ci::ResponderPropertyExchangeCache Class Reference

Accumulates message chunks that form a request initiated by a remote device. More...

#include <juce_CIPropertyExchangeCache.h>

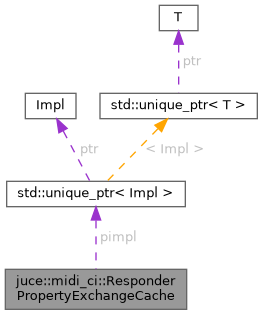

Collaboration diagram for juce::midi_ci::ResponderPropertyExchangeCache:

Public Member Functions
	ResponderPropertyExchangeCache ()
	ResponderPropertyExchangeCache (ResponderPropertyExchangeCache &&) noexcept
	~ResponderPropertyExchangeCache ()
void	addChunk (RequestID, const Message::DynamicSizePropertyExchange &chunk)
	Adds a message chunk for the provided transaction id.
int	countOngoingTransactions () const
	Returns the number of transactions that have been started but not finished.
void	notify (RequestID, Span< const std::byte > header)
	Updates the transaction state based on the contents of the provided notification.
ResponderPropertyExchangeCache &	operator= (ResponderPropertyExchangeCache &&) noexcept
void	primeCache (uint8_t maxSimultaneousTransactions, std::function< void(const PropertyExchangeResult &)> onDone, RequestID id)
	Prepares the cache for the given requestID to accumulate message chunks.

Private Attributes
std::unique_ptr< Impl >	pimpl

Detailed Description

Accumulates message chunks that form a request initiated by a remote device.

@tags{Audio}

Constructor & Destructor Documentation

ResponderPropertyExchangeCache() [1/2]

juce::midi_ci::ResponderPropertyExchangeCache::ResponderPropertyExchangeCache

(

)

~ResponderPropertyExchangeCache()

juce::midi_ci::ResponderPropertyExchangeCache::~ResponderPropertyExchangeCache

(

)

ResponderPropertyExchangeCache() [2/2]

juce::midi_ci::ResponderPropertyExchangeCache::ResponderPropertyExchangeCache ( ResponderPropertyExchangeCache &&  )

noexcept

Member Function Documentation

addChunk()

void juce::midi_ci::ResponderPropertyExchangeCache::addChunk	(	RequestID	,
		const Message::DynamicSizePropertyExchange &	chunk
	)

Adds a message chunk for the provided transaction id.

countOngoingTransactions()

int juce::midi_ci::ResponderPropertyExchangeCache::countOngoingTransactions

(

)

const

Returns the number of transactions that have been started but not finished.

notify()

void juce::midi_ci::ResponderPropertyExchangeCache::notify	(	RequestID	,
		Span< const std::byte >	header
	)

Updates the transaction state based on the contents of the provided notification.

operator=()

ResponderPropertyExchangeCache & juce::midi_ci::ResponderPropertyExchangeCache::operator= ( ResponderPropertyExchangeCache &&  )

noexcept

primeCache()

void juce::midi_ci::ResponderPropertyExchangeCache::primeCache	(	uint8_t	maxSimultaneousTransactions,
		std::function< void(const PropertyExchangeResult &)>	onDone,
		RequestID	id
	)

Prepares the cache for the given requestID to accumulate message chunks.

Incoming chunks added with addChunk are generated by another device acting as an initiator.

Member Data Documentation

pimpl

std::unique_ptr<Impl> juce::midi_ci::ResponderPropertyExchangeCache::pimpl

private

---

The documentation for this class was generated from the following file:

• juce_CIPropertyExchangeCache.h
