juce::dsp::FIR::Coefficients< NumericType > Struct Template Reference

A set of coefficients for use in an FIRFilter object. More...

#include <juce_FIRFilter.h>

Inheritance diagram for juce::dsp::FIR::Coefficients< NumericType >:

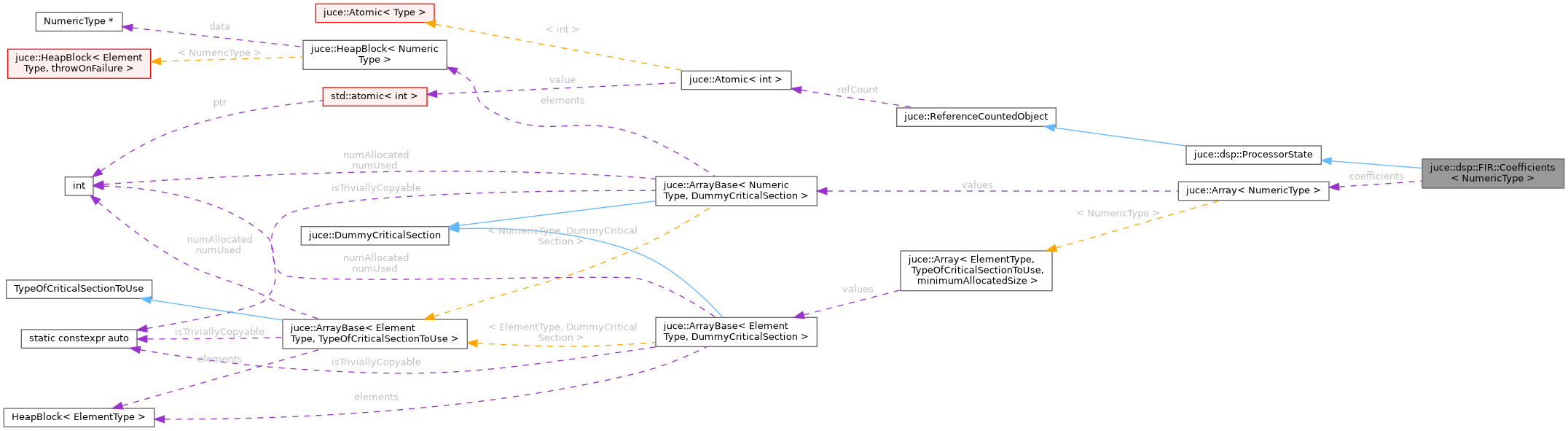

Collaboration diagram for juce::dsp::FIR::Coefficients< NumericType >:

Public Types
using	Ptr = ReferenceCountedObjectPtr< Coefficients >
	The Coefficients structure is ref-counted, so this is a handy type that can be used as a pointer to one.

Public Member Functions
	Coefficients ()
	Creates a null set of coefficients (which will produce silence).
	Coefficients (Coefficients &&)=default
	Coefficients (const Coefficients &)=default
	Coefficients (const NumericType *samples, size_t numSamples)
	Creates a set of coefficients from an array of samples.
	Coefficients (size_t size)
	Creates a null set of coefficients of a given size.
void	decReferenceCount () noexcept
	Decreases the object's reference count.
bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count.
size_t	getFilterOrder () const noexcept
	Returns the filter order associated with the coefficients.
double	getMagnitudeForFrequency (double frequency, double sampleRate) const noexcept
	Returns the magnitude frequency response of the filter for a given frequency and sample rate.
void	getMagnitudeForFrequencyArray (double *frequencies, double *magnitudes, size_t numSamples, double sampleRate) const noexcept
	Returns the magnitude frequency response of the filter for a given frequency array and sample rate.
double	getPhaseForFrequency (double frequency, double sampleRate) const noexcept
	Returns the phase frequency response of the filter for a given frequency and sample rate.
void	getPhaseForFrequencyArray (double *frequencies, double *phases, size_t numSamples, double sampleRate) const noexcept
	Returns the phase frequency response of the filter for a given frequency array and sample rate.
const NumericType *	getRawCoefficients () const noexcept
	Returns a raw data pointer to the coefficients.
NumericType *	getRawCoefficients () noexcept
	Returns a raw data pointer to the coefficients.
int	getReferenceCount () const noexcept
	Returns the object's current reference count.
void	incReferenceCount () noexcept
	Increments the object's reference count.
void	normalise () noexcept
	Scales the values of the FIR filter with the sum of the squared coefficients.
Coefficients &	operator= (Coefficients &&)=default
Coefficients &	operator= (const Coefficients &)=default

Public Attributes
Array< NumericType >	coefficients
	The raw coefficients.

Protected Member Functions
void	resetReferenceCount () noexcept
	Resets the reference count to zero without deleting the object.

Private Attributes
Atomic< int >	refCount { 0 }

Detailed Description

template<typename NumericType>
struct juce::dsp::FIR::Coefficients< NumericType >

A set of coefficients for use in an FIRFilter object.

See also

FIRFilter

@tags{DSP}

Member Typedef Documentation

Ptr

template<typename NumericType >

using juce::dsp::FIR::Coefficients< NumericType >::Ptr = ReferenceCountedObjectPtr<Coefficients>

The Coefficients structure is ref-counted, so this is a handy type that can be used as a pointer to one.

Constructor & Destructor Documentation

Coefficients() [1/5]

template<typename NumericType >

juce::dsp::FIR::Coefficients< NumericType >::Coefficients ( )

inline

Creates a null set of coefficients (which will produce silence).

Coefficients() [2/5]

template<typename NumericType >

juce::dsp::FIR::Coefficients< NumericType >::Coefficients ( size_t  size )

inline

Creates a null set of coefficients of a given size.

References juce::dsp::FIR::Coefficients< NumericType >::coefficients, and juce::Array< ElementType, TypeOfCriticalSectionToUse, minimumAllocatedSize >::resize().

Coefficients() [3/5]

template<typename NumericType >

juce::dsp::FIR::Coefficients< NumericType >::Coefficients ( const NumericType *  samples, size_t  numSamples  )

inline

Creates a set of coefficients from an array of samples.

Coefficients() [4/5]

template<typename NumericType >

juce::dsp::FIR::Coefficients< NumericType >::Coefficients ( const Coefficients< NumericType > &  )

default

Coefficients() [5/5]

template<typename NumericType >

juce::dsp::FIR::Coefficients< NumericType >::Coefficients ( Coefficients< NumericType > &&  )

default

Member Function Documentation

decReferenceCount()

void juce::ReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

decReferenceCountWithoutDeleting()

bool juce::ReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

getFilterOrder()

template<typename NumericType >

size_t juce::dsp::FIR::Coefficients< NumericType >::getFilterOrder ( ) const

inlinenoexcept

Returns the filter order associated with the coefficients.

References juce::dsp::FIR::Coefficients< NumericType >::coefficients, and juce::Array< ElementType, TypeOfCriticalSectionToUse, minimumAllocatedSize >::size().

getMagnitudeForFrequency()

template<typename NumericType >

double juce::dsp::FIR::Coefficients< NumericType >::getMagnitudeForFrequency ( double  frequency, double  sampleRate  ) const

noexcept

Returns the magnitude frequency response of the filter for a given frequency and sample rate.

getMagnitudeForFrequencyArray()

template<typename NumericType >

void juce::dsp::FIR::Coefficients< NumericType >::getMagnitudeForFrequencyArray ( double *  frequencies, double *  magnitudes, size_t  numSamples, double  sampleRate  ) const

noexcept

Returns the magnitude frequency response of the filter for a given frequency array and sample rate.

getPhaseForFrequency()

template<typename NumericType >

double juce::dsp::FIR::Coefficients< NumericType >::getPhaseForFrequency ( double  frequency, double  sampleRate  ) const

noexcept

Returns the phase frequency response of the filter for a given frequency and sample rate.

getPhaseForFrequencyArray()

template<typename NumericType >

void juce::dsp::FIR::Coefficients< NumericType >::getPhaseForFrequencyArray ( double *  frequencies, double *  phases, size_t  numSamples, double  sampleRate  ) const

noexcept

Returns the phase frequency response of the filter for a given frequency array and sample rate.

getRawCoefficients() [1/2]

template<typename NumericType >

const NumericType * juce::dsp::FIR::Coefficients< NumericType >::getRawCoefficients ( ) const

inlinenoexcept

Returns a raw data pointer to the coefficients.

References juce::Array< ElementType, TypeOfCriticalSectionToUse, minimumAllocatedSize >::begin(), and juce::dsp::FIR::Coefficients< NumericType >::coefficients.

getRawCoefficients() [2/2]

template<typename NumericType >

NumericType * juce::dsp::FIR::Coefficients< NumericType >::getRawCoefficients ( )

inlinenoexcept

Returns a raw data pointer to the coefficients.

References juce::dsp::FIR::Coefficients< NumericType >::coefficients, and juce::Array< ElementType, TypeOfCriticalSectionToUse, minimumAllocatedSize >::getRawDataPointer().

getReferenceCount()

int juce::ReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

incReferenceCount()

void juce::ReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

normalise()

template<typename NumericType >

void juce::dsp::FIR::Coefficients< NumericType >::normalise ( )

noexcept

Scales the values of the FIR filter with the sum of the squared coefficients.

operator=() [1/2]

template<typename NumericType >

Coefficients & juce::dsp::FIR::Coefficients< NumericType >::operator= ( Coefficients< NumericType > &&  )

default

operator=() [2/2]

template<typename NumericType >

Coefficients & juce::dsp::FIR::Coefficients< NumericType >::operator= ( const Coefficients< NumericType > &  )

default

resetReferenceCount()

void juce::ReferenceCountedObject::resetReferenceCount ( )

inlineprotectednoexceptinherited

Resets the reference count to zero without deleting the object.

You should probably never need to use this!

Member Data Documentation

coefficients

template<typename NumericType >

Array<NumericType> juce::dsp::FIR::Coefficients< NumericType >::coefficients

The raw coefficients.

You should leave these numbers alone unless you really know what you're doing.

Referenced by juce::dsp::FIR::Coefficients< NumericType >::Coefficients(), juce::dsp::FIR::Coefficients< NumericType >::getFilterOrder(), juce::dsp::FIR::Coefficients< NumericType >::getRawCoefficients(), and juce::dsp::FIR::Coefficients< NumericType >::getRawCoefficients().

refCount

Atomic<int> juce::ReferenceCountedObject::refCount { 0 }

privateinherited

---

The documentation for this struct was generated from the following file:

• juce_FIRFilter.h
