juce::midi_ci::PropertyReplyHeader Struct Reference

A struct containing data members that correspond to common fields in a reply to a property exchange request. More...

#include <juce_CIPropertyDelegate.h>

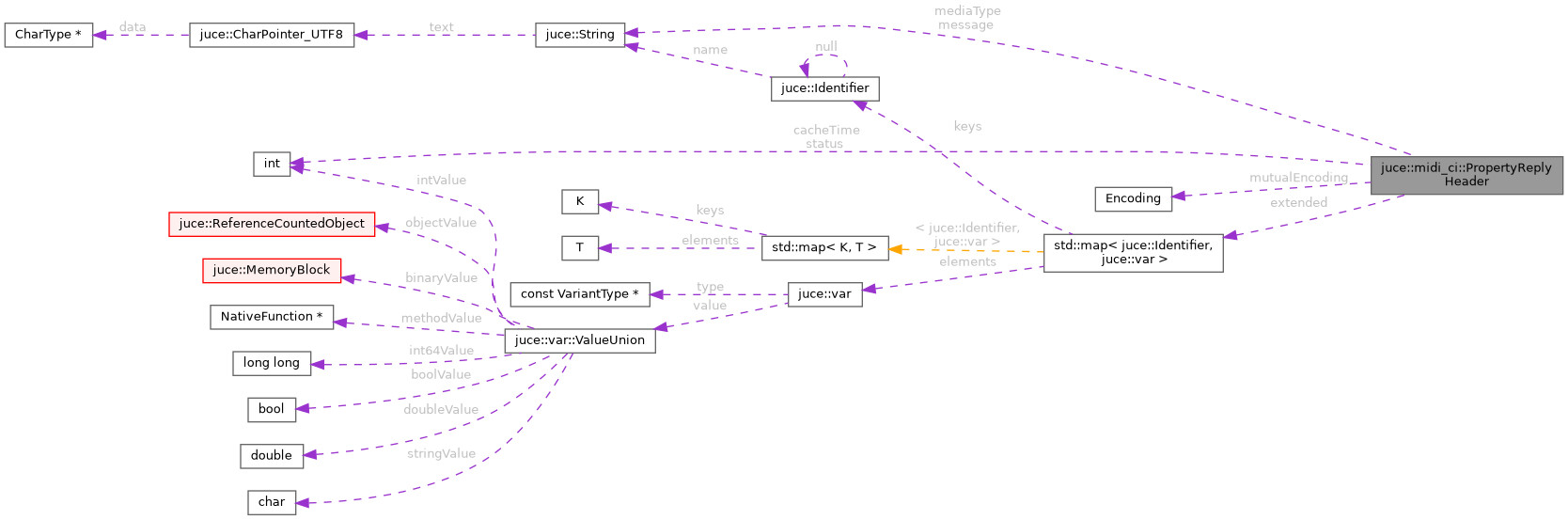

Collaboration diagram for juce::midi_ci::PropertyReplyHeader:

Public Member Functions
var	toVarCondensed () const
	Converts a PropertyReplyHeader to a JSON object suitable for use as a MIDI-CI message header after conversion to 7-bit ASCII.

Static Public Member Functions
static PropertyReplyHeader	parseCondensed (const var &)
	Converts a JSON object to a PropertyReplyHeader.

Public Attributes
int	cacheTime = 0
std::map< Identifier, var >	extended
String	mediaType = "application/json"
String	message
Encoding	mutualEncoding = Encoding::ascii
int	status = 200

Detailed Description

A struct containing data members that correspond to common fields in a reply to a property exchange request.

Check the Property Exchange specification to find the meaning of the different fields.

For extended attributes that don't correspond to any of the defined data members, use the 'extended' map.

@tags{Audio}

Member Function Documentation

parseCondensed()

static PropertyReplyHeader juce::midi_ci::PropertyReplyHeader::parseCondensed ( const var &  )

static

Converts a JSON object to a PropertyReplyHeader.

Unspecified fields will use their default values.

Referenced by juce::midi_ci::PropertyExchangeResult::getHeaderAsReplyHeader().

toVarCondensed()

var juce::midi_ci::PropertyReplyHeader::toVarCondensed

(

)

const

Converts a PropertyReplyHeader to a JSON object suitable for use as a MIDI-CI message header after conversion to 7-bit ASCII.

Member Data Documentation

cacheTime

int juce::midi_ci::PropertyReplyHeader::cacheTime = 0

extended

std::map<Identifier, var> juce::midi_ci::PropertyReplyHeader::extended

mediaType

String juce::midi_ci::PropertyReplyHeader::mediaType = "application/json"

message

String juce::midi_ci::PropertyReplyHeader::message

mutualEncoding

Encoding juce::midi_ci::PropertyReplyHeader::mutualEncoding = Encoding::ascii

status

int juce::midi_ci::PropertyReplyHeader::status = 200

---

The documentation for this struct was generated from the following file:

• juce_CIPropertyDelegate.h
