cv::WImageC< T, C > Class Template Reference

Image class when both the pixel type and number of channels are known at compile time. More...

#include "wimage.hpp"

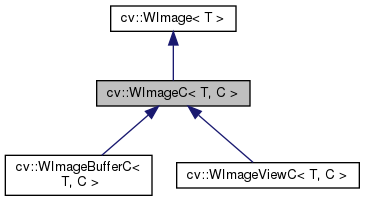

Inheritance diagram for cv::WImageC< T, C >:

Collaboration diagram for cv::WImageC< T, C >:

Public Types
enum	{ kChannels = C }
typedef WImage< T >::BaseType	BaseType

Public Member Functions
	WImageC (IplImage *img)
virtual	~WImageC ()=0
int	Channels () const
int	ChannelSize () const
void	CopyFrom (const WImage< T > &src)
void	CopyFrom (const WImageC< T, C > &src)
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
int	Height () const
T *	ImageData ()
const T *	ImageData () const
IplImage *	Ipl ()
const IplImage *	Ipl () const
T *	operator() (int c, int r)
const T *	operator() (int c, int r) const
int	PixelSize () const
const T *	Row (int r) const
T *	Row (int r)
void	SetZero ()
WImageViewC< T, C >	View (int c, int r, int width, int height)
int	Width () const
int	WidthStep () const

Protected Member Functions
	WImageC (const WImageC &)
void	operator= (const WImageC &)
void	SetIpl (IplImage *image)

Protected Attributes
IplImage *	image_

Detailed Description

template<typename T, int C>
class cv::WImageC< T, C >

Image class when both the pixel type and number of channels are known at compile time.

This wrapper will speed up some of the operations like accessing individual pixels using the () operator.

Member Typedef Documentation

BaseType

template<typename T, int C>

typedef WImage<T>::BaseType cv::WImageC< T, C >::BaseType

Member Enumeration Documentation

anonymous enum

template<typename T, int C>

anonymous enum

Enumerator
kChannels

Constructor & Destructor Documentation

WImageC() [1/2]

template<typename T, int C>

cv::WImageC< T, C >::WImageC ( IplImage *  img )

inlineexplicit

References cv::WImage< T >::Channels(), IplImage::nChannels, and cv::WImage< T >::View().

Here is the call graph for this function:

WImageC() [2/2]

template<typename T, int C>

cv::WImageC< T, C >::WImageC ( const WImageC< T, C > &  )

protected

Member Function Documentation

Channels()

template<typename T, int C>

int cv::WImageC< T, C >::Channels ( ) const

inline

References cv::WImage< T >::operator=().

Here is the call graph for this function:

ChannelSize()

template<typename T>

int cv::WImage< T >::ChannelSize ( ) const

inlineinherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

CopyFrom() [1/2]

template<typename T>

void cv::WImage< T >::CopyFrom ( const WImage< T > &  src )

inlineinherited

References cvCopy(), cv::WImage< T >::image_, and cv::WImage< T >::Ipl().

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

CopyFrom() [2/2]

template<typename T, int C>

void cv::WImageC< T, C >::CopyFrom ( const WImageC< T, C > &  src )

inline

References cvCopy(), and cv::WImage< T >::Ipl().

Here is the call graph for this function:

Depth() [1/8]

template<typename T>

int cv::WImage< T >::Depth ( ) const

inherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

Depth() [2/8]

template<>

int cv::WImage< uchar >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8U.

Depth() [3/8]

template<>

int cv::WImage< signed char >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8S.

Depth() [4/8]

template<>

int cv::WImage< short >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16S.

Depth() [5/8]

template<>

int cv::WImage< ushort >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16U.

Depth() [6/8]

template<>

int cv::WImage< int >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32S.

Depth() [7/8]

template<>

int cv::WImage< float >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32F.

Depth() [8/8]

template<>

int cv::WImage< double >::Depth ( ) const

inlineinherited

References IPL_DEPTH_64F.

Height()

template<typename T>

int cv::WImage< T >::Height ( ) const

inlineinherited

References IplImage::height, and cv::WImage< T >::image_.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

ImageData() [1/2]

template<typename T>

T* cv::WImage< T >::ImageData ( )

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

ImageData() [2/2]

template<typename T>

const T* cv::WImage< T >::ImageData ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

Ipl() [1/2]

template<typename T>

IplImage* cv::WImage< T >::Ipl ( )

inlineinherited

References cv::WImage< T >::image_.

Referenced by cv::WImage< T >::CopyFrom(), cv::WImageC< T, C >::CopyFrom(), cv::WImageView< T >::operator=(), cv::WImageViewC< T, C >::operator=(), cv::WImageView< T >::WImageView(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the caller graph for this function:

Ipl() [2/2]

template<typename T>

const IplImage* cv::WImage< T >::Ipl ( ) const

inlineinherited

References cv::WImage< T >::image_.

operator()() [1/2]

template<typename T>

T* cv::WImage< T >::operator() ( int  c, int  r  )

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

operator()() [2/2]

template<typename T>

const T* cv::WImage< T >::operator() ( int  c, int  r  ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

operator=()

template<typename T, int C>

void cv::WImageC< T, C >::operator= ( const WImageC< T, C > &  )

protected

PixelSize()

template<typename T>

int cv::WImage< T >::PixelSize ( ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::ChannelSize(), and cv::WImage< T >::Depth().

Here is the call graph for this function:

Row() [1/2]

template<typename T>

const T* cv::WImage< T >::Row ( int  r ) const

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Row() [2/2]

template<typename T>

T* cv::WImage< T >::Row ( int  r )

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

SetIpl()

template<typename T, int C>

void cv::WImageC< T, C >::SetIpl ( IplImage *  image )

inlineprotected

References IplImage::depth, and cv::WImage< T >::SetIpl().

Referenced by cv::WImageBufferC< T, C >::Allocate(), cv::WImageViewC< T, C >::operator=(), cv::WImageBufferC< T, C >::ReleaseImage(), cv::WImageBufferC< T, C >::SetIpl(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the call graph for this function:

Here is the caller graph for this function:

SetZero()

template<typename T>

void cv::WImage< T >::SetZero ( )

inlineinherited

References cvSetZero(), cv::WImage< T >::image_, cv::WImage< T >::operator=(), cv::WImage< T >::View(), and cv::WImage< T >::WImage().

Here is the call graph for this function:

Width()

template<typename T>

int cv::WImage< T >::Width ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::width.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

WidthStep()

template<typename T>

int cv::WImage< T >::WidthStep ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::widthStep.

Member Data Documentation

image_

template<typename T>

IplImage* cv::WImage< T >::image_

protectedinherited

Referenced by cv::WImage< T >::Channels(), cv::WImage< T >::CopyFrom(), cv::WImage< T >::Height(), cv::WImage< T >::ImageData(), cv::WImage< T >::Ipl(), cv::WImage< T >::operator()(), cv::WImage< T >::Row(), cv::WImage< T >::SetIpl(), cv::WImage< T >::SetZero(), cv::WImage< T >::Width(), and cv::WImage< T >::WidthStep().

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/wimage.hpp
