cv::detail::AffineWarper Class Reference

Affine warper that uses rotations and translations. More...

#include <opencv2/stitching/detail/warpers.hpp>

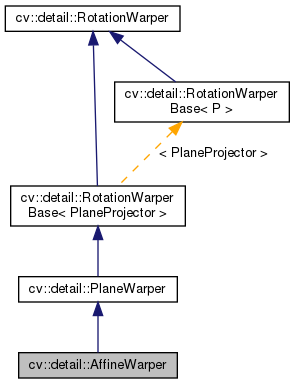

Inheritance diagram for cv::detail::AffineWarper:

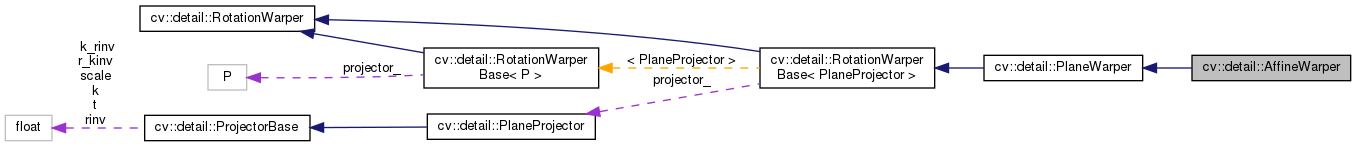

Collaboration diagram for cv::detail::AffineWarper:

Public Member Functions

 AffineWarper (float scale=1.f)
 Construct an instance of the affine warper class. More...

virtual Rect buildMaps (Size src_size, InputArray K, InputArray R, InputArray T, OutputArray xmap, OutputArray ymap)

Rect buildMaps (Size src_size, InputArray K, InputArray R, OutputArray xmap, OutputArray ymap) CV_OVERRIDE
 Builds the projection maps according to the given camera data. More...

float getScale () const CV_OVERRIDE

void setScale (float val) CV_OVERRIDE

virtual Point warp (InputArray src, InputArray K, InputArray R, InputArray T, int interp_mode, int border_mode, OutputArray dst)

Point warp (InputArray src, InputArray K, InputArray R, int interp_mode, int border_mode, OutputArray dst) CV_OVERRIDE
 Projects the image. More...

void warpBackward (InputArray src, InputArray K, InputArray R, int interp_mode, int border_mode, Size dst_size, OutputArray dst) CV_OVERRIDE
 Projects the image backward. More...

Point2f warpPoint (const Point2f &pt, InputArray K, InputArray R, InputArray T)

Point2f warpPoint (const Point2f &pt, InputArray K, InputArray R) CV_OVERRIDE
 Projects the image point. More...

Rect warpRoi (Size src_size, InputArray K, InputArray R, InputArray T)

Rect warpRoi (Size src_size, InputArray K, InputArray R) CV_OVERRIDE


Protected Member Functions

void detectResultRoi (Size src_size, Point &dst_tl, Point &dst_br) CV_OVERRIDE

void detectResultRoiByBorder (Size src_size, Point &dst_tl, Point &dst_br)

void getRTfromHomogeneous (InputArray H, Mat &R, Mat &T)
 Extracts rotation and translation matrices from matrix H representing affine transformation in homogeneous coordinates. More...


Protected Attributes

PlaneProjector projector_


Detailed Description

Affine warper that uses rotations and translations.

Uses affine transformation in homogeneous coordinates to represent both rotation and translation in camera rotation matrix.

Constructor & Destructor Documentation

◆ AffineWarper()

cv::detail::AffineWarper::AffineWarper ( float  scale = 1.f)
inline

Construct an instance of the affine warper class.

Parameters
scaleProjected image scale multiplier

References CV_OUT, and CV_OVERRIDE.

Member Function Documentation

◆ buildMaps() [1/2]

virtual Rect cv::detail::PlaneWarper::buildMaps ( Size  src_size,
InputArray  K,
InputArray  R,
InputArray  T,
OutputArray  xmap,
OutputArray  ymap
)
virtualinherited

Reimplemented in cv::detail::PlaneWarperGpu.

◆ buildMaps() [2/2]

Rect cv::detail::AffineWarper::buildMaps ( Size  src_size,
InputArray  K,
InputArray  R,
OutputArray  xmap,
OutputArray  ymap
)
virtual

Builds the projection maps according to the given camera data.

Parameters
src_sizeSource image size
KCamera intrinsic parameters
RCamera rotation matrix
xmapProjection map for the x axis
ymapProjection map for the y axis
Returns
Projected image minimum bounding box

Reimplemented from cv::detail::PlaneWarper.

◆ detectResultRoi()

void cv::detail::PlaneWarper::detectResultRoi ( Size  src_size,
Point dst_tl,
Point dst_br
)
protectedvirtualinherited

◆ detectResultRoiByBorder()

void cv::detail::RotationWarperBase< PlaneProjector >::detectResultRoiByBorder ( Size  src_size,
Point dst_tl,
Point dst_br
)
protectedinherited

◆ getRTfromHomogeneous()

void cv::detail::AffineWarper::getRTfromHomogeneous ( InputArray  H,
Mat R,
Mat T
)
protected

Extracts rotation and translation matrices from matrix H representing affine transformation in homogeneous coordinates.

◆ getScale()

float cv::detail::RotationWarperBase< PlaneProjector >::getScale ( ) const
inlinevirtualinherited

Reimplemented from cv::detail::RotationWarper.

◆ setScale()

void cv::detail::RotationWarperBase< PlaneProjector >::setScale ( float  val)
inlinevirtualinherited

Reimplemented from cv::detail::RotationWarper.

◆ warp() [1/2]

virtual Point cv::detail::PlaneWarper::warp ( InputArray  src,
InputArray  K,
InputArray  R,
InputArray  T,
int  interp_mode,
int  border_mode,
OutputArray  dst
)
virtualinherited

Reimplemented in cv::detail::PlaneWarperGpu.

◆ warp() [2/2]

Point cv::detail::AffineWarper::warp ( InputArray  src,
InputArray  K,
InputArray  R,
int  interp_mode,
int  border_mode,
OutputArray  dst
)
virtual

Projects the image.

Parameters
srcSource image
KCamera intrinsic parameters
RCamera rotation matrix
interp_modeInterpolation mode
border_modeBorder extrapolation mode
dstProjected image
Returns
Project image top-left corner

Reimplemented from cv::detail::PlaneWarper.

◆ warpBackward()

void cv::detail::RotationWarperBase< PlaneProjector >::warpBackward ( InputArray  src,
InputArray  K,
InputArray  R,
int  interp_mode,
int  border_mode,
Size  dst_size,
OutputArray  dst
)
virtualinherited

Projects the image backward.

Parameters
srcProjected image
KCamera intrinsic parameters
RCamera rotation matrix
interp_modeInterpolation mode
border_modeBorder extrapolation mode
dst_sizeBackward-projected image size
dstBackward-projected image

Implements cv::detail::RotationWarper.

◆ warpPoint() [1/2]

Point2f cv::detail::PlaneWarper::warpPoint ( const Point2f pt,
InputArray  K,
InputArray  R,
InputArray  T
)
inherited

◆ warpPoint() [2/2]

Point2f cv::detail::AffineWarper::warpPoint ( const Point2f pt,
InputArray  K,
InputArray  R
)
virtual

Projects the image point.

Parameters
ptSource point
KCamera intrinsic parameters
RCamera rotation matrix
Returns
Projected point

Reimplemented from cv::detail::PlaneWarper.

◆ warpRoi() [1/2]

Rect cv::detail::PlaneWarper::warpRoi ( Size  src_size,
InputArray  K,
InputArray  R,
InputArray  T
)
inherited

◆ warpRoi() [2/2]

Rect cv::detail::AffineWarper::warpRoi ( Size  src_size,
InputArray  K,
InputArray  R
)
virtual
Parameters
src_sizeSource image bounding box
KCamera intrinsic parameters
RCamera rotation matrix
Returns
Projected image minimum bounding box

Reimplemented from cv::detail::PlaneWarper.

Member Data Documentation

◆ projector_
