cv::detail::BestOf2NearestRangeMatcher Class Reference

#include <opencv2/stitching/detail/matchers.hpp>

Inheritance diagram for cv::detail::BestOf2NearestRangeMatcher:

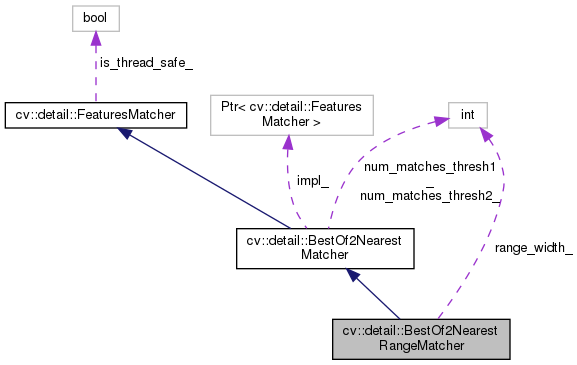

Collaboration diagram for cv::detail::BestOf2NearestRangeMatcher:

Public Member Functions
	BestOf2NearestRangeMatcher (int range_width=5, bool try_use_gpu=false, float match_conf=0.3f, int num_matches_thresh1=6, int num_matches_thresh2=6)
void	collectGarbage () CV_OVERRIDE
	Frees unused memory allocated before if there is any. More...
bool	isThreadSafe () const
void	operator() (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
void	operator() (const std::vector< ImageFeatures > &features, std::vector< MatchesInfo > &pairwise_matches, const cv::UMat &mask=cv::UMat())

Static Public Member Functions
static Ptr< BestOf2NearestMatcher >	create (bool try_use_gpu=false, float match_conf=0.3f, int num_matches_thresh1=6, int num_matches_thresh2=6)

Protected Member Functions
void	match (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info) CV_OVERRIDE
	This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work. More...

Protected Attributes
Ptr< FeaturesMatcher >	impl_
bool	is_thread_safe_
int	num_matches_thresh1_
int	num_matches_thresh2_
int	range_width_

Constructor & Destructor Documentation

BestOf2NearestRangeMatcher()

cv::detail::BestOf2NearestRangeMatcher::BestOf2NearestRangeMatcher	(	int	range_width = 5,
		bool	try_use_gpu = false,
		float	match_conf = 0.3f,
		int	num_matches_thresh1 = 6,
		int	num_matches_thresh2 = 6
	)

Member Function Documentation

collectGarbage()

void cv::detail::BestOf2NearestMatcher::collectGarbage ( )

virtualinherited

Frees unused memory allocated before if there is any.

Reimplemented from cv::detail::FeaturesMatcher.

create()

static Ptr<BestOf2NearestMatcher> cv::detail::BestOf2NearestMatcher::create ( bool  try_use_gpu = false, float  match_conf = 0.3f, int  num_matches_thresh1 = 6, int  num_matches_thresh2 = 6  )

staticinherited

isThreadSafe()

bool cv::detail::FeaturesMatcher::isThreadSafe ( ) const

inlineinherited

Returns

True, if it's possible to use the same matcher instance in parallel, false otherwise

match()

void cv::detail::BestOf2NearestMatcher::match ( const ImageFeatures &  features1, const ImageFeatures &  features2, MatchesInfo &  matches_info  )

protectedvirtualinherited

This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work.

Parameters

features1	first image features
features2	second image features
matches_info	found matches

Implements cv::detail::FeaturesMatcher.

Reimplemented in cv::detail::AffineBestOf2NearestMatcher.

operator()() [1/2]

void cv::detail::FeaturesMatcher::operator() ( const ImageFeatures &  features1, const ImageFeatures &  features2, MatchesInfo &  matches_info  )

inlineinherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

features1	First image features
features2	Second image features
matches_info	Found matches

References CV_OUT, CV_WRAP_AS, and cv::gapi::mask().

Here is the call graph for this function:

operator()() [2/2]

void cv::detail::BestOf2NearestRangeMatcher::operator()	(	const std::vector< ImageFeatures > &	features,
		std::vector< MatchesInfo > &	pairwise_matches,
		const cv::UMat &	mask = cv::UMat()
	)

Member Data Documentation

impl_

Ptr<FeaturesMatcher> cv::detail::BestOf2NearestMatcher::impl_

protectedinherited

is_thread_safe_

bool cv::detail::FeaturesMatcher::is_thread_safe_

protectedinherited

num_matches_thresh1_

int cv::detail::BestOf2NearestMatcher::num_matches_thresh1_

protectedinherited

num_matches_thresh2_

int cv::detail::BestOf2NearestMatcher::num_matches_thresh2_

protectedinherited

range_width_

int cv::detail::BestOf2NearestRangeMatcher::range_width_

protected

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/matchers.hpp
