cv::detail::PairwiseSeamFinder Class Reference

Base class for all pairwise seam estimators. More...

#include <opencv2/stitching/detail/seam_finders.hpp>

Inheritance diagram for cv::detail::PairwiseSeamFinder:

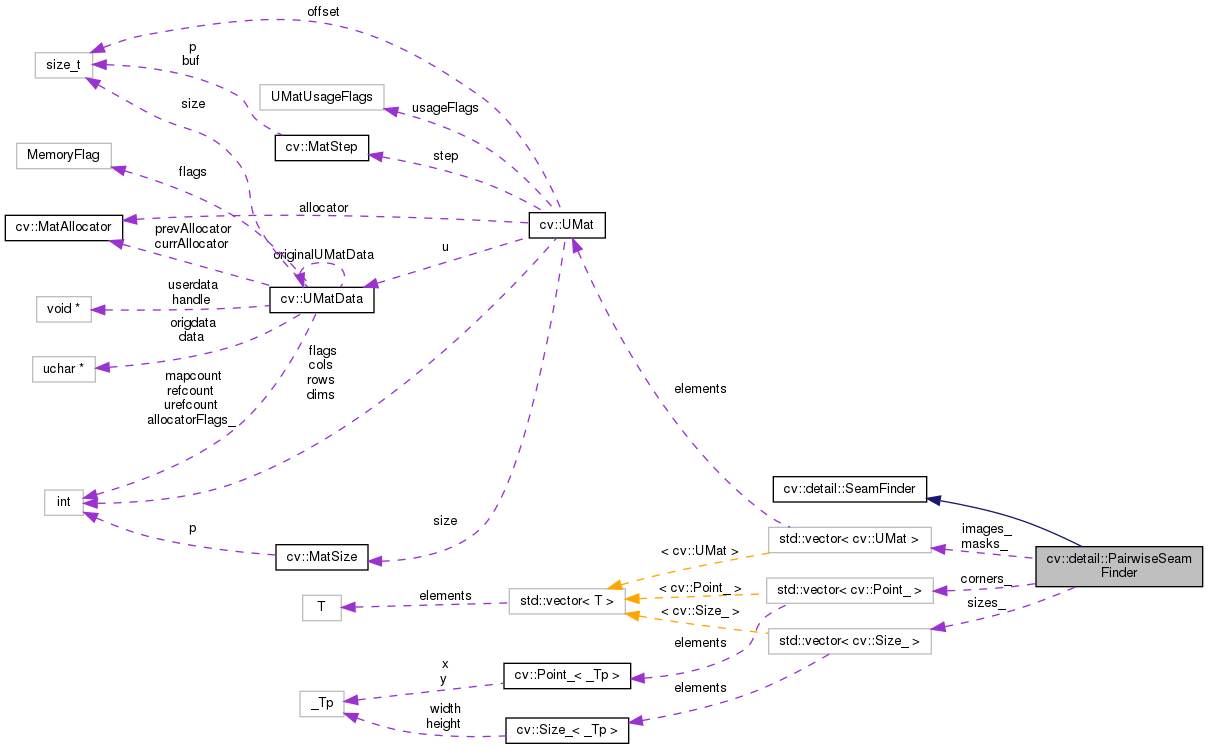

Collaboration diagram for cv::detail::PairwiseSeamFinder:

Public Types
enum	{   NO,   VORONOI_SEAM,   DP_SEAM }

Public Member Functions
virtual void	find (const std::vector< UMat > &src, const std::vector< Point > &corners, std::vector< UMat > &masks) CV_OVERRIDE
	Estimates seams. More...

Static Public Member Functions
static Ptr< SeamFinder >	createDefault (int type)

Protected Member Functions
virtual void	findInPair (size_t first, size_t second, Rect roi)=0
	Resolves masks intersection of two specified images in the given ROI. More...
void	run ()

Protected Attributes
std::vector< Point >	corners_
std::vector< UMat >	images_
std::vector< UMat >	masks_
std::vector< Size >	sizes_

Detailed Description

Base class for all pairwise seam estimators.

Member Enumeration Documentation

anonymous enum

anonymous enum

inherited

Enumerator
NO
VORONOI_SEAM
DP_SEAM

Member Function Documentation

createDefault()

static Ptr<SeamFinder> cv::detail::SeamFinder::createDefault ( int  type )

staticinherited

find()

virtual void cv::detail::PairwiseSeamFinder::find ( const std::vector< UMat > &  src, const std::vector< Point > &  corners, std::vector< UMat > &  masks  )

virtual

Estimates seams.

Parameters

src	Source images
corners	Source image top-left corners
masks	Source image masks to update

Implements cv::detail::SeamFinder.

Reimplemented in cv::detail::VoronoiSeamFinder.

findInPair()

virtual void cv::detail::PairwiseSeamFinder::findInPair ( size_t  first, size_t  second, Rect  roi  )

protectedpure virtual

Resolves masks intersection of two specified images in the given ROI.

Parameters

first	First image index
second	Second image index
roi	Region of interest

run()

void cv::detail::PairwiseSeamFinder::run ( )

protected

Member Data Documentation

corners_

std::vector<Point> cv::detail::PairwiseSeamFinder::corners_

protected

images_

std::vector<UMat> cv::detail::PairwiseSeamFinder::images_

protected

masks_

std::vector<UMat> cv::detail::PairwiseSeamFinder::masks_

protected

sizes_

std::vector<Size> cv::detail::PairwiseSeamFinder::sizes_

protected

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/seam_finders.hpp
