cvflann::UniqueResultSet< DistanceType > Class Template Reference

Class that holds the k NN neighbors Faster than KNNResultSet as it uses a binary heap and does not maintain two arrays. More...

#include <opencv2/flann/result_set.h>

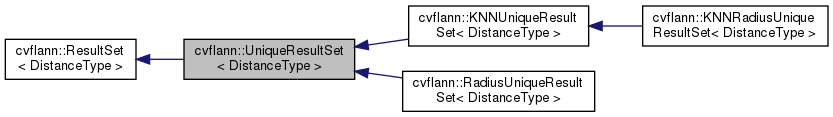

Inheritance diagram for cvflann::UniqueResultSet< DistanceType >:

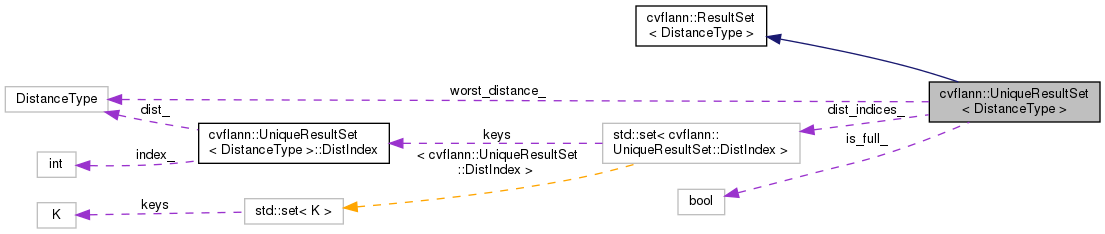

Collaboration diagram for cvflann::UniqueResultSet< DistanceType >:

Classes
struct	DistIndex

Public Member Functions
	UniqueResultSet ()
	Default cosntructor. More...
virtual void	addPoint (DistanceType dist, int index)=0
virtual void	clear ()=0
	Remove all elements in the set. More...
virtual void	copy (int *indices, DistanceType *dist, int n_neighbors=-1) const
	Copy the set to two C arrays. More...
bool	full () const CV_OVERRIDE
	Check the status of the set. More...
size_t	size () const
	The number of neighbors in the set. More...
virtual void	sortAndCopy (int *indices, DistanceType *dist, int n_neighbors=-1) const
	Copy the set to two C arrays but sort it according to the distance first. More...
DistanceType	worstDist () const CV_OVERRIDE
	The distance of the furthest neighbor If we don't have enough neighbors, it returns the max possible value. More...

Protected Attributes
std::set< DistIndex >	dist_indices_
	The best candidates so far. More...
bool	is_full_
	Flag to say if the set is full. More...
DistanceType	worst_distance_
	The worst distance found so far. More...

Detailed Description

template<typename DistanceType>
class cvflann::UniqueResultSet< DistanceType >

Class that holds the k NN neighbors Faster than KNNResultSet as it uses a binary heap and does not maintain two arrays.

Constructor & Destructor Documentation

UniqueResultSet()

template<typename DistanceType >

cvflann::UniqueResultSet< DistanceType >::UniqueResultSet ( )

inline

Default cosntructor.

Member Function Documentation

addPoint()

template<typename DistanceType>

virtual void cvflann::ResultSet< DistanceType >::addPoint ( DistanceType  dist, int  index  )

pure virtualinherited

Implemented in cvflann::RadiusUniqueResultSet< DistanceType >, cvflann::KNNUniqueResultSet< DistanceType >, cvflann::RadiusResultSet< DistanceType >, cvflann::KNNResultSet< DistanceType >, and cvflann::KNNSimpleResultSet< DistanceType >.

Referenced by cvflann::LshIndex< Distance >::findNeighbors(), cvflann::KDTreeSingleIndex< Distance >::findNeighbors(), cvflann::KDTreeIndex< Distance >::getParameters(), cvflann::KMeansIndex< Distance >::getParameters(), and cvflann::HierarchicalClusteringIndex< Distance >::getParameters().

Here is the caller graph for this function:

clear()

template<typename DistanceType >

virtual void cvflann::UniqueResultSet< DistanceType >::clear ( )

pure virtual

Remove all elements in the set.

Implemented in cvflann::KNNRadiusUniqueResultSet< DistanceType >, cvflann::RadiusUniqueResultSet< DistanceType >, and cvflann::KNNUniqueResultSet< DistanceType >.

copy()

template<typename DistanceType >

virtual void cvflann::UniqueResultSet< DistanceType >::copy ( int *  indices, DistanceType *  dist, int  n_neighbors = -1  ) const

inlinevirtual

Copy the set to two C arrays.

Parameters

indices	pointer to a C array of indices
dist	pointer to a C array of distances
n_neighbors	the number of neighbors to copy

Referenced by cvflann::NNIndex< cv::L1< ElementType > >::knnSearch(), cvflann::LshIndex< Distance >::knnSearch(), and cvflann::NNIndex< cv::L1< ElementType > >::radiusSearch().

Here is the caller graph for this function:

full()

template<typename DistanceType >

bool cvflann::UniqueResultSet< DistanceType >::full ( ) const

inlinevirtual

Check the status of the set.

Returns

true if we have k NN

Implements cvflann::ResultSet< DistanceType >.

Reimplemented in cvflann::RadiusUniqueResultSet< DistanceType >.

size()

template<typename DistanceType >

size_t cvflann::UniqueResultSet< DistanceType >::size ( ) const

inline

The number of neighbors in the set.

Returns

Referenced by cvflann::NNIndex< cv::L1< ElementType > >::radiusSearch().

Here is the caller graph for this function:

sortAndCopy()

template<typename DistanceType >

virtual void cvflann::UniqueResultSet< DistanceType >::sortAndCopy ( int *  indices, DistanceType *  dist, int  n_neighbors = -1  ) const

inlinevirtual

Copy the set to two C arrays but sort it according to the distance first.

Parameters

indices	pointer to a C array of indices
dist	pointer to a C array of distances
n_neighbors	the number of neighbors to copy

Referenced by cvflann::NNIndex< cv::L1< ElementType > >::knnSearch(), cvflann::LshIndex< Distance >::knnSearch(), and cvflann::NNIndex< cv::L1< ElementType > >::radiusSearch().

Here is the caller graph for this function:

worstDist()

template<typename DistanceType >

DistanceType cvflann::UniqueResultSet< DistanceType >::worstDist ( ) const

inlinevirtual

The distance of the furthest neighbor If we don't have enough neighbors, it returns the max possible value.

Returns

Implements cvflann::ResultSet< DistanceType >.

Reimplemented in cvflann::RadiusUniqueResultSet< DistanceType >.

Member Data Documentation

dist_indices_

template<typename DistanceType >

std::set<DistIndex> cvflann::UniqueResultSet< DistanceType >::dist_indices_

protected

The best candidates so far.

is_full_

template<typename DistanceType >

bool cvflann::UniqueResultSet< DistanceType >::is_full_

protected

Flag to say if the set is full.

worst_distance_

template<typename DistanceType >

DistanceType cvflann::UniqueResultSet< DistanceType >::worst_distance_

protected

The worst distance found so far.

---

The documentation for this class was generated from the following file:

• opencv2/flann/result_set.h
