G-API Graph Compilation Arguments

Compilation arguments: a set of data structures which can be passed to control compilation process. More...

Collaboration diagram for G-API Graph Compilation Arguments:

Classes

struct  cv::GCompileArg
 Represents an arbitrary compilation argument. More...

class  cv::gapi::GKernelPackage
 A container class for heterogeneous kernel implementation collections and graph transformations. More...

struct  cv::graph_dump_path
 Ask G-API to dump compiled graph in Graphviz format under the given file name. More...


Typedefs

using cv::GCompileArgs = std::vector< GCompileArg >


Functions

template<typename... Ts>
GCompileArgs cv::compile_args (Ts &&... args)
 Wraps a list of arguments (a parameter pack) into a vector of compilation arguments (cv::GCompileArg). More...

template<typename... KK>
GKernelPackage cv::gapi::kernels ()
 Create a kernel package object containing kernels and transformations specified in variadic template argument. More...


Detailed Description

Compilation arguments: a set of data structures which can be passed to control compilation process.

G-API comes with a number of graph compilation options which can be passed to cv::GComputation::apply() or cv::GComputation::compile(). Known compilation options are listed in this page, while extra backends may introduce their own compilation options (G-API transparently accepts everything which can be passed to cv::compile_args(), it depends on underlying backends if an option would be interpreted or not).

For example, if an example computation is executed like this:

cv::GComputation sobelEdge(cv::GIn(in), cv::GOut(out));
sobelEdge.apply(input, output);

Extra parameter specifying which kernels to compile with can be passed like this:

Typedef Documentation

◆ GCompileArgs

using cv::GCompileArgs = typedef std::vector<GCompileArg>

#include <opencv2/gapi/gcommon.hpp>

Function Documentation

◆ compile_args()

template<typename... Ts>
GCompileArgs cv::compile_args ( Ts &&...  args)

#include <opencv2/gapi/gcommon.hpp>

Wraps a list of arguments (a parameter pack) into a vector of compilation arguments (cv::GCompileArg).

◆ kernels()

template<typename... KK>
GKernelPackage cv::gapi::kernels ( )

#include <opencv2/gapi/gkernel.hpp>

Create a kernel package object containing kernels and transformations specified in variadic template argument.

In G-API, kernel implementations and transformations are types. Every backend has its own kernel API (like GAPI_OCV_KERNEL() and GAPI_FLUID_KERNEL()) but all of that APIs define a new type for each kernel implementation.

Use this function to pass kernel implementations (defined in either way) and transformations to the system. Example:

< CustomAdd
, CustomFilter2D
, CustomRGB2YUV
>();

Note that kernels() itself is a function returning object, not a type, so having () at the end is important – it must be a function call.

References cv::gapi::combine(), cv::gapi::GKernelPackage::include(), and cv::util::suppress_unused_warning().

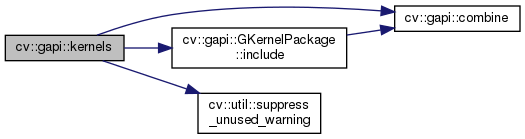

Here is the call graph for this function:
