cv::GMatDesc Struct Reference

#include <opencv2/gapi/gmat.hpp>

Collaboration diagram for cv::GMatDesc:

Public Member Functions
	GMatDesc (int d, int c, cv::gapi::own::Size s, bool p=false)
	GMatDesc ()
GMatDesc	asInterleaved () const
GMatDesc	asPlanar () const
GMatDesc	asPlanar (int planes) const
bool	canDescribe (const cv::gapi::own::Mat &mat) const
bool	canDescribe (const cv::Mat &mat) const
bool	operator!= (const GMatDesc &rhs) const
bool	operator== (const GMatDesc &rhs) const
GMatDesc	withDepth (int ddepth) const
GMatDesc	withSize (cv::Size sz) const
GMatDesc	withSize (cv::gapi::own::Size sz) const
GMatDesc	withSizeDelta (cv::gapi::own::Size delta) const
GMatDesc	withSizeDelta (cv::Size delta) const
GMatDesc	withSizeDelta (int dx, int dy) const
GMatDesc	withType (int ddepth, int dchan) const

Public Attributes
int	chan
int	depth
bool	planar
cv::gapi::own::Size	size

Constructor & Destructor Documentation

GMatDesc() [1/2]

cv::GMatDesc::GMatDesc ( int  d, int  c, cv::gapi::own::Size  s, bool  p = false  )

inline

GMatDesc() [2/2]

cv::GMatDesc::GMatDesc ( )

inline

Member Function Documentation

asInterleaved()

GMatDesc cv::GMatDesc::asInterleaved ( ) const

inline

References planar.

asPlanar() [1/2]

GMatDesc cv::GMatDesc::asPlanar ( ) const

inline

References planar.

Referenced by asPlanar(), and cv::gapi::imgproc::G_TYPED_KERNEL().

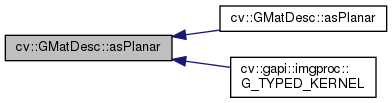

Here is the caller graph for this function:

asPlanar() [2/2]

GMatDesc cv::GMatDesc::asPlanar ( int  planes ) const

inline

References asPlanar(), chan, cv::gapi::own::Size::height, and size.

Here is the call graph for this function:

canDescribe() [1/2]

bool cv::GMatDesc::canDescribe

(

const cv::gapi::own::Mat &

mat

)

const

canDescribe() [2/2]

bool cv::GMatDesc::canDescribe

(

const cv::Mat &

mat

)

const

operator!=()

bool cv::GMatDesc::operator!= ( const GMatDesc &  rhs ) const

inline

operator==()

bool cv::GMatDesc::operator== ( const GMatDesc &  rhs ) const

inline

References chan, depth, planar, and size.

withDepth()

GMatDesc cv::GMatDesc::withDepth ( int  ddepth ) const

inline

References CV_MAT_CN, and depth.

Referenced by cv::gapi::imgproc::G_TYPED_KERNEL(), cv::gapi::core::G_TYPED_KERNEL(), cv::gapi::imgproc::G_TYPED_KERNEL_M(), and cv::gapi::core::G_TYPED_KERNEL_M().

Here is the caller graph for this function:

withSize() [1/2]

GMatDesc cv::GMatDesc::withSize ( cv::Size  sz ) const

inline

References cv::to_own().

Referenced by cv::gapi::core::G_TYPED_KERNEL().

Here is the call graph for this function:

Here is the caller graph for this function:

withSize() [2/2]

GMatDesc cv::GMatDesc::withSize ( cv::gapi::own::Size  sz ) const

inline

References size.

withSizeDelta() [1/3]

GMatDesc cv::GMatDesc::withSizeDelta ( cv::gapi::own::Size  delta ) const

inline

References size.

Referenced by cv::gapi::core::G_TYPED_KERNEL(), and cv::gapi::core::G_TYPED_KERNEL_M().

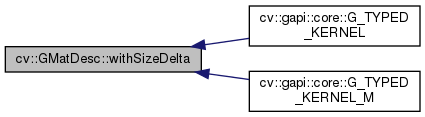

Here is the caller graph for this function:

withSizeDelta() [2/3]

GMatDesc cv::GMatDesc::withSizeDelta ( cv::Size  delta ) const

inline

References cv::to_own().

Here is the call graph for this function:

withSizeDelta() [3/3]

GMatDesc cv::GMatDesc::withSizeDelta ( int  dx, int  dy  ) const

inline

withType()

GMatDesc cv::GMatDesc::withType ( int  ddepth, int  dchan  ) const

inline

References chan, and CV_MAT_CN.

Referenced by cv::gapi::imgproc::G_TYPED_KERNEL(), cv::gapi::core::G_TYPED_KERNEL(), and cv::gapi::core::G_TYPED_KERNEL_M().

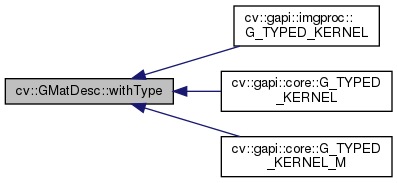

Here is the caller graph for this function:

Member Data Documentation

chan

int cv::GMatDesc::chan

Referenced by asPlanar(), cv::gapi::core::G_TYPED_KERNEL(), cv::gapi::imgproc::G_TYPED_KERNEL(), operator==(), and withType().

depth

int cv::GMatDesc::depth

Referenced by cv::gapi::core::G_TYPED_KERNEL(), cv::gapi::imgproc::G_TYPED_KERNEL(), cv::gapi::core::G_TYPED_KERNEL_M(), operator==(), and withDepth().

planar

bool cv::GMatDesc::planar

Referenced by asInterleaved(), asPlanar(), cv::gapi::imgproc::G_TYPED_KERNEL(), cv::gapi::core::G_TYPED_KERNEL(), and operator==().

size

cv::gapi::own::Size cv::GMatDesc::size

Referenced by asPlanar(), cv::gapi::imgproc::G_TYPED_KERNEL(), cv::gapi::core::G_TYPED_KERNEL(), operator==(), withSize(), and withSizeDelta().

---

The documentation for this struct was generated from the following file:

• opencv2/gapi/gmat.hpp
