cv::gapi::own::detail::MatHeader Struct Reference

#include <opencv2/gapi/own/mat.hpp>

Inheritance diagram for cv::gapi::own::detail::MatHeader:

Collaboration diagram for cv::gapi::own::detail::MatHeader:

Public Types
enum	{ AUTO_STEP = 0 }
enum	{ TYPE_MASK = 0x00000FFF }

Public Member Functions
	MatHeader ()=default
	MatHeader (int _rows, int _cols, int type, void *_data, size_t _step)
	MatHeader (const MatHeader &)=default
	MatHeader (MatHeader &&src)
MatHeader &	operator= (const MatHeader &)=default
MatHeader &	operator= (MatHeader &&src)

Public Attributes
int	cols = 0
uchar *	data = nullptr
	pointer to the data More...
int	flags = 0
	includes several bit-fields: More...
int	rows = 0
	the number of rows and columns or (-1, -1) when the matrix has more than 2 dimensions More...
size_t	step = 0

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
AUTO_STEP

anonymous enum

anonymous enum

Enumerator
TYPE_MASK

Constructor & Destructor Documentation

MatHeader() [1/4]

cv::gapi::own::detail::MatHeader::MatHeader ( )

default

Referenced by MatHeader().

Here is the caller graph for this function:

MatHeader() [2/4]

cv::gapi::own::detail::MatHeader::MatHeader ( int  _rows, int  _cols, int  type, void *  _data, size_t  _step  )

inline

References MatHeader().

Here is the call graph for this function:

MatHeader() [3/4]

cv::gapi::own::detail::MatHeader::MatHeader ( const MatHeader &  )

default

MatHeader() [4/4]

cv::gapi::own::detail::MatHeader::MatHeader ( MatHeader &&  src )

inline

References operator=().

Here is the call graph for this function:

Member Function Documentation

operator=() [1/2]

MatHeader& cv::gapi::own::detail::MatHeader::operator= ( const MatHeader &  )

default

Referenced by cv::gapi::own::Mat::Mat(), and MatHeader().

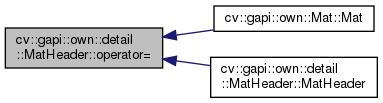

Here is the caller graph for this function:

operator=() [2/2]

MatHeader& cv::gapi::own::detail::MatHeader::operator= ( MatHeader &&  src )

inline

Member Data Documentation

cols

int cv::gapi::own::detail::MatHeader::cols = 0

Referenced by cv::gapi::own::Mat::copyTo(), cv::gapi::own::Mat::create(), cv::gapi::own::Mat::Mat(), cv::gapi::own::Mat::operator=(), cv::gapi::own::to_ocv(), and cv::gapi::own::Mat::total().

data

uchar* cv::gapi::own::detail::MatHeader::data = nullptr

pointer to the data

Referenced by cv::gapi::own::Mat::Mat(), cv::gapi::own::Mat::ptr(), and cv::gapi::own::to_ocv().

flags

int cv::gapi::own::detail::MatHeader::flags = 0

includes several bit-fields:

• depth
• number of channels

Referenced by cv::gapi::own::Mat::channels(), cv::gapi::own::Mat::depth(), and cv::gapi::own::Mat::type().

rows

int cv::gapi::own::detail::MatHeader::rows = 0

the number of rows and columns or (-1, -1) when the matrix has more than 2 dimensions

Referenced by cv::gapi::own::Mat::copyTo(), cv::gapi::own::Mat::create(), cv::gapi::own::Mat::Mat(), cv::gapi::own::Mat::operator=(), cv::gapi::own::to_ocv(), and cv::gapi::own::Mat::total().

step

size_t cv::gapi::own::detail::MatHeader::step = 0

Referenced by cv::gapi::own::Mat::ptr(), and cv::gapi::own::to_ocv().

---

The documentation for this struct was generated from the following file:

• opencv2/gapi/own/mat.hpp
