Template class for a 4-element vector derived from Vec. More...

#include "types.hpp"

Inheritance diagram for cv::Scalar_< _Tp >:

[legend]

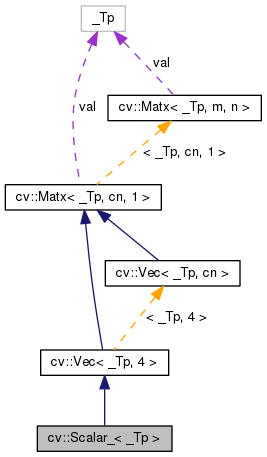

Collaboration diagram for cv::Scalar_< _Tp >:

[legend]

Public Types
enum

enum

typedef Matx< _Tp, shortdim, 1 >	diag_type

typedef Matx< _Tp, m, n >	mat_type

typedef _Tp	value_type

Public Member Functions
	Scalar_ ()
	various constructors More...

	Scalar_ (_Tp v0, _Tp v1, _Tp v2=0, _Tp v3=0)

	Scalar_ (_Tp v0)

template<typename _Tp2 , int cn>
	Scalar_ (const Vec< _Tp2, cn > &v)

Matx< _Tp, m, 1 >	col (int i) const
	extract the matrix column More...

Scalar_< _Tp >	conj () const

Vec	cross (const Vec &v) const
	cross product of the two 3D vectors. More...

double	ddot (const Matx< _Tp, m, n > &v) const
	dot product computed in double-precision arithmetics More...

diag_type	diag () const
	extract the matrix diagonal More...

Matx< _Tp, m, n >	div (const Matx< _Tp, m, n > &a) const
	divide two matrices element-wise More...

_Tp	dot (const Matx< _Tp, m, n > &v) const
	dot product computed with the default precision More...

Matx< _Tp, m1, n1 >	get_minor (int i, int j) const
	extract part of the matrix More...

Matx< _Tp, n, m >	inv (int method=DECOMP_LU, bool *p_is_ok=NULL) const
	invert the matrix More...

bool	isReal () const

Matx< _Tp, m, n >	mul (const Matx< _Tp, m, n > &a) const
	multiply two matrices element-wise More...

Vec	mul (const Vec< _Tp, cn > &v) const
	per-element multiplication More...

Scalar_< _Tp >	mul (const Scalar_< _Tp > &a, double scale=1) const
	per-element product More...

	operator Matx< T2, m, n > () const
	conversion to another data type More...

template<typename T2 >
	operator Scalar_< T2 > () const
	conversion to another data type More...

	operator Vec< T2, cn > () const
	conversion to another data type More...

const _Tp &	operator() (int i, int j) const
	element access More...

_Tp &	operator() (int i, int j)

const _Tp &	operator() (int i) const

_Tp &	operator() (int i)

const _Tp &	operator[] (int i) const
	element access More...

_Tp &	operator[] (int i)

Matx< _Tp, m1, n1 >	reshape () const
	change the matrix shape More...

Matx< _Tp, 1, n >	row (int i) const
	extract the matrix row More...

Matx< _Tp, n, l >	solve (const Matx< _Tp, m, l > &rhs, int flags=DECOMP_LU) const
	solve linear system More...

Vec< _Tp, n >	solve (const Vec< _Tp, m > &rhs, int method) const

Matx< _Tp, n, m >	t () const
	transpose the matrix More...

Static Public Member Functions
static Scalar_< _Tp >	all (_Tp v0)
	returns a scalar with all elements set to v0 More...

static Matx	diag (const diag_type &d)

static Matx	eye ()

static Matx	ones ()

static Matx	randn (_Tp a, _Tp b)

static Matx	randu (_Tp a, _Tp b)

static Matx	zeros ()

Public Attributes
_Tp	val [m *n]

Detailed Description

template<typename _Tp>
class cv::Scalar_< _Tp >

Template class for a 4-element vector derived from Vec.

Being derived from Vec<Tp, 4> , Scalar and Scalar can be used just as typical 4-element vectors. In addition, they can be converted to/from CvScalar . The type Scalar is widely used in OpenCV to pass pixel values.

Member Typedef Documentation

typedef Matx<_Tp, shortdim, 1> cv::Matx< _Tp, m, n >::diag_type

inherited

typedef Matx<_Tp, m, n> cv::Matx< _Tp, m, n >::mat_type

inherited

typedef _Tp cv::Vec< _Tp, cn >::value_type

inherited

Member Enumeration Documentation

anonymous enum

inherited

anonymous enum

inherited

Constructor & Destructor Documentation

template<typename _Tp>

cv::Scalar_< _Tp >::Scalar_ ( )

various constructors

template<typename _Tp>

cv::Scalar_< _Tp >::Scalar_	(	_Tp	v0,
		_Tp	v1,
		_Tp	v2 = `0`,
		_Tp	v3 = `0`
	)

template<typename _Tp>

cv::Scalar_< _Tp >::Scalar_ ( _Tp v0 )

template<typename _Tp>

template<typename _Tp2 , int cn>

cv::Scalar_< _Tp >::Scalar_ ( const Vec< _Tp2, cn > & v )

Member Function Documentation

template<typename _Tp>

static Scalar_<_Tp> cv::Scalar_< _Tp >::all ( _Tp v0 )

static

returns a scalar with all elements set to v0

Matx<_Tp, m, 1> cv::Matx< _Tp, m, n >::col ( int i ) const

inherited

extract the matrix column

template<typename _Tp>

Scalar_<_Tp> cv::Scalar_< _Tp >::conj ( ) const

Vec cv::Vec< _Tp, cn >::cross ( const Vec< _Tp, 4 > & v ) const

inherited

cross product of the two 3D vectors.

For other dimensionalities the exception is raised

double cv::Matx< _Tp, m, n >::ddot ( const Matx< _Tp, m, n > & v ) const

inherited

dot product computed in double-precision arithmetics

static Matx cv::Matx< _Tp, m, n >::diag ( const diag_type & d )

staticinherited

diag_type cv::Matx< _Tp, m, n >::diag ( ) const

inherited

extract the matrix diagonal

Matx<_Tp, m, n> cv::Matx< _Tp, m, n >::div ( const Matx< _Tp, m, n > & a ) const

inherited

divide two matrices element-wise

_Tp cv::Matx< _Tp, m, n >::dot ( const Matx< _Tp, m, n > & v ) const

inherited

dot product computed with the default precision

static Matx cv::Matx< _Tp, m, n >::eye ( )

staticinherited

Matx<_Tp, m1, n1> cv::Matx< _Tp, m, n >::get_minor	(	int	i,
		int	j
	)		const

inherited

extract part of the matrix

Matx<_Tp, n, m> cv::Matx< _Tp, m, n >::inv	(	int	method = `DECOMP_LU`,
		bool *	p_is_ok = `NULL`
	)		const

inherited

invert the matrix

template<typename _Tp>

bool cv::Scalar_< _Tp >::isReal ( ) const

Matx<_Tp, m, n> cv::Matx< _Tp, m, n >::mul ( const Matx< _Tp, m, n > & a ) const

inherited

multiply two matrices element-wise

Vec cv::Vec< _Tp, cn >::mul ( const Vec< _Tp, cn > & v ) const

inherited

per-element multiplication

template<typename _Tp>

Scalar_<_Tp> cv::Scalar_< _Tp >::mul	(	const Scalar_< _Tp > &	a,
		double	scale = `1`
	)		const

per-element product

static Matx cv::Matx< _Tp, m, n >::ones ( )

staticinherited

cv::Matx< _Tp, m, n >::operator Matx< T2, m, n > ( ) const

inherited

conversion to another data type

template<typename _Tp>

template<typename T2 >

cv::Scalar_< _Tp >::operator Scalar_< T2 > ( ) const

conversion to another data type

cv::Vec< _Tp, cn >::operator Vec< T2, cn > ( ) const

inherited

conversion to another data type

const _Tp& cv::Matx< _Tp, m, n >::operator()	(	int	i,
		int	j
	)		const

inherited

element access

_Tp& cv::Matx< _Tp, m, n >::operator()	(	int	i,
		int	j
	)

inherited

const _Tp& cv::Vec< _Tp, cn >::operator() ( int i ) const

inherited

_Tp& cv::Vec< _Tp, cn >::operator() ( int i )

inherited

const _Tp& cv::Vec< _Tp, cn >::operator[] ( int i ) const

inherited

element access

_Tp& cv::Vec< _Tp, cn >::operator[] ( int i )

inherited

static Matx cv::Matx< _Tp, m, n >::randn	(	_Tp	a,
		_Tp	b
	)

staticinherited

static Matx cv::Matx< _Tp, m, n >::randu	(	_Tp	a,
		_Tp	b
	)

staticinherited

Matx<_Tp, m1, n1> cv::Matx< _Tp, m, n >::reshape ( ) const

inherited

change the matrix shape

Matx<_Tp, 1, n> cv::Matx< _Tp, m, n >::row ( int i ) const

inherited

extract the matrix row

Matx<_Tp, n, l> cv::Matx< _Tp, m, n >::solve	(	const Matx< _Tp, m, l > &	rhs,
		int	flags = `DECOMP_LU`
	)		const

inherited

solve linear system

Vec<_Tp, n> cv::Matx< _Tp, m, n >::solve	(	const Vec< _Tp, m > &	rhs,
		int	method
	)		const

inherited

Matx<_Tp, n, m> cv::Matx< _Tp, m, n >::t ( ) const

inherited

transpose the matrix

static Matx cv::Matx< _Tp, m, n >::zeros ( )

staticinherited

Member Data Documentation

_Tp cv::Matx< _Tp, m, n >::val[m *n]

inherited

Referenced by CvScalar::CvScalar(), cv::viz::isNan(), cv::Vec< _Tp, cn >::operator+=(), cv::Vec< _Tp, cn >::operator-(), cv::Vec< _Tp, cn >::operator-=(), and cv::FileStorage::write().

The documentation for this class was generated from the following file:

core/include/opencv2/core/types.hpp
