cv::detail::BestOf2NearestRangeMatcher Class Reference
Images stitching » Features Finding and Images Matching

#include "matchers.hpp"

Inheritance diagram for cv::detail::BestOf2NearestRangeMatcher:
Inheritance graph
[legend]

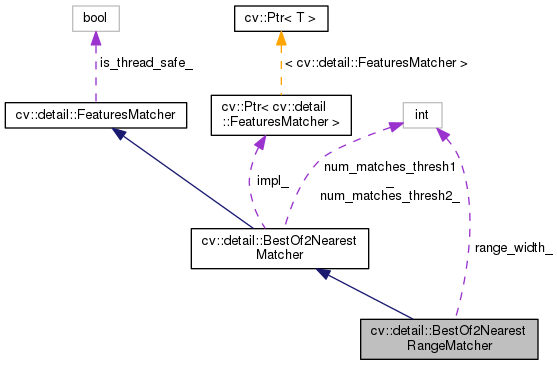

Collaboration diagram for cv::detail::BestOf2NearestRangeMatcher:
Collaboration graph
[legend]

Public Member Functions

 BestOf2NearestRangeMatcher (int range_width=5, bool try_use_gpu=false, float match_conf=0.3f, int num_matches_thresh1=6, int num_matches_thresh2=6)

void collectGarbage ()
 Frees unused memory allocated before if there is any. More...

bool isThreadSafe () const

void operator() (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

void operator() (const std::vector< ImageFeatures > &features, std::vector< MatchesInfo > &pairwise_matches, const cv::UMat &mask=cv::UMat())


Protected Member Functions

void match (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info)
 This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work. More...


Protected Attributes

Ptr< FeaturesMatcher > impl_

bool is_thread_safe_

int num_matches_thresh1_

int num_matches_thresh2_

int range_width_


Constructor & Destructor Documentation

cv::detail::BestOf2NearestRangeMatcher::BestOf2NearestRangeMatcher ( int  range_width = 5,
bool  try_use_gpu = false,
float  match_conf = 0.3f,
int  num_matches_thresh1 = 6,
int  num_matches_thresh2 = 6
)

Member Function Documentation

void cv::detail::BestOf2NearestMatcher::collectGarbage ( )
virtualinherited

Frees unused memory allocated before if there is any.

Reimplemented from cv::detail::FeaturesMatcher.

bool cv::detail::FeaturesMatcher::isThreadSafe ( ) const
inlineinherited
Returns
True, if it's possible to use the same matcher instance in parallel, false otherwise
void cv::detail::BestOf2NearestMatcher::match ( const ImageFeatures &  features1,
const ImageFeatures &  features2,
MatchesInfo &  matches_info
)
protectedvirtualinherited

This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work.

Parameters
features1first image features
features2second image features
matches_infofound matches

Implements cv::detail::FeaturesMatcher.

Reimplemented in cv::detail::AffineBestOf2NearestMatcher.

void cv::detail::FeaturesMatcher::operator() ( const ImageFeatures &  features1,
const ImageFeatures &  features2,
MatchesInfo &  matches_info
)
inlineinherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters
features1First image features
features2Second image features
matches_infoFound matches
void cv::detail::BestOf2NearestRangeMatcher::operator() ( const std::vector< ImageFeatures > &  features,
std::vector< MatchesInfo > &  pairwise_matches,
const cv::UMat &  mask = cv::UMat()
)

Member Data Documentation

Ptr<FeaturesMatcher> cv::detail::BestOf2NearestMatcher::impl_
protectedinherited
bool cv::detail::FeaturesMatcher::is_thread_safe_
protectedinherited
int cv::detail::BestOf2NearestMatcher::num_matches_thresh1_
protectedinherited
int cv::detail::BestOf2NearestMatcher::num_matches_thresh2_
protectedinherited
int cv::detail::BestOf2NearestRangeMatcher::range_width_
protected
The documentation for this class was generated from the following file:
