cv::detail::BundleAdjusterAffinePartial Class Reference

Bundle adjuster that expects affine transformation with 4 DOF represented in homogeneous coordinates in R for each camera param. More...

#include "motion_estimators.hpp"

Inheritance diagram for cv::detail::BundleAdjusterAffinePartial:

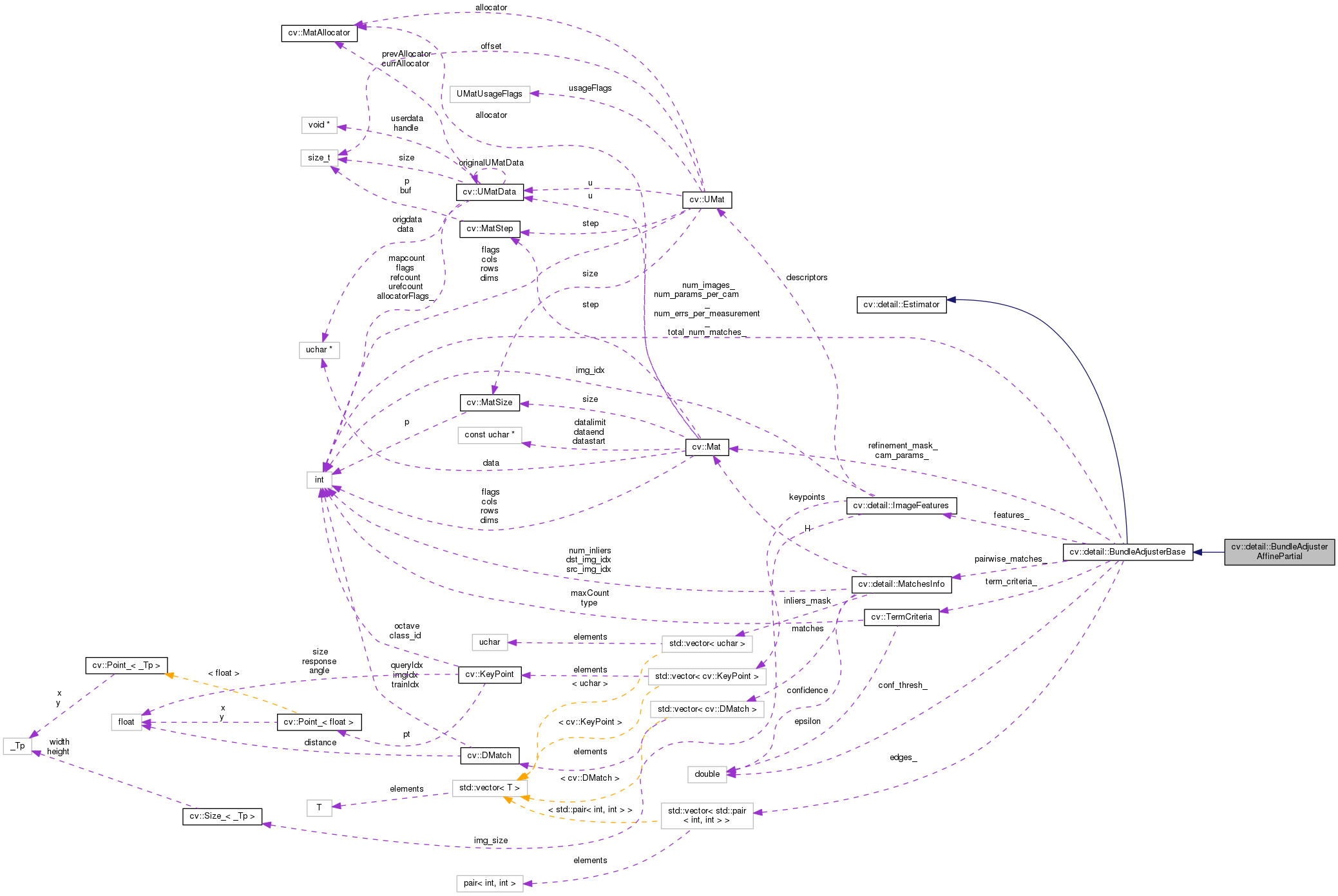

Collaboration diagram for cv::detail::BundleAdjusterAffinePartial:

Public Member Functions
	BundleAdjusterAffinePartial ()
double	confThresh () const
bool	operator() (const std::vector< ImageFeatures > &features, const std::vector< MatchesInfo > &pairwise_matches, std::vector< CameraParams > &cameras)
	Estimates camera parameters. More...
const Mat	refinementMask () const
void	setConfThresh (double conf_thresh)
void	setRefinementMask (const Mat &mask)
void	setTermCriteria (const TermCriteria &term_criteria)
TermCriteria	termCriteria ()

Protected Member Functions
virtual bool	estimate (const std::vector< ImageFeatures > &features, const std::vector< MatchesInfo > &pairwise_matches, std::vector< CameraParams > &cameras)
	This method must implement camera parameters estimation logic in order to make the wrapper detail::Estimator::operator()_ work. More...

Protected Attributes
Mat	cam_params_
double	conf_thresh_
std::vector< std::pair< int, int > >	edges_
const ImageFeatures *	features_
int	num_errs_per_measurement_
int	num_images_
int	num_params_per_cam_
const MatchesInfo *	pairwise_matches_
Mat	refinement_mask_
TermCriteria	term_criteria_
int	total_num_matches_

Detailed Description

Bundle adjuster that expects affine transformation with 4 DOF represented in homogeneous coordinates in R for each camera param.

Implements camera parameters refinement algorithm which minimizes sum of the reprojection error squares

It estimates all transformation parameters. Refinement mask is ignored.

See also

AffineBasedEstimator AffineBestOf2NearestMatcher BundleAdjusterAffine

Constructor & Destructor Documentation

cv::detail::BundleAdjusterAffinePartial::BundleAdjusterAffinePartial ( )

inline

Member Function Documentation

double cv::detail::BundleAdjusterBase::confThresh ( ) const

inlineinherited

virtual bool cv::detail::BundleAdjusterBase::estimate ( const std::vector< ImageFeatures > &  features, const std::vector< MatchesInfo > &  pairwise_matches, std::vector< CameraParams > &  cameras  )

protectedvirtualinherited

This method must implement camera parameters estimation logic in order to make the wrapper detail::Estimator::operator()_ work.

Parameters

features	Features of images
pairwise_matches	Pairwise matches of images
cameras	Estimated camera parameters

Returns

True in case of success, false otherwise

Implements cv::detail::Estimator.

bool cv::detail::Estimator::operator() ( const std::vector< ImageFeatures > &  features, const std::vector< MatchesInfo > &  pairwise_matches, std::vector< CameraParams > &  cameras  )

inlineinherited

Estimates camera parameters.

Parameters

features	Features of images
pairwise_matches	Pairwise matches of images
cameras	Estimated camera parameters

Returns

True in case of success, false otherwise

const Mat cv::detail::BundleAdjusterBase::refinementMask ( ) const

inlineinherited

References cv::Mat::clone().

Here is the call graph for this function:

void cv::detail::BundleAdjusterBase::setConfThresh ( double  conf_thresh )

inlineinherited

void cv::detail::BundleAdjusterBase::setRefinementMask ( const Mat &  mask )

inlineinherited

References cv::Mat::clone(), CV_8U, CV_Assert, cv::Mat::size, and cv::Mat::type().

Here is the call graph for this function:

void cv::detail::BundleAdjusterBase::setTermCriteria ( const TermCriteria &  term_criteria )

inlineinherited

TermCriteria cv::detail::BundleAdjusterBase::termCriteria ( )

inlineinherited

Member Data Documentation

Mat cv::detail::BundleAdjusterBase::cam_params_

protectedinherited

double cv::detail::BundleAdjusterBase::conf_thresh_

protectedinherited

std::vector<std::pair<int,int> > cv::detail::BundleAdjusterBase::edges_

protectedinherited

const ImageFeatures* cv::detail::BundleAdjusterBase::features_

protectedinherited

int cv::detail::BundleAdjusterBase::num_errs_per_measurement_

protectedinherited

int cv::detail::BundleAdjusterBase::num_images_

protectedinherited

int cv::detail::BundleAdjusterBase::num_params_per_cam_

protectedinherited

const MatchesInfo* cv::detail::BundleAdjusterBase::pairwise_matches_

protectedinherited

Mat cv::detail::BundleAdjusterBase::refinement_mask_

protectedinherited

TermCriteria cv::detail::BundleAdjusterBase::term_criteria_

protectedinherited

int cv::detail::BundleAdjusterBase::total_num_matches_

protectedinherited

---

The documentation for this class was generated from the following file:

• stitching/include/opencv2/stitching/detail/motion_estimators.hpp
