#include "types_c.h"

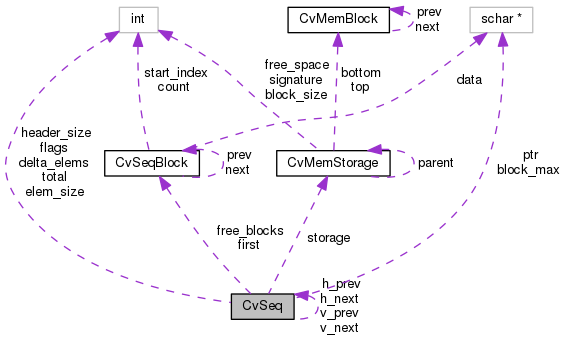

Collaboration diagram for CvSeq:

Public Attributes

scharblock_max
 Maximal bound of the last block. More...

int delta_elems
 Grow seq this many at a time. More...

int elem_size
 Size of sequence element in bytes. More...

CvSeqBlockfirst
 Pointer to the first sequence block. More...

int flags
 Miscellaneous flags. More...

CvSeqBlockfree_blocks
 Free blocks list. More...

struct CvSeqh_next
 Next sequence. More...

struct CvSeqh_prev
 Previous sequence. More...

int header_size
 Size of sequence header. More...

scharptr
 Current write pointer. More...

CvMemStoragestorage
 Where the seq is stored. More...

int total
 Total number of elements. More...

struct CvSeqv_next
 < 2nd next sequence. More...

struct CvSeqv_prev
 2nd previous sequence. More...


Member Data Documentation

schar* CvSeq::block_max

Maximal bound of the last block.

int CvSeq::delta_elems

Grow seq this many at a time.

int CvSeq::elem_size

Size of sequence element in bytes.

Referenced by cv::Seq< _Tp >::elemSize(), and cv::Seq< _Tp >::Seq().

CvSeqBlock* CvSeq::first

Pointer to the first sequence block.

int CvSeq::flags
CvSeqBlock* CvSeq::free_blocks

Free blocks list.

struct CvSeq* CvSeq::h_next

Next sequence.

struct CvSeq* CvSeq::h_prev

Previous sequence.

int CvSeq::header_size

Size of sequence header.

schar* CvSeq::ptr

Current write pointer.

CvMemStorage* CvSeq::storage

Where the seq is stored.

struct CvSeq* CvSeq::v_next

< 2nd next sequence.

struct CvSeq* CvSeq::v_prev

2nd previous sequence.


The documentation for this struct was generated from the following file:
