cvflann::HierarchicalClusteringIndex< Distance > Class Template Reference

Hierarchical index. More...

#include <opencv2/flann/hierarchical_clustering_index.h>

Inheritance diagram for cvflann::HierarchicalClusteringIndex< Distance >:
Collaboration diagram for cvflann::HierarchicalClusteringIndex< Distance >:

Public Types

typedef Distance::ResultType DistanceType

typedef Distance::ElementType ElementType


Public Member Functions

 HierarchicalClusteringIndex (const Matrix< ElementType > &inputData, const IndexParams &index_params=HierarchicalClusteringIndexParams(), Distance d=Distance())
 Index constructor. More...

 HierarchicalClusteringIndex (const HierarchicalClusteringIndex &)

virtual ~HierarchicalClusteringIndex ()
 Index destructor. More...

void buildIndex () CV_OVERRIDE
 Builds the index. More...

void findNeighbors (ResultSet< DistanceType > &result, const ElementType *vec, const SearchParams &searchParams) CV_OVERRIDE
 Find set of nearest neighbors to vec. More...

void free_elements ()
 Release the inner elements of indices[]. More...

IndexParams getParameters () const CV_OVERRIDE

flann_algorithm_t getType () const CV_OVERRIDE

virtual void knnSearch (const Matrix< ElementType > &queries, Matrix< int > &indices, Matrix< DistanceType > &dists, int knn, const SearchParams &params)
 Perform k-nearest neighbor search. More...

void loadIndex (FILE *stream) CV_OVERRIDE
 Loads the index from a stream. More...

HierarchicalClusteringIndexoperator= (const HierarchicalClusteringIndex &)

virtual int radiusSearch (const Matrix< ElementType > &query, Matrix< int > &indices, Matrix< DistanceType > &dists, float radius, const SearchParams &params)
 Perform radius search. More...

void saveIndex (FILE *stream) CV_OVERRIDE
 Saves the index to a stream. More...

size_t size () const CV_OVERRIDE
 Returns size of index. More...

int usedMemory () const CV_OVERRIDE
 Computes the inde memory usage Returns: memory used by the index. More...

size_t veclen () const CV_OVERRIDE
 Returns the length of an index feature. More...


Detailed Description

template<typename Distance>
class cvflann::HierarchicalClusteringIndex< Distance >

Hierarchical index.

Contains a tree constructed through a hierarchical clustering and other information for indexing a set of points for nearest-neighbour matching.

Member Typedef Documentation

◆ DistanceType

template<typename Distance>
typedef Distance::ResultType cvflann::HierarchicalClusteringIndex< Distance >::DistanceType

◆ ElementType

template<typename Distance>
typedef Distance::ElementType cvflann::HierarchicalClusteringIndex< Distance >::ElementType

Constructor & Destructor Documentation

◆ HierarchicalClusteringIndex() [1/2]

template<typename Distance>
cvflann::HierarchicalClusteringIndex< Distance >::HierarchicalClusteringIndex ( const Matrix< ElementType > &  inputData,
const IndexParams index_params = HierarchicalClusteringIndexParams(),
Distance  d = Distance()
)
inline

Index constructor.

Params: inputData = dataset with the input features params = parameters passed to the hierarchical k-means algorithm

References cvflann::FLANN_CENTERS_GONZALES, cvflann::FLANN_CENTERS_GROUPWISE, cvflann::FLANN_CENTERS_KMEANSPP, cvflann::FLANN_CENTERS_RANDOM, and cvflann::get_param().

Here is the call graph for this function:

◆ HierarchicalClusteringIndex() [2/2]

template<typename Distance>
cvflann::HierarchicalClusteringIndex< Distance >::HierarchicalClusteringIndex ( const HierarchicalClusteringIndex< Distance > &  )

◆ ~HierarchicalClusteringIndex()

template<typename Distance>
virtual cvflann::HierarchicalClusteringIndex< Distance >::~HierarchicalClusteringIndex ( )
inlinevirtual

Index destructor.

Release the memory used by the index.

Member Function Documentation

◆ buildIndex()

template<typename Distance>
void cvflann::HierarchicalClusteringIndex< Distance >::buildIndex ( )
inlinevirtual

Builds the index.

Implements cvflann::NNIndex< Distance >.

◆ findNeighbors()

template<typename Distance>
void cvflann::HierarchicalClusteringIndex< Distance >::findNeighbors ( ResultSet< DistanceType > &  result,
const ElementType vec,
const SearchParams searchParams
)
inlinevirtual

Find set of nearest neighbors to vec.

Their indices are stored inside the result object.

Params: result = the result object in which the indices of the nearest-neighbors are stored vec = the vector for which to search the nearest neighbors searchParams = parameters that influence the search algorithm (checks)

Implements cvflann::NNIndex< Distance >.

References cvflann::get_param(), cvflann::BranchStruct< T, DistanceType >::node, and cvflann::Heap< T >::popMin().

Here is the call graph for this function:

◆ free_elements()

template<typename Distance>
void cvflann::HierarchicalClusteringIndex< Distance >::free_elements ( )
inline

Release the inner elements of indices[].

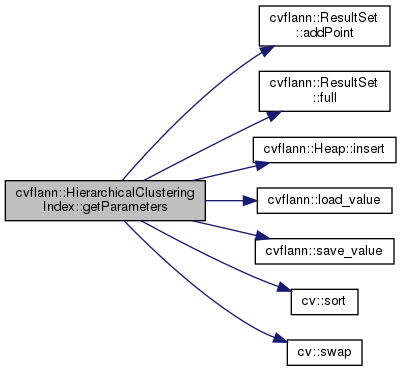

◆ getParameters()

template<typename Distance>
IndexParams cvflann::HierarchicalClusteringIndex< Distance >::getParameters ( ) const
inlinevirtual

◆ getType()

template<typename Distance>
flann_algorithm_t cvflann::HierarchicalClusteringIndex< Distance >::getType ( ) const
inlinevirtual
Returns
The index type (kdtree, kmeans,...)

Implements cvflann::NNIndex< Distance >.

References cvflann::FLANN_INDEX_HIERARCHICAL.

◆ knnSearch()

template<typename Distance>
virtual void cvflann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries,
Matrix< int > &  indices,
Matrix< DistanceType > &  dists,
int  knn,
const SearchParams params
)
inlinevirtualinherited

Perform k-nearest neighbor search.

Parameters
[in]queriesThe query points for which to find the nearest neighbors
[out]indicesThe indices of the nearest neighbors found
[out]distsDistances to the nearest neighbors found
[in]knnNumber of nearest neighbors to return
[in]paramsSearch parameters

Reimplemented in cvflann::Index< Distance >, cvflann::Index< cv::L2< ElementType > >, cvflann::Index< cv::L1< ElementType > >, cvflann::KDTreeSingleIndex< Distance >, and cvflann::LshIndex< Distance >.

◆ loadIndex()

template<typename Distance>
void cvflann::HierarchicalClusteringIndex< Distance >::loadIndex ( FILE *  stream)
inlinevirtual

Loads the index from a stream.

Parameters
streamThe stream from which the index is loaded

Implements cvflann::NNIndex< Distance >.

References cvflann::load_value().

Here is the call graph for this function:

◆ operator=()

template<typename Distance>
HierarchicalClusteringIndex& cvflann::HierarchicalClusteringIndex< Distance >::operator= ( const HierarchicalClusteringIndex< Distance > &  )

◆ radiusSearch()

template<typename Distance>
virtual int cvflann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  query,
Matrix< int > &  indices,
Matrix< DistanceType > &  dists,
float  radius,
const SearchParams params
)
inlinevirtualinherited

Perform radius search.

Parameters
[in]queryThe query point
[out]indicesThe indinces of the neighbors found within the given radius
[out]distsThe distances to the nearest neighbors found
[in]radiusThe radius used for search
[in]paramsSearch parameters
Returns
Number of neighbors found

Reimplemented in cvflann::Index< Distance >, cvflann::Index< cv::L2< ElementType > >, and cvflann::Index< cv::L1< ElementType > >.

◆ saveIndex()

template<typename Distance>
void cvflann::HierarchicalClusteringIndex< Distance >::saveIndex ( FILE *  stream)
inlinevirtual

Saves the index to a stream.

Parameters
streamThe stream to save the index to

Implements cvflann::NNIndex< Distance >.

References cvflann::save_value().

Here is the call graph for this function:

◆ size()

template<typename Distance>
size_t cvflann::HierarchicalClusteringIndex< Distance >::size ( ) const
inlinevirtual

Returns size of index.

Implements cvflann::NNIndex< Distance >.

◆ usedMemory()

template<typename Distance>
int cvflann::HierarchicalClusteringIndex< Distance >::usedMemory ( ) const
inlinevirtual

Computes the inde memory usage Returns: memory used by the index.

Implements cvflann::NNIndex< Distance >.

◆ veclen()

template<typename Distance>
size_t cvflann::HierarchicalClusteringIndex< Distance >::veclen ( ) const
inlinevirtual

Returns the length of an index feature.

Implements cvflann::NNIndex< Distance >.


The documentation for this class was generated from the following file:
