#include <coutln.h>

Inheritance diagram for C_OUTLINE:

[legend]

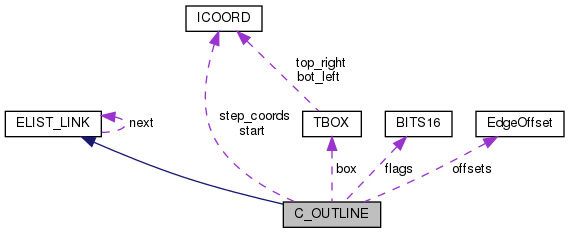

Collaboration diagram for C_OUTLINE:

[legend]

Public Member Functions

C_OUTLINE ()

~C_OUTLINE ()

bool flag (C_OUTLINE_FLAGS mask) const

void set_flag (C_OUTLINE_FLAGS mask, bool value)

C_OUTLINE_LIST * child ()

const TBOX & bounding_box () const

void set_step (int16_t stepindex, int8_t stepdir)

void set_step (int16_t stepindex, DIR128 stepdir)

int32_t pathlength () const

DIR128 step_dir (int index) const

ICOORD step (int index) const

const ICOORD & start_pos () const

ICOORD position_at_index (int index) const

FCOORD sub_pixel_pos_at_index (const ICOORD &pos, int index) const

int direction_at_index (int index) const

int edge_strength_at_index (int index) const

int chain_code (int index) const

bool operator> (C_OUTLINE &other) const

C_OUTLINE::area

Compute the area of the outline.

int32_t area () const

C_OUTLINE::perimeter

Compute the perimeter of the outline and its first level children.

int32_t perimeter () const

C_OUTLINE::outer_area

Compute the area of the outline.

int32_t outer_area () const

C_OUTLINE::count_transitions

Compute the number of x and y maxes and mins in the outline.

Parameters

threshold winding number on size

int32_t count_transitions (int32_t threshold)

C_OUTLINE::operator<

Returns: TRUE if the left operand is inside the right one.

Parameters

other other outline

bool operator< (const C_OUTLINE &other) const

C_OUTLINE::winding_number

Returns: the winding number of the outline around the given point.

Parameters

point point to wind around

int16_t winding_number (ICOORD testpt) const

int16_t turn_direction () const

C_OUTLINE::reverse

Reverse the direction of an outline.

void reverse ()

C_OUTLINE::move

Move C_OUTLINE by vector

Parameters

vec	vector to reposition OUTLINE by

void move (const ICOORD vec)

bool IsLegallyNested () const

void RemoveSmallRecursive (int min_size, C_OUTLINE_IT *it)

void ComputeEdgeOffsets (int threshold, Pix *pix)

void ComputeBinaryOffsets ()

void render (int left, int top, Pix *pix) const

void render_outline (int left, int top, Pix *pix) const

C_OUTLINE::plot

Draw the outline in the given colour.

Parameters

window	window to draw in
colour	colour to draw in

void plot (ScrollView *window, ScrollView::Color colour) const

void plot_normed (const DENORM &denorm, ScrollView::Color colour, ScrollView *window) const

Public Member Functions inherited from ELIST_LINK

ELIST_LINK ()

ELIST_LINK (const ELIST_LINK &)

void operator= (const ELIST_LINK &)

Static Public Member Functions
static C_OUTLINE *	deep_copy (const C_OUTLINE *src)

Static Public Attributes
static const int	kMaxOutlineLength = 16000

Private Member Functions
int	step_mem () const

Private Attributes
TBOX	box

ICOORD	start

int16_t	stepcount

BITS16	flags

uint8_t *	steps

EdgeOffset *	offsets

C_OUTLINE_LIST	children

Static Private Attributes
static ICOORD	step_coords [4]

C_OUTLINE::C_OUTLINE

Constructor to build a C_OUTLINE from a rotation of a C_OUTLINE.

Parameters

srcline	outline to rotate
rotation	rotate to coord

C_OUTLINE (CRACKEDGE *startpt, ICOORD bot_left, ICOORD top_right, int16_t length)

C_OUTLINE (ICOORD startpt, DIR128 *new_steps, int16_t length)

C_OUTLINE (C_OUTLINE *srcline, FCOORD rotation)

static void FakeOutline (const TBOX &box, C_OUTLINE_LIST *outlines)

C_OUTLINE::operator=

Assignment - deep copy data

Parameters

source assign from this

C_OUTLINE & operator= (const C_OUTLINE &source)

static ICOORD chain_step (int chaindir)

void increment_step (int s, int increment, ICOORD *pos, int *dir_counts, int *pos_totals) const

Constructor & Destructor Documentation

◆ C_OUTLINE() [1/4]

C_OUTLINE::C_OUTLINE ( )

inline

◆ C_OUTLINE() [2/4]

C_OUTLINE::C_OUTLINE	(	CRACKEDGE *	startpt,
		ICOORD	bot_left,
		ICOORD	top_right,
		int16_t	length
	)

◆ C_OUTLINE() [3/4]

C_OUTLINE::C_OUTLINE	(	ICOORD	startpt,
		DIR128 *	new_steps,
		int16_t	length
	)

◆ C_OUTLINE() [4/4]

C_OUTLINE::C_OUTLINE	(	C_OUTLINE *	srcline,
		FCOORD	rotation
	)

◆ ~C_OUTLINE()

C_OUTLINE::~C_OUTLINE ( )

inline

Member Function Documentation

◆ area()

int32_t C_OUTLINE::area ( ) const

◆ bounding_box()

const TBOX& C_OUTLINE::bounding_box ( ) const

inline

◆ chain_code()

int C_OUTLINE::chain_code ( int index ) const

inline

◆ chain_step()

ICOORD C_OUTLINE::chain_step ( int chaindir )

static

◆ child()

C_OUTLINE_LIST* C_OUTLINE::child ( )

inline

◆ ComputeBinaryOffsets()

void C_OUTLINE::ComputeBinaryOffsets ( )

Adds sub-pixel resolution EdgeOffsets for the outline using only a binary image source.

Runs a sliding window of 5 edge steps over the outline, maintaining a count of the number of steps in each of the 4 directions in the window, and a sum of the x or y position of each step (as appropriate to its direction.) Ignores single-count steps EXCEPT the sharp U-turn and smoothes out the perpendicular direction. Eg

* ___              ___       Chain code from the left:
*    |___    ___   ___|      222122212223221232223000
*        |___|  |_|          Corresponding counts of each direction:
*                          0   00000000000000000123
*                          1   11121111001111100000
*                          2   44434443443333343321
*                          3   00000001111111112111
* Count of direction at center 41434143413313143313
* Step gets used?              YNYYYNYYYNYYNYNYYYyY (y= U-turn exception)
* Path redrawn showing only the used points:
* ___              ___
*     ___    ___   ___|
*         ___    _
*

Sub-pixel edge position cannot be shown well with ASCII-art, but each horizontal step's y position is the mean of the y positions of the steps in the same direction in the sliding window, which makes a much smoother outline, without losing important detail.

◆ ComputeEdgeOffsets()

void C_OUTLINE::ComputeEdgeOffsets	(	int	threshold,
		Pix *	pix
	)

Adds sub-pixel resolution EdgeOffsets for the outline if the supplied pix is 8-bit. Does nothing otherwise. Operation: Consider the following near-horizontal line:

*   _________
*            |________
*                     |________
*

At every position along this line, the gradient direction will be close to vertical. Extrapoaltion/interpolation of the position of the threshold that was used to binarize the image gives a more precise vertical position for each horizontal step, and the conflict in step direction and gradient direction can be used to ignore the vertical steps.

◆ count_transitions()

int32_t C_OUTLINE::count_transitions ( int32_t threshold )

◆ deep_copy()

static C_OUTLINE* C_OUTLINE::deep_copy ( const C_OUTLINE * src )

inlinestatic

◆ direction_at_index()

int C_OUTLINE::direction_at_index ( int index ) const

inline

◆ edge_strength_at_index()

int C_OUTLINE::edge_strength_at_index ( int index ) const

inline

◆ FakeOutline()

void C_OUTLINE::FakeOutline	(	const TBOX &	box,
		C_OUTLINE_LIST *	outlines
	)

static

◆ flag()

bool C_OUTLINE::flag ( C_OUTLINE_FLAGS mask ) const

inline

◆ increment_step()

void C_OUTLINE::increment_step	(	int	s,
		int	increment,
		ICOORD *	pos,
		int *	dir_counts,
		int *	pos_totals
	)		const

private

Helper for ComputeBinaryOffsets. Increments pos, dir_counts, pos_totals by the step, increment, and vertical step ? x : y position * increment at step s Mod stepcount respectively. Used to add or subtract the direction and position to/from accumulators of a small neighbourhood.

◆ IsLegallyNested()

bool C_OUTLINE::IsLegallyNested ( ) const

Returns true if *this and its children are legally nested. The outer area of a child should have the opposite sign to the parent. If not, it means we have discarded an outline in between (probably due to excessive length).

◆ move()

void C_OUTLINE::move ( const ICOORD vec )

◆ operator<()

bool C_OUTLINE::operator< ( const C_OUTLINE & other ) const

◆ operator=()

C_OUTLINE & C_OUTLINE::operator= ( const C_OUTLINE & source )

◆ operator>()

bool C_OUTLINE::operator> ( C_OUTLINE & other ) const

inline

◆ outer_area()

int32_t C_OUTLINE::outer_area ( ) const

◆ pathlength()

int32_t C_OUTLINE::pathlength ( ) const

inline

◆ perimeter()

int32_t C_OUTLINE::perimeter ( ) const

◆ plot()

void C_OUTLINE::plot	(	ScrollView *	window,
		ScrollView::Color	colour
	)		const

◆ plot_normed()

void C_OUTLINE::plot_normed	(	const DENORM &	denorm,
		ScrollView::Color	colour,
		ScrollView *	window
	)		const

Draws the outline in the given colour, normalized using the given denorm, making use of sub-pixel accurate information if available.

◆ position_at_index()

ICOORD C_OUTLINE::position_at_index ( int index ) const

inline

◆ RemoveSmallRecursive()

void C_OUTLINE::RemoveSmallRecursive	(	int	min_size,
		C_OUTLINE_IT *	it
	)

If this outline is smaller than the given min_size, delete this and remove from its list, via *it, after checking that *it points to this. Otherwise, if any children of this are too small, delete them. On entry, *it must be an iterator pointing to this. If this gets deleted then this is extracted from *it, so an iteration can continue.

Parameters

min_size	minimum size for outline
it	outline iterator

◆ render()

void C_OUTLINE::render	(	int	left,
		int	top,
		Pix *	pix
	)		const

Renders the outline to the given pix, with left and top being the coords of the upper-left corner of the pix.

◆ render_outline()

void C_OUTLINE::render_outline	(	int	left,
		int	top,
		Pix *	pix
	)		const

Renders just the outline to the given pix (no fill), with left and top being the coords of the upper-left corner of the pix.

Parameters

left	coord
top	coord
pix	the pix to outline

◆ reverse()

void C_OUTLINE::reverse ( )

◆ set_flag()

void C_OUTLINE::set_flag	(	C_OUTLINE_FLAGS	mask,
		bool	value
	)

inline

◆ set_step() [1/2]

void C_OUTLINE::set_step	(	int16_t	stepindex,
		int8_t	stepdir
	)

inline

◆ set_step() [2/2]

void C_OUTLINE::set_step	(	int16_t	stepindex,
		DIR128	stepdir
	)

inline

◆ start_pos()

const ICOORD& C_OUTLINE::start_pos ( ) const

inline

◆ step()

ICOORD C_OUTLINE::step ( int index ) const

inline

◆ step_dir()

DIR128 C_OUTLINE::step_dir ( int index ) const

inline

◆ step_mem()

int C_OUTLINE::step_mem ( ) const

inlineprivate

◆ sub_pixel_pos_at_index()

FCOORD C_OUTLINE::sub_pixel_pos_at_index	(	const ICOORD &	pos,
		int	index
	)		const

inline

◆ turn_direction()

int16_t C_OUTLINE::turn_direction ( ) const

C_OUTLINE::turn_direction

Returns: the sum direction delta of the outline.

◆ winding_number()

int16_t C_OUTLINE::winding_number ( ICOORD testpt ) const

Member Data Documentation

◆ box

TBOX C_OUTLINE::box

private

◆ children

C_OUTLINE_LIST C_OUTLINE::children

private

◆ flags

BITS16 C_OUTLINE::flags

private

◆ kMaxOutlineLength

const int C_OUTLINE::kMaxOutlineLength = 16000

static

◆ offsets

EdgeOffset* C_OUTLINE::offsets

private

◆ start

ICOORD C_OUTLINE::start

private

◆ step_coords

ICOORD C_OUTLINE::step_coords

staticprivate

Initial value:

= {
  ICOORD (-1, 0), ICOORD (0, -1), ICOORD (1, 0), ICOORD (0, 1)
}

◆ stepcount

int16_t C_OUTLINE::stepcount

private

◆ steps

uint8_t* C_OUTLINE::steps

private

The documentation for this class was generated from the following files:

/home/stephane/src/tesseract/src/ccstruct/coutln.h
/home/stephane/src/tesseract/src/ccstruct/coutln.cpp
