tesseract::TessResultRenderer Class Reference

#include <renderer.h>

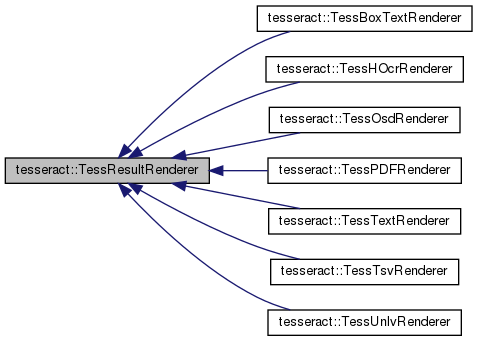

Inheritance diagram for tesseract::TessResultRenderer:

Collaboration diagram for tesseract::TessResultRenderer:

Public Member Functions
virtual	~TessResultRenderer ()
void	insert (TessResultRenderer *next)
TessResultRenderer *	next ()
bool	BeginDocument (const char *title)
bool	AddImage (TessBaseAPI *api)
bool	EndDocument ()
const char *	file_extension () const
const char *	title () const
bool	happy ()
int	imagenum () const

Protected Member Functions
	TessResultRenderer (const char *outputbase, const char *extension)
virtual bool	BeginDocumentHandler ()
virtual bool	AddImageHandler (TessBaseAPI *api)=0
virtual bool	EndDocumentHandler ()
void	AppendString (const char *s)
void	AppendData (const char *s, int len)

Private Attributes
const char *	file_extension_
STRING	title_
int	imagenum_
FILE *	fout_
TessResultRenderer *	next_
bool	happy_

Detailed Description

Interface for rendering tesseract results into a document, such as text, HOCR or pdf. This class is abstract. Specific classes handle individual formats. This interface is then used to inject the renderer class into tesseract when processing images.

For simplicity implementing this with tesesract version 3.01, the renderer contains document state that is cleared from document to document just as the TessBaseAPI is. This way the base API can just delegate its rendering functionality to injected renderers, and the renderers can manage the associated state needed for the specific formats in addition to the heuristics for producing it.

Constructor & Destructor Documentation

~TessResultRenderer()

tesseract::TessResultRenderer::~TessResultRenderer ( )

virtual

TessResultRenderer()

tesseract::TessResultRenderer::TessResultRenderer ( const char *  outputbase, const char *  extension  )

protected

Called by concrete classes.

outputbase is the name of the output file excluding extension. For example, "/path/to/chocolate-chip-cookie-recipe"

extension indicates the file extension to be used for output files. For example "pdf" will produce a .pdf file, and "hocr" will produce .hocr files.

Member Function Documentation

AddImage()

bool tesseract::TessResultRenderer::AddImage

(

TessBaseAPI *

api

)

Adds the recognized text from the source image to the current document. Invalid if BeginDocument not yet called.

Note that this API is a bit weird but is designed to fit into the current TessBaseAPI implementation where the api has lots of state information that we might want to add in.

AddImageHandler()

virtual bool tesseract::TessResultRenderer::AddImageHandler ( TessBaseAPI *  api )

protectedpure virtual

Implemented in tesseract::TessOsdRenderer, tesseract::TessBoxTextRenderer, tesseract::TessUnlvRenderer, tesseract::TessPDFRenderer, tesseract::TessTsvRenderer, tesseract::TessHOcrRenderer, and tesseract::TessTextRenderer.

AppendData()

void tesseract::TessResultRenderer::AppendData ( const char *  s, int  len  )

protected

AppendString()

void tesseract::TessResultRenderer::AppendString ( const char *  s )

protected

BeginDocument()

bool tesseract::TessResultRenderer::BeginDocument

(

const char *

title

)

Starts a new document with the given title. This clears the contents of the output data. Title should use UTF-8 encoding.

BeginDocumentHandler()

bool tesseract::TessResultRenderer::BeginDocumentHandler ( )

protectedvirtual

Reimplemented in tesseract::TessPDFRenderer, tesseract::TessTsvRenderer, and tesseract::TessHOcrRenderer.

EndDocument()

bool tesseract::TessResultRenderer::EndDocument

(

)

Finishes the document and finalizes the output data Invalid if BeginDocument not yet called.

EndDocumentHandler()

bool tesseract::TessResultRenderer::EndDocumentHandler ( )

protectedvirtual

Reimplemented in tesseract::TessPDFRenderer, tesseract::TessTsvRenderer, and tesseract::TessHOcrRenderer.

file_extension()

const char* tesseract::TessResultRenderer::file_extension ( ) const

inline

happy()

bool tesseract::TessResultRenderer::happy ( )

inline

imagenum()

int tesseract::TessResultRenderer::imagenum ( ) const

inline

Returns the index of the last image given to AddImage (i.e. images are incremented whether the image succeeded or not)

This is always defined. It means either the number of the current image, the last image ended, or in the completed document depending on when in the document lifecycle you are looking at it. Will return -1 if a document was never started.

insert()

void tesseract::TessResultRenderer::insert

(

TessResultRenderer *

next

)

next()

TessResultRenderer* tesseract::TessResultRenderer::next ( )

inline

title()

const char* tesseract::TessResultRenderer::title ( ) const

inline

Member Data Documentation

file_extension_

const char* tesseract::TessResultRenderer::file_extension_

private

fout_

FILE* tesseract::TessResultRenderer::fout_

private

happy_

bool tesseract::TessResultRenderer::happy_

private

imagenum_

int tesseract::TessResultRenderer::imagenum_

private

next_

TessResultRenderer* tesseract::TessResultRenderer::next_

private

title_

STRING tesseract::TessResultRenderer::title_

private

---

The documentation for this class was generated from the following files:

• /home/stephane/src/tesseract/src/api/renderer.h
• /home/stephane/src/tesseract/src/api/renderer.cpp
