SG Namespace Reference

Namespaces

 BeagleBone

 Font


Classes

class  Button
 Push button. More...

class  Buzzer
 Audible buzzer. More...

class  ChainableRGBLED
 RGB LED which can be set programatically to any of 16.7 million colours. More...

class  CommonOLED
 The I2C 0.96" OLED and I2C 1.12" OLED displays have quite a bit of common functionality. More...

class  FD
 Used in combination with shared_ptr to reference count open file descriptors. More...

class  GpioManagement
 Singleton object used to manage GPIO. More...

class  GroveBase

class  GroveGPIO
 Base class for Groves that use the UART interface in GPIO mode (General Purpose Input Output). More...

class  GroveI2C
 Base class for Groves that use the I2C (Inter-Integrated Circuit) interface. More...

class  GroveI2CAnalog
 Base class for analog I2C Groves sensors. More...

class  GroveI2CDigital
 Base class for digital I2C Groves. More...

class  GroveUART
 Base class for Groves that use the UART (Universal Asynchronous Receiver/Transmitter) interface. More...

class  I2CADC
 Analog-to-digital converter for analog I2C sensors. More...

class  LCDRGBBacklight
 LCD RGB backlight. More...

class  LEDBar
 I2C 10-segment LED gauge bar. More...

class  OLED096
 I2C 0.96" x 0.96" square OLED display. More...

class  OLED112
 I2C 1.12" rectangular OLED display. More...

struct  RGB8
 Simple structure used to store 8-bit RGB colour values. More...

class  SGpp
 The SGpp class is the central class to the Seeed Grove ++ library. More...

class  TemperatureAndHumiditySensor
 Temperature and humidity sensor. More...

class  TemperatureSensor
 Temperature sensor. More...

class  ThreeAxisDigitalCompass
 3-axis digital compass. More...

class  VariableColorLED
 LED which can be turned on or off. More...


Typedefs

typedef std::shared_ptr< FDSharedFileDescriptor
 Shared open file descriptor. The file will be closed once the last shared object goes out of scope. More...

typedef VariableColorLED VariableColourLED
 Alias with the international English spelling of colour. More...

typedef std::vector< EGroveTypeVGroveTypes
 Vector of Seeed Grove types. More...

typedef std::set< EGroveTypeSGroveTypes
 Set of unique Seeed Grove types, ordered by numeric type. More...

typedef std::map< EGroveType, std::string > MGroveTypeNames
 Map of Seeed Grove types to strings, used to map the types to a usable name. More...

typedef size_t GPIO

typedef std::set< GPIOSGPIO

typedef std::map< std::string, std::string > MStr
 Map of strings, where both the key and the value are strings. More...

typedef std::set< std::string > SStr
 Set of strings. More...

typedef std::vector< std::string > VStr
 Vector of strings. More...

typedef std::vector< RGB8Colours8
 Store a sequence of 8-bit colour values into a vector. More...


Enumerations

enum  EGroveType {
  EGroveType::kInvalid = 0,
  EGroveType::kUnknown,
  EGroveType::kNone,
  EGroveType::kSerialCameraKit = 4000,
  EGroveType::kHCHOSensor,
  EGroveType::kGasSensorO2,
  EGroveType::kButton,
  EGroveType::kSwitchP,
  EGroveType::kCollisionSensor,
  EGroveType::kGasSensorMQ3,
  EGroveType::kMiniCamera,
  EGroveType::kMoistureSensor,
  EGroveType::kLineFinder,
  EGroveType::kUltrasonicRanger,
  EGroveType::kTemperatureAndHumiditySensor,
  EGroveType::kDustSensor,
  EGroveType::kRTC,
  EGroveType::kAnalogLightSensor,
  EGroveType::kTemperatureSensorV12,
  EGroveType::kInfraredReceiver,
  EGroveType::kRotaryAngleSensor,
  EGroveType::kWaterSensor,
  EGroveType::kTemperatureAndHumiditySensorPro,
  EGroveType::kPIRMotionSensor,
  EGroveType::kAirQualitySensor,
  EGroveType::kAnalogLightSensorP,
  EGroveType::kSoundSensor,
  EGroveType::kMegaShield,
  EGroveType::kTiltSwitch,
  EGroveType::kInfraredEmitter,
  EGroveType::kElectricitySensor,
  EGroveType::kThumbJoystick,
  EGroveType::kInfraredReflectiveSensor,
  EGroveType::kDigitalLightSensor,
  EGroveType::kPiezoVibrationSensor,
  EGroveType::kBarometerSensor,
  EGroveType::kEarClipHeartRateSensor,
  EGroveType::k3AxisDigitalCompass,
  EGroveType::kProtoShield,
  EGroveType::kSlidePotentiometer,
  EGroveType::kTouchSensor,
  EGroveType::kMagneticSwitch,
  EGroveType::k3AxisDigitalAccelerometer1_5g,
  EGroveType::kIRDistanceInterrupt,
  EGroveType::kI2CColorSensor,
  EGroveType::k80cmInfraredProximitySensor,
  EGroveType::kUVSensor,
  EGroveType::kAlcoholSensor,
  EGroveType::kGasSensorMQ9,
  EGroveType::kHallSensor,
  EGroveType::kI2CTouchSensor,
  EGroveType::kRotaryAngleSensorP,
  EGroveType::kFlameSensor,
  EGroveType::k3AxisDigitalGyro,
  EGroveType::k3AxisAnalogAccelerometer,
  EGroveType::kGSRSensor,
  EGroveType::kSingleAxisAnalogGyro,
  EGroveType::k3AxisDigitalAccelerometer16g,
  EGroveType::kGasSensorMQ2,
  EGroveType::kGasSensorMQ5,
  EGroveType::kFingerprintSensor,
  EGroveType::kEMGDetector,
  EGroveType::kIMU9DOFV1,
  EGroveType::kMotionSensorLargeLens,
  EGroveType::k6AxisAccelerometerAndCompassV1,
  EGroveType::kAnalogInfraredTemperatureSensor,
  EGroveType::kLoudnessSensor,
  EGroveType::kSerialCamera,
  EGroveType::kPHSensor,
  EGroveType::kChestStrapHeartRateSensor,
  EGroveType::kCO2Sensor,
  EGroveType::kBarometerHighAccuracy,
  EGroveType::kQTouchSensor,
  EGroveType::kNFCTag,
  EGroveType::k3AxisDigitalAccelerometer400g,
  EGroveType::kBarometerSensorBMP180,
  EGroveType::kElectromagnet,
  EGroveType::kTemperatureAndHumidityHighAccuracyAndMini,
  EGroveType::kLuminanceSensor = 4076,
  EGroveType::kDigitalInfraredTemperatureSensor,
  EGroveType::kAirQualitySensorV13,
  EGroveType::kIMU10DOF,
  EGroveType::kIMU9DOFV2,
  EGroveType::k6AxisAccelerometerAndCompassV2,
  EGroveType::kFingerClipHeartRateSensorWithShell,
  EGroveType::kGestureV1,
  EGroveType::kTemperatureAndHumiditySensorHDC1000 = 4087,
  EGroveType::kMultichannelGasSensor,
  EGroveType::kSunlightSensor,
  EGroveType::kWaterAtomization,
  EGroveType::kMiniTrackBall,
  EGroveType::kDMX512 = 4500,
  EGroveType::kBeeSocket = 4502,
  EGroveType::kPS2Adapter,
  EGroveType::kSolidStateRelay,
  EGroveType::kRelayV12,
  EGroveType::kI2CHub,
  EGroveType::kScrewTerminal,
  EGroveType::kMOSFET,
  EGroveType::kNunChuck,
  EGroveType::k2CoilLatchingRelay,
  EGroveType::kRJ45Adapter,
  EGroveType::kSPDTRelay30A,
  EGroveType::kI2CADC,
  EGroveType::kDryReedRelay,
  EGroveType::kGroveCapeForBeagleBone,
  EGroveType::kDifferentialAmplifierV12,
  EGroveType::kRecorder = 4518,
  EGroveType::kVoltageDivider = 5000,
  EGroveType::kVariableColorLED,
  EGroveType::kPurpleLED,
  EGroveType::kBlinkM,
  EGroveType::kSerialLCD,
  EGroveType::kLEDLightString,
  EGroveType::kLEDBarV2,
  EGroveType::kLCDRGBBacklight = 5501,
  EGroveType::kLEDBar,
  EGroveType::k4DigitDisplay,
  EGroveType::kRedLED = 5505,
  EGroveType::kChainableRGBLED,
  EGroveType::kGreenLED,
  EGroveType::kOLEDDisplay1_12,
  EGroveType::kWhiteLED,
  EGroveType::kBlueLED,
  EGroveType::kOLEDDisplay0_96,
  EGroveType::kCircularLED,
  EGroveType::kMultiColorFlashLED,
  EGroveType::kLED,
  EGroveType::k5InchLcdCape = 6002,
  EGroveType::k7InchLcdCape,
  EGroveType::kI2CMotorDriverV12 = 6501,
  EGroveType::kLEDStripDriver,
  EGroveType::kVibrationMotor,
  EGroveType::kMiniFan,
  EGroveType::kELDriver,
  EGroveType::kI2CMotorDriverV10 = 6510,
  EGroveType::kHapticMotor,
  EGroveType::kBuzzer = 7000,
  EGroveType::kSpeaker,
  EGroveType::kSerialMP3Player,
  EGroveType::kSoundRecorder = 7004,
  EGroveType::kFMReceiver,
  EGroveType::kI2CFMReceiver,
  EGroveType::kMP3V2 = 7008,
  EGroveType::kButtonP = 7500,
  EGroveType::kEncoder,
  EGroveType::kHighTemperatureSensor,
  EGroveType::kSerialRFPro = 8000,
  EGroveType::k315MHzSimpleRFLinkKit,
  EGroveType::k125KHzRFIDReader,
  EGroveType::kGPS,
  EGroveType::kXBeeCarrier,
  EGroveType::kSerialBluetooth,
  EGroveType::kNFC,
  EGroveType::kBLE,
  EGroveType::kSerialBluetoothV3,
  EGroveType::kBLEDualModel,
  EGroveType::kUartWifi,
  EGroveType::k433MHzSimpleRFLinkKit = 9998,
  EGroveType::kServo = 9999
}
 Grove types ordered by Seeed SKU: More...


Functions

std::string get_build_timestamp (void)
 Format the compiler macros __DATE__ and __TIME__ to make a readable timestamp showing when the SG++ library was last built. More...

std::string get_version (void)
 Get the version string. More...

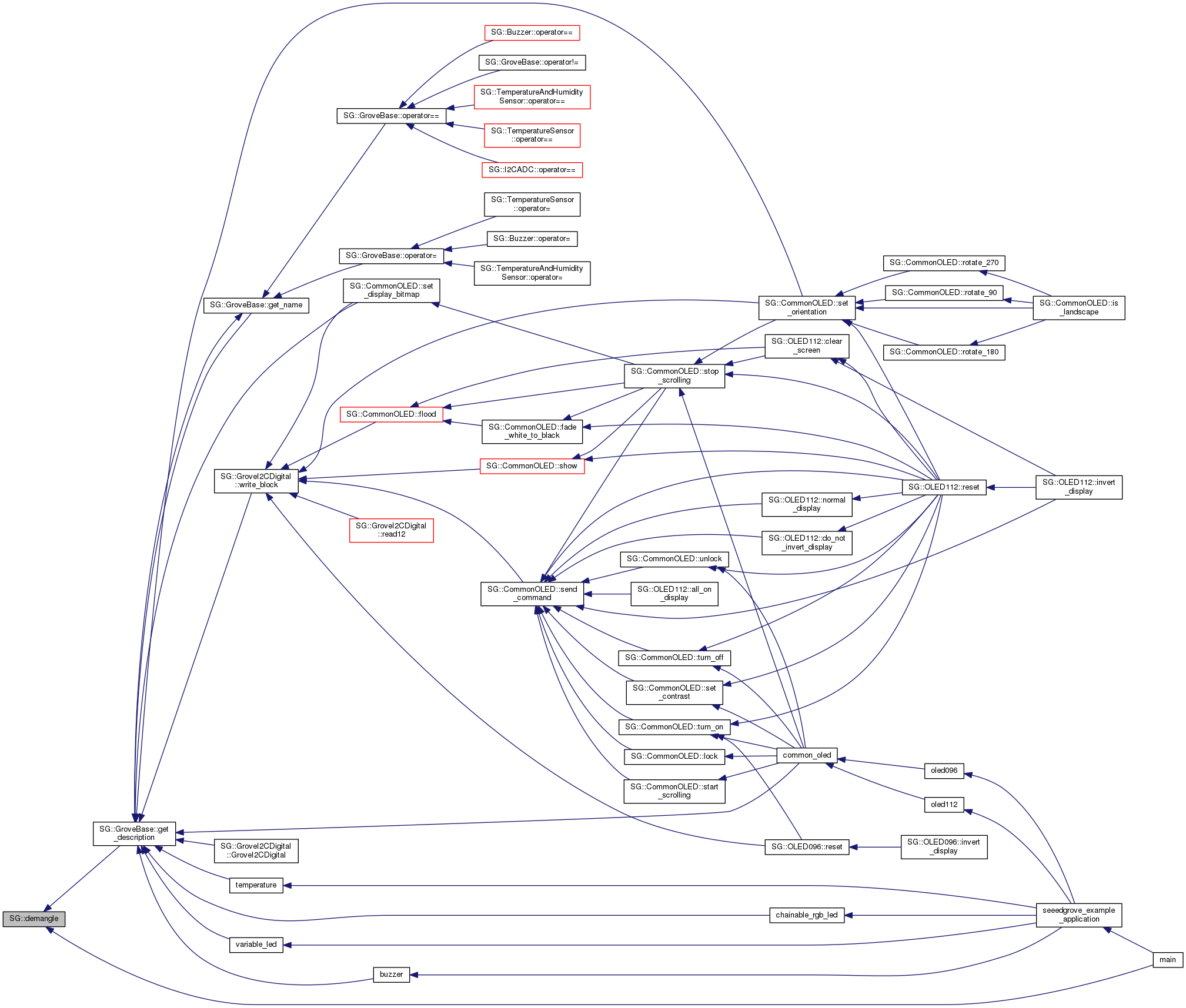

std::string demangle (const std::string &name)
 Demangle the C++ function or variable name. Sometimes useful in error messages. More...

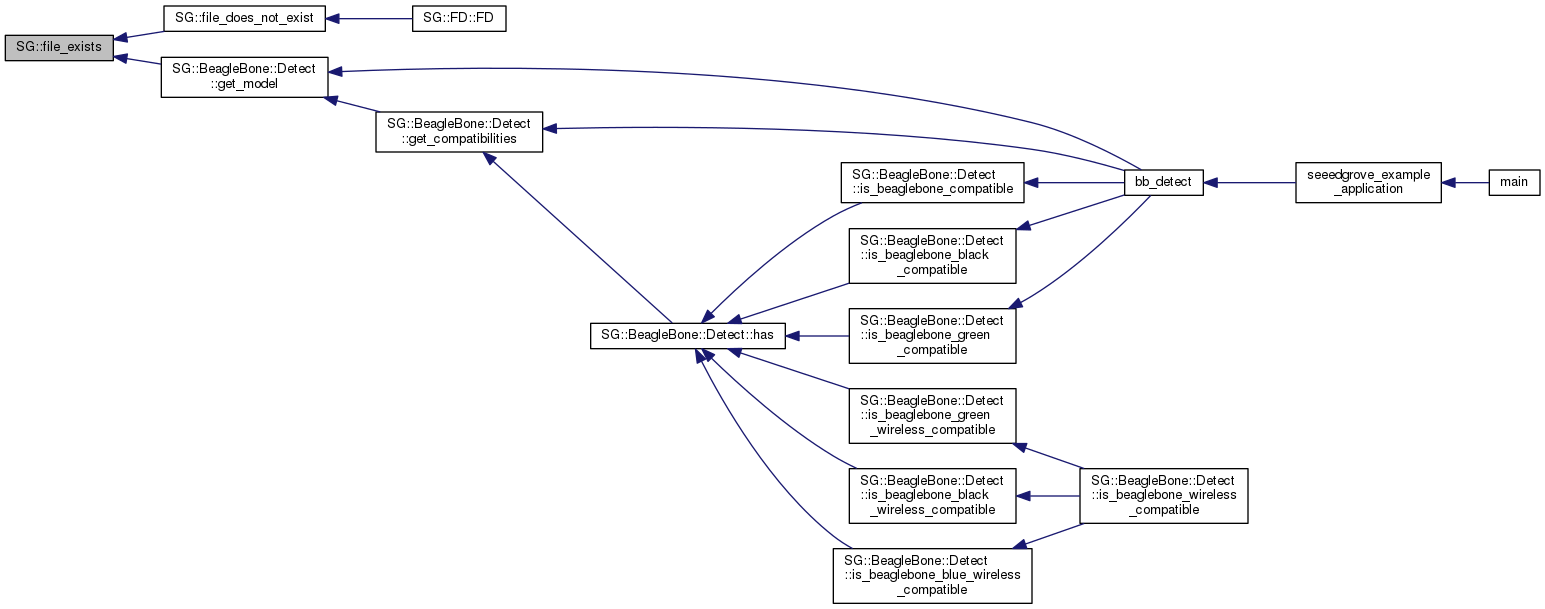

bool file_exists (const std::string &filename)
 Determine if the specified file exists. More...

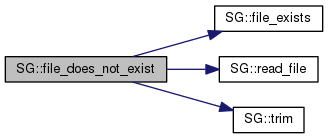

bool file_does_not_exist (const std::string &filename)
 Determine if the specified file does not exist. More...

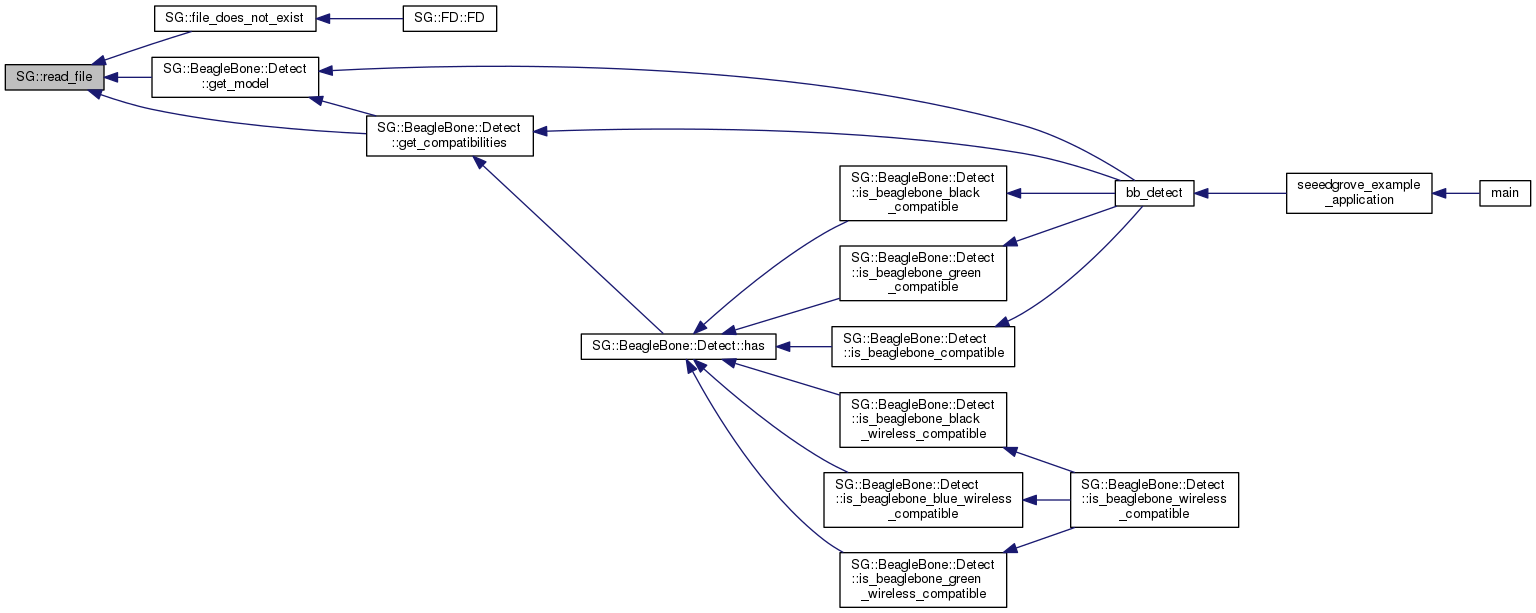

std::string read_file (const std::string &filename)
 Read the specified file into a single std::string. More...

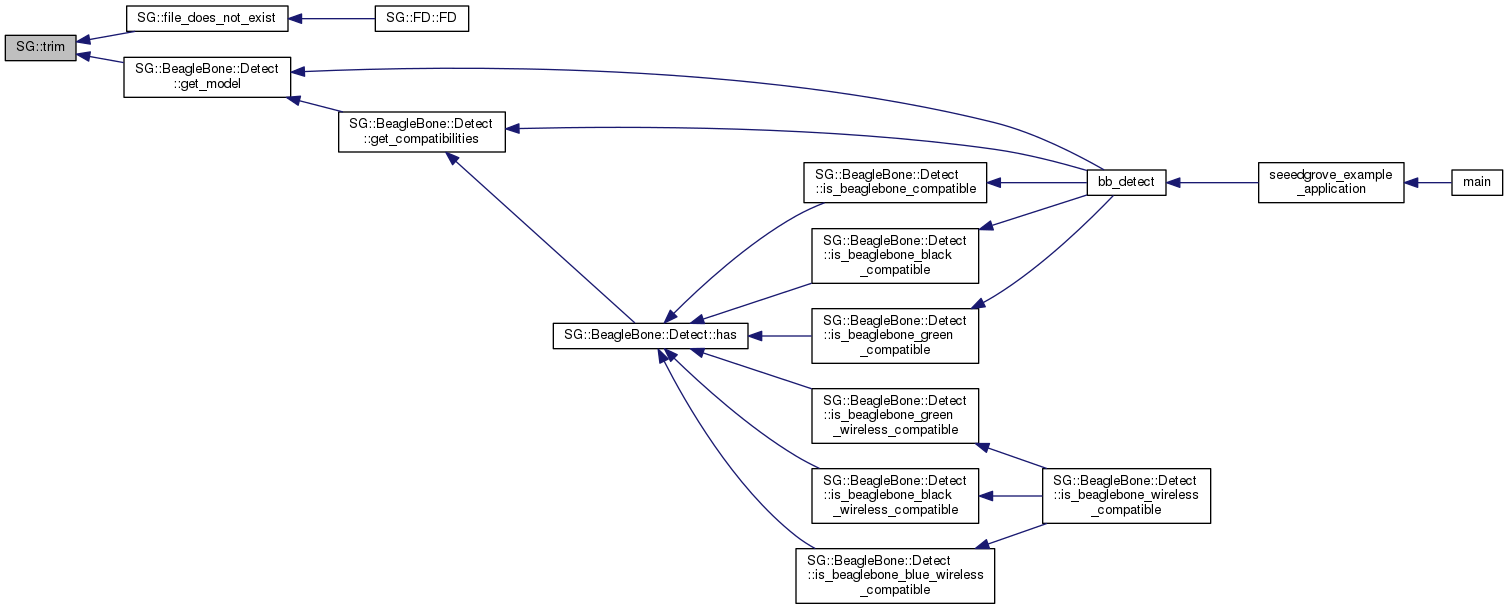

std::string trim (const std::string &str)
 Trim whitespace and return a new string, leaving the original string unchanged. More...

std::string & trim (std::string &str)
 Trim whitespace from the provided string. Modifies the original string. More...

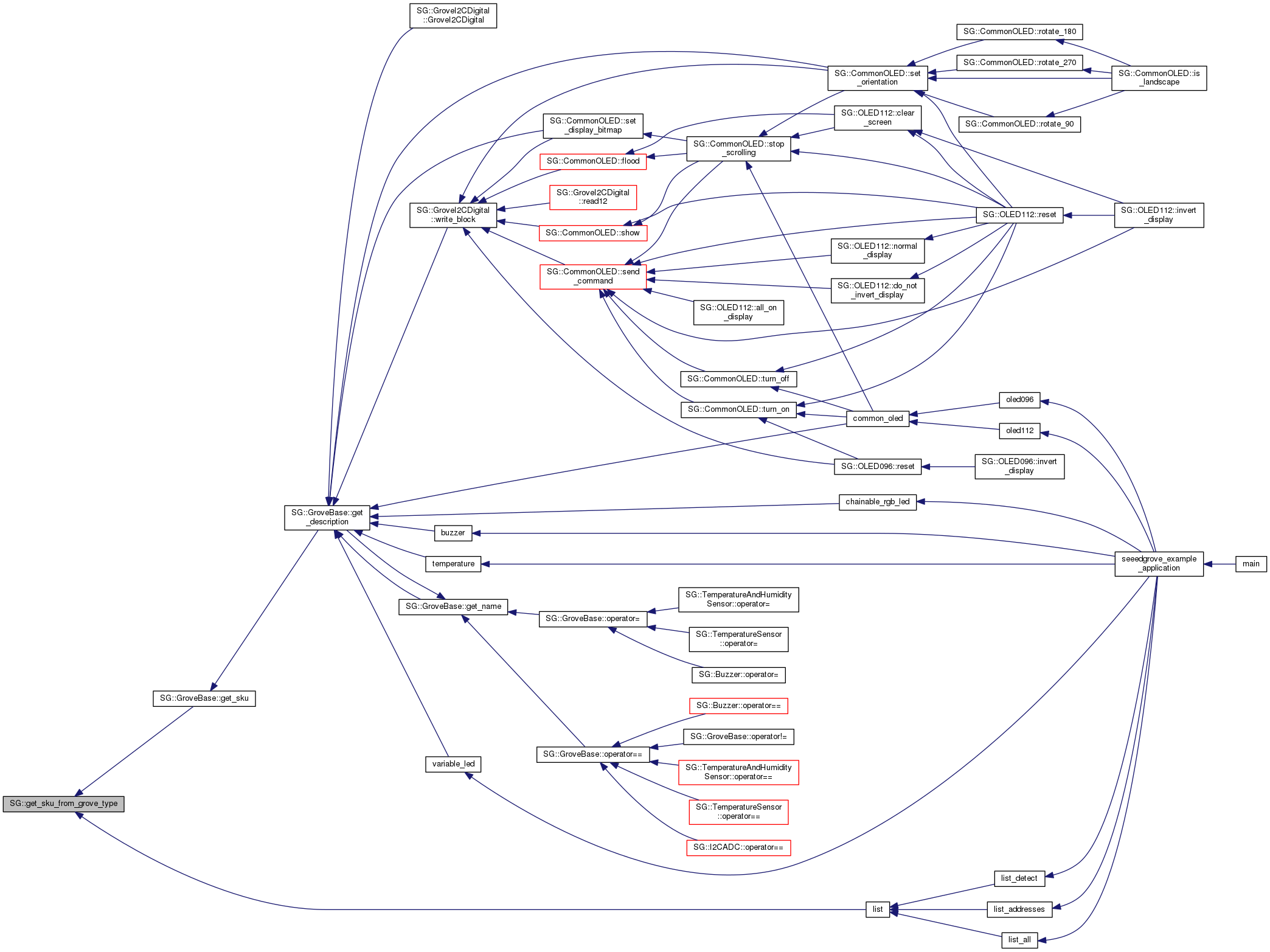

uint32_t get_sku_from_grove_type (const EGroveType &grove_type)
 Return the Seeed SKU for the given Grove type. More...

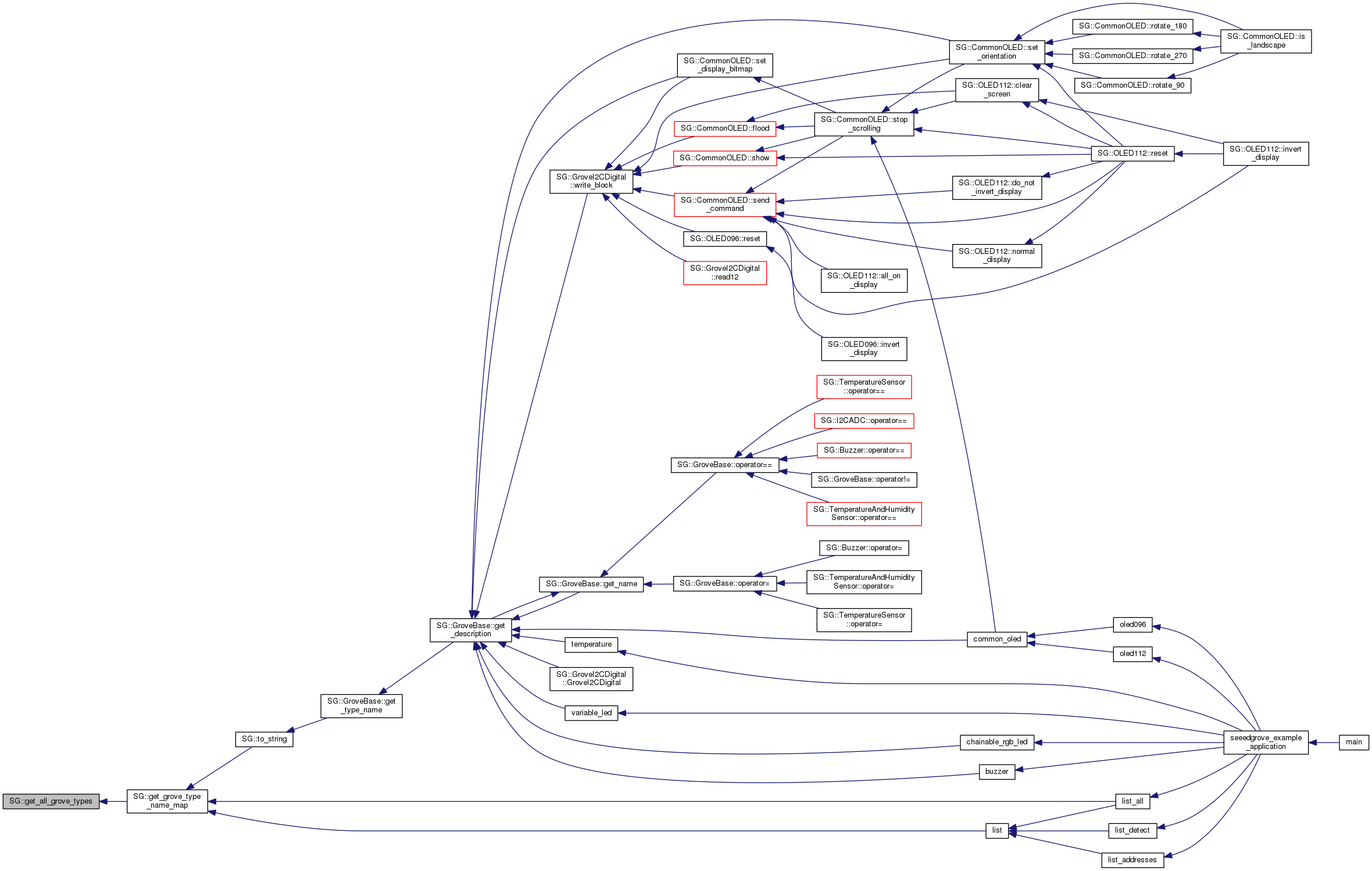

VGroveTypes get_all_grove_types (void)
 Return a vector containing every possible Grove type. More...

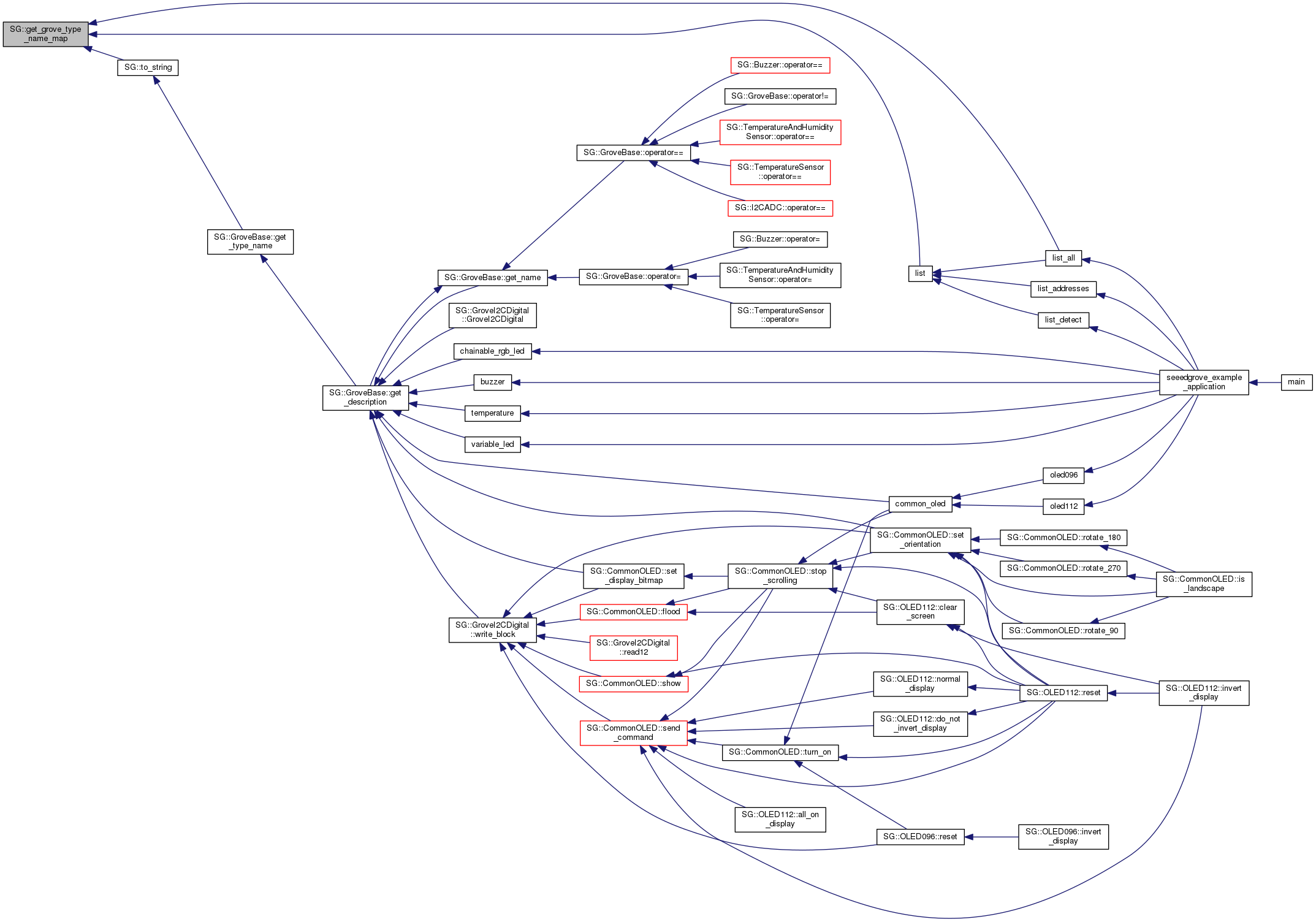

MGroveTypeNames get_grove_type_name_map (void)
 Get a map of all the grove types and the corresponding names. More...

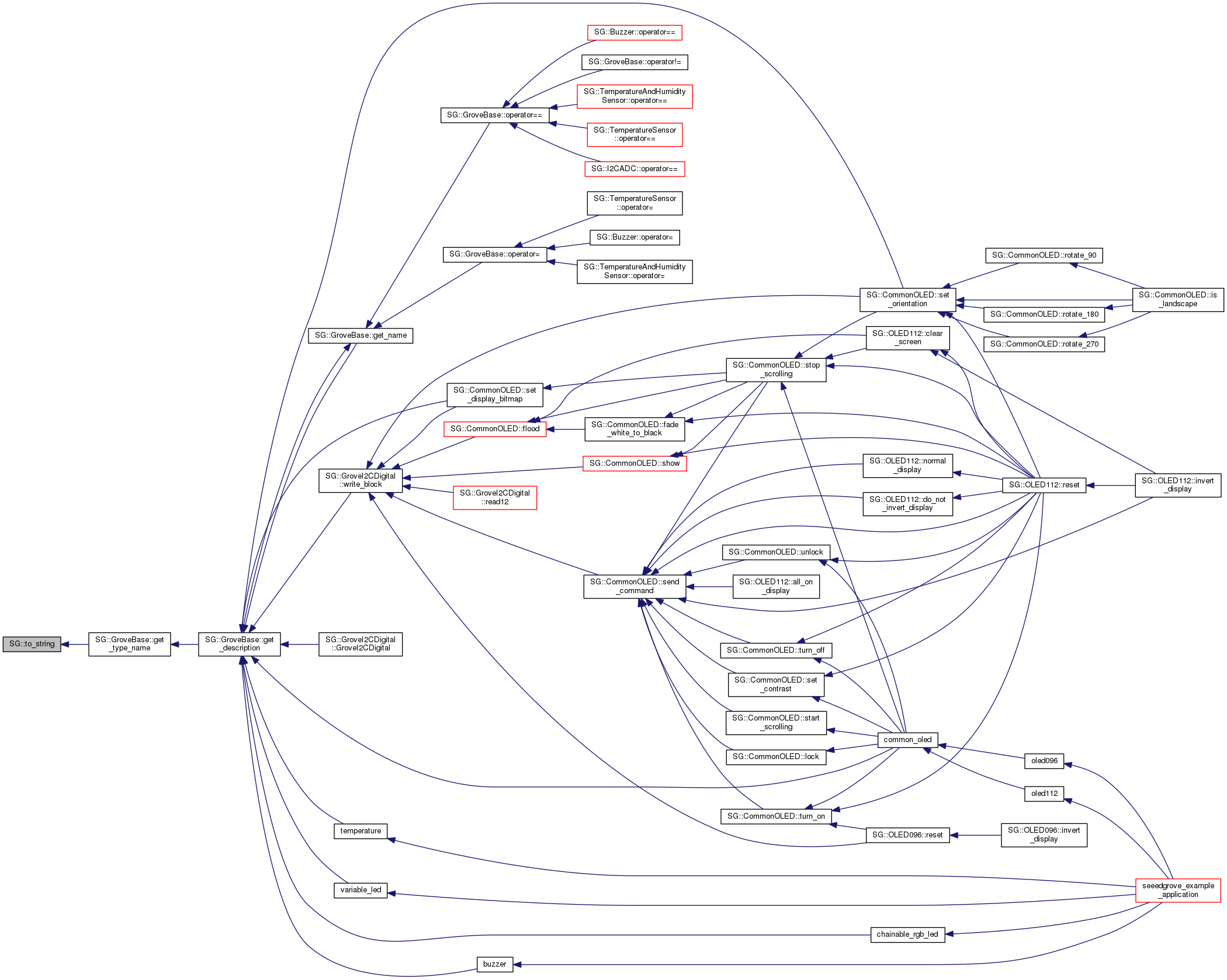

std::string to_string (const EGroveType &type)
 Get a short text name for the given type. More...

VGroveTypes detect (void)


Typedef Documentation

◆ Colours8

typedef std::vector<RGB8> SG::Colours8

Store a sequence of 8-bit colour values into a vector.

◆ GPIO

typedef size_t SG::GPIO

◆ MGroveTypeNames

typedef std::map<EGroveType, std::string> SG::MGroveTypeNames

Map of Seeed Grove types to strings, used to map the types to a usable name.

◆ MStr

typedef std::map<std::string, std::string> SG::MStr

Map of strings, where both the key and the value are strings.

◆ SGPIO

typedef std::set<GPIO> SG::SGPIO

◆ SGroveTypes

typedef std::set<EGroveType> SG::SGroveTypes

Set of unique Seeed Grove types, ordered by numeric type.

◆ SharedFileDescriptor

typedef std::shared_ptr<FD> SG::SharedFileDescriptor

Shared open file descriptor. The file will be closed once the last shared object goes out of scope.

See also
SG::FD

◆ SStr

typedef std::set<std::string> SG::SStr

Set of strings.

◆ VariableColourLED

Alias with the international English spelling of colour.

◆ VGroveTypes

typedef std::vector<EGroveType> SG::VGroveTypes

Vector of Seeed Grove types.

◆ VStr

typedef std::vector<std::string> SG::VStr

Vector of strings.

Enumeration Type Documentation

◆ EGroveType

enum SG::EGroveType
strong

Grove types ordered by Seeed SKU:

Grove Type SKU Comments URL Wiki
SG::EGroveType::kSerialCameraKit 101020000 http://www.seeedstudio.com/depot/Grove-Serial-Camera-Kit-p-1608.html http://www.seeedstudio.com/wiki/Grove_-_Serial_Camera
SG::EGroveType::kHCHOSensor 101020001 http://www.seeedstudio.com/depot/Grove-HCHO-Sensor-p-1593.html http://www.seeedstudio.com/wiki/Grove_-_HCHO_Sensor
SG::EGroveType::kGasSensorO2 101020002 http://www.seeedstudio.com/depot/Grove-Gas-SensorO2-p-1541.html http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor(O%E2%82%82)
SG::EGroveType::kButton 101020003 See SG::EGroveType::kButtonP. http://www.seeedstudio.com/depot/Grove-Button-p-766.html http://www.seeedstudio.com/wiki/Grove_-_Button
SG::EGroveType::kSwitchP 101020004 http://www.seeedstudio.com/depot/Grove-SwitchP-p-1252.html http://www.seeedstudio.com/wiki/Grove_-_Switch(P)
SG::EGroveType::kCollisionSensor 101020005 http://www.seeedstudio.com/depot/Grove-Collision-Sensor-p-1132.html http://www.seeedstudio.com/wiki/Grove_-_Collision_Sensor
SG::EGroveType::kGasSensorMQ3 101020006 http://www.seeedstudio.com/depot/Grove-Gas-SensorMQ3-p-1418.html http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor
SG::EGroveType::kMiniCamera 101020007 Discontinued. See SG::EGroveType::kSerialCamera. http://www.seeedstudio.com/depot/Grove-Mini-Camera-p-1578.html http://www.seeedstudio.com/wiki/Grove_-_Mini_Camera
SG::EGroveType::kMoistureSensor 101020008 http://www.seeedstudio.com/depot/Grove-Moisture-Sensor-p-955.html http://www.seeedstudio.com/wiki/Grove_-_Moisture_Sensor
SG::EGroveType::kLineFinder 101020009 http://www.seeedstudio.com/depot/Grove-Line-Finder-p-825.html http://www.seeedstudio.com/wiki/Grove_-_Line_Finder
SG::EGroveType::kUltrasonicRanger 101020010 http://www.seeedstudio.com/depot/Grove-Ultrasonic-Ranger-p-960.html http://www.seeedstudio.com/wiki/Grove_-_Ultrasonic_Ranger
SG::EGroveType::kTemperatureAndHumiditySensor 101020011 See SG::EGroveType::kTemperatureAndHumidityHighAccuracyAndMini. http://www.seeedstudio.com/depot/Grove-TempHumi-Sensor-p-745.html http://www.seeedstudio.com/wiki/Grove-_Temperature_and_Humidity_Sensor
SG::EGroveType::kDustSensor 101020012 http://www.seeedstudio.com/depot/Grove-Dust-Sensor-p-1050.html http://www.seeedstudio.com/wiki/Grove_-_Dust_Sensor
SG::EGroveType::kRTC 101020013 http://www.seeedstudio.com/depot/Grove-RTC-p-758.html http://www.seeedstudio.com/wiki/Grove_-_RTC
SG::EGroveType::kAnalogLightSensor 101020014 SKU #101020014 and #101020022 are nearly identical. http://www.seeedstudio.com/depot/Grove-Light-Sensor-p-746.html http://www.seeedstudio.com/wiki/Grove_-_Light_Sensor
SG::EGroveType::kTemperatureSensorV12 101020015 http://www.seeedstudio.com/depot/Grove-Temperature-Sensor-p-774.html http://www.seeedstudio.com/wiki/Grove_-_Temperature_Sensor_V1.2
SG::EGroveType::kInfraredReceiver 101020016 http://www.seeedstudio.com/depot/Grove-Infrared-Receiver-p-994.html http://www.seeedstudio.com/wiki/Grove_-_Infrared_Receiver
SG::EGroveType::kRotaryAngleSensor 101020017 http://www.seeedstudio.com/depot/Grove-Rotary-Angle-Sensor-p-770.html http://www.seeedstudio.com/wiki/Grove_-_Rotary_Angle_Sensor
SG::EGroveType::kWaterSensor 101020018 http://www.seeedstudio.com/depot/Grove-Water-Sensor-p-748.html http://www.seeedstudio.com/wiki/Grove_-_Water_Sensor
SG::EGroveType::kTemperatureAndHumiditySensorPro 101020019 http://www.seeedstudio.com/depot/Grove-TemperatureHumidity-Sensor-Pro-p-838.html http://www.seeedstudio.com/wiki/Grove_-_Temperature_and_Humidity_Sensor_Pro
SG::EGroveType::kPIRMotionSensor 101020020 http://www.seeedstudio.com/depot/Grove-PIR-Motion-Sensor-p-802.html http://www.seeedstudio.com/wiki/Grove_-_PIR_Motion_Sensor
SG::EGroveType::kAirQualitySensor 101020021 Discontinued. See SG::EGroveType::kAirQualitySensorV13. http://www.seeedstudio.com/depot/Grove-Air-quality-sensor-p-1065.html http://www.seeedstudio.com/wiki/Grove_-_Air_Quality_Sensor
SG::EGroveType::kAnalogLightSensorP 101020022 SKU #101020014 and #101020022 are nearly identical. http://www.seeedstudio.com/depot/Grove-Light-SensorP-p-1253.html http://www.seeedstudio.com/wiki/Grove_-_Light_Sensor
SG::EGroveType::kSoundSensor 101020023 http://www.seeedstudio.com/depot/Grove-Sound-Sensor-p-752.html http://www.seeedstudio.com/wiki/Grove_-_Sound_Sensor
SG::EGroveType::kMegaShield 101020024 http://www.seeedstudio.com/depot/Grove-Mega-Shield-p-934.html http://www.seeedstudio.com/wiki/Grove_-_Mega_Shield
SG::EGroveType::kTiltSwitch 101020025 http://www.seeedstudio.com/depot/Grove-Tilt-Switch-p-771.html http://www.seeedstudio.com/wiki/Grove_-_Tilt_Switch
SG::EGroveType::kInfraredEmitter 101020026 http://www.seeedstudio.com/depot/Grove-Infrared-Emitter-p-993.html http://www.seeedstudio.com/wiki/Grove_-_Infrared_Emitter
SG::EGroveType::kElectricitySensor 101020027 http://www.seeedstudio.com/depot/Grove-Electricity-Sensor-p-777.html http://www.seeedstudio.com/wiki/Grove_-_Electricity_Sensor
SG::EGroveType::kThumbJoystick 101020028 http://www.seeedstudio.com/depot/Grove-Thumb-Joystick-p-935.html http://www.seeedstudio.com/wiki/Grove_-_Thumb_Joystick
SG::EGroveType::kInfraredReflectiveSensor 101020029 http://www.seeedstudio.com/depot/Grove-Infrared-Reflective-Sensor-p-1230.html http://www.seeedstudio.com/wiki/Grove_-_Infrared_Reflective_Sensor
SG::EGroveType::kDigitalLightSensor 101020030 http://www.seeedstudio.com/depot/Grove-Digital-Light-Sensor-p-1281.html http://www.seeedstudio.com/wiki/Grove_-_Digital_Light_Sensor
SG::EGroveType::kPiezoVibrationSensor 101020031 http://www.seeedstudio.com/depot/Grove-Piezo-Vibration-Sensor-p-1411.html http://www.seeedstudio.com/wiki/Grove-_Piezo_Vibration_Sensor
SG::EGroveType::kBarometerSensor 101020032 Discontinued. See SG::EGroveType::kBarometerSensorBMP180. http://www.seeedstudio.com/depot/grove-barometer-sensor-p-1199.html http://www.seeedstudio.com/wiki/Grove_-_Barometer_Sensor
SG::EGroveType::kEarClipHeartRateSensor 101020033 http://www.seeedstudio.com/depot/Grove-Earclip-Heart-Rate-Sensor-p-1116.html http://www.seeedstudio.com/wiki/Grove_-_Ear-clip_Heart_Rate_Sensor
SG::EGroveType::k3AxisDigitalCompass 101020034 http://www.seeedstudio.com/depot/Grove-3Axis-Digital-Compass-p-759.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Digital_Compass
SG::EGroveType::kProtoShield 101020035 http://www.seeedstudio.com/depot/Grove-Protoshield-p-772.html http://www.seeedstudio.com/wiki/Grove_-_Protoshield
SG::EGroveType::kSlidePotentiometer 101020036 http://www.seeedstudio.com/depot/Grove-Slide-Potentiometer-p-1196.html http://www.seeedstudio.com/wiki/Grove_-_Slide_Potentiometer
SG::EGroveType::kTouchSensor 101020037 http://www.seeedstudio.com/depot/Grove-Touch-Sensor-p-747.html http://www.seeedstudio.com/wiki/Grove_-_I2C_Touch_Sensor
SG::EGroveType::kMagneticSwitch 101020038 http://www.seeedstudio.com/depot/Grove-Magnetic-Switch-p-744.html http://www.seeedstudio.com/wiki/Grove_-_Magnetic_Switch
SG::EGroveType::k3AxisDigitalAccelerometer1_5g 101020039 http://www.seeedstudio.com/depot/Grove-3Axis-Digital-Accelerometer15g-p-765.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Digital_Accelerometer(%C2%B11.5g)
SG::EGroveType::kIRDistanceInterrupt 101020040 http://www.seeedstudio.com/depot/Grove-IR-Distance-Interrupter-p-1278.html http://www.seeedstudio.com/wiki/Grove_-_IR_Distance_Interrupt
SG::EGroveType::kI2CColorSensor 101020041 http://www.seeedstudio.com/depot/Grove-I2C-Color-Sensor-p-854.html http://www.seeedstudio.com/wiki/Grove_-_I2C_Color_Sensor
SG::EGroveType::k80cmInfraredProximitySensor 101020042 http://www.seeedstudio.com/depot/Grove-80cm-Infrared-Proximity-Sensor-p-788.html http://www.seeedstudio.com/wiki/Grove_-_80cm_Infrared_Proximity_Sensor
SG::EGroveType::kUVSensor 101020043 http://www.seeedstudio.com/depot/Grove-UV-Sensor-p-1540.html http://www.seeedstudio.com/wiki/Grove_-_UV_Sensor
SG::EGroveType::kAlcoholSensor 101020044 http://www.seeedstudio.com/depot/Grove-Alcohol-Sensor-p-764.html http://www.seeedstudio.com/wiki/Grove_-_Alcohol_Sensor
SG::EGroveType::kGasSensorMQ9 101020045 http://www.seeedstudio.com/depot/Grove-Gas-SensorMQ9-p-1419.html http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor
SG::EGroveType::kHallSensor 101020046 http://www.seeedstudio.com/depot/Grove-Hall-Sensor-p-965.html http://www.seeedstudio.com/wiki/Grove_-_Hall_Sensor
SG::EGroveType::kI2CTouchSensor 101020047 http://www.seeedstudio.com/depot/Grove-I2C-Touch-Sensor-p-840.html http://www.seeedstudio.com/wiki/Grove_-_I2C_Touch_Sensor
SG::EGroveType::kRotaryAngleSensorP 101020048 http://www.seeedstudio.com/depot/Grove-Rotary-Angle-SensorP-p-1242.html http://www.seeedstudio.com/wiki/Grove_-_Rotary_Angle_Sensor
SG::EGroveType::kFlameSensor 101020049 http://www.seeedstudio.com/depot/Grove-Flame-Sensor-p-1450.html http://www.seeedstudio.com/wiki/Grove_-_Flame_Sensor
SG::EGroveType::k3AxisDigitalGyro 101020050 http://www.seeedstudio.com/depot/Grove-3Axis-Digital-Gyro-p-750.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Digital_Gyro
SG::EGroveType::k3AxisAnalogAccelerometer 101020051 http://www.seeedstudio.com/depot/Grove-3Axis-Analog-Accelerometer-p-1086.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Analog_Accelerometer
SG::EGroveType::kGSRSensor 101020052 http://www.seeedstudio.com/depot/Grove-GSR-sensor-p-1614.html http://www.seeedstudio.com/wiki/Grove_-_GSR_Sensor
SG::EGroveType::kSingleAxisAnalogGyro 101020053 http://www.seeedstudio.com/depot/Grove-Single-Axis-Analog-Gyro-p-1451.html http://www.seeedstudio.com/wiki/Grove_-_Single_Axis_Analog_Gyro
SG::EGroveType::k3AxisDigitalAccelerometer16g 101020054 http://www.seeedstudio.com/depot/Grove-3Axis-Digital-Accelerometer16g-p-1156.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Digital_Accelerometer(%C2%B116g)
SG::EGroveType::kGasSensorMQ2 101020055 http://www.seeedstudio.com/depot/Grove-Gas-SensorMQ2-p-937.html http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor
SG::EGroveType::kGasSensorMQ5 101020056 http://www.seeedstudio.com/depot/Grove-Gas-SensorMQ5-p-938.html http://www.seeedstudio.com/wiki/Grove_-_Gas_Sensor
SG::EGroveType::kFingerprintSensor 101020057 http://www.seeedstudio.com/depot/Grove-Fingerprint-Sensor-p-1424.html http://www.seeedstudio.com/wiki/Grove_-_Fingerprint_Sensor
SG::EGroveType::kEMGDetector 101020058 http://www.seeedstudio.com/depot/Grove-EMG-Detector-p-1737.html http://www.seeedstudio.com/wiki/Grove_-_EMG_Detector
SG::EGroveType::kIMU9DOFV1 101020059 http://www.seeedstudio.com/depot/Grove-IMU-9DOF-p-1728.html http://www.seeedstudio.com/wiki/Grove_-_IMU_9DOF_v1.0
SG::EGroveType::kMotionSensorLargeLens 101020060 http://www.seeedstudio.com/depot/PIR-Motion-Sensor-Large-Lens-version-p-1976.html http://www.seeedstudio.com/wiki/PIR_Motion_sensor_module
SG::EGroveType::k6AxisAccelerometerAndCompassV1 101020061 Discontinued. See SG::EGroveType::k6AxisAccelerometerAndCompassV2. http://www.seeedstudio.com/depot/Grove-6Axis-AccelerometerCompass-p-1448.html http://www.seeedstudio.com/wiki/Grove_-_6-Axis_Accelerometer%26Compass_V2.0
SG::EGroveType::kAnalogInfraredTemperatureSensor 101020062 See SG::EGroveType::kDigitalInfraredTemperatureSensor. http://www.seeedstudio.com/depot/Grove-Infrared-Temperature-Sensor-p-1058.html http://www.seeedstudio.com/wiki/Grove_-_Infrared_temperature_sensor
SG::EGroveType::kLoudnessSensor 101020063 http://www.seeedstudio.com/depot/Grove-Loudness-Sensor-p-1382.html http://www.seeedstudio.com/wiki/Grove_-_Loudness_Sensor
SG::EGroveType::kSerialCamera 101020064 http://www.seeedstudio.com/depot/Grove-Serial-Camera-p-945.html http://www.seeedstudio.com/wiki/Grove_-_Serial_Camera
SG::EGroveType::kPHSensor 101020065 Discontinued. http://www.seeedstudio.com/depot/Grove-PH-Sensor-p-1564.html http://www.seeedstudio.com/wiki/Grove_-_PH_Sensor
SG::EGroveType::kChestStrapHeartRateSensor 101020066 Discontinued. http://www.seeedstudio.com/depot/Grove-Chest-Strap-Heart-Rate-Sensor-p-1115.html http://www.seeedstudio.com/wiki/Grove_-_Chest_Strap_Heart_Rate_Sensor
SG::EGroveType::kCO2Sensor 101020067 http://www.seeedstudio.com/depot/Grove-CO2-Sensor-p-1863.html http://www.seeedstudio.com/wiki/Grove_-_CO2_Sensor
SG::EGroveType::kBarometerHighAccuracy 101020068 See SG::EGroveType::kBarometerSensorBMP180. http://www.seeedstudio.com/depot/Grove-Barometer-HighAccuracy-p-1865.html http://www.seeedstudio.com/wiki/Grove_-_Barometer_(High-Accuracy)
SG::EGroveType::kQTouchSensor 101020069 http://www.seeedstudio.com/depot/GroveQ-Touch-Sensor-p-1854.html http://www.seeedstudio.com/wiki/Grove_-_Q_Touch_Sensor
SG::EGroveType::kNFCTag 101020070 http://www.seeedstudio.com/depot/Grove-NFC-Tag-p-1866.html http://www.seeedstudio.com/wiki/Grove_-_NFC_Tag
SG::EGroveType::k3AxisDigitalAccelerometer400g 101020071 http://www.seeedstudio.com/depot/Grove-3Axis-Digital-Accelerometer400g-p-1897.html http://www.seeedstudio.com/wiki/Grove_-_3-Axis_Digital_Accelerometer(%C2%B1400g)
SG::EGroveType::kBarometerSensorBMP180 101020072 See SG::EGroveType::kBarometerHighAccuracy. http://www.seeedstudio.com/depot/Grove-Barometer-Sensor-BMP180-p-1840.html http://www.seeedstudio.com/wiki/Grove_-_Barometer_Sensor_(BMP180)
SG::EGroveType::kElectromagnet 101020073 http://www.seeedstudio.com/depot/Grove-Electromagnet-p-1820.html http://www.seeedstudio.com/wiki/Grove_-_Electromagnet
SG::EGroveType::kTemperatureAndHumidityHighAccuracyAndMini 101020074 See SG::EGroveType::kTemperatureAndHumiditySensor. http://www.seeedstudio.com/depot/Grove-TemperatureHumidity-Sensor-HighAccuracy-Mini-p-1921.html http://www.seeedstudio.com/wiki/Grove_-_Tempture%26Humidity_Sensor_(High-Accuracy_%26Mini)_v1.0
n/a 101020075 n/a n/a n/a
SG::EGroveType::kLuminanceSensor 101020076 http://www.seeedstudio.com/depot/Grove-Luminance-Sensor-p-1941.html http://www.seeedstudio.com/wiki/Grove_-_Luminance_Sensor
SG::EGroveType::kDigitalInfraredTemperatureSensor 101020077 See SG::EGroveType::kAnalogInfraredTemperatureSensor. http://www.seeedstudio.com/depot/Grove-Digital-Infrared-Temperature-Sensor-p-2385.html http://www.seeedstudio.com/wiki/Grove_-_Digital_Infrared_Temperature_Sensor
SG::EGroveType::kAirQualitySensorV13 101020078 http://www.seeedstudio.com/depot/Grove-Air-quality-sensor-v13-p-2439.html http://www.seeedstudio.com/wiki/Grove_-_Air_Quality_Sensor_v1.3
SG::EGroveType::kIMU10DOF 101020079 http://www.seeedstudio.com/depot/Grove-IMU-10DOF-p-2386.html http://www.seeedstudio.com/wiki/Grove_-_IMU_10DOF
SG::EGroveType::kIMU9DOFV2 101020080 http://www.seeedstudio.com/depot/Grove-IMU-9DOF-v20-p-2400.html http://www.seeedstudio.com/wiki/Grove_-_IMU_9DOF_v2.0
SG::EGroveType::k6AxisAccelerometerAndCompassV2 101020081 See SG::EGroveType::k6AxisAccelerometerAndCompassV1. http://www.seeedstudio.com/depot/Grove-6Axis-AccelerometerCompass-v20-p-2476.html http://www.seeedstudio.com/wiki/Grove_-_6-Axis_Accelerometer&Compass_V2.0
SG::EGroveType::kFingerClipHeartRateSensorWithShell 101020082 http://www.seeedstudio.com/depot/Grove-Fingerclip-Heart-Rate-Sensor-with-shell-p-2420.html http://www.seeedstudio.com/wiki/Grove_-_Finger-clip_Heart_Rate_Sensor_with_shell
SG::EGroveType::kGestureV1 101020083 http://www.seeedstudio.com/depot/Grove-Gesture-p-2463.html http://www.seeedstudio.com/wiki/Grove_-_Gesture_v1.0
n/a 101020084 n/a n/a n/a
n/a 101020085 n/a n/a n/a
n/a 101020086 n/a n/a n/a
SG::EGroveType::kTemperatureAndHumiditySensorHDC1000 101020087 http://www.seeedstudio.com/depot/Grove-TemperatureHumidity-Sensor-HDC1000-p-2535.html http://www.seeedstudio.com/wiki/Grove_-_Temperature&Humidity_Sensor_(HDC1000)
SG::EGroveType::kMultichannelGasSensor 101020088 http://www.seeedstudio.com/depot/Grove-Multichannel-Gas-Sensor-p-2502.html http://www.seeedstudio.com/wiki/Grove_-_Multichannel_Gas_Sensor
SG::EGroveType::kSunlightSensor 101020089 http://www.seeedstudio.com/depot/Grove-Sunlight-Sensor-p-2530.html http://www.seeedstudio.com/wiki/Grove_-_Sunlight_Sensor
SG::EGroveType::kWaterAtomization 101020090 http://www.seeedstudio.com/depot/Grove-Water-Atomization-v10-p-2542.html http://www.seeedstudio.com/wiki/Grove_-_Water_Atomization
SG::EGroveType::kMiniTrackBall 101020091 http://www.seeedstudio.com/depot/Grove-Mini-Track-Ball-p-2586.html http://www.seeedstudio.com/wiki/Grove_-_Mini_Track_Ball
SG::EGroveType::kDMX512 103020000 http://www.seeedstudio.com/depot/Grove-DMX512-p-1447.html http://www.seeedstudio.com/wiki/Grove_-_DMX512
n/a 103020001 n/a n/a n/a
SG::EGroveType::kBeeSocket 103020002 http://www.seeedstudio.com/depot/Grove-Bee-Socket-p-1449.html http://www.seeedstudio.com/wiki/Grove_-_Bee_Socket
SG::EGroveType::kPS2Adapter 103020003 http://www.seeedstudio.com/depot/Grove-PS2-Adapter-p-966.html http://www.seeedstudio.com/wiki/Grove_-_PS/2_Adapter
SG::EGroveType::kSolidStateRelay 103020004 http://www.seeedstudio.com/depot/Grove-Solid-State-Relay-p-1359.html http://www.seeedstudio.com/wiki/Grove_-_Solid_State_Relay
SG::EGroveType::kRelayV12 103020005 http://www.seeedstudio.com/depot/Grove-Relay-p-769.html http://www.seeedstudio.com/wiki/Grove_-_Relay
SG::EGroveType::kI2CHub 103020006 http://www.seeedstudio.com/depot/Grove-I2C-Hub-p-851.html http://www.seeedstudio.com/wiki/Grove_-_I2C_Hub
SG::EGroveType::kScrewTerminal 103020007 http://www.seeedstudio.com/depot/Grove-Screw-Terminal-p-996.html http://www.seeedstudio.com/wiki/Grove_-_Screw_Terminal
SG::EGroveType::kMOSFET 103020008 http://www.seeedstudio.com/depot/Grove-MOSFET-p-1594.html http://www.seeedstudio.com/wiki/Grove_-_MOSFET
SG::EGroveType::kNunChuck 103020009 http://www.seeedstudio.com/depot/Grove-Nunchuck-p-1474.html http://www.seeedstudio.com/wiki/Grove_-_NunChuck
SG::EGroveType::k2CoilLatchingRelay 103020010 http://www.seeedstudio.com/depot/Grove-2Coil-Latching-Relay-p-1446.html http://www.seeedstudio.com/wiki/Grove_-_2-Coil_Latching_Relay
SG::EGroveType::kRJ45Adapter 103020011 http://www.seeedstudio.com/depot/Grove-RJ45-Adapter-p-1426.html http://www.seeedstudio.com/wiki/Grove_-_RJ45_Adapter
SG::EGroveType::kSPDTRelay30A 103020012 http://www.seeedstudio.com/depot/Grove-SPDT-Relay30A-p-1473.html http://www.seeedstudio.com/wiki/Grove_-_SPDT_Relay(30A)
SG::EGroveType::kI2CADC 103020013 http://www.seeedstudio.com/depot/Grove-I2C-ADC-p-1580.html http://www.seeedstudio.com/wiki/Grove_-_I2C_ADC
SG::EGroveType::kDryReedRelay 103020014 http://www.seeedstudio.com/depot/Grove-DryReed-Relay-p-1412.html http://www.seeedstudio.com/wiki/Grove_-_Dry-Reed_Relay
SG::EGroveType::kGroveCapeForBeagleBone 103020015 http://www.seeedstudio.com/depot/Grove-Cape-for-BeagleBone-Series-p-1718.html http://www.seeedstudio.com/wiki/Grove_Cape_for_BeagleBone_Series
SG::EGroveType::kDifferentialAmplifierV12 103020016 http://www.seeedstudio.com/depot/Grove-Differential-Amplifier-p-1284.html http://www.seeedstudio.com/wiki/Grove_-_Differential_Amplifier_v1.2
n/a 103020017 n/a n/a n/a
SG::EGroveType::kRecorder 103020018 http://www.seeedstudio.com/depot/Grove-Recorder-p-1825.html http://www.seeedstudio.com/wiki/Grove_-_Recorder
SG::EGroveType::kVoltageDivider 104020000 http://www.seeedstudio.com/depot/Grove-Voltage-Divider-p-1472.html http://www.seeedstudio.com/wiki/Grove_-_Voltage_Divider
SG::EGroveType::kVariableColorLED 104020001 http://www.seeedstudio.com/depot/Grove-Variable-Color-LED-p-852.html http://www.seeedstudio.com/wiki/Grove_-_Variable_Color_LED
SG::EGroveType::kPurpleLED 104020002 http://www.seeedstudio.com/depot/Grove-Purple-LED-3mm-p-1143.html http://www.seeedstudio.com/wiki/Grove_-_LED_Socket_Kit
SG::EGroveType::kBlinkM 104020003 Discontinued. http://www.seeedstudio.com/depot/Grove-BlinkM-p-826.html http://www.seeedstudio.com/wiki/Grove_-_BlinkM
SG::EGroveType::kSerialLCD 104020004 Discontinued. See SG::EGroveType::kLCDRGBBacklight. http://www.seeedstudio.com/depot/Grove-Serial-LCD-p-773.html http://www.seeedstudio.com/wiki/Grove_-_Serial_LCD_V0.9
SG::EGroveType::kLEDLightString 104020005 http://www.seeedstudio.com/depot/Grove-LED-String-Light-p-2324.html http://www.seeedstudio.com/wiki/Grove_-_LED_String_Light
SG::EGroveType::kLEDBarV2 104020006 http://www.seeedstudio.com/depot/Grove-LED-Bar-v20-p-2474.html http://www.seeedstudio.com/wiki/Grove_-_LED_Bar
SG::EGroveType::kLCDRGBBacklight 104030001 http://www.seeedstudio.com/depot/Grove-LCD-RGB-Backlight-p-1643.html http://www.seeedstudio.com/wiki/Grove_-_LCD_RGB_Backlight
SG::EGroveType::kLEDBar 104030002 Discontinued. See SG::EGroveType::kLEDBarV2. http://www.seeedstudio.com/depot/Grove-LED-Bar-p-1178.html http://www.seeedstudio.com/wiki/Grove_-_LED_Bar
SG::EGroveType::k4DigitDisplay 104030003 http://www.seeedstudio.com/depot/Grove-4Digit-Display-p-1198.html http://www.seeedstudio.com/wiki/Grove_-_4-Digit_Display
n/a 104030004 n/a n/a n/a
SG::EGroveType::kRedLED 104030005 http://www.seeedstudio.com/depot/Grove-Red-LED-p-1142.html http://www.seeedstudio.com/wiki/Grove_-_LED
SG::EGroveType::kChainableRGBLED 104030006 http://www.seeedstudio.com/depot/Grove-Chainable-RGB-LED-p-850.html http://www.seeedstudio.com/wiki/Grove_-_Chainable_RGB_LED
SG::EGroveType::kGreenLED 104030007 http://www.seeedstudio.com/depot/Grove-Green-LED-p-1144.html http://www.seeedstudio.com/wiki/Grove_-_LED_Socket_Kit
SG::EGroveType::kOLEDDisplay1_12 104030008 128x64 http://www.seeedstudio.com/depot/Grove-OLED-Display-112-p-781.html http://www.seeedstudio.com/wiki/Grove_-_OLED_Display_128%2A64
SG::EGroveType::kWhiteLED 104030009 http://www.seeedstudio.com/depot/Grove-White-LED-p-1140.html http://www.seeedstudio.com/wiki/Grove_-_LED
SG::EGroveType::kBlueLED 104030010 http://www.seeedstudio.com/depot/Grove-Blue-LED-p-1139.html http://www.seeedstudio.com/wiki/Grove_-_LED
SG::EGroveType::kOLEDDisplay0_96 104030011 96x96 http://www.seeedstudio.com/depot/Grove-OLED-Display-096-p-824.html http://www.seeedstudio.com/wiki/Grove_-_OLED_Display_96%2A96
n/a 104030012 n/a n/a n/a
SG::EGroveType::kCircularLED 104030013 http://www.seeedstudio.com/depot/Grove-Circular-LED-p-1353.html http://www.seeedstudio.com/wiki/Grove_-_Circular_LED
SG::EGroveType::kMultiColorFlashLED 104030014 http://www.seeedstudio.com/depot/Grove-Multi-Color-Flash-LED-5mm-p-1141.html http://www.seeedstudio.com/wiki/Grove_-_LED
SG::EGroveType::kLED 104030015 Discontinued. See SG::EGroveType::kGreenLED. http://www.seeedstudio.com/depot/Grove-LED-p-767.html n/a
SG::EGroveType::k5InchLcdCape 104990262 http://www.seeedstudio.com/item_detail.html?p_id=2642 n/a
SG::EGroveType::k7InchLcdCape 104990263 http://www.seeedstudio.com/item_detail.html?p_id=2643 n/a
SG::EGroveType::kI2CMotorDriverV12 105020001 http://www.seeedstudio.com/depot/Grove-I2C-Motor-Driver-p-907.html http://www.seeedstudio.com/wiki/Grove_-_I2C_Motor_Driver_V1.2
SG::EGroveType::kLEDStripDriver 105020002 http://www.seeedstudio.com/depot/Grove-LED-Strip-Driver-p-1197.html http://www.seeedstudio.com/wiki/Grove_-_LED_Strip_Driver
SG::EGroveType::kVibrationMotor 105020003 http://www.seeedstudio.com/depot/Grove-Vibration-Motor-p-839.html http://www.seeedstudio.com/wiki/Grove_-_Vibration_Motor
SG::EGroveType::kMiniFan 105020004 http://www.seeedstudio.com/depot/Grove-Mini-Fan-p-1819.html http://www.seeedstudio.com/wiki/Grove_-_Mini_Fan
SG::EGroveType::kELDriver 105020005 http://www.seeedstudio.com/depot/GroveEL-Driver-p-2269.html http://www.seeedstudio.com/wiki/Grove_-_EL_Driver
n/a 105020006 n/a n/a n/a
n/a 105020007 n/a n/a n/a
n/a 105020008 n/a n/a n/a
n/a 105020009 n/a n/a n/a
SG::EGroveType::kI2CMotorDriverV10 105020010 http://www.seeedstudio.com/depot/Grove%C2%A0%C2%A0I2C%C2%A0Mini%C2%A0Motor%C2%A0Driver-p-2508.html http://www.seeedstudio.com/wiki/Grove_-_Mini_I2C_Motor_Driver_v1.0
SG::EGroveType::kHapticMotor 105020011 http://www.seeedstudio.com/depot/Grove%C2%A0%C2%A0Haptic%C2%A0Motor-p-2546.html http://www.seeedstudio.com/wiki/Grove_-_Haptic_Motor
SG::EGroveType::kBuzzer 107020000 http://www.seeedstudio.com/depot/Grove-Buzzer-p-768.html http://www.seeedstudio.com/wiki/Grove_-_Buzzer
SG::EGroveType::kSpeaker 107020001 http://www.seeedstudio.com/depot/Grove-Speaker-p-1445.html http://www.seeedstudio.com/wiki/Grove_-_Speaker
SG::EGroveType::kSerialMP3Player 107020002 See SG::EGroveType::kMP3V2. http://www.seeedstudio.com/depot/Grove-Serial-MP3-Player-p-1542.html http://www.seeedstudio.com/wiki/Grove_-_Serial_MP3_Player
n/a 107020003 n/a n/a n/a
SG::EGroveType::kSoundRecorder 107020004 Discontinued. http://www.seeedstudio.com/depot/Grove-Sound-Recorder-p-904.html http://www.seeedstudio.com/wiki/Grove_-_Sound_Recorder
SG::EGroveType::kFMReceiver 107020005 http://www.seeedstudio.com/depot/Grove-FM-Receiver-p-1841.html http://www.seeedstudio.com/wiki/Grove_-_FM_Receiver
SG::EGroveType::kI2CFMReceiver 107020006 http://www.seeedstudio.com/depot/Grove-I2C-FM-Receiver-p-1953.html http://www.seeedstudio.com/wiki/Grove_-_I2C_FM_Receiver
n/a 107020007 n/a n/a n/a
SG::EGroveType::kMP3V2 107020008 See SG::EGroveType::kSerialMP3Player. http://www.seeedstudio.com/depot/Grove-MP3-v20-p-2597.html http://www.seeedstudio.com/wiki/Grove_-_MP3_v2.0
SG::EGroveType::kButtonP 111020000 See SG::EGroveType::kButton. http://www.seeedstudio.com/depot/Grove-ButtonP-p-1243.html http://www.seeedstudio.com/wiki/Grove_-_Button
SG::EGroveType::kEncoder 111020001 http://www.seeedstudio.com/depot/Grove-Encoder-p-1352.html http://www.seeedstudio.com/wiki/Grove_-_Encoder
SG::EGroveType::kHighTemperatureSensor 111020002 http://www.seeedstudio.com/depot/Grove-High-Temperature-Sensor-p-1810.html http://www.seeedstudio.com/wiki/Grove_-_High_Temperature_Sensor
SG::EGroveType::kSerialRFPro 113020000 http://www.seeedstudio.com/depot/Grove-Serial-RF-Pro-p-794.html http://www.seeedstudio.com/wiki/Grove_-_Serial_RF_Pro
SG::EGroveType::k315MHzSimpleRFLinkKit 113020001 http://www.seeedstudio.com/depot/Grove-315MHz-Simple-RF-Link-Kit-p-1061.html http://www.seeedstudio.com/wiki/Grove_-_315MHz_Simple_RF_Link_Kit
SG::EGroveType::k125KHzRFIDReader 113020002 http://www.seeedstudio.com/depot/Grove-125KHz-RFID-Reader-p-1008.html http://www.seeedstudio.com/wiki/Grove_-_125KHz_RFID_Reader
SG::EGroveType::kGPS 113020003 http://www.seeedstudio.com/depot/Grove-GPS-p-959.html http://www.seeedstudio.com/wiki/Grove_-_GPS
SG::EGroveType::kXBeeCarrier 113020004 http://www.seeedstudio.com/depot/Grove-XBee-Carrier-p-905.html http://www.seeedstudio.com/wiki/Grove_-_XBee_Carrier
SG::EGroveType::kSerialBluetooth 113020005 Discontinued. See SG::EGroveType::kSerialBluetoothV3. http://www.seeedstudio.com/depot/Grove-Serial-Bluetooth-p-795.html http://www.seeedstudio.com/wiki/Grove_-_Serial_Bluetooth
SG::EGroveType::kNFC 113020006 http://www.seeedstudio.com/depot/Grove-NFC-p-1804.html http://www.seeedstudio.com/wiki/Grove_-_NFC
SG::EGroveType::kBLE 113020007 http://www.seeedstudio.com/depot/Grove-BLE-p-1929.html http://www.seeedstudio.com/wiki/Grove_BLE_v1
SG::EGroveType::kSerialBluetoothV3 113020008 http://www.seeedstudio.com/depot/Grove-Serial-Bluetooth-v30-p-2475.html http://www.seeedstudio.com/wiki/Grove_-_Serial_Bluetooth_v3.0
SG::EGroveType::kBLEDualModel 113020009 http://www.seeedstudio.com/depot/Grove-BLE-dual-model-p-2407.html http://www.seeedstudio.com/wiki/Grove_-_BLE_(dual_model)_v1.0
SG::EGroveType::kUartWifi 113020010 http://www.seeedstudio.com/depot/Grove-Uart-Wifi-p-2495.html http://www.seeedstudio.com/wiki/Grove_-_UART_WiFi
SG::EGroveType::k433MHzSimpleRFLinkKit 113060000 http://www.seeedstudio.com/depot/Grove-433MHz-Simple-RF-link-kit-p-1062.html http://www.seeedstudio.com/wiki/Grove_-_433MHz_Simple_RF_Link_Kit
SG::EGroveType::kServo 316010005 http://www.seeedstudio.com/depot/Grove-Servo-p-1241.html http://www.seeedstudio.com/wiki/Grove_-_Servo
Enumerator
kInvalid
kUnknown
kNone
kSerialCameraKit

SKU #101020000.

kHCHOSensor

SKU #101020001.

kGasSensorO2

SKU #101020002.

kButton

SKU #101020003.

kSwitchP

SKU #101020004.

kCollisionSensor

SKU #101020005.

kGasSensorMQ3

SKU #101020006.

kMiniCamera

SKU #101020007.

kMoistureSensor

SKU #101020008.

kLineFinder

SKU #101020009.

kUltrasonicRanger

SKU #101020010.

kTemperatureAndHumiditySensor

SKU #101020011.

kDustSensor

SKU #101020012.

kRTC

SKU #101020013.

kAnalogLightSensor

SKU #101020014.

kTemperatureSensorV12

SKU #101020015.

kInfraredReceiver

SKU #101020016.

kRotaryAngleSensor

SKU #101020017.

kWaterSensor

SKU #101020018.

kTemperatureAndHumiditySensorPro

SKU #101020019.

kPIRMotionSensor

SKU #101020020.

kAirQualitySensor

SKU #101020021.

kAnalogLightSensorP

SKU #101020022.

kSoundSensor

SKU #101020023.

kMegaShield

SKU #101020024.

kTiltSwitch

SKU #101020025.

kInfraredEmitter

SKU #101020026.

kElectricitySensor

SKU #101020027.

kThumbJoystick

SKU #101020028.

kInfraredReflectiveSensor

SKU #101020029.

kDigitalLightSensor

SKU #101020030.

kPiezoVibrationSensor

SKU #101020031.

kBarometerSensor

SKU #101020032.

kEarClipHeartRateSensor

SKU #101020033.

k3AxisDigitalCompass

SKU #101020034.

kProtoShield

SKU #101020035.

kSlidePotentiometer

SKU #101020036.

kTouchSensor

SKU #101020037.

kMagneticSwitch

SKU #101020038.

k3AxisDigitalAccelerometer1_5g

SKU #101020039.

kIRDistanceInterrupt

SKU #101020040.

kI2CColorSensor

SKU #101020041.

k80cmInfraredProximitySensor

SKU #101020042.

kUVSensor

SKU #101020043.

kAlcoholSensor

SKU #101020044.

kGasSensorMQ9

SKU #101020045.

kHallSensor

SKU #101020046.

kI2CTouchSensor

SKU #101020047.

kRotaryAngleSensorP

SKU #101020048.

kFlameSensor

SKU #101020049.

k3AxisDigitalGyro

SKU #101020050.

k3AxisAnalogAccelerometer

SKU #101020051.

kGSRSensor

SKU #101020052.

kSingleAxisAnalogGyro

SKU #101020053.

k3AxisDigitalAccelerometer16g

SKU #101020054.

kGasSensorMQ2

SKU #101020055.

kGasSensorMQ5

SKU #101020056.

kFingerprintSensor

SKU #101020057.

kEMGDetector

SKU #101020058.

kIMU9DOFV1

SKU #101020059.

kMotionSensorLargeLens

SKU #101020060.

k6AxisAccelerometerAndCompassV1

SKU #101020061.

kAnalogInfraredTemperatureSensor

SKU #101020062.

kLoudnessSensor

SKU #101020063.

kSerialCamera

SKU #101020064.

kPHSensor

SKU #101020065.

kChestStrapHeartRateSensor

SKU #101020066.

kCO2Sensor

SKU #101020067.

kBarometerHighAccuracy

SKU #101020068.

kQTouchSensor

SKU #101020069.

kNFCTag

SKU #101020070.

k3AxisDigitalAccelerometer400g

SKU #101020071.

kBarometerSensorBMP180

SKU #101020072.

kElectromagnet

SKU #101020073.

kTemperatureAndHumidityHighAccuracyAndMini

SKU #101020074.

kLuminanceSensor

SKU #101020076.

kDigitalInfraredTemperatureSensor

SKU #101020077.

kAirQualitySensorV13

SKU #101020078.

kIMU10DOF

SKU #101020079.

kIMU9DOFV2

SKU #101020080.

k6AxisAccelerometerAndCompassV2

SKU #101020081.

kFingerClipHeartRateSensorWithShell

SKU #101020082.

kGestureV1

SKU #101020083.

kTemperatureAndHumiditySensorHDC1000

SKU #101020087.

kMultichannelGasSensor

SKU #101020088.

kSunlightSensor

SKU #101020089.

kWaterAtomization

SKU #101020090.

kMiniTrackBall

SKU #101020091.

kDMX512

SKU #103020000.

kBeeSocket

SKU #103020002.

kPS2Adapter

SKU #103020003.

kSolidStateRelay

SKU #103020004.

kRelayV12

SKU #103020005.

kI2CHub

SKU #103020006.

kScrewTerminal

SKU #103020007.

kMOSFET

SKU #103020008.

kNunChuck

SKU #103020009.

k2CoilLatchingRelay

SKU #103020010.

kRJ45Adapter

SKU #103020011.

kSPDTRelay30A

SKU #103020012.

kI2CADC

SKU #103020013.

kDryReedRelay

SKU #103020014.

kGroveCapeForBeagleBone

SKU #103020015.

kDifferentialAmplifierV12

SKU #103020016.

kRecorder

SKU #103020018.

kVoltageDivider

SKU #104020000.

kVariableColorLED

SKU #104020001.

kPurpleLED

SKU #104020002.

kBlinkM

SKU #104020003.

kSerialLCD

SKU #104020004.

kLEDLightString

SKU #104020005.

kLEDBarV2

SKU #104020006.

kLCDRGBBacklight

SKU #104030001.

kLEDBar

SKU #104030002.

k4DigitDisplay

SKU #104030003.

kRedLED

SKU #104030005.

kChainableRGBLED

SKU #104030006.

kGreenLED

SKU #104030007.

kOLEDDisplay1_12

SKU #104030008.

kWhiteLED

SKU #104030009.

kBlueLED

SKU #104030010.

kOLEDDisplay0_96

SKU #104030011.

kCircularLED

SKU #104030013.

kMultiColorFlashLED

SKU #104030014.

kLED

SKU #104030015.

k5InchLcdCape

SKU #104990262.

k7InchLcdCape

SKU #104990263.

kI2CMotorDriverV12

SKU #105020001.

kLEDStripDriver

SKU #105020002.

kVibrationMotor

SKU #105020003.

kMiniFan

SKU #105020004.

kELDriver

SKU #105020005.

kI2CMotorDriverV10

SKU #105020010.

kHapticMotor

SKU #105020011.

kBuzzer

SKU #107020000.

kSpeaker

SKU #107020001.

kSerialMP3Player

SKU #107020002.

kSoundRecorder

SKU #107020004.

kFMReceiver

SKU #107020005.

kI2CFMReceiver

SKU #107020006.

kMP3V2

SKU #107020008.

kButtonP

SKU #111020000.

kEncoder

SKU #111020001.

kHighTemperatureSensor

SKU #111020002.

kSerialRFPro

SKU #113020000.

k315MHzSimpleRFLinkKit

SKU #113020001.

k125KHzRFIDReader

SKU #113020002.

kGPS

SKU #113020003.

kXBeeCarrier

SKU #113020004.

kSerialBluetooth

SKU #113020005.

kNFC

SKU #113020006.

kBLE

SKU #113020007.

kSerialBluetoothV3

SKU #113020008.

kBLEDualModel

SKU #113020009.

kUartWifi

SKU #113020010.

k433MHzSimpleRFLinkKit

SKU #113060000.

kServo

SKU #316010005.

Function Documentation

◆ demangle()

std::string SG::demangle ( const std::string &  name)

Demangle the C++ function or variable name. Sometimes useful in error messages.

Referenced by SG::GroveBase::get_description(), and main().

Here is the caller graph for this function:

◆ detect()

SG::VGroveTypes SG::detect ( void  )

Referenced by list_detect().

Here is the caller graph for this function:

◆ file_does_not_exist()

bool SG::file_does_not_exist ( const std::string &  filename)
inline

Determine if the specified file does not exist.

References file_exists(), read_file(), and trim().

Referenced by SG::FD::FD().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ file_exists()

bool SG::file_exists ( const std::string &  filename)

Determine if the specified file exists.

Referenced by file_does_not_exist(), and SG::BeagleBone::Detect::get_model().

Here is the caller graph for this function:

◆ get_all_grove_types()

SG::VGroveTypes SG::get_all_grove_types ( void  )

Return a vector containing every possible Grove type.

Referenced by get_grove_type_name_map().

Here is the caller graph for this function:

◆ get_build_timestamp()

std::string SG::get_build_timestamp ( void  )

Format the compiler macros __DATE__ and __TIME__ to make a readable timestamp showing when the SG++ library was last built.

Format should be similar to "Dec 9 2015 10:35:11".

Referenced by main().

Here is the caller graph for this function:

◆ get_grove_type_name_map()

SG::MGroveTypeNames SG::get_grove_type_name_map ( void  )

Get a map of all the grove types and the corresponding names.

References get_all_grove_types().

Referenced by list(), list_all(), and to_string().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ get_sku_from_grove_type()

uint32_t SG::get_sku_from_grove_type ( const EGroveType grove_type)

Return the Seeed SKU for the given Grove type.

This is just a guess since I don't work for Seeed and have no insight into their SKU numbers other than what is publicly available on the Seeed web site.

Returns
zero if the grove type doesn't map to a known Seeed SKU.

Referenced by SG::GroveBase::get_sku(), and list().

Here is the caller graph for this function:

◆ get_version()

std::string SG::get_version ( void  )

Get the version string.

Format should be similar to "0.0.1-1443".

References SG_VERSION.

Referenced by main().

Here is the caller graph for this function:

◆ read_file()

std::string SG::read_file ( const std::string &  filename)

Read the specified file into a single std::string.

Referenced by file_does_not_exist(), SG::BeagleBone::Detect::get_compatibilities(), and SG::BeagleBone::Detect::get_model().

Here is the caller graph for this function:

◆ to_string()

std::string SG::to_string ( const EGroveType type)

Get a short text name for the given type.

References get_grove_type_name_map().

Referenced by SG::GroveBase::get_type_name().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ trim() [1/2]

std::string SG::trim ( const std::string &  str)

Trim whitespace and return a new string, leaving the original string unchanged.

Referenced by file_does_not_exist(), and SG::BeagleBone::Detect::get_model().

Here is the caller graph for this function:

◆ trim() [2/2]

std::string & SG::trim ( std::string &  str)

Trim whitespace from the provided string. Modifies the original string.
