fc Namespace Reference

All of the FileCatalyst classes and objects are declared within the fc namespace. More...

Namespaces

 Logging
 The fc::Logging namespace contains helper functions to easily manage the different types of logging available in FC++.

 SummaryLog
 The SummaryLog namespace contains helper functions for generating a summary of what happens within FC++.


Classes

class  Control
 fc::Control is the client class C++ API used to control a FTP server and manage file transfers. More...

class  Exception
 fc::Exception objects represent a C++ exception and usually includes stack traces and optional parameters to describe the internal state of FC++ at the time the exception happened. More...

struct  FileDetails
 A collection of file or directory properties returned when a directory listing has been requested. More...

class  GlobalStateAndStats
 Combine both state and statistics into a single class which callers can access. More...

class  GlobalStats
 GlobalStats is used to track some summary statistics during file transfers. More...

class  Local
 The class fc::Local is used to encapsulate local directories or files. More...

class  Name
 To prevent mixing up local path and remote path parameters when calling the FC++ API, the path and/or filenames are wrapped using the simple fc::Local and fc::Remote classes. More...

class  Options
 fc::Options contains all the default and user-defined settings required by fc::Control to connect to FTP servers. More...

class  Remote
 The class fc::Remote is used to encapsulate remote directories or files. More...

class  TransferStats
 File transfer statistics. More...


Typedefs

typedef std::map< size_t, fc::TransferStatsTransferStatsMap
 Track all of the individual file transfers, where the key is a numeric sequence describing the order of the file transfer. More...

typedef void(* StatisticsCallback) (const fc::GlobalStateAndStats &stats, void *ptr)
 Allow a single callback to be specified when the statistics are updated. More...

typedef std::vector< std::string > StrVec
 Defined for convenience: a vector of text strings. More...

typedef std::map< std::string, std::string > StrMap
 Defined for convenience: an ordered map where both the key and the value are text strings. More...

typedef std::set< std::string > StrSet
 Defined for convenience: an ordered set of text strings. More...

typedef std::vector< FileDetailsFDVec
 A std::vector of fc::FileDetails. More...


Enumerations

enum  EClientIdMajor {
  kInvalidMajorId = 0,
  kCli = 3,
  kApi = 7,
  kMobile = 15
}

enum  EClientIdMinor {
  kInvalidMinorId = 0,
  kCliJava = 7,
  kCliCpp = 8,
  kApiCpp = 10,
  kMobileUploaderIos = 13,
  kApiIos = 14
}

enum  ETransferMode {
  kInvalidTransferMode = 0,
  kFtp = 1,
  kTcp = kFtp,
  kUdp = 2
}

enum  EConnectionMode {
  kInvalidConnectionMode = 0,
  kActive = 1,
  kPassive = 2
}

enum  ESslHandshakeMode {
  kInvalidSslHandshake = 0,
  kSslAutoDetect = 1,
  kSslFullHandshake = 2,
  kSslSessionReuse = 3
}

enum  ECommonBandwidth {
  kInvalidBandwidth = 0,
  kZero_bps = 0,
  k1_Kbps,
  k1200_bps,
  k2400_bps,
  k4800_bps,
  k9600_bps,
  k14_4_Kbps,
  k28_8_Kbps,
  k33_6_Kbps,
  k56_Kbps,
  k64_Kbps,
  k128_Kbps,
  k144_Kbps,
  k236_8_Kbps,
  k256_Kbps,
  k384_Kbps,
  k640_Kbps,
  k768_Kbps,
  k1_Mbps,
  k1_544_Mbps,
  k2_Mbps,
  k2_048_Mbps,
  k2_5_Mbps,
  k3_152_Mbps,
  k3_5_Mbps,
  k4_Mbps,
  k6_312_Mbps,
  k8_448_Mbps,
  k10_Mbps,
  k11_Mbps,
  k16_Mbps,
  k32_064_Mbps,
  k34_368_Mbps,
  k44_736_Mbps,
  k51_84_Mbps,
  k54_Mbps,
  k89_472,
  k97_728_Mbps,
  k100_Mbps,
  k135_Mbps,
  k139_264_Mbps,
  k155_52_Mbps,
  k274_176_Mbps,
  k397_200_Mbps,
  k400_352_Mbps,
  k466_56_Mbps,
  k565_148_Mbps,
  k600_Mbps,
  k622_08_Mbps,
  k933_12_Mbps,
  k1_Gbps,
  k1244_16_Mbps,
  k1_3_Gbps,
  k1866_24_Mbps,
  k2488_32_Mbps,
  k4976_64_Mbps,
  k6_75_Gbps,
  k9953_28_Mbps,
  k10_Gbps,
  k13_1_Gbps,
  k39_813_Gbps,
  k1200Modem = k1200_bps,
  k2400Modem = k2400_bps,
  k9600Modem = k9600_bps,
  k14KModem = k14_4_Kbps,
  k28KModem = k28_8_Kbps,
  k33KModem = k33_6_Kbps,
  k56KModem = k56_Kbps,
  k64KISDN = k64_Kbps,
  k128KISDN = k128_Kbps,
  k144IDSL = k144_Kbps,
  kDS0 = k64_Kbps,
  kDS1 = k1_544_Mbps,
  kDS2 = k6_312_Mbps,
  kDS3 = k44_736_Mbps,
  kDS4 = k274_176_Mbps,
  kT1 = k1_544_Mbps,
  kE1 = k2_048_Mbps,
  kT2 = k6_312_Mbps,
  kT3 = k44_736_Mbps,
  kT4 = k274_176_Mbps,
  kT5 = k400_352_Mbps,
  kOC1 = k51_84_Mbps,
  kOC3 = k155_52_Mbps,
  kOC9 = k466_56_Mbps,
  kOC12 = k622_08_Mbps,
  kOC18 = k933_12_Mbps,
  kOC24 = k1244_16_Mbps,
  kOC36 = k1866_24_Mbps,
  kOC48 = k2488_32_Mbps,
  kOC96 = k4976_64_Mbps,
  kOC192 = k9953_28_Mbps,
  kOC256 = k13_1_Gbps,
  kOC768 = k39_813_Gbps,
  k10BaseX = k10_Mbps,
  k100BaseX = k100_Mbps,
  k1000BaseX = k1_Gbps,
  k10GBaseX = k10_Gbps,
  kEthernet = k10BaseX,
  kFastEthernet = k100BaseX,
  kGigabit = k1000BaseX,
  k10Gigabit = k10GBaseX,
  k80211 = k2_Mbps,
  k80211a = k54_Mbps,
  k80211b = k11_Mbps,
  k80211g = k54_Mbps,
  k80211n = k600_Mbps,
  k80211ac = k1_3_Gbps,
  k80211ad = k6_75_Gbps,
  k1G = k1200_bps,
  k2G = k14_4_Kbps,
  k2_5G = k56_Kbps,
  k2_75G = k236_8_Kbps,
  k3G = k384_Kbps,
  k4G = k100_Mbps
}
 Enumerations for several common bandwidth values. More...

enum  FtpServerReplyCodes {
  k110RestartMarkerReply = 110,
  k120ServiceReadyInMinutes = 120,
  k125DataConnectionAlreadyOpen = 125,
  k150FileStatusOkayOpenDataConnection = 150,
  k200CommandOkay = 200,
  k202CommandNotImplemented = 202,
  k211SystemStatus = 211,
  k212DirectoryStatus = 212,
  k213FileStatus = 213,
  k214HelpMessage = 214,
  k215OperatingSystem = 215,
  k220ReadyForNewUser = 220,
  k221ClosingConnectionLoggedOut = 221,
  k225DataConnectionOpen = 225,
  k226ClosingDataConnectionTransferDone = 226,
  k227ServerOpenedPassiveConnection = 227,
  k228ServerEnteringLongPassiveMode = 228,
  k229ServerEnteringExtendedPassiveMode = 229,
  k230UserLoggedIn = 230,
  k231UserLoggedOut = 231,
  k232WillLogoutWhenTransferCompletes = 232,
  k234SecurityDataExchangeComplete = 234,
  k250RequestedActionOkay = 250,
  k252Echo = 252,
  k255InTargetDirectoryAlready = 255,
  k257PathCreatedOrDirectoryStatus = 257,
  k331SendPassword = 331,
  k332NeedAccountForLogin = 332,
  k350RequestedActionPendingFurtherInfo = 350,
  k421ServiceNotAvailableClosingControl = 421,
  k425CannotOpenDataConnection = 425,
  k426DataConnectionClosedAbnormally = 426,
  k430InvalidUsernameOrPassword = 430,
  k431TemporarilyUnableToProcessSecurity = 431,
  k434RequestedHostUnavailable = 434,
  k450ActionNotTakenBusyOrUnavailable = 450,
  k451ActionAbortedLocalError = 451,
  k452ActionNotTakenOutOfDiskSpace = 452,
  k500CommandNotRecognized = 500,
  k501ErrorInParametersOrArguments = 501,
  k502CommandNotImplemented = 502,
  k503BadSequenceOfCommands = 503,
  k504CommandNotImplementedWithParm = 504,
  k521DataConnectionCannotBeOpened = 521,
  k530NotLoggedIn = 530,
  k532NeedAccount = 532,
  k533CommandProtectionLevelDenied = 533,
  k534RequestDeniedDueToPolicy = 534,
  k550RequestAbortedFileOrDirectoryError = 550,
  k551RequestAbortedPageTypeUnknown = 551,
  k552RequestAbortedOutOfDiskSpace = 552,
  k553RequestAbortedIllegalFilename = 553,
  kInvalid = 0,
  k1xxMore = -1,
  k2xxOkay = -2,
  k3xxPending = -3,
  kAny = -4,
  kOkay = -5,
  kNotOkay = -6,
  kDataConnectionReady = -7,
  kNone = -8
}
 An enum to represent possible FTP server reply code. More...


Functions

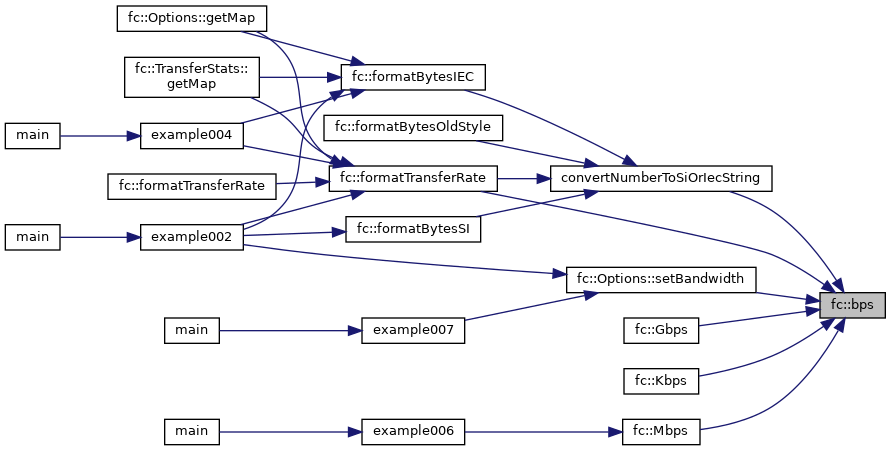

uint64_t bps (const fc::ECommonBandwidth &bandwidth)
 Convert the common bandwidth enum value to a usable bps value. More...

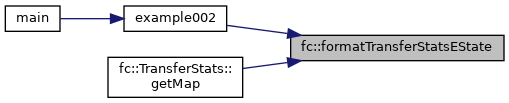

std::string formatTransferStatsEState (const fc::TransferStats::EState state)
 Format the MD5 and transfer state enums into text strings. More...

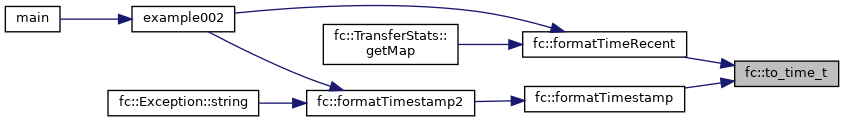

time_t to_time_t (const std::chrono::high_resolution_clock::time_point &tp)
 Convenience function to convert time_point objects to traditional time_t values (seconds since 1970-01-01 00:00:00 UTC). More...

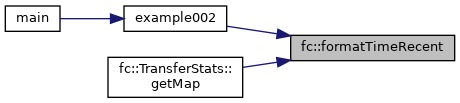

std::string formatTimeRecent (const std::chrono::high_resolution_clock::time_point &tp)
 Format the time in an easy-to-read text string. More...

std::string formatTimeRecent (const time_t tt)
 Format the absolute time in an easy-to-read text string. More...

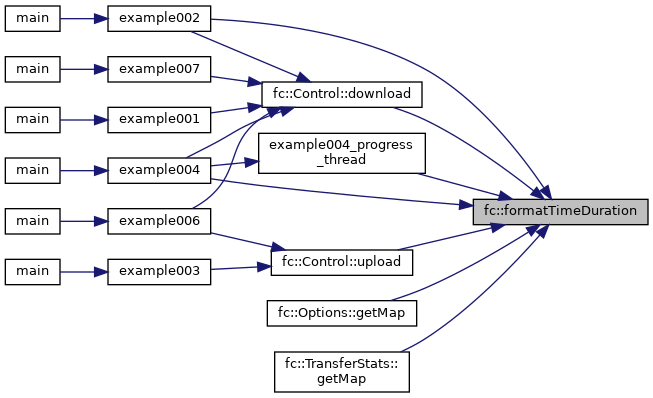

std::string formatTimeDuration (const std::chrono::high_resolution_clock::duration &d)
 Format the "time remaining" statistic as a number followed by a common 1-letter description. More...

std::string formatTimeDuration (const time_t tt)
 Format the relative "time remaining" statistic as a number followed by a common 1-letter description. More...

std::string formatTimeDuration2 (const std::chrono::high_resolution_clock::duration &d)
 Format the "time remaining" statistic as a common time string, such as HH:MM:SS. More...

std::string formatTimeDuration2 (const time_t tt)
 Format the relative "time remaining" statistic as a common time string, such as HH:MM:SS. More...

std::string formatTimestamp (const std::chrono::high_resolution_clock::time_point &tp)
 Format the absolute time point using "YYYY:MM:DD HH:MM:SS". More...

std::string formatTimestamp2 (const std::chrono::high_resolution_clock::time_point &tp)
 Format the absolute time point using "YYYY:MM:DD HH:MM:SS.mmmmmm" where mmmmmm is microseconds. More...

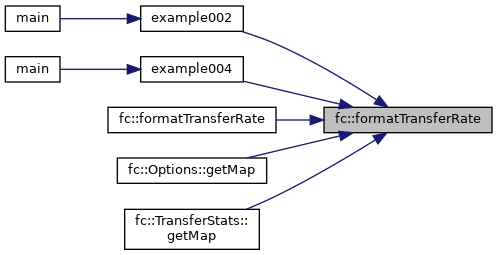

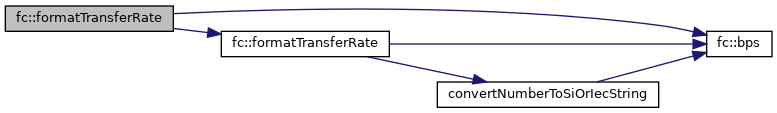

std::string formatTransferRate (const uint64_t bps)
 Format the transfer rate statistic using the common descriptions Kbps, Mbps, etc. More...

std::string formatBytesSI (const uint64_t bytes)
 Format the payload bytes using SI units (1000 bytes per "K"). More...

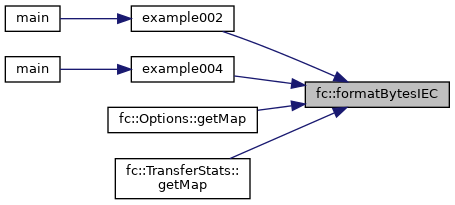

std::string formatBytesIEC (const uint64_t bytes)
 Format the payload bytes using IEC units (1024 bytes per "K"). More...

std::string formatBytesOldStyle (const uint64_t bytes)
 Format the payload bytes using IEC units (1024 bytes per "K"), similar to IEC but leave out the middle "i". More...

const StrMapemptyMap (void)
 Function that always returns an empty map. Used internally by FC++. More...

std::string baseVersionStr (void)
 Return a simple version string. More...

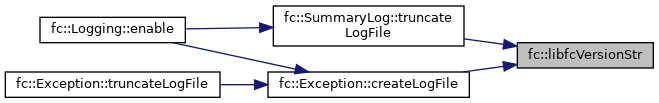

std::string libfcVersionStr (void)
 Return the version string of the FC++ library. More...

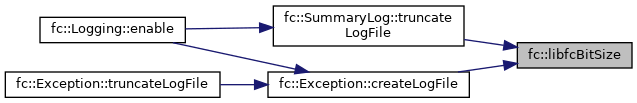

int libfcBitSize (void)
 Determine if the library was built for a 32-bit or 64-bit platform. More...

std::string opensslVersionStr (void)
 Determine the version of OpenSSL used by FC++. More...

fc::FtpServerReplyCodes getCodeFromServerReply (const std::string &reply)
 Parse the given string and return the 3-digit FTP status code. More...

std::string getTextFromServerReply (const std::string &reply)
 Parse the given string and return only the last line of text following the 3-digit FTP status code. More...

uint64_t bps (const int rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t bps (const double rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Kbps (const int rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Kbps (const double rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Mbps (const int rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Mbps (const double rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Gbps (const int rate)
 Convert easy-to-use numerical values to bps values. More...

uint64_t Gbps (const double rate)
 Convert easy-to-use numerical values to bps values. More...


Detailed Description

All of the FileCatalyst classes and objects are declared within the fc namespace.

Typedef Documentation

◆ TransferStatsMap

typedef std::map<size_t, fc::TransferStats> fc::TransferStatsMap

Track all of the individual file transfers, where the key is a numeric sequence describing the order of the file transfer.

◆ StatisticsCallback

typedef void(* fc::StatisticsCallback) (const fc::GlobalStateAndStats &stats, void *ptr)

Allow a single callback to be specified when the statistics are updated.

During active file transfers, most of the file statistics and global statistics are updated exactly once per second. A callback can be defined which will be called every second immediately after these statistics have been updated.

Warning
This callback interrupts the active file transfer! The file transfer is effectively "paused" while the callback is executing. To prevent negatively affecting the throughput, or causing the transfer to abort, the callback should locally copy the statistics it expects to use and immediately return to ensure the transfer can proceed.

This will normally be used as follows:

static fc::TransferStats singleFileStats;
void myFileTransferStatsCallback( const fc::GlobalStateAndStats &stats, void *ptr )
{
// copy only the current file stats we need and ignore the rest
singleFileStats = stats.fileStatsMap[ stats.fileStatsIdx ];
// signal another app thread to indicate new statistics have been received
...
// quickly return execution control to FC++ to complete the transfer
return;
}
fc::Control control;
control.setStatsCallback( myFileTransferStatsCallback, NULL );
...

◆ StrVec

typedef std::vector<std::string> fc::StrVec

Defined for convenience: a vector of text strings.

◆ StrMap

typedef std::map<std::string, std::string> fc::StrMap

Defined for convenience: an ordered map where both the key and the value are text strings.

◆ StrSet

typedef std::set<std::string> fc::StrSet

Defined for convenience: an ordered set of text strings.

◆ FDVec

typedef std::vector<FileDetails> fc::FDVec

Enumeration Type Documentation

◆ EClientIdMajor

See also
fc::Options::setClientId()
Enumerator
kInvalidMajorId
kCli

3 FC CLI tool

kApi

7 FC API (e.g., C++ API)

kMobile

15 FC Mobile (e.g., iOS app)

◆ EClientIdMinor

See also
fc::Options::setClientId()
Enumerator
kInvalidMinorId
kCliJava

7 Java application

kCliCpp

8 C++ CLI tool

kApiCpp

10 C++ API

kMobileUploaderIos

13 iPhone/iOS tool

kApiIos

14 C++ API on iPhone/iOS

◆ ETransferMode

See also
fc::Options::setMode()
Enumerator
kInvalidTransferMode
kFtp

1 TCP/FTP (original FTP mode)

kTcp

1 TCP/FTP (original FTP mode)

kUdp

2 UDP (FileCatalyst mode)

◆ EConnectionMode

See also
fc::Options::setMode()
Enumerator
kInvalidConnectionMode
kActive

server connects to client for transfer (not supported in FC++)

kPassive

client asks server for a port to which it connects to transfer files

◆ ESslHandshakeMode

See also
fc::Options::setSslHandshake()
Enumerator
kInvalidSslHandshake
kSslAutoDetect

ssl handshake is chosen depending on the server type

kSslFullHandshake

do not re-use ssl sessions; do the full ssl handshake

kSslSessionReuse

re-use the ssl session and bypass the ssl handshake

◆ ECommonBandwidth

Enumerations for several common bandwidth values.

Warning
Several of the higher-bps values require more than 32 bits. Meaning this code wont work as expected:
// Problem: In this next line, the value for 10 Gbps will be truncated
// or cause a compiler warning if "int" is only 32 bits wide.
int my_bps = fc::k10_Gbps;
...
options.setBandwidth( my_bps );
Instead, you'll want to pass the enum directly, or use a 64-bit unsigned integer for bps values:
uint64_t my_bps = fc::k10_Gbps; // no truncation
options.setBandwidth( my_bps ); // this will work correctly
// this would also work:
my_bps = fc::bps( fc::k10_Gbps );
options.setBandwidth( my_bps );
// these three would also work correctly:
options.setBandwidth( 10000000000 );
options.setBandwidth( fc::Gbps(10) );
See also
fc::bps()
fc::Options::setBandwidth()
Enumerator
kInvalidBandwidth

same as kZero_bps

kZero_bps

0 bps

k1_Kbps

1000 bps

k1200_bps

1200 bps

k2400_bps

2400 bps

k4800_bps

4800 bps

k9600_bps

9600 bps

k14_4_Kbps

14400 bps

k28_8_Kbps

28800 bps

k33_6_Kbps

36600 bps

k56_Kbps

56000 bps

k64_Kbps

64000 bps

k128_Kbps

128000 bps

k144_Kbps

144000 bps

k236_8_Kbps

236800 bps

k256_Kbps

256000 bps

k384_Kbps

384000 bps

k640_Kbps

640000 bps

k768_Kbps

768000 bps

k1_Mbps

1000000 bps

k1_544_Mbps

1544000 bps

k2_Mbps

2000000 bps

k2_048_Mbps

2048000 bps

k2_5_Mbps

2500000 bps

k3_152_Mbps

3152000 bps

k3_5_Mbps

3500000 bps

k4_Mbps

4000000 bps

k6_312_Mbps

6312000 bps

k8_448_Mbps

8448000 bps

k10_Mbps

10000000 bps

k11_Mbps

11000000 bps

k16_Mbps

16000000 bps

k32_064_Mbps

32064000 bps

k34_368_Mbps

34368000 bps

k44_736_Mbps

44736000 bps

k51_84_Mbps

51840000 bps

k54_Mbps

54000000 bps

k89_472

89472000 bps

k97_728_Mbps

97728000 bps

k100_Mbps

100000000 bps

k135_Mbps

135000000 bps

k139_264_Mbps

139264000 bps

k155_52_Mbps

155520000 bps

k274_176_Mbps

274176000 bps

k397_200_Mbps

397200000 bps

k400_352_Mbps

400352000 bps

k466_56_Mbps

466560000 bps

k565_148_Mbps

565148000 bps

k600_Mbps

600000000 bps

k622_08_Mbps

622080000 bps

k933_12_Mbps

933120000 bps

k1_Gbps

1000000000 bps

k1244_16_Mbps

1244160000 bps

k1_3_Gbps

1300000000 bps

k1866_24_Mbps

1866240000 bps

k2488_32_Mbps

2488320000 bps (this value requires an unsigned 32-bit interger)

k4976_64_Mbps

4967640000 bps (this value requires a 64-bit integer)

k6_75_Gbps

6750000000 bps (this value requires a 64-bit integer)

k9953_28_Mbps

9953280000 bps (this value requires a 64-bit integer)

k10_Gbps

10000000000 bps (this value requires a 64-bit integer)

k13_1_Gbps

13178880000 bps (this value requires a 64-bit integer)

k39_813_Gbps

39813120000 bps (this value requires a 64-bit integer)

k1200Modem

1200 bps

k2400Modem

2400 bps

k9600Modem

9600 bps

k14KModem

14.4 Kbps

k28KModem

28.8 Kbps

k33KModem

33.6 Kbps

k56KModem

56 Kbps

k64KISDN

ISDN, 64K.

k128KISDN

ISDN, 128K.

k144IDSL

IDSL, 144 Kbps.

kDS0

DS-0, 64 Kbps.

kDS1

DS-1, 1.54 Mbps.

kDS2

DS-2, 6.312 Mbps.

kDS3

DS-3, 44.74 Mbps.

kDS4

DS-4, 274.176 Mbps.

kT1

T1, 1.54 Mbps.

kE1

E1, 2.048 Mbps.

kT2

T2, 6.31 Mbps.

kT3

T3, 44.74 Mbps.

kT4

T4, 274.18 Mbps.

kT5

T5, 400.35 Mbps.

kOC1

OC-1, 51.84 Mbps.

kOC3

OC-3, 155.52 Mbps.

kOC9

OC-9, 466.56 Mbps.

kOC12

OC-12, 0.62 Gbps.

kOC18

OC-18, 0.93 Gbps.

kOC24

OC-24, 1.24 Gbps.

kOC36

OC-36, 1.87 Gbps.

kOC48

OC-48, 2,49 Gbps.

kOC96

OC-96, 4.98 Gbps.

kOC192

OC-192, 9.95 Gbps.

kOC256

OC-256, 13.1 Gbps.

kOC768

OC-768, 39.8 Gbps.

k10BaseX

10 Mbps

k100BaseX

100 Mbps

k1000BaseX

1 Gbps

k10GBaseX

10 Gbps

kEthernet

10 Mbps

kFastEthernet

100 Mbps

kGigabit

1 Gbps

k10Gigabit

10 Gbps

k80211

802.11, 2 Mbps

k80211a

802.11a, 54 Mbps

k80211b

802.11b, 11 Mbps

k80211g

802.11g, 54 Mbps

k80211n

802.11n, 600 Mbps

k80211ac

802.11ac, 1.3 Gbps

k80211ad

802.11ad, 6.75 Gbps

k1G

1G, 1200 bps

k2G

2G GSM, 14.4 Kbps

k2_5G

2.5G, GPRS, 56 Kbps

k2_75G

2.75G, EDGE, 236.8 Kbps

k3G

3G, UMTS, 384 Kbps

k4G

4G, 100 Mbps

◆ FtpServerReplyCodes

An enum to represent possible FTP server reply code.

  • Reply codes 100+ means the requested action is being taken. Expect another reply before proceeding with a new command.
  • Reply codes 200+ means the requested action has been successfully completed.
  • Reply codes 300+ means the command has been accepted, but the requested action is being held pending receipt of further information.
  • Reply codes 400+ means the command was not accepted and the requested action did not take place. The error condition may be temporary.
  • Reply codes 500+ means the command was not accepted and the requested action did not take place.
  • Negative values are used in the enum to represent pseudo-responses. These are handled not by directly matching server response codes, but through logic or through range checking. None of these values are for direct public use, nor are they exposed externally by any parts of the FC++ library.
See also
fc::getCodeFromServerReply()
fc::Control::getCurrentServerReplyCode()
Enumerator
k110RestartMarkerReply
k120ServiceReadyInMinutes
k125DataConnectionAlreadyOpen
k150FileStatusOkayOpenDataConnection
k200CommandOkay
k202CommandNotImplemented

also see k502CommandNotImplemented

k211SystemStatus
k212DirectoryStatus
k213FileStatus
k214HelpMessage
k215OperatingSystem
k220ReadyForNewUser
k221ClosingConnectionLoggedOut
k225DataConnectionOpen
k226ClosingDataConnectionTransferDone
k227ServerOpenedPassiveConnection

(h1,h2,h3,h4,p1,p2)

k228ServerEnteringLongPassiveMode

(long address, port)

k229ServerEnteringExtendedPassiveMode

(|||port|)

k230UserLoggedIn
k231UserLoggedOut
k232WillLogoutWhenTransferCompletes
k234SecurityDataExchangeComplete
k250RequestedActionOkay
k252Echo
k255InTargetDirectoryAlready
k257PathCreatedOrDirectoryStatus
k331SendPassword
k332NeedAccountForLogin
k350RequestedActionPendingFurtherInfo
k421ServiceNotAvailableClosingControl
k425CannotOpenDataConnection
k426DataConnectionClosedAbnormally
k430InvalidUsernameOrPassword
k431TemporarilyUnableToProcessSecurity
k434RequestedHostUnavailable
k450ActionNotTakenBusyOrUnavailable
k451ActionAbortedLocalError
k452ActionNotTakenOutOfDiskSpace
k500CommandNotRecognized
k501ErrorInParametersOrArguments
k502CommandNotImplemented

also see k202CommandNotImplemented

k503BadSequenceOfCommands
k504CommandNotImplementedWithParm
k521DataConnectionCannotBeOpened
k530NotLoggedIn
k532NeedAccount
k533CommandProtectionLevelDenied
k534RequestDeniedDueToPolicy
k550RequestAbortedFileOrDirectoryError
k551RequestAbortedPageTypeUnknown
k552RequestAbortedOutOfDiskSpace
k553RequestAbortedIllegalFilename
kInvalid
k1xxMore

any 1xx-style response

k2xxOkay

any 2xx-style positive response

k3xxPending

any 3xx-style response

kAny

any response that matches >= 100 and < 600

kOkay

any response that matches 1xx, 2xx, or 3xx

kNotOkay

any response that matches < 100 or >= 400

kDataConnectionReady

matches both k125DataConnectionAlreadyOpen and k150FileStatusOkayOpenDataConnection

kNone

do not expect a response

See also
cmdABOR()

Function Documentation

◆ bps() [1/3]

uint64_t fc::bps ( const fc::ECommonBandwidth bandwidth)

Convert the common bandwidth enum value to a usable bps value.

See also
fc::formatTransferRate() to convert bps to a string.
fc::Kbps()
fc::Mbps()
fc::Gbps()
Warning
Some of the high bandwidth values cannot be represented using a 31-bit int, or a 32-bit uint. You must use uint64_t to store bps.
uint64_t bps = fc::bps( fc::k10_Mbps );
bps *= 3;
std::cout << fc::formatTransferRate( bps ) << std::endl;
// this should output "30.00 Mbps"

References k100_Mbps, k10_Gbps, k10_Mbps, k11_Mbps, k1200_bps, k1244_16_Mbps, k128_Kbps, k135_Mbps, k139_264_Mbps, k13_1_Gbps, k144_Kbps, k14_4_Kbps, k155_52_Mbps, k16_Mbps, k1866_24_Mbps, k1_3_Gbps, k1_544_Mbps, k1_Gbps, k1_Kbps, k1_Mbps, k236_8_Kbps, k2400_bps, k2488_32_Mbps, k256_Kbps, k274_176_Mbps, k28_8_Kbps, k2_048_Mbps, k2_5_Mbps, k2_Mbps, k32_064_Mbps, k33_6_Kbps, k34_368_Mbps, k384_Kbps, k397_200_Mbps, k39_813_Gbps, k3_152_Mbps, k3_5_Mbps, k400_352_Mbps, k44_736_Mbps, k466_56_Mbps, k4800_bps, k4976_64_Mbps, k4_Mbps, k51_84_Mbps, k54_Mbps, k565_148_Mbps, k56_Kbps, k600_Mbps, k622_08_Mbps, k640_Kbps, k64_Kbps, k6_312_Mbps, k6_75_Gbps, k768_Kbps, k89_472, k8_448_Mbps, k933_12_Mbps, k9600_bps, k97_728_Mbps, k9953_28_Mbps, and kZero_bps.

Here is the caller graph for this function:

◆ bps() [2/3]

uint64_t fc::bps ( const int  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

◆ bps() [3/3]

uint64_t fc::bps ( const double  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

◆ Kbps() [1/2]

uint64_t fc::Kbps ( const int  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Kbps.

Here is the call graph for this function:

◆ Kbps() [2/2]

uint64_t fc::Kbps ( const double  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Kbps.

Here is the call graph for this function:

◆ Mbps() [1/2]

uint64_t fc::Mbps ( const int  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Mbps.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Mbps() [2/2]

uint64_t fc::Mbps ( const double  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Mbps.

Here is the call graph for this function:

◆ Gbps() [1/2]

uint64_t fc::Gbps ( const int  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Gbps.

Here is the call graph for this function:

◆ Gbps() [2/2]

uint64_t fc::Gbps ( const double  rate)
inline

Convert easy-to-use numerical values to bps values.

For example, these bandwidth lines all produce the same results. Choose the style you prefer:

fc::Options options;
options.setBandwidth( fc::bps( 600000000 ) );
options.setBandwidth( fc::Kbps( 600000 ) );
options.setBandwidth( fc::Mbps( 600 ) );
options.setBandwidth( fc::Gbps( 0.6 ) );
See also
fc::bps()
fc::Kbps()
fc::Mbps()
fc::Gbps()

References bps(), and k1_Gbps.

Here is the call graph for this function:

◆ formatTransferStatsEState()

std::string fc::formatTransferStatsEState ( const fc::TransferStats::EState  state)

◆ to_time_t()

time_t fc::to_time_t ( const std::chrono::high_resolution_clock::time_point &  tp)

Convenience function to convert time_point objects to traditional time_t values (seconds since 1970-01-01 00:00:00 UTC).

Returns
Once converted, the time_t values can used with legacy 'C' APIs. If the time point object isn't a valid timestamp, then a value of zero is returned.
Here is the caller graph for this function:

◆ formatTimeRecent() [1/2]

std::string fc::formatTimeRecent ( const std::chrono::high_resolution_clock::time_point &  tp)

Format the time in an easy-to-read text string.

The specified time can be in the past or in the future. The further from now, the more precision will be sacrificed for ease of readability.

fc::Control ftp( ... );
...
const fc::TransferStats &stats = ftp.getMostRecentFileStats();
std::cout << fc::formatTimeRecent(stats.timeTransferFinished) << std::endl;

For example, the text returned could be:

  • "in 3 hours"
  • "10 minutes ago"
  • "in 45 seconds"
Returns
"unknown" if the timepoint is invalid

References to_time_t().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatTimeRecent() [2/2]

std::string fc::formatTimeRecent ( const time_t  tt)

Format the absolute time in an easy-to-read text string.

The specified time can be in the past or in the future. The further from now, the more precision will be sacrificed for ease of readability.

time_t tt = time(nullptr) - 10800;
std::cout << fc::formatTimeRecent(tt) << std::endl;
// should result in the text string "3 hours ago"

For example, the text returned could be:

  • "in 3 hours"
  • "10 minutes ago"
  • "in 45 seconds"
Parameters
[in]ttThe time "tt" is absolute (not relative) meaning it must contain the number of seconds since 1970-01-01 0:00:00.
Returns
"unknown" if the time is more than 10 days ago, or more than 10 days from now.

◆ formatTimeDuration() [1/2]

std::string fc::formatTimeDuration ( const std::chrono::high_resolution_clock::duration &  d)

Format the "time remaining" statistic as a number followed by a common 1-letter description.

fc::Control ftp( ... );
...
const fc::TransferStats &stats = ftp.getMostRecentFileStats();
std::cout << fc::formatTimeDuration(stats.timeRemaining) << std::endl;

For example, the text returned could be:

  • 10s
  • 45m
  • 3h
Here is the caller graph for this function:

◆ formatTimeDuration() [2/2]

std::string fc::formatTimeDuration ( const time_t  tt)

Format the relative "time remaining" statistic as a number followed by a common 1-letter description.

time_t tt = 420; // seconds
std::cout << fc::formatTimeDuration(tt) << std::endl;
// should result in the text string "7m"

For example, the text returned could be:

  • 10s
  • 45m
  • 3h
Parameters
[in]ttThe time "tt" is relative (not absolute) meaning it is relative to now, not since epoch (1970-01-01 0:00:00).

◆ formatTimeDuration2() [1/2]

std::string fc::formatTimeDuration2 ( const std::chrono::high_resolution_clock::duration &  d)

Format the "time remaining" statistic as a common time string, such as HH:MM:SS.

If HH is zero, then only MM:SS will be returned.

fc::Control ftp( ... );
...
const fc::TransferStats &stats = ftp.getMostRecentFileStats();
std::cout << fc::formatTimeDuration2(stats.timeRemaining) << std::endl;

For example, the text returned could be:

  • 0:10
  • 3:00:18
Here is the caller graph for this function:

◆ formatTimeDuration2() [2/2]

std::string fc::formatTimeDuration2 ( const time_t  tt)

Format the relative "time remaining" statistic as a common time string, such as HH:MM:SS.

If HH is zero, then only MM:SS will be returned.

time_t tt = 432; // seconds
std::cout << fc::formatTimeDuration2(tt) << std::endl;
// should result in the text string "7:12"

For example, the text returned could be:

  • 0:10
  • 3:00:18
Parameters
[in]ttThe time "tt" is relative (not absolute) meaning it is relative to now, not since epoch (1970-01-01 0:00:00).

◆ formatTimestamp()

std::string fc::formatTimestamp ( const std::chrono::high_resolution_clock::time_point &  tp)

Format the absolute time point using "YYYY:MM:DD HH:MM:SS".

fc::Control ftp( ... );
...
const fc::TransferStats &stats = ftp.getMostRecentFileStats();
std::cout << fc::formatTimestamp(stats.timeTransferBegan) << std::endl;

For example, the text returned could be:

  • 2014-09-17 08:53:16

References to_time_t().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatTimestamp2()

std::string fc::formatTimestamp2 ( const std::chrono::high_resolution_clock::time_point &  tp)

Format the absolute time point using "YYYY:MM:DD HH:MM:SS.mmmmmm" where mmmmmm is microseconds.

Reminder:

  • 1 second == 1,000 milliseconds
  • 1 second == 1,000,000 microseconds
  • 1 second == 1,000,000,000 nanoseconds

So a valid microsecond value ranges from 0 to 999,999.

For example, the text returned could be:

  • 2014-09-17 08:53:16.073211

References formatTimestamp().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatTransferRate()

std::string fc::formatTransferRate ( const uint64_t  bps)

Format the transfer rate statistic using the common descriptions Kbps, Mbps, etc.

Note
The divisor is 1000, not 1024.

For example:

Input Value Output String
125800 "125.80 Kbps"
9576328 "9.58 Mbps"

References convertNumberToSiOrIecString().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatBytesSI()

std::string fc::formatBytesSI ( const uint64_t  bytes)

Format the payload bytes using SI units (1000 bytes per "K").

For example:

Input Value Output String
2000 bytes "2.00 KB"
2048 bytes "2.05 KB"
See also
formatBytesIEC()

References:

Decimal SI prefixes:

Units Power
KB 1000^1
MB 1000^2
GB 1000^3
TB 1000^4
PB ...etc...

Different formatting options for bytes:

FC++ API Base Example Input Example Output Reference
fc::formatBytesSI() 1000 1048576 "1.05 MB" http://en.wikipedia.org/wiki/Metric_prefix
fc::formatBytesIEC() 1024 1048576 "1.00 MiB" http://en.wikipedia.org/wiki/Binary_prefix
fc::formatBytesOldStyle() 1024 1048576 "1.00 MB" http://en.wikipedia.org/wiki/Binary_prefix#Inconsistent_use_of_units

References convertNumberToSiOrIecString().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatBytesIEC()

std::string fc::formatBytesIEC ( const uint64_t  bytes)

Format the payload bytes using IEC units (1024 bytes per "K").

For example:

Input Value Output String
2000 bytes "1.95 KiB"
2048 bytes "2.00 KiB"
See also
formatBytesSI()

References:

Binary IEC prefixes:

Units Power
KiB 1024^1
MiB 1024^2
GiB 1024^3
TiB 1024^4
PiB ...etc...

Different formatting options for bytes:

FC++ API Base Example Input Example Output Reference
fc::formatBytesSI() 1000 1048576 "1.05 MB" http://en.wikipedia.org/wiki/Metric_prefix
fc::formatBytesIEC() 1024 1048576 "1.00 MiB" http://en.wikipedia.org/wiki/Binary_prefix
fc::formatBytesOldStyle() 1024 1048576 "1.00 MB" http://en.wikipedia.org/wiki/Binary_prefix#Inconsistent_use_of_units

References convertNumberToSiOrIecString().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ formatBytesOldStyle()

std::string fc::formatBytesOldStyle ( const uint64_t  bytes)

Format the payload bytes using IEC units (1024 bytes per "K"), similar to IEC but leave out the middle "i".

Note
This is the formatting style popularized in the 1980s and 1990s but replaced in 1998 by the International Electrotechnical Commission (IEC). It shouldn't be used anymore; consider using fc::formatBytesIEC() instead.

For example:

Input Value Output String
2000 bytes "1.95 KB"
2048 bytes "2.00 KB"
See also
fc::formatBytesSI()
fc::formatBytesIEC()

Different formatting options for bytes:

FC++ API Base Example Input Example Output Reference
fc::formatBytesSI() 1000 1048576 "1.05 MB" http://en.wikipedia.org/wiki/Metric_prefix
fc::formatBytesIEC() 1024 1048576 "1.00 MiB" http://en.wikipedia.org/wiki/Binary_prefix
fc::formatBytesOldStyle() 1024 1048576 "1.00 MB" http://en.wikipedia.org/wiki/Binary_prefix#Inconsistent_use_of_units

References convertNumberToSiOrIecString().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ emptyMap()

const fc::StrMap & fc::emptyMap ( void  )

Function that always returns an empty map. Used internally by FC++.

◆ baseVersionStr()

std::string fc::baseVersionStr ( void  )

Return a simple version string.

This is the base version of the FileCatalyst software, not the FC++ library version. This should be similar to:

  • "2.8.0"
  • "3.0.0"
  • "3.0.1"
  • "3.4"
  • "3.6"
See also
BASEFCVER in FCVersion.hpp
fc::libfcVersionStr()

References BASEFCVER.

◆ libfcVersionStr()

std::string fc::libfcVersionStr ( void  )

Return the version string of the FC++ library.

This is not related to the base FileCatalyst software version. Instead, this describes the C++ library build version. For example, this could be:

  • "0.6.2-610"
  • "0.6.5-756"
See also
LIBFCVER in FCVersion.hpp
fc::baseVersionStr()

References LIBFCVER.

Here is the caller graph for this function:

◆ libfcBitSize()

int fc::libfcBitSize ( void  )

Determine if the library was built for a 32-bit or 64-bit platform.

Returns
32 for IA-32 (Intel x86)
64 for x86-64 (AMD64)

References LIBFCBITSIZE.

Here is the caller graph for this function:

◆ opensslVersionStr()

std::string fc::opensslVersionStr ( void  )

Determine the version of OpenSSL used by FC++.

For example, this could return "OpenSSL 1.0.2a 19 Mar 2015".

Note
On Windows, FC++ is statically linked against OpenSSL, which is why this call may be necessary to examine the version of OpenSSL. On Linux and Mac OS X where FC++ is dynamically linked against OpenSSL, this is equivalent to calling SSLeay_version(SSLEAY_VERSION).

◆ getCodeFromServerReply()

fc::FtpServerReplyCodes fc::getCodeFromServerReply ( const std::string &  reply)

Parse the given string and return the 3-digit FTP status code.

Supports single-line and multi-line replies.

Returns
fc::kInvalid if the reply is not a valid ftp response.
See also
fc::getTextFromServerReply()
fc::Control::getCurrentServerReplyString()
fc::Control::getCurrentServerReplyCode()

References kInvalid.

◆ getTextFromServerReply()

std::string fc::getTextFromServerReply ( const std::string &  reply)

Parse the given string and return only the last line of text following the 3-digit FTP status code.

Supports single-line and multi-line replies.

Returns
an empty string if the reply is not a valid ftp response.
See also
fc::getCodeFromServerReply()
fc::Control::getCurrentServerReplyString()
