IJB Class Reference

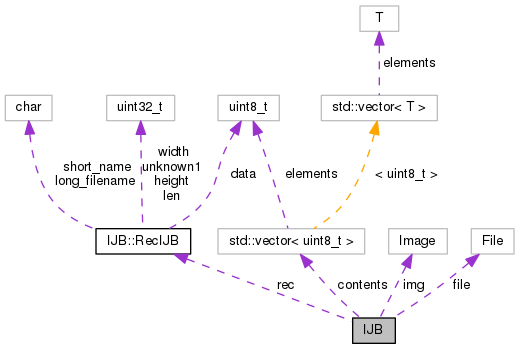

Collaboration diagram for IJB:

Classes
struct	RecIJB
	Structure that represents the IBJ bimaps. More...

Public Member Functions
	IJB (void)
	Empty constructor. More...
	~IJB (void)
	Destructor. More...
	IJB (const IJB &rhs)
IJB &	operator= (const IJB &rhs)
IJB &	load (const File &filename)
	Load the given .ijb file. More...
std::string	summary (void) const
	Summarize the .ijb as a text message for the user. More...
Image	extract_image () const
	Extract the image data from contents, and re-build a new user-viewable image. More...
IJB &	set_new_image (const Image &new_image)
IJB &	rotate_image_180 (void)
const IJB &	create_browseable_image (const bool force=false) const
	Create a PNG file in the same directory as the IJB, and name it so it is obvious which image corresponds with each .ijb. More...

Public Attributes
VBytes	contents
	The entire contents of the file is loaded into this vector. More...
const RecIJB *	rec
	Pointer to the bitmap record. Should point to nullptr or the first byte of contents. More...
File	file
	.ijb file. More...
Image	img
	The image file extracted, rotated, and flipped from the .ijb file. More...

Constructor & Destructor Documentation

IJB()

IJB::IJB

(

void

)

Empty constructor.

See also

load()

Referenced by ~IJB().

Here is the caller graph for this function:

~IJB()

IJB::~IJB

(

void

)

Destructor.

References contents, extract_image(), file, IJB(), img, and rec.

Here is the call graph for this function:

Member Function Documentation

load()

IJB & IJB::load

(

const File &

filename

)

Load the given .ijb file.

Exceptions

Lox::Exception	if the file does not exist
Lox::Exception	if the file is impossibly small (no content?)
Lox::Exception	if the file cannot be opened (permission problem?)
Lox::Exception	if the file is not a valid .ijb bitmap
Lox::Exception	if the file has an invalid size (width, height, or length)

References contents, extract_image(), file, IJB::RecIJB::height, img, IJB::RecIJB::len, rec, and IJB::RecIJB::width.

Referenced by SessionComponent::buttonClicked(), and PrintJob::load_ijb().

Here is the call graph for this function:

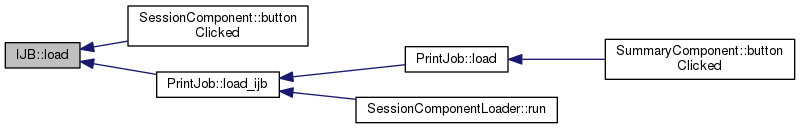

Here is the caller graph for this function:

summary()

std::string IJB::summary

(

void

)

const

Summarize the .ijb as a text message for the user.

References contents, file, IJB::RecIJB::height, IJB::RecIJB::len, IJB::RecIJB::long_filename, rec, IJB::RecIJB::short_name, and IJB::RecIJB::width.

Referenced by PrintJob::load_ijb().

Here is the caller graph for this function:

extract_image()

Image IJB::extract_image

(

)

const

Extract the image data from contents, and re-build a new user-viewable image.

Instead of calling this directly, see the image stored as img.

References IJB::RecIJB::data, IJB::RecIJB::height, rec, and IJB::RecIJB::width.

Referenced by load(), and ~IJB().

Here is the caller graph for this function:

set_new_image()

IJB & IJB::set_new_image

(

const Image &

new_image

)

Exceptions

Lox::Exception

if the file cannot be replaced

References contents, create_browseable_image(), file, IJB::RecIJB::height, img, rec, IJB::RecIJB::short_name, and IJB::RecIJB::width.

Referenced by SessionComponent::buttonClicked().

Here is the call graph for this function:

Here is the caller graph for this function:

create_browseable_image()

const IJB & IJB::create_browseable_image

(

const bool

force = false

)

const

Create a PNG file in the same directory as the IJB, and name it so it is obvious which image corresponds with each .ijb.

Parameters

force

Images are only written if they don't already on disk, unless true is passed in which forces the image to be re-written.

References file, img, rec, and IJB::RecIJB::short_name.

Referenced by PrintJob::load_ijb(), and set_new_image().

Here is the caller graph for this function:

Member Data Documentation

contents

VBytes IJB::contents

The entire contents of the file is loaded into this vector.

Referenced by load(), set_new_image(), summary(), and ~IJB().

rec

const RecIJB* IJB::rec

Pointer to the bitmap record. Should point to nullptr or the first byte of contents.

Referenced by create_browseable_image(), SessionComponent::edit_description_field(), extract_image(), load(), SessionComponent::paintCell(), set_new_image(), summary(), and ~IJB().

file

File IJB::file

.ijb file.

Referenced by create_browseable_image(), load(), set_new_image(), summary(), and ~IJB().


Image IJB::img

The image file extracted, rotated, and flipped from the .ijb file.

This is automatically done by extract_image() when the .ibj file is first loaded in load().

Referenced by SessionComponent::buttonClicked(), create_browseable_image(), load(), SessionComponent::paintCell(), set_new_image(), and ~IJB().
