The HPS::ContourLineKit class is a user space object, useful for carrying a group of attribute settings. More...

#include <hps.h>

Inheritance diagram for HPS::ContourLineKit:

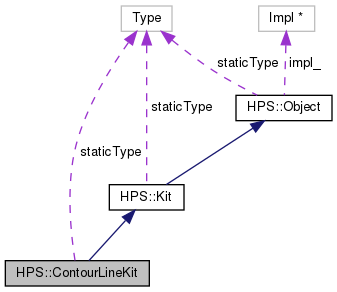

Collaboration diagram for HPS::ContourLineKit:

Public Member Functions
	ContourLineKit ()
	Initializes an empty kit. More...

	ContourLineKit (ContourLineKit const &in_kit)
	The copy constructor creates a new ContourLineKit object that contains the same settings as the source object. More...

	ContourLineKit (ContourLineKit &&in_that)
	The move constructor creates a ContourLineKit by transferring the underlying impl of the rvalue reference to this ContourLineKit thereby avoiding a copy and allocation. More...

ContourLineKit &	operator= (ContourLineKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ContourLineKit thereby avoiding a copy. More...

virtual	~ContourLineKit ()
	Destroy this kit. More...

HPS::Type	ObjectType () const

void	Set (ContourLineKit const &in_kit)
	Copies the source ContourLineKit into this object. More...

void	Show (ContourLineKit &out_kit) const
	Copies this object into the given ContourLineKit. More...

ContourLineKit &	operator= (ContourLineKit const &in_kit)
	Copies the source ContourLineKit into this object. More...

bool	Empty () const
	Indicates whether this object has any values set on it. More...

bool	Equals (ContourLineKit const &in_kit) const
	Check if the source ContourLineKit is equivalent to this object. More...

bool	operator== (ContourLineKit const &in_kit) const
	Check if the source ContourLineKit is equivalent to this object. More...

bool	operator!= (ContourLineKit const &in_kit) const
	Check if the source ContourLineKit is not equivalent to this object. More...

ContourLineKit &	SetVisibility (bool in_state)
	Determines whether contour lines should be rendered. More...

ContourLineKit &	SetPositions (float in_interval, float in_offset)
	Controls the positioning of contour lines. More...

ContourLineKit &	SetPositions (FloatArray const &in_positions)
	Controls the positioning of contour lines. More...

ContourLineKit &	SetPositions (size_t in_count, float const in_positions[])
	Controls the positioning of contour lines. More...

ContourLineKit &	SetColors (RGBColorArray const &in_colors)
	Sets the colors to be used for drawing contour lines. More...

ContourLineKit &	SetColors (size_t in_count, RGBColor const in_colors[])
	Sets the colors to be used for drawing contour lines. More...

ContourLineKit &	SetColors (RGBColor const &in_color)
	Sets the color to be used for drawing all contour lines. More...

ContourLineKit &	SetPatterns (UTF8Array const &in_patterns)
	Sets the line patterns to be used for drawing contour lines. More...

ContourLineKit &	SetPatterns (size_t in_count, UTF8 const in_patterns[])
	Sets the line patterns to be used for drawing contour lines. More...

ContourLineKit &	SetPatterns (char const *in_pattern)
	Sets the line pattern to be used for drawing all contour lines. More...

ContourLineKit &	SetWeights (FloatArray const &in_weights, LineSizeUnitsArray const &in_units)
	Sets the line weights to be used for drawing contour lines. More...

ContourLineKit &	SetWeights (size_t in_count, float const in_weights[], Line::SizeUnits const in_units[])
	Sets the line weights to be used for drawing contour lines. More...

ContourLineKit &	SetWeights (float in_weight, Line::SizeUnits in_units=Line::SizeUnits::ScaleFactor)
	Sets the line weight to be used for drawing all contour lines. More...

ContourLineKit &	SetLighting (bool in_state)
	Controls whether contour lines are lit. More...

ContourLineKit &	UnsetVisibility ()
	Removes the contour line visibility setting. More...

ContourLineKit &	UnsetPositions ()
	Removes the contour line positions setting. More...

ContourLineKit &	UnsetColors ()
	Removes the contour line colors setting. More...

ContourLineKit &	UnsetPatterns ()
	Removes the contour line patterns setting. More...

ContourLineKit &	UnsetWeights ()
	Removes the contour line weights setting. More...

ContourLineKit &	UnsetLighting ()
	Removes the contour line lighting setting. More...

ContourLineKit &	UnsetEverything ()
	Removes all settings from this object. More...

bool	ShowVisibility (bool &out_state) const
	Shows the visibility state of contour lines. More...

bool	ShowPositions (ContourLine::Mode &out_mode, FloatArray &out_positions) const
	Shows the positions of contour lines. More...

bool	ShowColors (RGBColorArray &out_colors) const
	Shows the colors of contour lines. More...

bool	ShowPatterns (UTF8Array &out_patterns) const
	Shows the line patterns of contour lines. More...

bool	ShowWeights (FloatArray &out_weights, LineSizeUnitsArray &out_units) const
	Shows the line weights of contour lines. More...

bool	ShowLighting (bool &out_state) const
	Shows whether contour lines should be lit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ContourLineKit	GetDefault ()
	Creates a ContourLineKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ContourLineKit

Detailed Description

The HPS::ContourLineKit class is a user space object, useful for carrying a group of attribute settings.

Calling HPS::ContourLineKit::GetDefault() will return a kit with values found in this table.

Constructor & Destructor Documentation

◆ ContourLineKit() [1/3]

HPS::ContourLineKit::ContourLineKit ( )

Initializes an empty kit.

◆ ContourLineKit() [2/3]

HPS::ContourLineKit::ContourLineKit ( ContourLineKit const & in_kit )

The copy constructor creates a new ContourLineKit object that contains the same settings as the source object.

Parameters

in_kit The source object to copy.

◆ ContourLineKit() [3/3]

HPS::ContourLineKit::ContourLineKit ( ContourLineKit && in_that )

The move constructor creates a ContourLineKit by transferring the underlying impl of the rvalue reference to this ContourLineKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a ContourLineKit to take the impl from.

◆ ~ContourLineKit()

virtual HPS::ContourLineKit::~ContourLineKit ( )

virtual

Destroy this kit.

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::ContourLineKit::Empty ( ) const

virtual

Indicates whether this object has any values set on it.

Returns: true if no values are set on this object, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::ContourLineKit::Equals ( ContourLineKit const & in_kit ) const

Check if the source ContourLineKit is equivalent to this object.

Parameters

in_kit The source ContourLineKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static ContourLineKit HPS::ContourLineKit::GetDefault ( )

static

Creates a ContourLineKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A ContourLineKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::ContourLineKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::ContourLineKit::operator!= ( ContourLineKit const & in_kit ) const

Check if the source ContourLineKit is not equivalent to this object.

Parameters

in_kit The source ContourLineKit to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

ContourLineKit& HPS::ContourLineKit::operator= ( ContourLineKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this ContourLineKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a ContourLineKit to take the impl from.

Returns: A reference to this ContourLineKit.

◆ operator=() [2/2]

ContourLineKit& HPS::ContourLineKit::operator= ( ContourLineKit const & in_kit )

Copies the source ContourLineKit into this object.

Parameters

in_kit The source ContourLineKit to copy.

Returns: A reference to this object.

◆ operator==()

bool HPS::ContourLineKit::operator== ( ContourLineKit const & in_kit ) const

Check if the source ContourLineKit is equivalent to this object.

Parameters

in_kit The source ContourLineKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::ContourLineKit::Set ( ContourLineKit const & in_kit )

Copies the source ContourLineKit into this object.

Parameters

in_kit The source object to copy.

◆ SetColors() [1/3]

ContourLineKit& HPS::ContourLineKit::SetColors ( RGBColorArray const & in_colors )

Sets the colors to be used for drawing contour lines.

If there are more contour lines than colors, the array will be cycled through.

Parameters

in_colors An array of colors to be used for drawing contour lines.

Returns: A reference to this object.

◆ SetColors() [2/3]

ContourLineKit& HPS::ContourLineKit::SetColors	(	size_t	in_count,
		RGBColor const	in_colors[]
	)

Sets the colors to be used for drawing contour lines.

If there are more contour lines than colors, the array will be cycled through.

Parameters

in_count	The number of elements in in_colors.
in_colors	An array of colors to be used for drawing contour lines.

Returns: A reference to this object.

◆ SetColors() [3/3]

ContourLineKit& HPS::ContourLineKit::SetColors ( RGBColor const & in_color )

Sets the color to be used for drawing all contour lines.

Parameters

in_color The color to be used for drawing all contour lines

Returns: A reference to this object.

◆ SetLighting()

ContourLineKit& HPS::ContourLineKit::SetLighting ( bool in_state )

Controls whether contour lines are lit.

Parameters

in_state Whether contour lines are lit.

Returns: A reference to this object.

◆ SetPatterns() [1/3]

ContourLineKit& HPS::ContourLineKit::SetPatterns ( UTF8Array const & in_patterns )

Sets the line patterns to be used for drawing contour lines.

If there are more contour lines than patterns, the array will be cycled through.

Parameters

in_patterns An array of line pattern names, defined in an accessible portfolio, to be used for drawing contour lines.

Returns: A reference to this object.

◆ SetPatterns() [2/3]

ContourLineKit& HPS::ContourLineKit::SetPatterns	(	size_t	in_count,
		UTF8 const	in_patterns[]
	)

Sets the line patterns to be used for drawing contour lines.

If there are more contour lines than patterns, the array will be cycled through.

Parameters

in_count	The number of elements in in_patterns.
in_patterns	An array of line pattern names, defined in an accessible portfolio, to be used for drawing contour lines.

Returns: A reference to this object.

◆ SetPatterns() [3/3]

ContourLineKit& HPS::ContourLineKit::SetPatterns ( char const * in_pattern )

Sets the line pattern to be used for drawing all contour lines.

Parameters

in_pattern The line pattern name, defined in an accessible portfolio, to be used for drawing all contour lines.

Returns: A reference to this object.

◆ SetPositions() [1/3]

ContourLineKit& HPS::ContourLineKit::SetPositions	(	float	in_interval,
		float	in_offset
	)

Controls the positioning of contour lines.

This variant creates them at regular intervals with an optional offset.

Parameters

in_interval	The number of units between contour lines.
in_offset	The starting point for contour lines.

Returns: A reference to this object.

◆ SetPositions() [2/3]

ContourLineKit& HPS::ContourLineKit::SetPositions ( FloatArray const & in_positions )

Controls the positioning of contour lines.

This variant defines explicit locations that contour lines should appear at.

Parameters

in_positions An array of explicit locations to draw contour lines.

Returns: A reference to this object.

◆ SetPositions() [3/3]

ContourLineKit& HPS::ContourLineKit::SetPositions	(	size_t	in_count,
		float const	in_positions[]
	)

Controls the positioning of contour lines.

This variant defines explicit locations that contour lines should appear at.

Parameters

in_count	The number of elements in in_positions.
in_positions	An array of explicit locations to draw contour lines.

Returns: A reference to this object.

◆ SetVisibility()

ContourLineKit& HPS::ContourLineKit::SetVisibility ( bool in_state )

Determines whether contour lines should be rendered.

Parameters

in_state Whether contour lines should be rendered.

Returns: A reference to this object.

◆ SetWeights() [1/3]

ContourLineKit& HPS::ContourLineKit::SetWeights	(	FloatArray const &	in_weights,
		LineSizeUnitsArray const &	in_units
	)

Sets the line weights to be used for drawing contour lines.

If there are more contour lines than weights, the array will be cycled through.

Parameters

in_weights	An array of line weights to be applied to contour lines.
in_units	An array of line weight units used with the corresponding entry in in_weights.

Returns: A reference to this object.

◆ SetWeights() [2/3]

ContourLineKit& HPS::ContourLineKit::SetWeights	(	size_t	in_count,
		float const	in_weights[],
		Line::SizeUnits const	in_units[]
	)

Sets the line weights to be used for drawing contour lines.

If there are more contour lines than weights, the array will be cycled through.

Parameters

in_count	The number of elements in both in_weights and in_units.
in_weights	An array of line weights to be applied to contour lines.
in_units	An array of line weight units used with the corresponding entry in in_weights.

Returns: A reference to this object.

◆ SetWeights() [3/3]

ContourLineKit& HPS::ContourLineKit::SetWeights	(	float	in_weight,
		Line::SizeUnits	in_units = `Line::SizeUnits::ScaleFactor`
	)

Sets the line weight to be used for drawing all contour lines.

Parameters

in_weight	The line weight to be used for drawing all contour lines.
in_units	The units associated with in_weight.

Returns: A reference to this object.

◆ Show()

void HPS::ContourLineKit::Show ( ContourLineKit & out_kit ) const

Copies this object into the given ContourLineKit.

Parameters

out_kit The ContourLineKit to populate with the contents of this object.

◆ ShowColors()

bool HPS::ContourLineKit::ShowColors ( RGBColorArray & out_colors ) const

Shows the colors of contour lines.

Parameters

out_colors An array of colors of contour lines

Returns: true if the setting is valid, false otherwise.

◆ ShowLighting()

bool HPS::ContourLineKit::ShowLighting ( bool & out_state ) const

Shows whether contour lines should be lit.

Parameters

out_state Whether contour lines should be lit.

Returns: true if the setting is valid, false otherwise.

◆ ShowPatterns()

bool HPS::ContourLineKit::ShowPatterns ( UTF8Array & out_patterns ) const

Shows the line patterns of contour lines.

Parameters

out_patterns An array of line pattern names for contour lines.

Returns: true if the setting is valid, false otherwise.

◆ ShowPositions()

bool HPS::ContourLineKit::ShowPositions	(	ContourLine::Mode &	out_mode,
		FloatArray &	out_positions
	)		const

Shows the positions of contour lines.

Parameters

out_mode	Whether the positions repeat at some interval or are an explicit list.
out_positions	If out_mode is Repeating, this will contain the interval and offset, in that order. Otherwise it will contain the explicit list specified.

Returns: true if the setting is valid, false otherwise.

◆ ShowVisibility()

bool HPS::ContourLineKit::ShowVisibility ( bool & out_state ) const

Shows the visibility state of contour lines.

Parameters

out_state Whether contour lines should be rendered.

Returns: true if the setting is valid, false otherwise.

◆ ShowWeights()

bool HPS::ContourLineKit::ShowWeights	(	FloatArray &	out_weights,
		LineSizeUnitsArray &	out_units
	)		const

Shows the line weights of contour lines.

Parameters

out_weights	An array of line weights for contour lines.
out_units	An array of line weight units, each is applied to the corresponding entry in out_weights

Returns: true if the setting is valid, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetColors()

ContourLineKit& HPS::ContourLineKit::UnsetColors ( )

Removes the contour line colors setting.

Returns: A reference to this object.

◆ UnsetEverything()

ContourLineKit& HPS::ContourLineKit::UnsetEverything ( )

Removes all settings from this object.

Returns: A reference to this object.

◆ UnsetLighting()

ContourLineKit& HPS::ContourLineKit::UnsetLighting ( )

Removes the contour line lighting setting.

Returns: A reference to this object.

◆ UnsetPatterns()

ContourLineKit& HPS::ContourLineKit::UnsetPatterns ( )

Removes the contour line patterns setting.

Returns: A reference to this object.

◆ UnsetPositions()

ContourLineKit& HPS::ContourLineKit::UnsetPositions ( )

Removes the contour line positions setting.

Returns: A reference to this object.

◆ UnsetVisibility()

ContourLineKit& HPS::ContourLineKit::UnsetVisibility ( )

Removes the contour line visibility setting.

Returns: A reference to this object.

◆ UnsetWeights()

ContourLineKit& HPS::ContourLineKit::UnsetWeights ( )

Removes the contour line weights setting.

Returns: A reference to this object.

Member Data Documentation

◆ staticType

const HPS::Type HPS::ContourLineKit::staticType = HPS::Type::ContourLineKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ContourLineKit() [1/3]

◆ ContourLineKit() [2/3]

◆ ContourLineKit() [3/3]

◆ ~ContourLineKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetColors() [1/3]

◆ SetColors() [2/3]

◆ SetColors() [3/3]

◆ SetLighting()

◆ SetPatterns() [1/3]

◆ SetPatterns() [2/3]

◆ SetPatterns() [3/3]

◆ SetPositions() [1/3]

◆ SetPositions() [2/3]

◆ SetPositions() [3/3]

◆ SetVisibility()

◆ SetWeights() [1/3]

◆ SetWeights() [2/3]

◆ SetWeights() [3/3]

◆ Show()

◆ ShowColors()

◆ ShowLighting()

◆ ShowPatterns()

◆ ShowPositions()

◆ ShowVisibility()

◆ ShowWeights()

◆ Type()

◆ UnsetColors()

◆ UnsetEverything()

◆ UnsetLighting()

◆ UnsetPatterns()

◆ UnsetPositions()

◆ UnsetVisibility()

◆ UnsetWeights()

Member Data Documentation

◆ staticType
