HPS::FontSearchResultsIterator Class Reference

An iterator used for traversing results from a search on an associated FontSearchResults object. More...

#include <hps.h>

Inheritance diagram for HPS::FontSearchResultsIterator:

Collaboration diagram for HPS::FontSearchResultsIterator:

Public Member Functions
	FontSearchResultsIterator ()
	The default constructor creates a new FontSearchResultsIterator object that is not associated with any FontSearchResults object. More...
	FontSearchResultsIterator (FontSearchResultsIterator const &in_search_results_iterator)
	The copy constructor initializes a new FontSearchResultsIterator object that is associated with the same FontSearchResults object as the source and at the same location in the results. More...
	FontSearchResultsIterator (FontSearchResultsIterator &&in_that)
	The move constructor creates FontSearchResultsIterator by transferring the underlying impl of the rvalue reference to this Key thereby avoiding a copy and allocation. More...
FontSearchResultsIterator &	operator= (FontSearchResultsIterator const &in_search_results_iterator)
	Copies a FontSearchResultsIterator object, associating this object with the same FontSearchResults object as the source and at the same location in the results. More...
FontSearchResultsIterator &	operator= (FontSearchResultsIterator &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this FontSearchResultsIterator thereby avoiding a copy. More...
	~FontSearchResultsIterator ()
HPS::Type	ObjectType () const
void	Set (FontSearchResultsIterator const &in_search_results_iterator)
	Copies a FontSearchResultsIterator object, associating this object with the same FontSearchResults object as the source and at the same location in the results. More...
void	Next ()
	Advances the iterator to the next search result item. More...
FontSearchResultsIterator &	operator++ ()
	Advances the iterator to the next search result item. More...
FontSearchResultsIterator	operator++ (int in_val)
	Advances the iterator to the next search result item. More...
bool	operator== (FontSearchResultsIterator const &in_search_results_iterator)
	Comparison operator between iterators to compare equality. More...
bool	operator!= (FontSearchResultsIterator const &in_search_results_iterator)
	Comparison operator between iterators to compare inequality. More...
bool	IsValid () const
	Queries the validity of this iterator location. More...
void	Reset ()
	Resets iterator to the beginning of the associated search results. More...
FontInfoState	GetItem () const
	Returns the FontInfoState that this iterator is currently pointing at. More...
FontInfoState	operator* () const
	Returns the FontInfoState that this iterator is currently pointing at. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::FontSearchResultsIterator

Detailed Description

An iterator used for traversing results from a search on an associated FontSearchResults object.

Constructor & Destructor Documentation

FontSearchResultsIterator() [1/3]

HPS::FontSearchResultsIterator::FontSearchResultsIterator

(

)

The default constructor creates a new FontSearchResultsIterator object that is not associated with any FontSearchResults object.

FontSearchResultsIterator() [2/3]

HPS::FontSearchResultsIterator::FontSearchResultsIterator

(

FontSearchResultsIterator const &

in_search_results_iterator

)

The copy constructor initializes a new FontSearchResultsIterator object that is associated with the same FontSearchResults object as the source and at the same location in the results.

Subsequent changes to either iterator will not affect the other.

Parameters

in_search_results_iterator

The source of the copy.

FontSearchResultsIterator() [3/3]

HPS::FontSearchResultsIterator::FontSearchResultsIterator

(

FontSearchResultsIterator &&

in_that

)

The move constructor creates FontSearchResultsIterator by transferring the underlying impl of the rvalue reference to this Key thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to FontSearchResultsIterator to take the impl from.

~FontSearchResultsIterator()

HPS::FontSearchResultsIterator::~FontSearchResultsIterator

(

)

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetItem()

FontInfoState HPS::FontSearchResultsIterator::GetItem

(

)

const

Returns the FontInfoState that this iterator is currently pointing at.

Throws exception if iterator is not valid. This method is functionally equivalent to the overloaded operator*.

Returns

The current item.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

IsValid()

bool HPS::FontSearchResultsIterator::IsValid

(

)

const

Queries the validity of this iterator location.

Invalid locations would include uninitialized iterators and iterators that had walked past the last element.

Returns

true if this iterator is pointing to a valid item, false otherwise.

Next()

void HPS::FontSearchResultsIterator::Next

(

)

Advances the iterator to the next search result item.

ObjectType()

HPS::Type HPS::FontSearchResultsIterator::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Object.

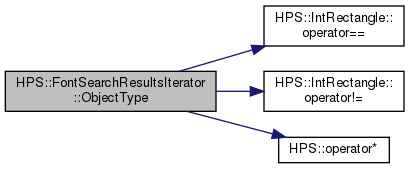

Here is the call graph for this function:

operator!=()

bool HPS::FontSearchResultsIterator::operator!=

(

FontSearchResultsIterator const &

in_search_results_iterator

)

Comparison operator between iterators to compare inequality.

Parameters

in_search_results_iterator

The iterator to compare to

operator*()

FontInfoState HPS::FontSearchResultsIterator::operator*

(

)

const

Returns the FontInfoState that this iterator is currently pointing at.

Throws exception if iterator is not valid.

Returns

The current font name.

operator++() [1/2]

FontSearchResultsIterator& HPS::FontSearchResultsIterator::operator++

(

)

Advances the iterator to the next search result item.

Returns

A reference to this object.

operator++() [2/2]

FontSearchResultsIterator HPS::FontSearchResultsIterator::operator++

(

int

in_val

)

Advances the iterator to the next search result item.

Returns

A reference to this object.

operator=() [1/2]

FontSearchResultsIterator& HPS::FontSearchResultsIterator::operator=

(

FontSearchResultsIterator const &

in_search_results_iterator

)

Copies a FontSearchResultsIterator object, associating this object with the same FontSearchResults object as the source and at the same location in the results.

Subsequent changes to either iterator will not affect the other.

Parameters

in_search_results_iterator

The source of the copy.

Returns

a reference to this object.

operator=() [2/2]

FontSearchResultsIterator& HPS::FontSearchResultsIterator::operator=

(

FontSearchResultsIterator &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this FontSearchResultsIterator thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an FontSearchResultsIterator to take the impl from.

Returns

A reference to this FontSearchResultsIterator.

operator==()

bool HPS::FontSearchResultsIterator::operator==

(

FontSearchResultsIterator const &

in_search_results_iterator

)

Comparison operator between iterators to compare equality.

Parameters

in_search_results_iterator

The iterator to compare to

Reset()

void HPS::FontSearchResultsIterator::Reset ( )

virtual

Resets iterator to the beginning of the associated search results.

Reimplemented from HPS::Object.

Set()

void HPS::FontSearchResultsIterator::Set

(

FontSearchResultsIterator const &

in_search_results_iterator

)

Copies a FontSearchResultsIterator object, associating this object with the same FontSearchResults object as the source and at the same location in the results.

Subsequent changes to either iterator will not affect the other. This method is functionally equivalent to the overloaded assignment operator except for the return value.

Parameters

in_search_results_iterator

The source of the copy.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Member Data Documentation

staticType

const HPS::Type HPS::FontSearchResultsIterator::staticType = HPS::Type::FontSearchResultsIterator

static

---

The documentation for this class was generated from the following file:

• hps.h
