HPS::Publish::ArtworkKit Class Reference

The ArtworkKit class is a user space object. More...

#include <sprk_publish.h>

Inheritance diagram for HPS::Publish::ArtworkKit:

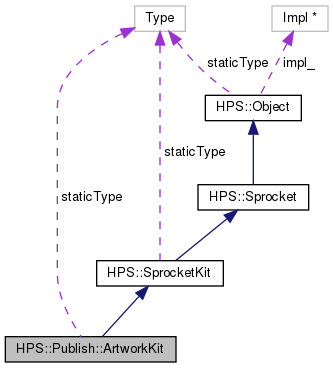

Collaboration diagram for HPS::Publish::ArtworkKit:

Public Member Functions
	ArtworkKit ()
	The default constructor creates an empty ArtworkKit object. More...
	ArtworkKit (ArtworkKit const &in_kit)
	The copy constructor creates a new ArtworkKit object that contains the same settings as the source ArtworkKit. More...
	ArtworkKit (ArtworkKit &&in_kit)
	The move constructor creates an ArtworkKit by transferring the underlying object of the rvalue reference to this ArtworkKit. More...
virtual	~ArtworkKit ()
HPS::Type	ObjectType () const
void	Set (ArtworkKit const &in_kit)
	Copies the source ArtworkKit into this ArtworkKit. More...
void	Show (ArtworkKit &out_kit) const
	Copies this ArtworkKit into the given ArtworkKit. More...
ArtworkKit &	operator= (ArtworkKit const &in_kit)
	Copies the source ArtworkKit into this ArtworkKit. More...
ArtworkKit &	operator= (ArtworkKit &&in_kit)
	The move assignment operator transfers the underlying object of the rvalue reference to this ArtworkKit. More...
bool	Empty () const
	Indicates whether this ArtworkKit has any values set on it. More...
bool	Equals (ArtworkKit const &in_kit) const
	Check if the source ArtworkKit is equivalent to this ArtworkKit. More...
bool	operator== (ArtworkKit const &in_kit) const
	Check if the source ArtworkKit is equivalent to this ArtworkKit. More...
bool	operator!= (ArtworkKit const &in_kit) const
	Check if the source ArtworkKit is not equivalent to this ArtworkKit. More...
ArtworkKit &	SetAnimationStyle (Animation::Style in_style)
	Sets the animation style for the artwork. More...
ArtworkKit &	SetJavaScript (char const *in_source, Source::Type in_type=Source::Type::Code)
	Sets the JavaScript source or file for the artwork. More...
ArtworkKit &	SetPMICrossHighlighting (bool in_state)
	Sets the whether to enable PMI cross-highlighting for the artwork. More...
ArtworkKit &	SetPMISemanticInformation (bool in_state)
	Sets the whether to include semantic PMI information in the artwork. More...
ArtworkKit &	SetDefaultViewPreference (Artwork::View::Preference in_preference)
	Sets the default view preference for the artwork. More...
ArtworkKit &	SetDisplayPreference (Artwork::Display::Preference in_preference)
	Sets the display preference for the artwork. More...
ArtworkKit &	SetView (ViewKit const &in_view)
	Adds a view to the artwork. More...
ArtworkKit &	AddView (ViewKit const &in_view)
	Adds a view to the artwork. More...
ArtworkKit &	SetViews (size_t in_count, ViewKit const in_views[])
	Adds views to the artwork. More...
ArtworkKit &	SetViews (ViewKitArray const &in_views)
	Adds views to the artwork. More...
ArtworkKit &	AddViews (size_t in_count, ViewKit const in_views[])
	Adds views to the artwork. More...
ArtworkKit &	AddViews (ViewKitArray const &in_views)
	Adds views to the artwork. More...
ArtworkKit &	SetPMIColor (HPS::RGBColor const &in_pmi_color)
	Sets the PMI color for this artwork. More...
ArtworkKit &	UnsetAnimationStyle ()
	Removes the animation style setting. More...
ArtworkKit &	UnsetJavaScript ()
	Removes the JavaScript setting. More...
ArtworkKit &	UnsetPMICrossHighlighting ()
	Removes the PMI cross-highlighting setting. More...
ArtworkKit &	UnsetPMISemanticInformation ()
	Removes the PMI semantic information setting. More...
ArtworkKit &	UnsetDefaultViewPreference ()
	Removes the default view preference setting. More...
ArtworkKit &	UnsetDisplayPreference ()
	Removes the display preference setting. More...
ArtworkKit &	UnsetView (size_t in_index)
	Removes the view at the given index from the artwork. More...
ArtworkKit &	UnsetViews (size_t in_count, size_t const in_indices[])
	Removes the views at the given indices from the artwork. More...
ArtworkKit &	UnsetViews (SizeTArray const &in_indices)
	Removes the views at the given indices from the artwork. More...
ArtworkKit &	UnsetViews ()
	Removes all views from the artwork. More...
ArtworkKit &	UnsetPMIColor ()
	Removes the PMI color setting from the artwork. More...
ArtworkKit &	UnsetEverything ()
	Removes all data from the artwork. More...
bool	ShowAnimationStyle (Animation::Style &out_style) const
	Shows the animation style setting. More...
bool	ShowJavaScript (UTF8 &out_source, Source::Type &out_type) const
	Shows the JavaScript setting. More...
bool	ShowPMICrossHighlighting (bool &out_state) const
	Shows the PMI cross-highlighting setting. More...
bool	ShowPMISemanticInformation (bool &out_state) const
	Shows the semantic PMI information setting. More...
bool	ShowDefaultViewPreference (Artwork::View::Preference &out_preference) const
	Shows the default view preference setting. More...
bool	ShowDisplayPreference (Artwork::Display::Preference &out_preference) const
	Shows the display preference setting. More...
bool	ShowViews (ViewKitArray &out_views) const
	Shows the views for the artwork. More...
bool	ShowPMIColor (HPS::RGBColor &out_pmi_color) const
	Shows the PMI color for the artwork. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ArtworkKit	GetDefault ()
	Creates a ArtworkKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PublishArtworkKit

Detailed Description

The ArtworkKit class is a user space object.

It acts as the container for all data that can be on an artwork in a Publish PDF.

Constructor & Destructor Documentation

ArtworkKit() [1/3]

HPS::Publish::ArtworkKit::ArtworkKit

(

)

The default constructor creates an empty ArtworkKit object.

ArtworkKit() [2/3]

HPS::Publish::ArtworkKit::ArtworkKit

(

ArtworkKit const &

in_kit

)

The copy constructor creates a new ArtworkKit object that contains the same settings as the source ArtworkKit.

Parameters

in_kit

The source ArtworkKit to copy.

ArtworkKit() [3/3]

HPS::Publish::ArtworkKit::ArtworkKit

(

ArtworkKit &&

in_kit

)

The move constructor creates an ArtworkKit by transferring the underlying object of the rvalue reference to this ArtworkKit.

Parameters

in_kit

An rvalue reference to an ArtworkKit to take the underlying object from.

~ArtworkKit()

virtual HPS::Publish::ArtworkKit::~ArtworkKit ( )

virtual

Member Function Documentation

AddView()

ArtworkKit& HPS::Publish::ArtworkKit::AddView

(

ViewKit const &

in_view

)

Adds a view to the artwork.

This will append the view to any existing views on the artwork. These correspond to values that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_view

The view to add to the artwork.

Returns

A reference to this ArtworkKit.

AddViews() [1/2]

ArtworkKit& HPS::Publish::ArtworkKit::AddViews	(	size_t	in_count,
		ViewKit const	in_views[]
	)

Adds views to the artwork.

This will append the views to any existing views on the artwork. These correspond to values that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_count	Size of the following array.
in_views	The views to add to the artwork.

Returns

A reference to this ArtworkKit.

AddViews() [2/2]

ArtworkKit& HPS::Publish::ArtworkKit::AddViews

(

ViewKitArray const &

in_views

)

Adds views to the artwork.

This will append the views to any existing views on the artwork. These correspond to values that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_views

The views to add to the artwork.

Returns

A reference to this ArtworkKit.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Publish::ArtworkKit::Empty ( ) const

virtual

Indicates whether this ArtworkKit has any values set on it.

Returns

true if no values are set on this ArtworkKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Publish::ArtworkKit::Equals

(

ArtworkKit const &

in_kit

)

const

Check if the source ArtworkKit is equivalent to this ArtworkKit.

Parameters

in_kit

The source ArtworkKit to compare to this ArtworkKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static ArtworkKit HPS::Publish::ArtworkKit::GetDefault ( )

static

Creates a ArtworkKit which contains the default settings.

The returned object will not necessarily have values for every setting, but it will have them where it is reasonable to have a default. These values will be used for export unless a setting is overridden by the ArtworkKit passed to File::Export.

Returns

A ArtworkKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Publish::ArtworkKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Publish::ArtworkKit::operator!=

(

ArtworkKit const &

in_kit

)

const

Check if the source ArtworkKit is not equivalent to this ArtworkKit.

Parameters

in_kit

The source ArtworkKit to compare to this ArtworkKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

ArtworkKit& HPS::Publish::ArtworkKit::operator=

(

ArtworkKit const &

in_kit

)

Copies the source ArtworkKit into this ArtworkKit.

Parameters

in_kit

The source ArtworkKit to copy.

Returns

A reference to this ArtworkKit.

operator=() [2/2]

ArtworkKit& HPS::Publish::ArtworkKit::operator=

(

ArtworkKit &&

in_kit

)

The move assignment operator transfers the underlying object of the rvalue reference to this ArtworkKit.

Parameters

in_kit

An rvalue reference to an ArtworkKit to take the underlying object from.

Returns

A reference to this ArtworkKit.

operator==()

bool HPS::Publish::ArtworkKit::operator==

(

ArtworkKit const &

in_kit

)

const

Check if the source ArtworkKit is equivalent to this ArtworkKit.

Parameters

in_kit

The source ArtworkKit to compare to this ArtworkKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Publish::ArtworkKit::Set

(

ArtworkKit const &

in_kit

)

Copies the source ArtworkKit into this ArtworkKit.

Parameters

in_kit

The source ArtworkKit to copy.

SetAnimationStyle()

ArtworkKit& HPS::Publish::ArtworkKit::SetAnimationStyle

(

Animation::Style

in_style

)

Sets the animation style for the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_eAnimationStyle.

Parameters

in_style

The animation style for the artwork.

Returns

A reference to this ArtworkKit.

SetDefaultViewPreference()

ArtworkKit& HPS::Publish::ArtworkKit::SetDefaultViewPreference

(

Artwork::View::Preference

in_preference

)

Sets the default view preference for the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_bKeepNativeDefaultView.

Parameters

in_preference

The default view preference for the artwork.

Returns

A reference to this ArtworkKit.

SetDisplayPreference()

ArtworkKit& HPS::Publish::ArtworkKit::SetDisplayPreference

(

Artwork::Display::Preference

in_preference

)

Sets the display preference for the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_bUseRuntimeDisplaySettings.

Parameters

in_preference

The display preference for the artwork.

Returns

A reference to this ArtworkKit.

SetJavaScript()

ArtworkKit& HPS::Publish::ArtworkKit::SetJavaScript	(	char const *	in_source,
		Source::Type	in_type = Source::Type::Code
	)

Sets the JavaScript source or file for the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_pcJavaScriptFileName.

Parameters

in_source	The JavaScript source or file (depending on the next argument) for the artwork.
in_type	The type of the preceding argument. Defaults to Source::Type::Code.

Returns

A reference to this ArtworkKit.

SetPMIColor()

ArtworkKit& HPS::Publish::ArtworkKit::SetPMIColor

(

HPS::RGBColor const &

in_pmi_color

)

Sets the PMI color for this artwork.

This correspond to value that will be passed to A3DPDF3DArtworkData::m_sPMIColor .

Parameters

in_pmi_color

The color to apply to PMIs for this artwork.

Returns

A reference to this ArtworkKit.

SetPMICrossHighlighting()

ArtworkKit& HPS::Publish::ArtworkKit::SetPMICrossHighlighting

(

bool

in_state

)

Sets the whether to enable PMI cross-highlighting for the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_bActivatePMICrossHighlight.

Parameters

in_state

Whether to highlight the geometry associated with a piece of PMI when that PMI is selected.

Returns

A reference to this ArtworkKit.

SetPMISemanticInformation()

ArtworkKit& HPS::Publish::ArtworkKit::SetPMISemanticInformation

(

bool

in_state

)

Sets the whether to include semantic PMI information in the artwork.

This corresponds to the value that will be passed to A3DPDF3DArtworkData::m_bAddPMISemanticInformation.

Parameters

in_state

Whether to include semantic PMI information in the artwork.

Returns

A reference to this ArtworkKit.

SetView()

ArtworkKit& HPS::Publish::ArtworkKit::SetView

(

ViewKit const &

in_view

)

Adds a view to the artwork.

This will replace all views (if any) on the artwork. This corresponds to the value that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_view

The view to add to the artwork.

Returns

A reference to this ArtworkKit.

SetViews() [1/2]

ArtworkKit& HPS::Publish::ArtworkKit::SetViews	(	size_t	in_count,
		ViewKit const	in_views[]
	)

Adds views to the artwork.

This will replace all views (if any) on the artwork. These correspond to values that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_count	Size of the following array.
in_views	The views to add to the artwork.

Returns

A reference to this ArtworkKit.

SetViews() [2/2]

ArtworkKit& HPS::Publish::ArtworkKit::SetViews

(

ViewKitArray const &

in_views

)

Adds views to the artwork.

This will replace all views (if any) on the artwork. These correspond to values that will be passed to A3DPDF3DArtworkAddView.

Parameters

in_views

The views to add to the artwork.

Returns

A reference to this ArtworkKit.

Show()

void HPS::Publish::ArtworkKit::Show

(

ArtworkKit &

out_kit

)

const

Copies this ArtworkKit into the given ArtworkKit.

Parameters

out_kit

The ArtworkKit to populate with the contents of this ArtworkKit.

ShowAnimationStyle()

bool HPS::Publish::ArtworkKit::ShowAnimationStyle

(

Animation::Style &

out_style

)

const

Shows the animation style setting.

Parameters

out_style

The animation style of the artwork.

Returns

true if an animation style was specified, false otherwise.

ShowDefaultViewPreference()

bool HPS::Publish::ArtworkKit::ShowDefaultViewPreference

(

Artwork::View::Preference &

out_preference

)

const

Shows the default view preference setting.

Parameters

out_preference

The default view preference for the artwork.

Returns

true if a default view preference was specified, false otherwise.

ShowDisplayPreference()

bool HPS::Publish::ArtworkKit::ShowDisplayPreference

(

Artwork::Display::Preference &

out_preference

)

const

Shows the display preference setting.

Parameters

out_preference

The display preference for the artwork.

Returns

true if a display preference was specified, false otherwise.

ShowJavaScript()

bool HPS::Publish::ArtworkKit::ShowJavaScript	(	UTF8 &	out_source,
		Source::Type &	out_type
	)		const

Shows the JavaScript setting.

Parameters

out_source	The JavaScript source or file (depending on the next argument) for the artwork.
out_type	The type of the preceding argument.

Returns

true if a JavaScript source or file was specified, false otherwise.

ShowPMIColor()

bool HPS::Publish::ArtworkKit::ShowPMIColor

(

HPS::RGBColor &

out_pmi_color

)

const

Shows the PMI color for the artwork.

Parameters

out_pmi_color

The PMI color for the artwork.

Returns

true if a PMI color was specified, false otherwise.

ShowPMICrossHighlighting()

bool HPS::Publish::ArtworkKit::ShowPMICrossHighlighting

(

bool &

out_state

)

const

Shows the PMI cross-highlighting setting.

Parameters

out_state

Whether to highlight the geometry associated with a piece of PMI when that PMI is selected.

Returns

true if a PMI cross-highlighting setting was specified, false otherwise.

ShowPMISemanticInformation()

bool HPS::Publish::ArtworkKit::ShowPMISemanticInformation

(

bool &

out_state

)

const

Shows the semantic PMI information setting.

Parameters

out_state

Whether to include semantic PMI information in the artwork.

Returns

true if a semantic PMI information setting was specified, false otherwise.

ShowViews()

bool HPS::Publish::ArtworkKit::ShowViews

(

ViewKitArray &

out_views

)

const

Shows the views for the artwork.

Parameters

out_views

The views for the artwork.

Returns

true if views were specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAnimationStyle()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetAnimationStyle

(

)

Removes the animation style setting.

Returns

A reference to this ArtworkKit.

UnsetDefaultViewPreference()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetDefaultViewPreference

(

)

Removes the default view preference setting.

Returns

A reference to this ArtworkKit.

UnsetDisplayPreference()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetDisplayPreference

(

)

Removes the display preference setting.

Returns

A reference to this ArtworkKit.

UnsetEverything()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetEverything

(

)

Removes all data from the artwork.

Returns

A reference to this ArtworkKit.

UnsetJavaScript()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetJavaScript

(

)

Removes the JavaScript setting.

Returns

A reference to this ArtworkKit.

UnsetPMIColor()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetPMIColor

(

)

Removes the PMI color setting from the artwork.

Returns

A reference to this ArtworkKit.

UnsetPMICrossHighlighting()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetPMICrossHighlighting

(

)

Removes the PMI cross-highlighting setting.

Returns

A reference to this ArtworkKit.

UnsetPMISemanticInformation()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetPMISemanticInformation

(

)

Removes the PMI semantic information setting.

Returns

A reference to this ArtworkKit.

UnsetView()

ArtworkKit& HPS::Publish::ArtworkKit::UnsetView

(

size_t

in_index

)

Removes the view at the given index from the artwork.

Parameters

in_index

Index of the view to remove from the artwork.

Returns

A reference to this ArtworkKit.

UnsetViews() [1/3]

ArtworkKit& HPS::Publish::ArtworkKit::UnsetViews	(	size_t	in_count,
		size_t const	in_indices[]
	)

Removes the views at the given indices from the artwork.

Parameters

in_count	Size of the following array.
in_indices	Indices of the views to remove from the artwork.

Returns

A reference to this ArtworkKit.

UnsetViews() [2/3]

ArtworkKit& HPS::Publish::ArtworkKit::UnsetViews

(

SizeTArray const &

in_indices

)

Removes the views at the given indices from the artwork.

Parameters

in_indices

Indices of the views to remove from the artwork.

Returns

A reference to this ArtworkKit.

UnsetViews() [3/3]

ArtworkKit& HPS::Publish::ArtworkKit::UnsetViews

(

)

Removes all views from the artwork.

Returns

A reference to this ArtworkKit.

Member Data Documentation

staticType

const HPS::Type HPS::Publish::ArtworkKit::staticType = HPS::Type::PublishArtworkKit

static

---

The documentation for this class was generated from the following file:

• sprk_publish.h
