HPS::EdgeAttributeControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::EdgeAttributeControl:

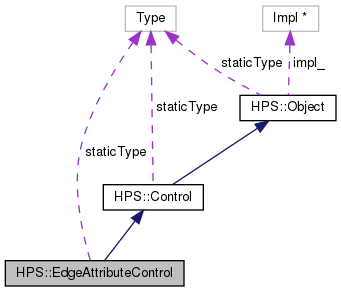

Collaboration diagram for HPS::EdgeAttributeControl:

Public Member Functions
	EdgeAttributeControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	EdgeAttributeControl (EdgeAttributeControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	EdgeAttributeControl (EdgeAttributeControl &&in_that)
	The move constructor creates an EdgeAttributeControl by transferring the underlying impl of the rvalue reference to this EdgeAttributeControl thereby avoiding a copy and allocation. More...
EdgeAttributeControl &	operator= (EdgeAttributeControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this EdgeAttributeControl thereby avoiding a copy. More...
	~EdgeAttributeControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
EdgeAttributeControl &	operator= (EdgeAttributeControl const &in_that)
	Share the underlying smart-pointer of the EdgeAttributeControl source. More...
EdgeAttributeControl &	SetPattern (char const *in_pattern_name)
	Specifies the pattern of edges. More...
EdgeAttributeControl &	SetWeight (float in_weight, Edge::SizeUnits in_units=Edge::SizeUnits::ScaleFactor)
	Sets the weight of lines drawn in edge rendering. More...
EdgeAttributeControl &	SetHardAngle (float in_angle)
	Sets the angle between adjacent faces necessary for the edge between them to be considered a hard edge. More...
EdgeAttributeControl &	UnsetPattern ()
	Removes the line pattern setting for edges. More...
EdgeAttributeControl &	UnsetWeight ()
	Removes the weight setting for edges. More...
EdgeAttributeControl &	UnsetHardAngle ()
	Removes the hard edge angle setting. More...
EdgeAttributeControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowPattern (UTF8 &out_pattern_name) const
	Shows the line pattern of the edges. More...
bool	ShowWeight (float &out_weight, Edge::SizeUnits &out_units) const
	Shows the weight of lines drawn in edge rendering. More...
bool	ShowHardAngle (float &out_angle) const
	Shows the weight of lines drawn in edge rendering. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::EdgeAttributeControl

Private Member Functions
	EdgeAttributeControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::EdgeAttributeControl class is a smart pointer that is tied to a database object. Using this control, you can manipulate the various attributes associated with geometry edges. Edges are present on any piece of facetted geometry.

This table lists default values for the various segment attributes accessible from HPS::EdgeAttributeControl.

Constructor & Destructor Documentation

EdgeAttributeControl() [1/4]

HPS::EdgeAttributeControl::EdgeAttributeControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

EdgeAttributeControl() [2/4]

HPS::EdgeAttributeControl::EdgeAttributeControl

(

EdgeAttributeControl const &

in_that

)

Initializes a control tied to the same object as in_that.

EdgeAttributeControl() [3/4]

HPS::EdgeAttributeControl::EdgeAttributeControl

(

EdgeAttributeControl &&

in_that

)

The move constructor creates an EdgeAttributeControl by transferring the underlying impl of the rvalue reference to this EdgeAttributeControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an EdgeAttributeControl to take the impl from.

~EdgeAttributeControl()

HPS::EdgeAttributeControl::~EdgeAttributeControl

(

)

Releases a reference to the database object this control is tied to.

EdgeAttributeControl() [4/4]

HPS::EdgeAttributeControl::EdgeAttributeControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::EdgeAttributeControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

EdgeAttributeControl& HPS::EdgeAttributeControl::operator=

(

EdgeAttributeControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this EdgeAttributeControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an EdgeAttributeControl to take the impl from.

Returns

A reference to this EdgeAttributeControl.

operator=() [2/2]

EdgeAttributeControl& HPS::EdgeAttributeControl::operator=

(

EdgeAttributeControl const &

in_that

)

Share the underlying smart-pointer of the EdgeAttributeControl source.

Parameters

in_that

The EdgeAttributeControl source of the assignment.

Returns

A reference to this EdgeAttributeControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetHardAngle()

EdgeAttributeControl& HPS::EdgeAttributeControl::SetHardAngle

(

float

in_angle

)

Sets the angle between adjacent faces necessary for the edge between them to be considered a hard edge.

Parameters

in_angle

The angle, in degrees, between the adjacent faces necessary for a hard edge.

Returns

A reference to this object.

SetPattern()

EdgeAttributeControl& HPS::EdgeAttributeControl::SetPattern

(

char const *

in_pattern_name

)

Specifies the pattern of edges.

Parameters

in_pattern

The name of a line pattern, defined in a portfolio that is accessible.

Returns

A reference to this object.

See also

Programming Guide: Line Patterns

SetWeight()

EdgeAttributeControl& HPS::EdgeAttributeControl::SetWeight	(	float	in_weight,
		Edge::SizeUnits	in_units = Edge::SizeUnits::ScaleFactor
	)

Sets the weight of lines drawn in edge rendering.

Parameters

in_weight	The weight value for edges.
in_units	The units applied to in_weight.

Returns

A reference to this object.

ShowHardAngle()

bool HPS::EdgeAttributeControl::ShowHardAngle

(

float &

out_angle

)

const

Shows the weight of lines drawn in edge rendering.

Parameters

out_angle

The angle, in degrees, between the adjacent faces necessary for a hard edge.

Returns

true if the setting is valid, false otherwise.

ShowPattern()

bool HPS::EdgeAttributeControl::ShowPattern

(

UTF8 &

out_pattern_name

)

const

Shows the line pattern of the edges.

Parameters

out_pattern

The name of a line pattern, defined in a portfolio that is accessible.

Returns

true if the setting is valid, false otherwise.

ShowWeight()

bool HPS::EdgeAttributeControl::ShowWeight	(	float &	out_weight,
		Edge::SizeUnits &	out_units
	)		const

Shows the weight of lines drawn in edge rendering.

Parameters

out_weight	The weight value for edges.
out_units	The units applied to in_weight.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::EdgeAttributeControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetEverything()

EdgeAttributeControl& HPS::EdgeAttributeControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by EdgeAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetHardAngle()

EdgeAttributeControl& HPS::EdgeAttributeControl::UnsetHardAngle

(

)

Removes the hard edge angle setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by EdgeAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetPattern()

EdgeAttributeControl& HPS::EdgeAttributeControl::UnsetPattern

(

)

Removes the line pattern setting for edges.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by EdgeAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetWeight()

EdgeAttributeControl& HPS::EdgeAttributeControl::UnsetWeight

(

)

Removes the weight setting for edges.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by EdgeAttributeKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::EdgeAttributeControl::staticType = HPS::Type::EdgeAttributeControl

static

---

The documentation for this class was generated from the following file:

• hps.h
