The EllipticalArcKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::EllipticalArcKit:

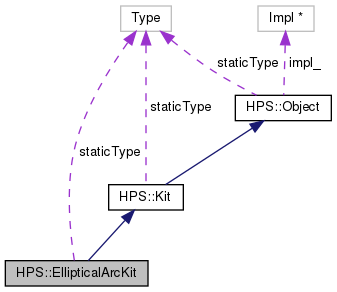

Collaboration diagram for HPS::EllipticalArcKit:

Public Member Functions
	EllipticalArcKit ()
	The default constructor creates an empty EllipticalArcKit object. More...

	EllipticalArcKit (EllipticalArcKit const &in_kit)
	The copy constructor creates a new EllipticalArcKit object that contains the same settings as the source EllipticalArcKit. More...

	EllipticalArcKit (EllipticalArcKit &&in_that)
	The move constructor creates an EllipticalArcKit by transferring the underlying impl of the rvalue reference to this EllipticalArcKit thereby avoiding a copy and allocation. More...

EllipticalArcKit &	operator= (EllipticalArcKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this EllipticalArcKit thereby avoiding a copy. More...

virtual	~EllipticalArcKit ()

HPS::Type	ObjectType () const

void	Consume (EllipticalArcKit &in_kit)
	Copies the source EllipticalArcKit into this EllipticalArcKit and resets the source kit. More...

void	Set (EllipticalArcKit const &in_kit)
	Copies the source EllipticalArcKit into this EllipticalArcKit. More...

void	Show (EllipticalArcKit &out_kit) const
	Copies this EllipticalArcKit into the given EllipticalArcKit. More...

EllipticalArcKit &	operator= (EllipticalArcKit const &in_kit)
	Copies the source EllipticalArcKit into this EllipticalArcKit. More...

bool	Empty () const
	Indicates whether this EllipticalArcKit has any values set on it. More...

bool	Equals (EllipticalArcKit const &in_kit) const
	Check if the source EllipticalArcKit is equivalent to this EllipticalArcKit. More...

bool	operator== (EllipticalArcKit const &in_kit) const
	Check if the source EllipticalArcKit is equivalent to this EllipticalArcKit. More...

bool	operator!= (EllipticalArcKit const &in_kit) const
	Check if the source EllipticalArcKit is not equivalent to this EllipticalArcKit. More...

EllipticalArcKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the EllipticalArcKit. More...

EllipticalArcKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

EllipticalArcKit &	SetCenter (Point const &in_center)
	Sets the center point for the ellipse used to define the elliptcal arc. More...

EllipticalArcKit &	SetMajor (Point const &in_major)
	Sets the intersection point of the major axis and the ellipse used to define the elliptcal arc. More...

EllipticalArcKit &	SetMinor (Point const &in_minor)
	Sets the intersection point of the minor axis and the ellipse used to define the elliptcal arc. More...

EllipticalArcKit &	SetStart (float in_start)
	Sets the normalized parametric value on the ellipse at which the elliptical arc starts. More...

EllipticalArcKit &	SetEnd (float in_end)
	Sets the normalized parametric value on the ellipse at which the elliptical arc ends. More...

EllipticalArcKit &	UnsetCenter ()
	Removes the center point for the ellipse used to define the elliptical arc. More...

EllipticalArcKit &	UnsetMajor ()
	Removes the intersection point of the major axis and the ellipse used to define the elliptical arc. More...

EllipticalArcKit &	UnsetMinor ()
	Removes the intersection point of the minor axis and the ellipse used to define the elliptical arc. More...

EllipticalArcKit &	UnsetStart ()
	Removes the normalized parametric value on the ellipse at which the elliptical arc starts. More...

EllipticalArcKit &	UnsetEnd ()
	Removes the normalized parametric value on the ellipse at which the elliptical arc ends. More...

EllipticalArcKit &	UnsetEverything ()
	Removes all settings from this EllipticalArcKit. More...

bool	ShowCenter (Point &out_center) const
	Shows the center point for the ellipse used to define the elliptical arc. More...

bool	ShowMajor (Point &out_major) const
	Shows the intersection point of the major axis and the ellipse used to define the elliptcal arc. More...

bool	ShowMinor (Point &out_minor) const
	Shows the intersection point of the minor axis and the ellipse used to define the elliptcal arc. More...

bool	ShowStart (float &out_start) const
	Shows the normalized parametric value on the ellipse at which the elliptical arc starts. More...

bool	ShowEnd (float &out_end) const
	Shows the normalized parametric value on the ellipse at which the elliptical arc ends. More...

EllipticalArcKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

EllipticalArcKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

EllipticalArcKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

EllipticalArcKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

EllipticalArcKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

EllipticalArcKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

EllipticalArcKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::EllipticalArcKit

Detailed Description

The EllipticalArcKit class is a user space object.

It is the kit analog to an EllipticalArcKey.

Constructor & Destructor Documentation

◆ EllipticalArcKit() [1/3]

HPS::EllipticalArcKit::EllipticalArcKit ( )

The default constructor creates an empty EllipticalArcKit object.

◆ EllipticalArcKit() [2/3]

HPS::EllipticalArcKit::EllipticalArcKit ( EllipticalArcKit const & in_kit )

The copy constructor creates a new EllipticalArcKit object that contains the same settings as the source EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to copy.

◆ EllipticalArcKit() [3/3]

HPS::EllipticalArcKit::EllipticalArcKit ( EllipticalArcKit && in_that )

The move constructor creates an EllipticalArcKit by transferring the underlying impl of the rvalue reference to this EllipticalArcKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to an EllipticalArcKit to take the impl from.

◆ ~EllipticalArcKit()

virtual HPS::EllipticalArcKit::~EllipticalArcKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::EllipticalArcKit::Consume ( EllipticalArcKit & in_kit )

Copies the source EllipticalArcKit into this EllipticalArcKit and resets the source kit.

Parameters

in_kit The source EllipticalArcKit to consume.

◆ Empty()

bool HPS::EllipticalArcKit::Empty ( ) const

virtual

Indicates whether this EllipticalArcKit has any values set on it.

Returns: true if no values are set on this EllipticalArcKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::EllipticalArcKit::Equals ( EllipticalArcKit const & in_kit ) const

Check if the source EllipticalArcKit is equivalent to this EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to compare to this EllipticalArcKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::EllipticalArcKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

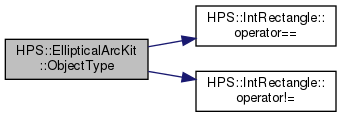

Here is the call graph for this function:

◆ operator!=()

bool HPS::EllipticalArcKit::operator!= ( EllipticalArcKit const & in_kit ) const

Check if the source EllipticalArcKit is not equivalent to this EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to compare to this EllipticalArcKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

EllipticalArcKit& HPS::EllipticalArcKit::operator= ( EllipticalArcKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this EllipticalArcKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to an EllipticalArcKit to take the impl from.

Returns: A reference to this EllipticalArcKit.

◆ operator=() [2/2]

EllipticalArcKit& HPS::EllipticalArcKit::operator= ( EllipticalArcKit const & in_kit )

Copies the source EllipticalArcKit into this EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to copy.

Returns: A reference to this EllipticalArcKit.

◆ operator==()

bool HPS::EllipticalArcKit::operator== ( EllipticalArcKit const & in_kit ) const

Check if the source EllipticalArcKit is equivalent to this EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to compare to this EllipticalArcKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::EllipticalArcKit::Set ( EllipticalArcKit const & in_kit )

Copies the source EllipticalArcKit into this EllipticalArcKit.

Parameters

in_kit The source EllipticalArcKit to copy.

◆ SetCenter()

EllipticalArcKit& HPS::EllipticalArcKit::SetCenter ( Point const & in_center )

Sets the center point for the ellipse used to define the elliptcal arc.

Parameters

in_center The center point for the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ SetEnd()

EllipticalArcKit& HPS::EllipticalArcKit::SetEnd ( float in_end )

Sets the normalized parametric value on the ellipse at which the elliptical arc ends.

The value should be in the range [0.0f,1.0f] and be larger than the start value. It is defined such that 0.0f is the point where the major axis intersects the ellipse, and as the value increases it passes through the point at which the minor axis intersects the ellipse (0.25f), and that 1.0f maps to the same point as 0.0f.

Parameters

in_end The noramlized parametric value on the ellipse at which the elliptical arc ends. This value should be in the range [0.0f,1.0f] and be larger than the start value.

Returns: A reference to this EllipticalArcKit.

◆ SetMajor()

EllipticalArcKit& HPS::EllipticalArcKit::SetMajor ( Point const & in_major )

Sets the intersection point of the major axis and the ellipse used to define the elliptcal arc.

Parameters

in_major The intersection point of the major axis and the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ SetMinor()

EllipticalArcKit& HPS::EllipticalArcKit::SetMinor ( Point const & in_minor )

Sets the intersection point of the minor axis and the ellipse used to define the elliptcal arc.

Parameters

in_minor The intersection point of the minor axis and the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ SetPriority()

EllipticalArcKit& HPS::EllipticalArcKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the EllipticalArcKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetStart()

EllipticalArcKit& HPS::EllipticalArcKit::SetStart ( float in_start )

Sets the normalized parametric value on the ellipse at which the elliptical arc starts.

The value should be in the range [0.0f,1.0f] and be smaller than the end value. It is defined such that 0.0f is the point where the major axis intersects the ellipse, and as the value increases it passes through the point at which the minor axis intersects the ellipse (0.25f), and that 1.0f maps to the same point as 0.0f.

Parameters

in_start The noramlized parametric value on the ellipse at which the elliptical arc starts. This value should be in the range [0.0f,1.0f] and be smaller than the end value.

Returns: A reference to this EllipticalArcKit.

◆ SetUserData() [1/3]

EllipticalArcKit& HPS::EllipticalArcKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

EllipticalArcKit& HPS::EllipticalArcKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

EllipticalArcKit& HPS::EllipticalArcKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ Show()

void HPS::EllipticalArcKit::Show ( EllipticalArcKit & out_kit ) const

Copies this EllipticalArcKit into the given EllipticalArcKit.

Parameters

out_kit The EllipticalArcKit to populate with the contents of this EllipticalArcKit.

◆ ShowCenter()

bool HPS::EllipticalArcKit::ShowCenter ( Point & out_center ) const

Shows the center point for the ellipse used to define the elliptical arc.

Parameters

out_center The center point for the ellipse used to define the elliptical arc.

Returns: true if a center was set, false otherwise.

◆ ShowEnd()

bool HPS::EllipticalArcKit::ShowEnd ( float & out_end ) const

Shows the normalized parametric value on the ellipse at which the elliptical arc ends.

Parameters

out_end The noramlized parametric value on the ellipse at which the elliptical arc ends.

Returns: true if a normalized parametric end value was set, false otherwise.

◆ ShowMajor()

bool HPS::EllipticalArcKit::ShowMajor ( Point & out_major ) const

Shows the intersection point of the major axis and the ellipse used to define the elliptcal arc.

Parameters

out_major The intersection point of the major axis and the ellipse used to define the elliptical arc.

Returns: true if an intersection point with the major axis was set, false otherwise.

◆ ShowMinor()

bool HPS::EllipticalArcKit::ShowMinor ( Point & out_minor ) const

Shows the intersection point of the minor axis and the ellipse used to define the elliptcal arc.

Parameters

out_minor The intersection point of the minor axis and the ellipse used to define the elliptical arc.

Returns: true if an intersection point with the minor axis was set, false otherwise.

◆ ShowPriority()

bool HPS::EllipticalArcKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowStart()

bool HPS::EllipticalArcKit::ShowStart ( float & out_start ) const

Shows the normalized parametric value on the ellipse at which the elliptical arc starts.

Parameters

out_start The noramlized parametric value on the ellipse at which the elliptical arc starts.

Returns: true if a normalized parametric start value was set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::EllipticalArcKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::EllipticalArcKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::EllipticalArcKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::EllipticalArcKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetCenter()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetCenter ( )

Removes the center point for the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ UnsetEnd()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetEnd ( )

Removes the normalized parametric value on the ellipse at which the elliptical arc ends.

Returns: A reference to this EllipticalArcKit.

◆ UnsetEverything()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetEverything ( )

Removes all settings from this EllipticalArcKit.

Returns: A reference to this EllipticalArcKit.

◆ UnsetMajor()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetMajor ( )

Removes the intersection point of the major axis and the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ UnsetMinor()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetMinor ( )

Removes the intersection point of the minor axis and the ellipse used to define the elliptical arc.

Returns: A reference to this EllipticalArcKit.

◆ UnsetPriority()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this object.

◆ UnsetStart()

EllipticalArcKit& HPS::EllipticalArcKit::UnsetStart ( )

Removes the normalized parametric value on the ellipse at which the elliptical arc starts.

Returns: A reference to this EllipticalArcKit.

◆ UnsetUserData() [1/3]

EllipticalArcKit& HPS::EllipticalArcKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

EllipticalArcKit& HPS::EllipticalArcKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

EllipticalArcKit& HPS::EllipticalArcKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::EllipticalArcKit::staticType = HPS::Type::EllipticalArcKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EllipticalArcKit() [1/3]

◆ EllipticalArcKit() [2/3]

◆ EllipticalArcKit() [3/3]

◆ ~EllipticalArcKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetCenter()

◆ SetEnd()

◆ SetMajor()

◆ SetMinor()

◆ SetPriority()

◆ SetStart()

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ Show()

◆ ShowCenter()

◆ ShowEnd()

◆ ShowMajor()

◆ ShowMinor()

◆ ShowPriority()

◆ ShowStart()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ Type()

◆ UnsetAllUserData()

◆ UnsetCenter()

◆ UnsetEnd()

◆ UnsetEverything()

◆ UnsetMajor()

◆ UnsetMinor()

◆ UnsetPriority()

◆ UnsetStart()

◆ UnsetUserData() [1/3]

◆ UnsetUserData() [2/3]

◆ UnsetUserData() [3/3]

Member Data Documentation

◆ staticType
