The HPS::SubwindowKit class is a user space object, useful for carrying a group of attribute settings related to subwindows. More...

#include <hps.h>

Inheritance diagram for HPS::SubwindowKit:

[legend]

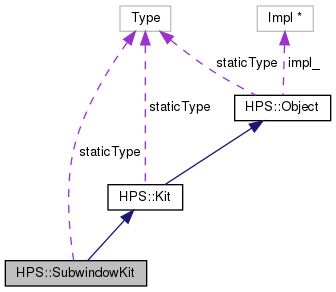

Collaboration diagram for HPS::SubwindowKit:

[legend]

Public Member Functions
	SubwindowKit ()
	Initializes an empty kit. More...

	SubwindowKit (SubwindowKit const &in_kit)
	Copies the kit in_kit into this kit. More...

	SubwindowKit (SubwindowKit &&in_that)
	The move constructor creates a SubwindowKit by transferring the underlying impl of the rvalue reference to this SubwindowKit thereby avoiding a copy and allocation. More...

SubwindowKit &	operator= (SubwindowKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SubwindowKit thereby avoiding a copy. More...

virtual	~SubwindowKit ()
	Destroy this kit. More...

HPS::Type	ObjectType () const

void	Set (SubwindowKit const &in_kit)
	Copies the source SubwindowKit into this object. More...

void	Show (SubwindowKit &out_kit) const
	Copies this object into the given SubwindowKit. More...

SubwindowKit &	operator= (SubwindowKit const &in_kit)
	Copies the source SubwindowKit into this object. More...

bool	Empty () const
	Indicates whether this object has any values set on it. More...

bool	Equals (SubwindowKit const &in_kit) const
	Check if the source SubwindowKit is equivalent to this object. More...

bool	operator== (SubwindowKit const &in_kit) const
	Check if the source SubwindowKit is equivalent to this object. More...

bool	operator!= (SubwindowKit const &in_kit) const
	Check if the source SubwindowKit is not equivalent to this object. More...

SubwindowKit &	SetSubwindow (Rectangle const &in_subwindow_position, Subwindow::Type in_subwindow_type=Subwindow::Type::Standard)
	Defines a portion of the containing window to act as a subwindow. More...

SubwindowKit &	SetSubwindow (Rectangle const &in_subwindow_position, IntRectangle const &in_subwindow_offsets, Subwindow::Type in_subwindow_type=Subwindow::Type::Standard)
	Defines a portion of the containing window to act as a subwindow. More...

SubwindowKit &	SetBackground (Subwindow::Background in_bg_type, char const *in_definition_name="")
	Controls the type of background to be used for subwindows originating from this segment. More...

SubwindowKit &	SetBorder (Subwindow::Border in_border_type)
	Controls the type of border, if any, that should be drawn for subwindows originating from this segment. More...

SubwindowKit &	SetRenderingAlgorithm (Subwindow::RenderingAlgorithm in_hsra)
	Determines the algorithm used to remove objects (or parts of objects) that are hidden from view by other objects. More...

SubwindowKit &	SetModelCompareMode (bool in_state, SegmentKey const &in_source1=SegmentKey(), SegmentKey const &in_source2=SegmentKey())
	Sets 'model compare' rendering mode which displays a visual diff between the two source segments in this subwindow. More...

SubwindowKit &	SetModelCompareMode (SegmentKey const &in_source1, SegmentKey const &in_source2)
	Sets 'model compare' rendering mode which displays a visual diff between the two source segments in this subwindow. More...

SubwindowKit &	UnsetSubwindow ()
	Removes a subwindow setting. More...

SubwindowKit &	UnsetBackground ()
	Removes a subwindow background setting. More...

SubwindowKit &	UnsetBorder ()
	Removes a subwindow border setting. More...

SubwindowKit &	UnsetRenderingAlgorithm ()
	Removes a rendering algorithm setting. More...

SubwindowKit &	UnsetModelCompareMode ()
	Removes model compare setting. More...

SubwindowKit &	UnsetEverything ()
	Removes all settings from this object. More...

bool	ShowSubwindow (Rectangle &out_subwindow_position, IntRectangle &out_subwindow_offsets, Subwindow::Type &out_subwindow_type) const
	Shows the subwindow setting. More...

bool	ShowSubwindow (Rectangle &out_subwindow_position, Subwindow::Type &out_subwindow_type) const
	Shows the subwindow setting. More...

bool	ShowBackground (Subwindow::Background &out_bg_type, UTF8 &out_definition_name) const
	Shows the window background setting. More...

bool	ShowBorder (Subwindow::Border &out_border_type) const
	Shows the subwindow border setting. More...

bool	ShowRenderingAlgorithm (Subwindow::RenderingAlgorithm &out_hsra) const
	Shows the rendering algorithm setting. More...

bool	ShowModelCompareMode (bool &out_state, SegmentKey &out_source1, SegmentKey &out_source2) const
	Shows the model compare setting. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static SubwindowKit	GetDefault ()
	Creates a SubwindowKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SubwindowKit

Detailed Description

The HPS::SubwindowKit class is a user space object, useful for carrying a group of attribute settings related to subwindows.

Calling HPS::SubwindowKit::GetDefault() will return a kit with values found in this table.

Constructor & Destructor Documentation

◆ SubwindowKit() [1/3]

HPS::SubwindowKit::SubwindowKit ( )

Initializes an empty kit.

◆ SubwindowKit() [2/3]

HPS::SubwindowKit::SubwindowKit ( SubwindowKit const & in_kit )

Copies the kit in_kit into this kit.

◆ SubwindowKit() [3/3]

HPS::SubwindowKit::SubwindowKit ( SubwindowKit && in_that )

The move constructor creates a SubwindowKit by transferring the underlying impl of the rvalue reference to this SubwindowKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a SubwindowKit to take the impl from.

◆ ~SubwindowKit()

virtual HPS::SubwindowKit::~SubwindowKit ( )

virtual

Destroy this kit.

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::SubwindowKit::Empty ( ) const

virtual

Indicates whether this object has any values set on it.

Returns: true if no values are set on this object, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::SubwindowKit::Equals ( SubwindowKit const & in_kit ) const

Check if the source SubwindowKit is equivalent to this object.

Parameters

in_kit The source SubwindowKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static SubwindowKit HPS::SubwindowKit::GetDefault ( )

static

Creates a SubwindowKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A SubwindowKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::SubwindowKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

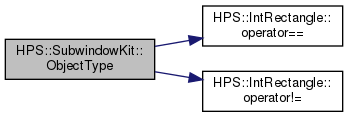

Here is the call graph for this function:

◆ operator!=()

bool HPS::SubwindowKit::operator!= ( SubwindowKit const & in_kit ) const

Check if the source SubwindowKit is not equivalent to this object.

Parameters

in_kit The source SubwindowKit to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

SubwindowKit& HPS::SubwindowKit::operator= ( SubwindowKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this SubwindowKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a SubwindowKit to take the impl from.

Returns: A reference to this SubwindowKit.

◆ operator=() [2/2]

SubwindowKit& HPS::SubwindowKit::operator= ( SubwindowKit const & in_kit )

Copies the source SubwindowKit into this object.

Parameters

in_kit The source SubwindowKit to copy.

Returns: A reference to this object.

◆ operator==()

bool HPS::SubwindowKit::operator== ( SubwindowKit const & in_kit ) const

Check if the source SubwindowKit is equivalent to this object.

Parameters

in_kit The source SubwindowKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::SubwindowKit::Set ( SubwindowKit const & in_kit )

Copies the source SubwindowKit into this object.

Parameters

in_kit The source object to copy.

◆ SetBackground()

SubwindowKit& HPS::SubwindowKit::SetBackground	(	Subwindow::Background	in_bg_type,
		char const *	in_definition_name = `""`
	)

Controls the type of background to be used for subwindows originating from this segment.

This has no effect when applied to segments without a subwindow present.

Parameters

in_bg_type	The type of background to be used for subwindows originating from this segment.
in_definition_name	the name of a definition to be used in the background. Only relevant if in_bg_type is Image or Cubemap.

Returns: A reference to this object.

◆ SetBorder()

SubwindowKit& HPS::SubwindowKit::SetBorder ( Subwindow::Border in_border_type )

Controls the type of border, if any, that should be drawn for subwindows originating from this segment.

This has no effect when applied to segments without a subwindow present.

Parameters

in_border_type The type of border, if any, that should be drawn for subwindows originating from this segment.

Returns: A reference to this object.

◆ SetModelCompareMode() [1/2]

SubwindowKit& HPS::SubwindowKit::SetModelCompareMode	(	bool	in_state,
		SegmentKey const &	in_source1 = `SegmentKey()`,
		SegmentKey const &	in_source2 = `SegmentKey()`
	)

Sets 'model compare' rendering mode which displays a visual diff between the two source segments in this subwindow.

Parameters

in_state	Toggles compare mode on or off.
in_source1	The first source model.
in_source2	The second source model.

Returns: A reference to this object.

◆ SetModelCompareMode() [2/2]

SubwindowKit& HPS::SubwindowKit::SetModelCompareMode	(	SegmentKey const &	in_source1,
		SegmentKey const &	in_source2
	)

Sets 'model compare' rendering mode which displays a visual diff between the two source segments in this subwindow.

Parameters

in_source1	The first source model.
in_source2	The second source model.

Returns: A reference to this object.

◆ SetRenderingAlgorithm()

SubwindowKit& HPS::SubwindowKit::SetRenderingAlgorithm ( Subwindow::RenderingAlgorithm in_hsra )

Determines the algorithm used to remove objects (or parts of objects) that are hidden from view by other objects.

This has no effect when applied to segments without a subwindow present.

Parameters

in_hsra The algorithm used to identify and remove hidden surfaces.

Returns: A reference to this object.

◆ SetSubwindow() [1/2]

SubwindowKit& HPS::SubwindowKit::SetSubwindow	(	Rectangle const &	in_subwindow_position,
		Subwindow::Type	in_subwindow_type = `Subwindow::Type::Standard`
	)

Defines a portion of the containing window to act as a subwindow.

Window segments have an implicit subwindow of -1 to 1 in both x and y directions that cannot be changed. Other segments can be constrained to some portion of that space. Most other subwindow-related settings are only relevant if they are applied on a segment that also contains a subwindow.

Parameters

in_subwindow_position	The portion of the containing window that should be reserved for a subwindow. The subwindow is defined in the context of a rectangle extending out a single unit in each direction from the origin. For example, a subwindow rectangle defined as Rectangle(0, 1, -1, 0) would occupy the lower right quarter of the containing window.
in_subwindow_type	The type of subwindow to create.

Returns: A reference to this object.

◆ SetSubwindow() [2/2]

SubwindowKit& HPS::SubwindowKit::SetSubwindow	(	Rectangle const &	in_subwindow_position,
		IntRectangle const &	in_subwindow_offsets,
		Subwindow::Type	in_subwindow_type = `Subwindow::Type::Standard`
	)

Defines a portion of the containing window to act as a subwindow.

Window segments have an implicit subwindow of -1 to 1 in both x and y directions that cannot be changed. Other segments can be constrained to some portion of that space. Most other subwindow-related settings are only relevant if they are applied on a segment that also contains a subwindow.

Parameters

in_subwindow_position	The portion of the containing window that should be reserved for a subwindow. The subwindow is defined in the context of a rectangle extending out a single unit in each direction from the origin. For example, a subwindow rectangle defined as Rectangle(0, 1, -1, 0) would occupy the lower right quarter of the containing window.
in_subwindow_offsets	The pixel-space offsets to apply to each side of the given window position.
in_subwindow_type	The type of subwindow to create.

Returns: A reference to this object.

◆ Show()

void HPS::SubwindowKit::Show ( SubwindowKit & out_kit ) const

Copies this object into the given SubwindowKit.

Parameters

out_kit The SubwindowKit to populate with the contents of this object.

◆ ShowBackground()

bool HPS::SubwindowKit::ShowBackground	(	Subwindow::Background &	out_bg_type,
		UTF8 &	out_definition_name
	)		const

Shows the window background setting.

Parameters

out_bg_type	The type of background to be used for subwindows originating from this segment.
out_definition_name	the name of a definition to be used in the background.

Returns: true if the setting is valid, false otherwise.

◆ ShowBorder()

bool HPS::SubwindowKit::ShowBorder ( Subwindow::Border & out_border_type ) const

Shows the subwindow border setting.

Parameters

out_border_type The type of border, if any, that should be drawn for subwindows originating from this segment.

Returns: true if the setting is valid, false otherwise.

◆ ShowModelCompareMode()

bool HPS::SubwindowKit::ShowModelCompareMode	(	bool &	out_state,
		SegmentKey &	out_source1,
		SegmentKey &	out_source2
	)		const

Shows the model compare setting.

Parameters

out_state	The model compare enabled state.
out_source1	The first source model.
out_source2	The second source model.

Returns: true if the setting is valid, false otherwise.

◆ ShowRenderingAlgorithm()

bool HPS::SubwindowKit::ShowRenderingAlgorithm ( Subwindow::RenderingAlgorithm & out_hsra ) const

Shows the rendering algorithm setting.

Parameters

out_hsra The algorithm used to identify and remove hidden surfaces.

Returns: true if the setting is valid, false otherwise.

◆ ShowSubwindow() [1/2]

bool HPS::SubwindowKit::ShowSubwindow	(	Rectangle &	out_subwindow_position,
		IntRectangle &	out_subwindow_offsets,
		Subwindow::Type &	out_subwindow_type
	)		const

Shows the subwindow setting.

Parameters

out_subwindow_position	The portion of the containing window that should be reserved for a subwindow.
out_subwindow_offsets	The pixel-space offsets being applied to the subwindow position.
out_subwindow_type	The type of subwindow to create.

Returns: true if the setting is valid, false otherwise.

◆ ShowSubwindow() [2/2]

bool HPS::SubwindowKit::ShowSubwindow	(	Rectangle &	out_subwindow_position,
		Subwindow::Type &	out_subwindow_type
	)		const

Shows the subwindow setting.

Parameters

out_subwindow_position	The portion of the containing window that should be reserved for a subwindow.
out_subwindow_type	The type of subwindow to create.

Returns: true if the setting is valid, false otherwise.

Deprecated:: This function exists for compatibility and the other overload should be preferred in general usage.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetBackground()

SubwindowKit& HPS::SubwindowKit::UnsetBackground ( )

Removes a subwindow background setting.

Returns: A reference to this object.

◆ UnsetBorder()

SubwindowKit& HPS::SubwindowKit::UnsetBorder ( )

Removes a subwindow border setting.

Returns: A reference to this object.

◆ UnsetEverything()

SubwindowKit& HPS::SubwindowKit::UnsetEverything ( )

Removes all settings from this object.

Returns: A reference to this object.

◆ UnsetModelCompareMode()

SubwindowKit& HPS::SubwindowKit::UnsetModelCompareMode ( )

Removes model compare setting.

Returns: A reference to this object.

◆ UnsetRenderingAlgorithm()

SubwindowKit& HPS::SubwindowKit::UnsetRenderingAlgorithm ( )

Removes a rendering algorithm setting.

Returns: A reference to this object.

◆ UnsetSubwindow()

SubwindowKit& HPS::SubwindowKit::UnsetSubwindow ( )

Removes a subwindow setting.

Returns: A reference to this object.

Member Data Documentation

◆ staticType

const HPS::Type HPS::SubwindowKit::staticType = HPS::Type::SubwindowKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SubwindowKit() [1/3]

◆ SubwindowKit() [2/3]

◆ SubwindowKit() [3/3]

◆ ~SubwindowKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetBackground()

◆ SetBorder()

◆ SetModelCompareMode() [1/2]

◆ SetModelCompareMode() [2/2]

◆ SetRenderingAlgorithm()

◆ SetSubwindow() [1/2]

◆ SetSubwindow() [2/2]

◆ Show()

◆ ShowBackground()

◆ ShowBorder()

◆ ShowModelCompareMode()

◆ ShowRenderingAlgorithm()

◆ ShowSubwindow() [1/2]

◆ ShowSubwindow() [2/2]

◆ Type()

◆ UnsetBackground()

◆ UnsetBorder()

◆ UnsetEverything()

◆ UnsetModelCompareMode()

◆ UnsetRenderingAlgorithm()

◆ UnsetSubwindow()

Member Data Documentation

◆ staticType
