The ShapeKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::ShapeKit:

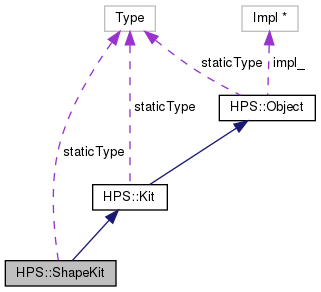

Collaboration diagram for HPS::ShapeKit:

Public Member Functions
	ShapeKit ()
	The default constructor creates an empty ShapeKit object. More...

	ShapeKit (ShapeKit const &in_kit)
	The copy constructor creates a new ShapeKit object that contains the same settings as the source ShapeKit. More...

	ShapeKit (ShapeKit &&in_that)
	The move constructor creates a ShapeKit by transferring the underlying impl of the rvalue reference to this ShapeKit thereby avoiding a copy and allocation. More...

ShapeKit &	operator= (ShapeKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ShapeKit thereby avoiding a copy. More...

virtual	~ShapeKit ()

HPS::Type	ObjectType () const

void	Set (ShapeKit const &in_kit)
	Copies the source ShapeKit into this ShapeKit. More...

void	Show (ShapeKit &out_kit) const
	Copies this ShapeKit into the given ShapeKit. More...

ShapeKit &	operator= (ShapeKit const &in_kit)
	Copies the source ShapeKit into this ShapeKit. More...

bool	Empty () const
	Indicates whether this ShapeKit has any values set on it. More...

bool	Equals (ShapeKit const &in_kit) const
	Check if the source ShapeKit is equivalent to this ShapeKit. More...

bool	operator== (ShapeKit const &in_kit) const
	Check if the source ShapeKit is equivalent to this ShapeKit. More...

bool	operator!= (ShapeKit const &in_kit) const
	Check if the source ShapeKit is not equivalent to this ShapeKit. More...

ShapeKit &	SetElements (ShapeElementArray const &in_def)
	Sets the elements for this ShapeKit. More...

ShapeKit &	SetElements (size_t in_count, ShapeElement const in_def [])
	Sets the elements for this ShapeKit. More...

ShapeKit &	SetElement (ShapeElement const &in_element)
	Set a single element for this ShapeKit. More...

ShapeKit &	UnsetElements ()
	Removes the elements for the shape. More...

ShapeKit &	UnsetEverything ()
	Removes all settings from this ShapeKit. More...

bool	ShowElements (ShapeElementArray &out_def) const
	Shows the elements for this ShapeKit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static HPS::ShapeKit	GetDefault (Shape::Default in_default_shape)
	Creates a ShapeKit which contains the definition of the specified default shape. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ShapeKit

Detailed Description

The ShapeKit class is a user space object.

It is used for specifying all settings related to a ShapeDefinition.

Constructor & Destructor Documentation

◆ ShapeKit() [1/3]

HPS::ShapeKit::ShapeKit ( )

The default constructor creates an empty ShapeKit object.

◆ ShapeKit() [2/3]

HPS::ShapeKit::ShapeKit ( ShapeKit const & in_kit )

The copy constructor creates a new ShapeKit object that contains the same settings as the source ShapeKit.

Parameters

in_kit The source ShapeKit to copy.

◆ ShapeKit() [3/3]

HPS::ShapeKit::ShapeKit ( ShapeKit && in_that )

The move constructor creates a ShapeKit by transferring the underlying impl of the rvalue reference to this ShapeKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a ShapeKit to take the impl from.

◆ ~ShapeKit()

virtual HPS::ShapeKit::~ShapeKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::ShapeKit::Empty ( ) const

virtual

Indicates whether this ShapeKit has any values set on it.

Returns: true if no values are set on this ShapeKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::ShapeKit::Equals ( ShapeKit const & in_kit ) const

Check if the source ShapeKit is equivalent to this ShapeKit.

Parameters

in_kit The source ShapeKit to compare to this ShapeKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static HPS::ShapeKit HPS::ShapeKit::GetDefault ( Shape::Default in_default_shape )

static

Creates a ShapeKit which contains the definition of the specified default shape.

Parameters

in_default_shape The default shape for which to get the corresponding ShapeKit.

Returns: A ShapeKit which contains the definition of the specified default shape.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::ShapeKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::ShapeKit::operator!= ( ShapeKit const & in_kit ) const

Check if the source ShapeKit is not equivalent to this ShapeKit.

Parameters

in_kit The source ShapeKit to compare to this ShapeKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

ShapeKit& HPS::ShapeKit::operator= ( ShapeKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this ShapeKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a ShapeKit to take the impl from.

Returns: A reference to this ShapeKit.

◆ operator=() [2/2]

ShapeKit& HPS::ShapeKit::operator= ( ShapeKit const & in_kit )

Copies the source ShapeKit into this ShapeKit.

Parameters

in_kit The source ShapeKit to copy.

Returns: A reference to this ShapeKit.

◆ operator==()

bool HPS::ShapeKit::operator== ( ShapeKit const & in_kit ) const

Check if the source ShapeKit is equivalent to this ShapeKit.

Parameters

in_kit The source ShapeKit to compare to this ShapeKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::ShapeKit::Set ( ShapeKit const & in_kit )

Copies the source ShapeKit into this ShapeKit.

Parameters

in_kit The source ShapeKit to copy.

◆ SetElement()

ShapeKit& HPS::ShapeKit::SetElement ( ShapeElement const & in_element )

Set a single element for this ShapeKit.

This must be specified when defining a shape.

Parameters

in_element A reference to the ShapeElement to set on this kit.

Returns: A reference to this ShapeKit.

◆ SetElements() [1/2]

ShapeKit& HPS::ShapeKit::SetElements ( ShapeElementArray const & in_def )

Sets the elements for this ShapeKit.

This must be specified when defining a shape.

Parameters

in_def The array of elements for the shape.

Returns: A reference to this ShapeKit.

◆ SetElements() [2/2]

ShapeKit& HPS::ShapeKit::SetElements	(	size_t	in_count,
		ShapeElement const	in_def[]
	)

Sets the elements for this ShapeKit.

This must be specified when defining a shape.

Parameters

in_count	Size of the following array.
in_def	The array of elements for the shape.

Returns: A reference to this ShapeKit.

◆ Show()

void HPS::ShapeKit::Show ( ShapeKit & out_kit ) const

Copies this ShapeKit into the given ShapeKit.

Parameters

out_kit The ShapeKit to populate with the contents of this ShapeKit.

◆ ShowElements()

bool HPS::ShapeKit::ShowElements ( ShapeElementArray & out_def ) const

Shows the elements for this ShapeKit.

Parameters

out_def The elements for the shape.

Returns: true if elements were set, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetElements()

ShapeKit& HPS::ShapeKit::UnsetElements ( )

Removes the elements for the shape.

Returns: A reference to this ShapeKit.

◆ UnsetEverything()

ShapeKit& HPS::ShapeKit::UnsetEverything ( )

Removes all settings from this ShapeKit.

Returns: A reference to this ShapeKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::ShapeKit::staticType = HPS::Type::ShapeKit

static

The documentation for this class was generated from the following file:

hps.h
