The HPS::Exchange::ImportOptionsKit class is a user space object. More...

#include <sprk_exchange.h>

Inheritance diagram for HPS::Exchange::ImportOptionsKit:

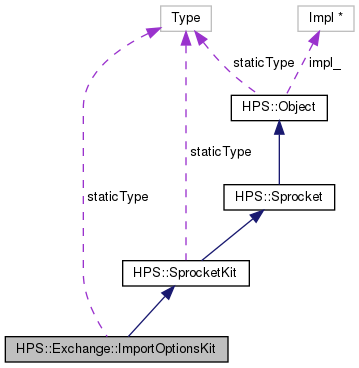

Collaboration diagram for HPS::Exchange::ImportOptionsKit:

Public Member Functions
	ImportOptionsKit ()
	The default constructor creates an empty ImportOptionsKit object. More...

	ImportOptionsKit (ImportOptionsKit const &in_kit)
	The copy constructor creates a new ImportOptionsKit object that contains the same settings as the source ImportOptionsKit. More...

	ImportOptionsKit (ImportOptionsKit &&in_that)
	The move constructor creates an ImportOptionsKit by transferring the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy and allocation. More...

ImportOptionsKit &	operator= (ImportOptionsKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy. More...

virtual	~ImportOptionsKit ()

HPS::Type	ObjectType () const

void	Set (ImportOptionsKit const &in_kit)
	Copies the source ImportOptionsKit into this ImportOptionsKit. More...

void	Show (ImportOptionsKit &out_kit) const
	Copies this ImportOptionsKit into the given ImportOptionsKit. More...

ImportOptionsKit &	operator= (ImportOptionsKit const &in_kit)
	Copies the source ImportOptionsKit into this ImportOptionsKit. More...

bool	Empty () const
	Indicates whether this ImportOptionsKit has any values set on it. More...

bool	Equals (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit. More...

bool	operator== (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit. More...

bool	operator!= (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is not equivalent to this ImportOptionsKit. More...

ImportOptionsKit &	SetBRepMode (BRepMode in_mode)
	Sets the import mode for BRep data in the CAD file. More...

ImportOptionsKit &	SetSolids (bool in_state)
	Sets whether to import solids from the CAD file. More...

ImportOptionsKit &	SetSurfaces (bool in_state)
	Sets whether to import surfaces from the CAD file. More...

ImportOptionsKit &	SetWireframes (bool in_state)
	Sets whether to import wireframes from the CAD file. More...

ImportOptionsKit &	SetPMI (bool in_state)
	Sets whether to import PMI from the CAD file. More...

ImportOptionsKit &	SetAttributes (bool in_state)
	Sets whether to import attributes (or metadata) from the CAD file. More...

ImportOptionsKit &	SetHiddenObjects (bool in_state)
	Sets whether to import hidden objects from the CAD file. More...

ImportOptionsKit &	SetConstructionAndReferences (bool in_state)
	Sets whether to import construction and references from the CAD file. More...

ImportOptionsKit &	SetActiveFilter (bool in_state)
	Sets whether to only import data from the active filter in the CAD file. More...

ImportOptionsKit &	SetFeatureTrees (bool in_state)
	Sets whether to import feature trees from the CAD file. More...

ImportOptionsKit &	SetDrawings (bool in_state)
	Sets whether to import drawings from the CAD file. More...

ImportOptionsKit &	SetDefaultUnits (Units in_units)
	Sets the units to use for a CAD file if it is not well defined. More...

ImportOptionsKit &	SetMultiProcessCount (unsigned int in_count)
	Sets the number of processes to use when performing the import. More...

ImportOptionsKit &	SetSewingTolerance (double in_tolerance)
	The sewing tolerance to use on the A3DAsmModelFile after importing a file. More...

ImportOptionsKit &	SetPMISubstitutionFont (char const *in_font_name, bool in_always_substitute=false)
	Sets the font to use to replace those referenced by the CAD file but which are not present on the system. More...

ImportOptionsKit &	SetPMIPrecision (size_t in_precision)
	Sets the precision to use for PMI which has no precision information in the CAD file. More...

ImportOptionsKit &	SetPMIDefaultUnits (Units in_units)
	Sets the units to use for the PMI in the CAD file if it is not well defined. More...

ImportOptionsKit &	SetPMIFlipping (bool in_flip)
	Dictates whether Visualize will flip pmi when rotating so that text / symbols remain readable. More...

ImportOptionsKit &	SetPMIDefaultColor (RGBColor const &in_color, bool in_override_color=false)
	Sets the color to use for the PMI in the CAD file if none is specified. More...

ImportOptionsKit &	SetTessellationCleanup (bool in_cleanup)
	Dictates whether Exchange tesselation data will be released from their parent representation items during import. More...

ImportOptionsKit &	SetTessellationLevel (Tessellation::Level in_level)
	Sets the predefined quality of the tessellation that will be generated for BRep data. More...

ImportOptionsKit &	SetTessellationLevel (Tessellation::Chord::Limit in_limit_type, double in_limit, double in_angle_tolerance)
	Sets the user defined quality of the tessellation that will be generated for BRep data. More...

ImportOptionsKit &	SetTessellationAccuracy (Tessellation::Accuracy in_type, bool in_accurate_normals=true)
	Sets the accuracy of the tessellation that will be generated for BRep data. More...

ImportOptionsKit &	SetTessellationPreservesUVPoints (bool in_state)
	Sets whether to keep parametric points as texture coordinates when generating the tessellation for BRep data. More...

ImportOptionsKit &	SetTessellationMaximumEdgeLength (double in_length)
	Sets the maximum length of triangle edges in the tessellation generated for BRep data. More...

ImportOptionsKit &	SetTextureDirectories (size_t in_count, UTF8 const in_directories[])
	Sets the directories to search to find textures referenced by a CAD assembly. More...

ImportOptionsKit &	SetTextureDirectories (UTF8Array const &in_directories)
	Sets the directories to search to find textures referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectories (size_t in_count, UTF8 const in_directories[], bool const in_recurse_flags[])
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectories (UTF8Array const &in_directories, BoolArray const &in_recurse_flags)
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectories (size_t in_count, UTF8 const in_directories[], UTF8 const in_logical_names[], bool const in_recurse_flags[])
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectories (UTF8Array const &in_directories, UTF8Array const &in_logical_names, BoolArray const &in_recurse_flags)
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectoriesByFile (size_t in_count, UTF8 const in_file_names[])
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchDirectoriesByFile (UTF8Array const &in_file_names)
	Sets the directories to search to find files referenced by a CAD assembly. More...

ImportOptionsKit &	SetSearchRootDirectory (bool in_state, bool in_recursive=true)
	Sets whether to search the CAD file root directory for sub-parts. More...

ImportOptionsKit &	SetConfiguration (char const *in_configuration)
	Sets the configuration to import from a CAD file. More...

ImportOptionsKit &	SetConfiguration (size_t in_count, UTF8 const in_configuration[])
	Sets a nested configuration to import from a CAD file. More...

ImportOptionsKit &	SetConfiguration (UTF8Array const &in_configuration)
	Sets a nested configuration to import from a CAD file. More...

ImportOptionsKit &	SetCatiaV4LogicalNameForRootDirectory (char const *in_name)
	Sets the logical name for the root directory for a Catia V4 file. More...

ImportOptionsKit &	SetCatiaV4LogicalNameSearching (bool in_state)
	Sets the whether to allow searching in additional logical names for a Catia V4 file. More...

ImportOptionsKit &	SetCatiaV5Cache (bool in_active, char const *in_path)
	Sets whether to use the a cache for a Catia V5 file. More...

ImportOptionsKit &	SetUnigraphicsPreferredReferenceSets (size_t in_count, UTF8 const in_reference_sets[], bool in_apply_to_all_levels)
	Sets the preferred reference sets for a Unigraphics file. More...

ImportOptionsKit &	SetUnigraphicsPreferredReferenceSets (UTF8Array const &in_reference_sets, bool in_apply_to_all_levels)
	Sets the preferred reference sets for a Unigraphics file. More...

ImportOptionsKit &	SetUnigraphicsFittedCamera (bool in_state)
	Sets whether to make view cameras fitted for a Unigraphics file. More...

ImportOptionsKit &	SetProECodePageName (char const *in_name)
	Sets the code page name for a Pro/E file. More...

ImportOptionsKit &	SetProEDimensionTolerance (bool in_state)
	Sets whether to import dimension tolerances for a Pro/E file. More...

ImportOptionsKit &	SetProESubpartPMI (bool in_state)
	Sets whether to import subpart PMI for a Pro/E file. More...

ImportOptionsKit &	SetProESessionColor (ProE::SessionColor in_type)
	Sets the session color for a Pro/E file. More...

ImportOptionsKit &	SetProEMissingBoolean (bool in_state)
	Sets whether to import the entities making up a boolean operation for a Pro/E file, in the case where the tessellation for the result of this boolean operation cannot be found. More...

ImportOptionsKit &	SetProEMissingFlexibleComponent (bool in_state)
	Sets whether to try to import a flexible component for a Pro/E file, even in the case where the tessellation for the component cannot be found. More...

ImportOptionsKit &	SetProEFamilyTableSource (ProE::FamilyTable in_source)
	Sets the source for Family Tables for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_eFamilyTables. More...

ImportOptionsKit &	SetProEHomeView (bool in_state)
	Sets whether to create an additional Home View for a Pro/E file. More...

ImportOptionsKit &	SetProEExplodedViews (bool in_state)
	Sets whether to create additional Views for a Pro/E file, with each view representing an explode state. More...

ImportOptionsKit &	SetProEDatum (bool in_state)
	Sets whether datums are visible, for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_bDisplayVisibleDatum. More...

ImportOptionsKit &	SetProEConstructionEntities (ProE::ConstructionEntities in_state)
	Sets whether to import construction entities for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_eReadConstrucEntities. More...

ImportOptionsKit &	SetProESkeletons (bool in_state)
	Sets whether to import skeleton entities for a Pro/E file. More...

ImportOptionsKit &	SetSTEPNamePreference (STEP::Field in_field)
	Sets the field to get the occurrence name from for a STEP file. More...

ImportOptionsKit &	SetSTEPCodePageName (char const *in_name)
	Sets the code page name for a STEP file. More...

ImportOptionsKit &	SetSTEPFirstColorPreference (bool in_state)
	Sets whether to prefer the first color if geometry has several colors for a STEP file. More...

ImportOptionsKit &	SetSTEPShellBasedSurfaceModelSplitting (bool in_state)
	Sets whether to split SHELL_BASED_SURFACE_MODEL with several OPEN_SHELLs into several bodies for a STEP file. More...

ImportOptionsKit &	SetSTEPOrientationHealing (bool in_state)
	Sets whether to heal orientations for a STEP file. More...

ImportOptionsKit &	SetSTEPValidationProperties (bool in_state)
	Sets whether to import validation properties for a STEP file. More...

ImportOptionsKit &	SetIFCCodePageName (char const *in_name)
	Sets the code page name for an IFC file. More...

ImportOptionsKit &	SetIFCAttributeXMLFile (char const *in_filename)
	Sets the file to write attribute data to in XML format for an IFC file. More...

ImportOptionsKit &	SetIFCOwnerHistoryOptimization (bool in_state)
	Sets whether to optimize the setting of IFCOWNERHISTORY for an IFC file. More...

ImportOptionsKit &	SetIFCFaceOptimization (bool in_state)
	Sets whether to optimize importing of faces. More...

ImportOptionsKit &	SetIFCEdges (bool in_state)
	Sets whether to import edges for IFC files When this is set to false the import time will decrease. More...

ImportOptionsKit &	SetIFCMetadata (bool in_state)
	Sets whether to import all IFC metadata or to import only each part's GloablID. More...

ImportOptionsKit &	SetPDF3DStreamIndex (size_t in_index)
	Sets the index into the list 3D streams contained in a PDF to load. More...

ImportOptionsKit &	SetJTTessellationLevel (JT::TessellationLevel in_jt_tessellation_level)
	Sets the tessellation level to load for JT files. More...

ImportOptionsKit &	SetInventorEmbeddedTessellation (bool in_state)
	Whether to use the tessellation embedded in the file, for Inventor files. More...

ImportOptionsKit &	SetPRCReadHelper (bool in_use_helper)
	Sets whether to create an A3DRWParamsPrcReadHelper when importing a PRC file or a PRC stream. More...

ImportOptionsKit &	SetAnnotationCaptureFitting (AnnotationCaptureFitting in_fitting)
	Sets the type of data that should be used to generate the camera for annotation captures. More...

ImportOptionsKit &	SetLocation (ComponentPath const &in_path, MatrixKit const &in_transform=MatrixKit())
	Sets where to insert the imported file in an existing Component hierarchy. More...

ImportOptionsKit &	SetMode (ImportMode in_mode)
	Sets the type of import to perform. More...

ImportOptionsKit &	SetIncrementalComponentPath (HPS::ComponentPath const &in_path)
	The path to the product occurrence to load. More...

ImportOptionsKit &	SetIncrementalComponentPaths (size_t in_count, HPS::ComponentPath const in_paths[])
	The paths to the product occurrences to load. More...

ImportOptionsKit &	SetIncrementalComponentPaths (HPS::ComponentPathArray const &in_paths)
	The paths to the product occurrences to load. More...

ImportOptionsKit &	SetNURBSConversion (HPS::Exchange::NURBSConversionOptionsKit const &in_nurbs_conversion_options)
	Converts the curves and surfaces of the model file according to the options specified. More...

ImportOptionsKit &	SetGeometryDefaultColor (RGBAColor const &in_color)
	Sets the color to use for non-PMI geometry in the CAD file if none is specified. More...

ImportOptionsKit &	UnsetBRepMode ()
	Removes the BRep mode import setting. More...

ImportOptionsKit &	UnsetSolids ()
	Removes the solid import state. More...

ImportOptionsKit &	UnsetSurfaces ()
	Removes the surface import state. More...

ImportOptionsKit &	UnsetWireframes ()
	Removes the wireframe import state. More...

ImportOptionsKit &	UnsetPMI ()
	Removes the PMI import state. More...

ImportOptionsKit &	UnsetAttributes ()
	Removes the attribute import state. More...

ImportOptionsKit &	UnsetHiddenObjects ()
	Removes the hidden objects import state. More...

ImportOptionsKit &	UnsetConstructionAndReferences ()
	Removes the construction and references import state. More...

ImportOptionsKit &	UnsetActiveFilter ()
	Removes the active filter import state. More...

ImportOptionsKit &	UnsetDrawings ()
	Removes the drawing state. More...

ImportOptionsKit &	UnsetFeatureTrees ()
	Removes the feature trees import state. More...

ImportOptionsKit &	UnsetSewingTolerance ()
	Removes the sewing tolerance setting. More...

ImportOptionsKit &	UnsetDefaultUnits ()
	Removes the default units setting. More...

ImportOptionsKit &	UnsetMultiProcessCount ()
	Removes the multi-process count setting. More...

ImportOptionsKit &	UnsetPMISubstitutionFont ()
	Removes the PMI substitution font setting. More...

ImportOptionsKit &	UnsetPMIPrecision ()
	Removes the PMI precision setting. More...

ImportOptionsKit &	UnsetPMIDefaultUnits ()
	Removes the PMI default units setting. More...

ImportOptionsKit &	UnsetPMIDefaultColor ()
	Removes the PMI default color setting. More...

ImportOptionsKit &	UnsetTessellationLevel ()
	Removes the tessellation level setting. More...

ImportOptionsKit &	UnsetTessellationAccuracy ()
	Removes the tessellation accuracy setting. More...

ImportOptionsKit &	UnsetTessellationCleanup ()
	Removes the tessellation cleanup setting. More...

ImportOptionsKit &	UnsetPMIFlipping ()
	Removes the pmi flipping setting. More...

ImportOptionsKit &	UnsetTessellationPreservesUVPoints ()
	Removes the tessellation UV preservation setting. More...

ImportOptionsKit &	UnsetTessellationMaximumEdgeLength ()
	Removes the tessellation maximum edge length setting. More...

ImportOptionsKit &	UnsetTextureDirectories ()
	Removes the texture search directories setting. More...

ImportOptionsKit &	UnsetSearchDirectories ()
	Removes the search directories setting. More...

ImportOptionsKit &	UnsetSearchDirectoriesByFile ()
	Removes the search directories by file setting. More...

ImportOptionsKit &	UnsetSearchRootDirectory ()
	Removes the search root directory setting. More...

ImportOptionsKit &	UnsetConfiguration ()
	Removes the configuration setting. More...

ImportOptionsKit &	UnsetCatiaV4LogicalNameForRootDirectory ()
	Removes the Catia V4 logical name for the root directory setting. More...

ImportOptionsKit &	UnsetCatiaV4LogicalNameSearching ()
	Removes the Catia V4 logical name searching setting. More...

ImportOptionsKit &	UnsetCatiaV5Cache ()
	Removes the Catia V5 cache setting. More...

ImportOptionsKit &	UnsetUnigraphicsPreferredReferenceSets ()
	Removes the Unigraphics preferred reference sets setting. More...

ImportOptionsKit &	UnsetUnigraphicsFittedCamera ()
	Removes the Unigraphics fitted camera setting. More...

ImportOptionsKit &	UnsetProECodePageName ()
	Removes the Pro/E code page name setting. More...

ImportOptionsKit &	UnsetProEDimensionTolerance ()
	Removes the Pro/E dimension tolerance setting. More...

ImportOptionsKit &	UnsetProESubpartPMI ()
	Removes the Pro/E subpart PMI setting. More...

ImportOptionsKit &	UnsetProESessionColor ()
	Removes the Pro/E session color setting. More...

ImportOptionsKit &	UnsetProEDatum ()
	Removes the Pro/E datum setting. More...

ImportOptionsKit &	UnsetProEHomeView ()
	Removes the Pro/E home view setting. More...

ImportOptionsKit &	UnsetProEExplodedViews ()
	Removes the Pro/E exploded views setting. More...

ImportOptionsKit &	UnsetProEMissingBoolean ()
	Removes the Pro/E missing boolean setting. More...

ImportOptionsKit &	UnsetProEMissingFlexibleComponent ()
	Removes the Pro/E missing flexible setting. More...

ImportOptionsKit &	UnsetProEFamilyTreeSource ()
	Removes the Pro/E family table setting. More...

ImportOptionsKit &	UnsetProEConstructionEntities ()
	Removes the Pro/E construction entities setting. More...

ImportOptionsKit &	UnsetProESkeletons ()
	Removes the Pro/E skeletons setting. More...

ImportOptionsKit &	UnsetSTEPNamePreference ()
	Removes the STEP name preference setting. More...

ImportOptionsKit &	UnsetSTEPFirstColorPreference ()
	Removes the STEP first color preference setting. More...

ImportOptionsKit &	UnsetSTEPCodePageName ()
	Removes the STEP code page name setting. More...

ImportOptionsKit &	UnsetSTEPShellBasedSurfaceModelSplitting ()
	Removes the STEP shell based surface model splitting setting. More...

ImportOptionsKit &	UnsetSTEPOrientationHealing ()
	Removes the STEP orientation healing setting. More...

ImportOptionsKit &	UnsetSTEPValidationProperties ()
	Removes the STEP validation properties setting. More...

ImportOptionsKit &	UnsetIFCCodePageName ()
	Removes the IFC code page name setting. More...

ImportOptionsKit &	UnsetIFCAttributeXMLFile ()
	Removes the IFC attribute XML file setting. More...

ImportOptionsKit &	UnsetIFCOwnerHistoryOptimization ()
	Removes the IFC owner history optimization setting. More...

ImportOptionsKit &	UnsetIFCFaceOptimization ()
	Removes the IFC face optimization setting. More...

ImportOptionsKit &	UnsetIFCEdges ()
	Removes the IFC edges setting. More...

ImportOptionsKit &	UnsetIFCMetadata ()
	Removes the IFC metadata setting. More...

ImportOptionsKit &	UnsetPDF3DStreamIndex ()
	Removes the PDF 3D stream index setting. More...

ImportOptionsKit &	UnsetJTTessellationLevel ()
	Removes the JT tessellation level setting. More...

ImportOptionsKit &	UnsetInventorEmbeddedTessellation ()
	Removes the Inventor embedded tessellation setting. More...

ImportOptionsKit &	UnsetPRCReadHelper ()
	Removes the PRC read helper setting. More...

ImportOptionsKit &	UnsetAnnotationCaptureFitting ()
	Removes the annotation capture fitting setting. More...

ImportOptionsKit &	UnsetLocation ()
	Removes the location setting. More...

ImportOptionsKit &	UnsetMode ()
	Removes the mode setting. More...

ImportOptionsKit &	UnsetIncrementalComponentPaths ()
	Removes the incremental component paths setting. More...

ImportOptionsKit &	UnsetNURBSConversion ()
	Removes the NURBS conversion setting. More...

ImportOptionsKit &	UnsetGeometryDefaultColor ()
	Removes the geometry default color setting. More...

ImportOptionsKit &	UnsetEverything ()
	Removes all settings from this ImportOptionsKit. More...

bool	ShowBRepMode (BRepMode &out_mode) const
	Shows the BRep mode import setting. More...

bool	ShowSolids (bool &out_state) const
	Shows the solid import setting. More...

bool	ShowSurfaces (bool &out_state) const
	Shows the surface import setting. More...

bool	ShowWireframes (bool &out_state) const
	Shows the wireframe import setting. More...

bool	ShowPMI (bool &out_state) const
	Shows the PMI import setting. More...

bool	ShowAttributes (bool &out_state) const
	Shows the attribute import setting. More...

bool	ShowHiddenObjects (bool &out_state) const
	Shows the hidden objects import setting. More...

bool	ShowConstructionAndReferences (bool &out_state) const
	Shows the construction and references import setting. More...

bool	ShowActiveFilter (bool &out_state) const
	Shows the active filter import setting. More...

bool	ShowDrawings (bool &out_state) const
	Shows the drawings import setting. More...

bool	ShowFeatureTrees (bool &out_state) const
	Shows the feature trees import setting. More...

bool	ShowSewingTolerance (double &out_tolerance) const
	Shows the sewing tolerance setting. More...

bool	ShowDefaultUnits (Units &out_units) const
	Shows the default units setting. More...

bool	ShowMultiProcessCount (unsigned int &out_count) const
	Shows the multi-process count setting. More...

bool	ShowPMISubstitutionFont (UTF8 &out_font_name, bool &out_always_substitute) const
	Shows the PMI substitution font setting. More...

bool	ShowPMIPrecision (size_t &out_precision) const
	Shows the PMI precision setting. More...

bool	ShowPMIDefaultUnits (Units &out_units) const
	Shows the PMI default units setting. More...

bool	ShowPMIDefaultColor (RGBColor &out_color, bool &out_override) const
	Shows the PMI default color setting. More...

bool	ShowTessellationLevel (Tessellation::Type &out_type, Tessellation::Level &out_level, Tessellation::Chord::Limit &out_limit_type, double &out_limit, double &out_angle_tolerance) const
	Shows the tessellation level setting. More...

bool	ShowTessellationAccuracy (Tessellation::Accuracy &out_type, bool &out_accurate_normals) const
	Shows the tessellation accuracy setting. More...

bool	ShowTessellationCleanup (bool &out_cleanup) const
	Shows the tessellation cleanup setting. More...

bool	ShowPMIFlipping (bool &out_pmi_flipping) const
	Shows the pmi flipping setting. More...

bool	ShowTessellationPreservesUVPoints (bool &out_state) const
	Shows the tessellation UV preservation setting. More...

bool	ShowTessellationMaximumEdgeLength (double &out_length) const
	Shows the tessellation maximum edge length setting. More...

bool	ShowTextureDirectories (UTF8Array &out_directories) const
	Shows the texture search directories setting. More...

bool	ShowSearchDirectories (UTF8Array &out_directories, UTF8Array &out_logical_names, BoolArray &out_recurse_flags) const
	Shows the search directories setting. More...

bool	ShowSearchDirectoriesByFile (UTF8Array &out_file_names) const
	Shows the search directories by file setting. More...

bool	ShowSearchRootDirectory (bool &out_state, bool &out_recursive) const
	Shows the search root directory setting. More...

bool	ShowConfiguration (UTF8Array &out_configuration) const
	Shows the configuration settting. More...

bool	ShowCatiaV4LogicalNameForRootDirectory (UTF8 &out_name) const
	Shows the Catia V4 logical name for the root directory. More...

bool	ShowCatiaV4LogicalNameSearching (bool &out_state) const
	Shows the Catia V4 logical name searching setting. More...

bool	ShowCatiaV5Cache (bool &out_active, UTF8 &out_path) const
	Shows the Catia V5 cache setting. More...

bool	ShowUnigraphicsPreferredReferenceSets (UTF8Array &out_reference_sets, bool &out_apply_to_all_levels) const
	Shows the Unigraphics preferred reference sets setting. More...

bool	ShowUnigraphicsFittedCamera (bool &out_state) const
	Shows the Unigraphics fitted camera setting. More...

bool	ShowProECodePageName (UTF8 &out_name) const
	Shows the Pro/E code page name setting. More...

bool	ShowProEDimensionTolerance (bool &out_state) const
	Shows the Pro/E dimension tolerance setting. More...

bool	ShowProESubpartPMI (bool &out_state) const
	Shows the Pro/E subpart PMI setting. More...

bool	ShowProESessionColor (ProE::SessionColor &out_type) const
	Shows the Pro/E session color setting. More...

bool	ShowProEDatum (bool &out_state) const
	Shows the Pro/E datum setting. More...

bool	ShowProEHomeView (bool &out_state) const
	Shows the Pro/E home view setting. More...

bool	ShowProEExplodedViews (bool &out_state) const
	Shows the Pro/E exploded views setting. More...

bool	ShowProEMissingBoolean (bool &out_state) const
	Shows the Pro/E missing boolean setting. More...

bool	ShowProEMissingFlexibleComponent (bool &out_state) const
	Shows the Pro/E missing flexible setting. More...

bool	ShowProEFamilyTableSource (ProE::FamilyTable &out_source) const
	Shows the Pro/E family table setting. More...

bool	ShowProEConstructionEntities (ProE::ConstructionEntities &out_state) const
	Shows the Pro/E construction entities setting. More...

bool	ShowProESkeletons (bool &out_state) const
	Shows the Pro/E skeletons setting. More...

bool	ShowSTEPNamePreference (STEP::Field &out_field) const
	Shows the STEP name preference setting. More...

bool	ShowSTEPFirstColorPreference (bool &out_state) const
	Shows the STEP first color preference setting. More...

bool	ShowSTEPCodePageName (UTF8 &out_name) const
	Shows the STEP code page name setting. More...

bool	ShowSTEPShellBasedSurfaceModelSplitting (bool &out_state) const
	Shows the STEP shell based surface model splitting setting. More...

bool	ShowSTEPOrientationHealing (bool &out_state) const
	Shows the STEP orientation healing setting. More...

bool	ShowSTEPValidationProperties (bool &out_state) const
	Shows the STEP validation properties setting. More...

bool	ShowIFCCodePageName (UTF8 &out_name) const
	Shows the IFC code page name setting. More...

bool	ShowIFCAttributeXMLFile (UTF8 &out_filename) const
	Shows the IFC attribute XML file setting. More...

bool	ShowIFCOwnerHistoryOptimization (bool &out_state) const
	Shows the IFC owner history optimization setting. More...

bool	ShowIFCFaceOptimization (bool &out_state) const
	Shows the IFC face optimization setting. More...

bool	ShowIFCEdges (bool &out_state) const
	Shows the IFC edges setting. More...

bool	ShowIFCMetadata (bool &out_state) const
	Shows the IFC metadata setting. More...

bool	ShowPDF3DStreamIndex (size_t &out_index) const
	Shows the PDF 3D stream index setting. More...

bool	ShowJTTessellationLevel (JT::TessellationLevel &out_tessellation_level) const
	Shows the JT tessellation level setting. More...

bool	ShowInventorEmbeddedTessellation (bool &out_state) const
	Shows the Inventor embedded tessellation setting. More...

bool	ShowPRCReadHelper (bool &out_use_helper) const
	Shows the PRC read helper setting. More...

bool	ShowAnnotationCaptureFitting (AnnotationCaptureFitting &out_fitting) const
	Shows the annotation capture fitting setting. More...

bool	ShowLocation (ComponentPath &out_path, MatrixKit &out_transform) const
	Shows the location setting. More...

bool	ShowMode (ImportMode &out_mode) const
	Shows the mode setting. More...

bool	ShowIncrementalComponentPaths (HPS::ComponentPathArray &out_paths) const
	Shows the incremental component paths setting. More...

bool	ShowNURBSConversion (HPS::Exchange::NURBSConversionOptionsKit &out_nurbs_conversion_options) const
	Shows the NURBS conversion setting. More...

bool	ShowGeometryDefaultColor (RGBAColor &out_color) const
	Shows the geometry default color setting. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ImportOptionsKit	GetDefault ()
	Creates an ImportOptionsKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ExchangeImportOptionsKit

Detailed Description

The HPS::Exchange::ImportOptionsKit class is a user space object.

It contains settings controlling what and how data is imported via Exchange. Calling HPS::Exchange::ImportOptionsKit::GetDefault() will return an options kit with values found in here.

Constructor & Destructor Documentation

◆ ImportOptionsKit() [1/3]

HPS::Exchange::ImportOptionsKit::ImportOptionsKit ( )

The default constructor creates an empty ImportOptionsKit object.

◆ ImportOptionsKit() [2/3]

HPS::Exchange::ImportOptionsKit::ImportOptionsKit ( ImportOptionsKit const & in_kit )

The copy constructor creates a new ImportOptionsKit object that contains the same settings as the source ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to copy.

◆ ImportOptionsKit() [3/3]

HPS::Exchange::ImportOptionsKit::ImportOptionsKit ( ImportOptionsKit && in_that )

The move constructor creates an ImportOptionsKit by transferring the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to an ImportOptionsKit to take the impl from.

◆ ~ImportOptionsKit()

virtual HPS::Exchange::ImportOptionsKit::~ImportOptionsKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::Exchange::ImportOptionsKit::Empty ( ) const

virtual

Indicates whether this ImportOptionsKit has any values set on it.

Returns: true if no values are set on this ImportOptionsKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::Exchange::ImportOptionsKit::Equals ( ImportOptionsKit const & in_kit ) const

Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static ImportOptionsKit HPS::Exchange::ImportOptionsKit::GetDefault ( )

static

Creates an ImportOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default. These values will be used for import unless an option is overridden by the options passed to File::Import(const char*,const ImportOptionsKit&) or File::Translate.

Returns: An ImportOptionsKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::Exchange::ImportOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::Exchange::ImportOptionsKit::operator!= ( ImportOptionsKit const & in_kit ) const

Check if the source ImportOptionsKit is not equivalent to this ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::operator= ( ImportOptionsKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to an ImportOptionsKit to take the impl from.

Returns: A reference to this ImportOptionsKit.

◆ operator=() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::operator= ( ImportOptionsKit const & in_kit )

Copies the source ImportOptionsKit into this ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to copy.

Returns: A reference to this ImportOptionsKit.

◆ operator==()

bool HPS::Exchange::ImportOptionsKit::operator== ( ImportOptionsKit const & in_kit ) const

Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::Exchange::ImportOptionsKit::Set ( ImportOptionsKit const & in_kit )

Copies the source ImportOptionsKit into this ImportOptionsKit.

Parameters

in_kit The source ImportOptionsKit to copy.

◆ SetActiveFilter()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetActiveFilter ( bool in_state )

Sets whether to only import data from the active filter in the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadActiveFilter.

Parameters

in_state Whether to only import data from the active filter in the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetAnnotationCaptureFitting()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetAnnotationCaptureFitting ( AnnotationCaptureFitting in_fitting )

Sets the type of data that should be used to generate the camera for annotation captures.

Parameters

in_fitting The type of fitting to use for annotation captures.

Returns: A reference to this ImportOptionsKit.

◆ SetAttributes()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetAttributes ( bool in_state )

Sets whether to import attributes (or metadata) from the CAD file.

Even if attributes are not imported, some things like names and certain IDs will be available, though all other attributes will not be. This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadAttributes.

Parameters

in_state Whether to import attributes from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetBRepMode()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetBRepMode ( BRepMode in_mode )

Sets the import mode for BRep data in the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_eReadGeomTessMode.

Parameters

in_mode The import mode for BRep data in the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetCatiaV4LogicalNameForRootDirectory()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetCatiaV4LogicalNameForRootDirectory ( char const * in_name )

Sets the logical name for the root directory for a Catia V4 file.

This corresponds to the value that will be passed to A3DRWParamsCatiaV4Data::m_pcRootDirLogicalName.

Parameters

in_name UTF8-encoded logical name for the root directory for a Catia V4 file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetCatiaV4LogicalNameSearching()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetCatiaV4LogicalNameSearching ( bool in_state )

Sets the whether to allow searching in additional logical names for a Catia V4 file.

This corresponds to the value that will be passed to A3DRWParamsCatiaV4Data::m_bAllowSearchInOtherLogicalNames.

Parameters

in_state Whether to allow searching in addtional logical names for a Catia V4 file.

Returns: A reference to this ImportOptionsKit.

See also: SetSearchDirectories; Default value

◆ SetCatiaV5Cache()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetCatiaV5Cache	(	bool	in_active,
		char const *	in_path
	)

Sets whether to use the a cache for a Catia V5 file.

Parameters

in_active	Whether the cache should be activated for a Catia V5 file. This corresponds to the value that will be passed to A3DRWParamsCatiaV5Data::m_bCacheActivation.
in_path	UTF8-encoded path to the folder to be used for the Catia V5 cache. This corresponds to the value that will be passed to and A3DRWParamsCatiaV5Data::m_pcCachePath.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetConfiguration() [1/3]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetConfiguration ( char const * in_configuration )

Sets the configuration to import from a CAD file.

This is only applicable to Catia V4, Solidworks and I-deas file formats. If no configuration is specified, the default configuration will be loaded if possible. This corresponds to the value that will be passed to A3DRWParamsMultiEntriesData::m_ppcEntries.

Parameters

in_configuration UTF8-encoded configuration name to import from a CAD file.

Returns: A reference to this ImportOptionsKit.

◆ SetConfiguration() [2/3]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetConfiguration	(	size_t	in_count,
		UTF8 const	in_configuration[]
	)

Sets a nested configuration to import from a CAD file.

This is only applicable to Catia V4, Solidworks and I-deas file formats. If no configuration is specified, the default configuration will be loaded if possible. These correspond to the values that will be passed to A3DRWParamsMultiEntriesData::m_ppcEntries.

Parameters

in_count	Size of the following array.
in_configuration	List of nested configuration names to import from a CAD file.

Returns: A reference to this ImportOptionsKit.

◆ SetConfiguration() [3/3]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetConfiguration ( UTF8Array const & in_configuration )

Sets a nested configuration to import from a CAD file.

This is only applicable to Catia V4, Solidworks and I-deas file formats. If no configuration is specified, the default configuration will be loaded if possible. These correspond to the values that will be passed to A3DRWParamsMultiEntriesData::m_ppcEntries.

Parameters

in_configuration List of nested configuration names to import from a CAD file.

Returns: A reference to this ImportOptionsKit.

◆ SetConstructionAndReferences()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetConstructionAndReferences ( bool in_state )

Sets whether to import construction and references from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadConstructionAndReferences.

Parameters

in_state Whether to import construction and references from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetDefaultUnits()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetDefaultUnits ( Units in_units )

Sets the units to use for a CAD file if it is not well defined.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_eDefaultUnit.

Parameters

in_units The units to use for the CAD file if it is not well defined.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetDrawings()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetDrawings ( bool in_state )

Sets whether to import drawings from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadDrawings.

Parameters

in_state Whether to import 2d drawings from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetFeatureTrees()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetFeatureTrees ( bool in_state )

Sets whether to import feature trees from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadFeature. The following Import Options are incompatible with Feature Trees: sewing, importing a file using multiple processes, and using the Incremental import Mode. Furthermore, features are only supported in files of the following formats: CatiaV5, NX (also known as Unigraphics) and ProE (also known as Creo).

Parameters

in_state Whether to import feature trees from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetGeometryDefaultColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetGeometryDefaultColor ( RGBAColor const & in_color )

Sets the color to use for non-PMI geometry in the CAD file if none is specified.

Parameters

in_color The color to use for non-PMI geometry in the CAD file if none is specified.

Returns: A reference to this ImportOptionsKit.

See also: SetPMIDefaultColor

◆ SetHiddenObjects()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetHiddenObjects ( bool in_state )

Sets whether to import hidden objects from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadHiddenObjects.

Parameters

in_state Whether to import hidden objects from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIFCAttributeXMLFile()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCAttributeXMLFile ( char const * in_filename )

Sets the file to write attribute data to in XML format for an IFC file.

This corresponds to the value that will be passed to A3DRWParamsIFCData::m_pcXMLFilePathForAttributes.

Parameters

in_filename UTF8-encoded filename for attribute data.

Returns: A reference to this ImportOptionsKit.

See also: SetAttributes; Default value

◆ SetIFCCodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCCodePageName ( char const * in_name )

Sets the code page name for an IFC file.

This corresponds to the value that will be passed to A3DRWParamsIFCData::m_pcCodePageName.

Parameters

in_name UTF8-encoded code page name for an IFC file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIFCEdges()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCEdges ( bool in_state )

Sets whether to import edges for IFC files When this is set to false the import time will decrease.

It is still possible to achieve visual fidelity by turning on hard edge visibility.

Parameters

in_state Whether to import edges for an IFC file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIFCFaceOptimization()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCFaceOptimization ( bool in_state )

Sets whether to optimize importing of faces.

Setting this to true will reduce the number of polyhedra generated during the import. This corresponds to the value that will be passed to A3DRWParamsIFCData::m_bFACETED_BREPAsOnFace.

Parameters

in_state Whether to optimize face import for an IFC file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIFCMetadata()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCMetadata ( bool in_state )

Sets whether to import all IFC metadata or to import only each part's GloablID.

. This corresponds to the value that will be passed to A3DRWParamsIFCData::m_bAttributesOnlyGlobalId.

Parameters

in_state Whether to import all IFC metadata or to import only each part's GlobalID

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIFCOwnerHistoryOptimization()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIFCOwnerHistoryOptimization ( bool in_state )

Sets whether to optimize the setting of IFCOWNERHISTORY for an IFC file.

This corresponds to the value that will be passed to A3DRWParamsIFCData::m_bIFCOWNERHISTORYOptimized.

Parameters

in_state Whether to optimize the setting of IFCOWNERHISTORY for an IFC file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetIncrementalComponentPath()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIncrementalComponentPath ( HPS::ComponentPath const & in_path )

The path to the product occurrence to load.

This option should only be used if a file was imported incrementally (i.e., with the SetMode option set to ImportMode::Incremental) and the specified path has not already been loaded, otherwise an exception will be thrown from the ImportNotifier. Note that you can check the load status of a product occurrence by using ProductOccurrence::GetLoadStatus. The leaf of the path should be a product occurrence, though if it is not, the closest product occurrence in the path will be loaded. It is important to note that this option is mutually exclusive with the mode option, i.e., if one is set, the other will be unset.

Parameters

in_path The path to the product occurrence to load.

Returns: A reference to this ImportOptionsKit.

See also: SetMode; SetIncrementalComponentPaths

◆ SetIncrementalComponentPaths() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIncrementalComponentPaths	(	size_t	in_count,
		HPS::ComponentPath const	in_paths[]
	)

The paths to the product occurrences to load.

This option has the same behavior and limitations as SetIncrementalPath, but allows one to specify multiple paths to load.

Parameters

in_count	Size of the following array.
in_paths	The paths to the product occurrences to load.

Returns: A reference to this ImportOptionsKit.

See also: SetMode; SetIncrementalComponentPath

◆ SetIncrementalComponentPaths() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetIncrementalComponentPaths ( HPS::ComponentPathArray const & in_paths )

The paths to the product occurrences to load.

This option has the same behavior and limitations as SetIncrementalPath, but allows one to specify multiple paths to load.

Parameters

in_paths The paths to the product occurrences to load.

Returns: A reference to this ImportOptionsKit.

See also: SetMode; SetIncrementalComponentPath

◆ SetInventorEmbeddedTessellation()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetInventorEmbeddedTessellation ( bool in_state )

Whether to use the tessellation embedded in the file, for Inventor files.

This corresponds to the value that will be passed to A3DRWParamsInventorData::m_bUseTessForFile.

Parameters

in_state Whether to use the tessellation embedded in the file.

Returns: A reference to this ImportOptionsKit.

◆ SetJTTessellationLevel()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetJTTessellationLevel ( JT::TessellationLevel in_jt_tessellation_level )

Sets the tessellation level to load for JT files.

This corresponds to the value that will be passed to A3DRWParamsJTData::m_eReadTessellationLevelOfDetail.

Parameters

in_jt_tessellation_level The tessellation level to load.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetLocation()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetLocation	(	ComponentPath const &	in_path,
		MatrixKit const &	in_transform = `MatrixKit()`
	)

Sets where to insert the imported file in an existing Component hierarchy.

If this option is not set, a new CADModel will be created for the imported file. If this option is specified, the underlying PRC data of the existing CADModel will be modified to include the imported file and the data will be imported into the specified location in the existing Component hierarchy and its corresponding scene graph.

Parameters

in_path The path describing the location to insert the imported file into. This path must either terminate at a CADModel or a Component corresponding to an A3DAsmProductOccurrence. Note that if the imported file is added along a component path with attributes specified in the PRC data, the components added to the existing PRC data will also inherit those attributes. Note also that if the path is just a CADModel, a new A3DAsmModelFile underyling the CADModel must be created to include both the existing product occurrences and the new product occurrences, and the existing A3DAsmModelFile will be deleted.

in_transform A transform to apply to the components being added to the existing CADModel. This transform will also be added to the underlying PRC data. Defaults to an identity transform.

Returns: A reference to this ImportOptionsKit.

◆ SetMode()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetMode ( ImportMode in_mode )

Sets the type of import to perform.

If set to ImportMode::Incremental, only the structural components of the CAD file will be created, but the underlying representation items will not be loaded. These empty product occurrence objects can then be loaded by using the SetIncrementalComponentPath or SetIncrementalComponentPaths functions. If set to ImportMode::Complete, the CAD file will be imported respecting the other specified import options. It is important to note that incremental import can only be performed for certain formats (see ImportMode::Incremental for the specific formats). Trying to use incremental import with an unsupported format will cause the import to fail and an exception to be thrown by the ImportNotifier. Also it is important to note that this option is mutually exclusive with the incremental component path option, i.e., if one is set, the other will be unset.

Parameters

in_mode The type of import to perform.

Returns: A reference to this ImportOptionsKit.

See also: SetIncrementalComponentPath; SetIncrementalComponentPaths

◆ SetMultiProcessCount()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetMultiProcessCount ( unsigned int in_count )

Sets the number of processes to use when performing the import.

This should be a value between 1 and the number of cores on your system.

Note: Values greater than 1 can only be used for imports of certain formats, in particular, JT, SolidWorks, NX (Unigraphics), Creo (Pro/E), and CATIA V5 files.

Parameters

in_count The number of processes to use when performing the import.

Returns: A reference to this ImportOptionsKit.

◆ SetNURBSConversion()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetNURBSConversion ( HPS::Exchange::NURBSConversionOptionsKit const & in_nurbs_conversion_options )

Converts the curves and surfaces of the model file according to the options specified.

Parameters

in_nurbs_conversion_options The options to use during conversion

Returns: A reference to this ImportOptionsKit.

◆ SetPDF3DStreamIndex()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPDF3DStreamIndex ( size_t in_index )

Sets the index into the list 3D streams contained in a PDF to load.

Parameters

in_index The index into the list of 3D stream contained in a PDF to load.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetPMI()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMI ( bool in_state )

Sets whether to import PMI from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadPmis.

Parameters

in_state Whether to import PMI from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetPMIDefaultColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMIDefaultColor	(	RGBColor const &	in_color,
		bool	in_override_color = `false`
	)

Sets the color to use for the PMI in the CAD file if none is specified.

This corresponds to the value that will be passed to A3DRWParamsPmiData::m_sDefaultColor. Optionally, it is possible to force all PMI to appear in the specified color. Thie corresponds to the value what will be passed to A3DRWParamsPmiData::m_bAlwaysUseDefaultColor.

Parameters

in_color	The color to use for the PMI in the CAD file if none is specified.
in_override_color	Whether to force all PMIs to use the color specified by in_color.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetPMIDefaultUnits()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMIDefaultUnits ( Units in_units )

Sets the units to use for the PMI in the CAD file if it is not well defined.

This corresponds to the value that will be passed to A3DRWParamsPmiData::m_eDefaultUnit.

Parameters

in_units The units to use for the PMI in the CAD file if it is not well defined.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetPMIFlipping()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMIFlipping ( bool in_flip )

Dictates whether Visualize will flip pmi when rotating so that text / symbols remain readable.

Note: If exchange reports that a markup does not contain leader lines, but the tessellation does contain lines that markup will not be flipped. This is a precaution for models where the leader line geometry was included as part of the markup tessellation and flipping the geometry would cause any present leader lines to point in the wrong direction.

Parameters

in_flip Whether or not to have Visualize flip pmi when rotating.

Returns: A reference to this ImportOptionsKit.

◆ SetPMIPrecision()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMIPrecision ( size_t in_precision )

Sets the precision to use for PMI which has no precision information in the CAD file.

This corresponds to the value that will be passed to A3DRWParamsPmiData::m_iNumberOfDigitsAfterDot.

Parameters

in_precision The precision to use for PMI which has no precision information in the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetPMISubstitutionFont()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPMISubstitutionFont	(	char const *	in_font_name,
		bool	in_always_substitute = `false`
	)

Sets the font to use to replace those referenced by the CAD file but which are not present on the system.

Parameters

in_font_name	UTF8-encoded name of the font to use to replaced those referenced by the CAD file but which are not present on the system. This corresponds to the value that will be passed to A3DRWParamsPmiData::m_pcSubstitutionFont.
in_always_substitute	Whether to always use this font even in place of those which are present on the system. This corresponds to the value that will be passed to A3DRWParamsPmiData::m_bAlwaysSubstituteFont.

Returns: A reference to this ImportOptionsKit.

◆ SetPRCReadHelper()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetPRCReadHelper ( bool in_use_helper )

Sets whether to create an A3DRWParamsPrcReadHelper when importing a PRC file or a PRC stream.

The resulting A3DRWParamsPrcReadHelper can be accessed by Exchange::ImportNotifier::GetPRCReadHelper.

Parameters

in_use_helper Whether to create an A3DRWParamsPrcReadHelper during import.

Returns: A reference to this ImportOptionsKit.

See also: Exchange::ImportNotifier::GetPRCReadHelper

◆ SetProECodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProECodePageName ( char const * in_name )

Sets the code page name for a Pro/E file.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_pcCodePageName.

Parameters

in_name UTF8-encoded code page name for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEConstructionEntities()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEConstructionEntities ( ProE::ConstructionEntities in_state )

Sets whether to import construction entities for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_eReadConstrucEntities.

Parameters

in_state Whether to import construction entities for a Pro/E file

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEDatum()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEDatum ( bool in_state )

Sets whether datums are visible, for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_bDisplayVisibleDatum.

Parameters

in_source Whether visible datums are visible for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEDimensionTolerance()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEDimensionTolerance ( bool in_state )

Sets whether to import dimension tolerances for a Pro/E file.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_bDisplayTolerance.

Parameters

in_state Whether to import dimension tolerances for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEExplodedViews()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEExplodedViews ( bool in_state )

Sets whether to create additional Views for a Pro/E file, with each view representing an explode state.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_bReadExplodeStateAsView.

Parameters

in_source Whether to create a views for exploded states, for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEFamilyTableSource()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEFamilyTableSource ( ProE::FamilyTable in_source )

Sets the source for Family Tables for a Pro/E file This corresponds to the value that will be passed to A3DRWParamsProEData::m_eFamilyTables.

Parameters

in_source Sets the family tables source for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEHomeView()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEHomeView ( bool in_state )

Sets whether to create an additional Home View for a Pro/E file.

This view will reflect the state in which the file was saved. This corresponds to the value that will be passed to A3DRWParamsProEData::m_bComputeHomeView.

Parameters

in_source Whether to create a home view for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEMissingBoolean()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEMissingBoolean ( bool in_state )

Sets whether to import the entities making up a boolean operation for a Pro/E file, in the case where the tessellation for the result of this boolean operation cannot be found.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_bBoolOpUseGenericIfNoTess.

Parameters

in_state Whether to import the entities of a boolean operation for which there is no available tessellation for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProEMissingFlexibleComponent()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProEMissingFlexibleComponent ( bool in_state )

Sets whether to try to import a flexible component for a Pro/E file, even in the case where the tessellation for the component cannot be found.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_bFlexCompUseGenericIfNoTess.

Parameters

in_state Whether to always try to import a flexible component, even in the event of missing tessellation, for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProESessionColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProESessionColor ( ProE::SessionColor in_type )

Sets the session color for a Pro/E file.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_eSessionColorType.

Parameters

in_type The session color for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProESkeletons()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProESkeletons ( bool in_state )

Sets whether to import skeleton entities for a Pro/E file.

This corresponds to the inverse value that will be passed to A3DRWParamsProEData::m_bHideSkeletons.

Parameters

in_state Whether import skeleton entities for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetProESubpartPMI()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetProESubpartPMI ( bool in_state )

Sets whether to import subpart PMI for a Pro/E file.

This corresponds to the value that will be passed to A3DRWParamsProEData::m_bDisplaySubpartAnnotations.

Parameters

in_state Whether to import subpart PMI for a Pro/E file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSearchDirectories() [1/4]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectories	(	size_t	in_count,
		UTF8 const	in_directories[],
		bool const	in_recurse_flags[]
	)

Sets the directories to search to find files referenced by a CAD assembly.

If no search directories are set, the directory containing the CAD assembly will be searched recursively. These correspond to the values that will be passed to A3DRWParamsAssemblyData::m_ppcSearchDirectories.

Parameters

in_count	Size of the following arrays.
in_directories	The directories to search for files references by a CAD assembly.
in_recurse_flags	Whether to search recursively in each of the corresponding directories.

Returns: A reference to this ImportOptionsKit.

◆ SetSearchDirectories() [2/4]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectories	(	UTF8Array const &	in_directories,
		BoolArray const &	in_recurse_flags
	)

Sets the directories to search to find files referenced by a CAD assembly.

If no search directories are set, the directory containing the CAD assembly will be searched recursively. If the size of the directory and flag arrays are different, the smaller size will be used. These correspond to the values that will be passed to A3DRWParamsAssemblyData::m_ppcSearchDirectories.

Parameters

in_directories	The directories to search for files references by a CAD assembly.
in_recurse_flags	Whether to search recursively in each of the corresponding directories.

Returns: A reference to this ImportOptionsKit.

◆ SetSearchDirectories() [3/4]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectories	(	size_t	in_count,
		UTF8 const	in_directories[],
		UTF8 const	in_logical_names[],
		bool const	in_recurse_flags[]
	)

Sets the directories to search to find files referenced by a CAD assembly.

This variant additionally allows the specification of logical names for each search directory for use by Catia V4 files. If no search directories are set, the directory containing the CAD assembly will be searched recursively. These correspond to the values that will be passed to A3DRWParamsAssemblyData::m_ppcSearchDirectories.

Parameters

in_count	Size of the following arrays.
in_directories	The directories to search for files references by a CAD assembly.
in_logical_names	The logical names for each corresponding directory. If there are no logical names for the directories, this value can be null.
in_recurse_flags	Whether to search recursively in each of the corresponding directories.

Returns: A reference to this ImportOptionsKit.

See also: SetCatiaV4LogicalNameSearching

◆ SetSearchDirectories() [4/4]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectories	(	UTF8Array const &	in_directories,
		UTF8Array const &	in_logical_names,
		BoolArray const &	in_recurse_flags
	)

Sets the directories to search to find files referenced by a CAD assembly.

This variant additionally allows the specification of logical names for each search directory for use by Catia V4 files. If no search directories are set, the directory containing the CAD assembly will be searched recursively. If the size of the directory, (non-empty) logical name, or flag arrays are different, the smallest size will be used. These correspond to the values that will be passed to A3DRWParamsAssemblyData::m_ppcSearchDirectories.

Parameters

in_directories	The directories to search for files references by a CAD assembly.
in_logical_names	The logical names for each corresponding directory. If there are no logical names for the directories, this array can be empty.
in_recurse_flags	Whether to search recursively in each of the corresponding directories.

Returns: A reference to this ImportOptionsKit.

See also: SetCatiaV4LogicalNameSearching

◆ SetSearchDirectoriesByFile() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectoriesByFile	(	size_t	in_count,
		UTF8 const	in_file_names[]
	)

Sets the directories to search to find files referenced by a CAD assembly.

This is an alternative manner to specify search directories by using text files which contain lists of directories to search. These correspond to the values will be passed to A3DRWParamsAssemblyData::m_ppcPathDefinitions.

Parameters

in_count	Size of the following array.
in_file_names	The names of text files containing the lists of directories to search to find files referenced by a CAD assembly.

Returns: A reference to this ImportOptionsKit.

◆ SetSearchDirectoriesByFile() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchDirectoriesByFile ( UTF8Array const & in_file_names )

Sets the directories to search to find files referenced by a CAD assembly.

This is an alternative manner to specify search directories by using text files which contain lists of directories to search. These correspond to the values will be passed to A3DRWParamsAssemblyData::m_ppcPathDefinitions.

Parameters

in_file_names The names of text files containing the lists of directories to search to find files referenced by a CAD assembly.

Returns: A reference to this ImportOptionsKit.

◆ SetSearchRootDirectory()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSearchRootDirectory	(	bool	in_state,
		bool	in_recursive = `true`
	)

Sets whether to search the CAD file root directory for sub-parts.

The values passed to this function correspond to A3DRWParamsAssemblyData::m_bUseRootDirectory and A3DRWParamsAssemblyData::m_bRootDirRecursive respectively.

Parameters

in_state	Whether to search the root CAD file directory for sub-parts
in_recursive	Whether to search subdirectories of the root directory for sub-parts. This option is only considered if in_state is true, and the subdirectories are only searched if the sub-parts are not found in the root directory.

Returns: A reference to this ImportOptionsKit.

◆ SetSewingTolerance()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSewingTolerance ( double in_tolerance )

The sewing tolerance to use on the A3DAsmModelFile after importing a file.

If this option is set, after a file is successfully imported, the A3DAsmModelFile will be passed to A3DAsmModelFileSew with this tolerance.

Parameters

in_tolerance The sewing tolerance in millimeters to use on the A3DAsmModelFile after importing a file.

Returns: A reference to this ImportOptionsKit.

◆ SetSolids()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSolids ( bool in_state )

Sets whether to import solids from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadSolids.

Parameters

in_state Whether to import solids from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPCodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPCodePageName ( char const * in_name )

Sets the code page name for a STEP file.

This corresponds to the value that will be passed to A3DRWParamsStepData::m_pcCodePageName

Parameters

in_name UTF8-encoded code page name for a STEP file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPFirstColorPreference()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPFirstColorPreference ( bool in_state )

Sets whether to prefer the first color if geometry has several colors for a STEP file.

This corresponds to the value that will be passed to A3DRWParamsStepData::m_bPreferFirstColor.

Parameters

in_state Whether to prefer the first color if geometry has several colors for a STEP file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPNamePreference()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPNamePreference ( STEP::Field in_field )

Sets the field to get the occurrence name from for a STEP file.

These correspond to the value that will be passed to A3DRWParamsStepData::m_bPreferProductName and A3DRWParamsStepData::m_eNameFromNAUO.

Parameters

in_field The field to get the occurrence name from for a STEP file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPOrientationHealing()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPOrientationHealing ( bool in_state )

Sets whether to heal orientations for a STEP file.

This corresponds to the value that will be passed to A3DRWParamsStepData::m_bHealOrientations.

Parameters

in_state Whether to heal orientations for a STEP file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPShellBasedSurfaceModelSplitting()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPShellBasedSurfaceModelSplitting ( bool in_state )

Sets whether to split SHELL_BASED_SURFACE_MODEL with several OPEN_SHELLs into several bodies for a STEP file.

This corresponds to the value that will be passed to A3DRWParamsStepData::m_bSplitSHELL_BASED_SURFACE_MODEL.

Parameters

in_state Whether to split SHELL_BASED_SURFACE_MODEL with several OPEN_SHELLs into several bodies for a STEP file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetSTEPValidationProperties()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSTEPValidationProperties ( bool in_state )

Sets whether to import validation properties for a STEP file.

This corresponds to the value that will be passed to A3DRWParamsStepData::m_bReadValidationProperties. This option is valid only if Attributes are being imported.

Parameters

in_state Whether to import validation properties for a STEP file.

Returns: A reference to this ImportOptionsKit.

◆ SetSurfaces()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetSurfaces ( bool in_state )

Sets whether to import surfaces from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadSurfaces.

Parameters

in_state Whether to import surfaces from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetTessellationAccuracy()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationAccuracy	(	Tessellation::Accuracy	in_type,
		bool	in_accurate_normals = `true`
	)

Sets the accuracy of the tessellation that will be generated for BRep data.

Parameters

in_type	The accuracy to use for tessellation generation.
in_accurate_normals	Whether to compute surface normals when performing accurate tessellation. This only applies if in_type is set to Tessellation::Accuracy::Accurate. This correspond to the (negated) value that will be passed to A3DRWParamsTessellationData::m_bDoNotComputeNormalsInAccurateTessellation.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetTessellationCleanup()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationCleanup ( bool in_cleanup )

Dictates whether Exchange tesselation data will be released from their parent representation items during import.

Warning: Setting this option to true will cause future exports to output without tessellation data.

Parameters

in_cleanup Whether to clean up tessellation data from representation items.

Returns: A reference to this ImportOptionsKit.

◆ SetTessellationLevel() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationLevel ( Tessellation::Level in_level )

Sets the predefined quality of the tessellation that will be generated for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_eTessellationLevelOfDetail.

Parameters

in_level The predefined quality of the tessellation that will be generated for BRep data.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetTessellationLevel() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationLevel	(	Tessellation::Chord::Limit	in_limit_type,
		double	in_limit,
		double	in_angle_tolerance
	)

Sets the user defined quality of the tessellation that will be generated for BRep data.

This implicitly sets A3DRWParamsTessellationData::m_eTessellationLevel to kA3DTessLODUserDefined.

Parameters

in_limit_type	The type of the chord limit to be specified.
in_limit	Either the ratio of the tessellation chord height to the bounding box height which should be in the range [50, 10000], or the maximum distance between the surface definition and the tessellation approximation, depending on the preceding argument.
in_angle_tolerance	The maximum angle in degrees between two consecutive wire elements in the generated tessellation which should be in the range [10, 40]. This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_dAngleToleranceDeg.

Returns: A reference to this ImportOptionsKit.

◆ SetTessellationMaximumEdgeLength()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationMaximumEdgeLength ( double in_length )

Sets the maximum length of triangle edges in the tessellation generated for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_dMaximalTriangleEdgeLength.

Parameters

in_length The maximum length of triangle edges in the tessellation generated for BRep data. The value must be non-negative, and if set to 0.0, the length will not be used when generating the tessellation.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetTessellationPreservesUVPoints()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTessellationPreservesUVPoints ( bool in_state )

Sets whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_bKeepUVPoints.

Parameters

in_state Whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetTextureDirectories() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTextureDirectories	(	size_t	in_count,
		UTF8 const	in_directories[]
	)

Sets the directories to search to find textures referenced by a CAD assembly.

If no search directories are set, the directory containing the CAD assembly will be searched recursively. These correspond to the values that will be passed to A3DRWParamsGeneralData::m_ppcSearchTextureDirectories.

Parameters

in_count	Size of the following arrays.
in_directories	The directories to search for textures referenced by a CAD assembly.

Returns: A reference to this ImportOptionsKit.

◆ SetTextureDirectories() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetTextureDirectories ( UTF8Array const & in_directories )

Sets the directories to search to find textures referenced by a CAD assembly.

If no search directories are set, the directory containing the CAD assembly will be searched recursively. These correspond to the values that will be passed to A3DRWParamsGeneralData::m_ppcSearchTextureDirectories.

Parameters

in_directories The directories to search for textures referenced by a CAD assembly.

Returns: A reference to this ImportOptionsKit.

◆ SetUnigraphicsFittedCamera()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetUnigraphicsFittedCamera ( bool in_state )

Sets whether to make view cameras fitted for a Unigraphics file.

Parameters

in_state Whether to make view cameras fit all visible geometry for a Unigraphics file. This corresponds to the value that will be passed to A3DRWParamsUnigraphicsData::m_bFitAllToUpdateViewCameras.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetUnigraphicsPreferredReferenceSets() [1/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetUnigraphicsPreferredReferenceSets	(	size_t	in_count,
		UTF8 const	in_reference_sets[],
		bool	in_apply_to_all_levels
	)

Sets the preferred reference sets for a Unigraphics file.

Parameters

in_count	Size of the following array.
in_reference_sets	List of preferred references sets for a Unigraphics file. This corresponds to the value that will be passed to A3DRWParamsUnigraphicsData::m_ppcPreferredReferenceSets.
in_apply_to_all_levels	Whether the reference sets will apply to subassemblies for a Unigraphics file. This corresponds to the value that will be passed to A3DRWParamsUnigraphicsData::m_bApplyToAllLevels.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetUnigraphicsPreferredReferenceSets() [2/2]

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetUnigraphicsPreferredReferenceSets	(	UTF8Array const &	in_reference_sets,
		bool	in_apply_to_all_levels
	)

Sets the preferred reference sets for a Unigraphics file.

Parameters

in_reference_sets	List of preferred references sets for a Unigraphics file. This corresponds to the value that will be passed to A3DRWParamsUnigraphicsData::m_ppcPreferredReferenceSets.
in_apply_to_all_levels	Whether the reference sets will apply to subassemblies for a Unigraphics file. This corresponds to the value that will be passed to A3DRWParamsUnigraphicsData::m_bApplyToAllLevels.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ SetWireframes()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::SetWireframes ( bool in_state )

Sets whether to import wireframes from the CAD file.

This corresponds to the value that will be passed to A3DRWParamsGeneralData::m_bReadWireframes.

Parameters

in_state Whether to import wireframes from the CAD file.

Returns: A reference to this ImportOptionsKit.

See also: Default value

◆ Show()

void HPS::Exchange::ImportOptionsKit::Show ( ImportOptionsKit & out_kit ) const

Copies this ImportOptionsKit into the given ImportOptionsKit.

Parameters

out_kit The ImportOptionsKit to populate with the contents of this ImportOptionsKit.

◆ ShowActiveFilter()

bool HPS::Exchange::ImportOptionsKit::ShowActiveFilter ( bool & out_state ) const

Shows the active filter import setting.

Parameters

out_state Whether to only import data from the active filter in the CAD file.

Returns: true if an active filter import setting was specified, false otherwise.

◆ ShowAnnotationCaptureFitting()

bool HPS::Exchange::ImportOptionsKit::ShowAnnotationCaptureFitting ( AnnotationCaptureFitting & out_fitting ) const

Shows the annotation capture fitting setting.

Parameters

out_fitting The type of fitting to use for annotation captures.

Returns: true if an annotation capture fitting setting was specified, false otherwise.

◆ ShowAttributes()

bool HPS::Exchange::ImportOptionsKit::ShowAttributes ( bool & out_state ) const

Shows the attribute import setting.

Parameters

out_state Whether to import attributes from the CAD file.

Returns: true if an attribute import setting was specified, false otherwise.

◆ ShowBRepMode()

bool HPS::Exchange::ImportOptionsKit::ShowBRepMode ( BRepMode & out_mode ) const

Shows the BRep mode import setting.

Parameters

out_mode The import mode for BRep data in the CAD file.

Returns: true if a BRep mode import setting was specified, false otherwise.

◆ ShowCatiaV4LogicalNameForRootDirectory()

bool HPS::Exchange::ImportOptionsKit::ShowCatiaV4LogicalNameForRootDirectory ( UTF8 & out_name ) const

Shows the Catia V4 logical name for the root directory.

Parameters

out_name The Catia V4 logical name for the root directory.

Returns: true if a Catia V4 logical name for the root directory setting was specified, false otherwise.

◆ ShowCatiaV4LogicalNameSearching()

bool HPS::Exchange::ImportOptionsKit::ShowCatiaV4LogicalNameSearching ( bool & out_state ) const

Shows the Catia V4 logical name searching setting.

Parameters

out_state Whether to allow searching in addtional logical names for a Catia V4 file.

Returns: true if a Catia V4 logical name searching setting was specified, false otherwise.

◆ ShowCatiaV5Cache()

bool HPS::Exchange::ImportOptionsKit::ShowCatiaV5Cache	(	bool &	out_active,
		UTF8 &	out_path
	)		const

Shows the Catia V5 cache setting.

Parameters

out_active	Whether the cache should be activated for a Catia V5 file.
out_path	The path to the folder to be used for the Catia V5 cache.

Returns: true if a Catia V5 cache setting was specified, false otherwise.

◆ ShowConfiguration()

bool HPS::Exchange::ImportOptionsKit::ShowConfiguration ( UTF8Array & out_configuration ) const

Shows the configuration settting.

Parameters

out_configuration List of nested configuration names to import from a CAD file.

Returns: true if a configuation setting was specified, false otherwise.

◆ ShowConstructionAndReferences()

bool HPS::Exchange::ImportOptionsKit::ShowConstructionAndReferences ( bool & out_state ) const

Shows the construction and references import setting.

Parameters

out_state Whether to import construction and references from the CAD file.

Returns: true if a construction and references import setting was specified, false otherwise.

◆ ShowDefaultUnits()

bool HPS::Exchange::ImportOptionsKit::ShowDefaultUnits ( Units & out_units ) const

Shows the default units setting.

Parameters

out_units The default units setting.

Returns: true if a default units setting was specified, false otherwise.

◆ ShowDrawings()

bool HPS::Exchange::ImportOptionsKit::ShowDrawings ( bool & out_state ) const

Shows the drawings import setting.

Parameters

out_state Whether to import 2d drawings from the CAD file.

Returns: true if a drawings import setting was specified, false otherwise.

◆ ShowFeatureTrees()

bool HPS::Exchange::ImportOptionsKit::ShowFeatureTrees ( bool & out_state ) const

Shows the feature trees import setting.

Parameters

out_state Whether to import feature trees from the CAD file.

Returns: true if a feature trees import setting was specified, false otherwise.

◆ ShowGeometryDefaultColor()

bool HPS::Exchange::ImportOptionsKit::ShowGeometryDefaultColor ( RGBAColor & out_color ) const

Shows the geometry default color setting.

Parameters

out_color The geometry default color setting.

Returns: true if a geometry default color setting was specified, false otherwise.

◆ ShowHiddenObjects()

bool HPS::Exchange::ImportOptionsKit::ShowHiddenObjects ( bool & out_state ) const

Shows the hidden objects import setting.

Parameters

out_state Whether to import hidden objects from the CAD file.

Returns: true if a hidden objects import setting was specified, false otherwise.

◆ ShowIFCAttributeXMLFile()

bool HPS::Exchange::ImportOptionsKit::ShowIFCAttributeXMLFile ( UTF8 & out_filename ) const

Shows the IFC attribute XML file setting.

Parameters

out_filename The filename for attribute data for an IFC file.

Returns: true if an IFC attribute XML file setting was specified, false otherwise.

◆ ShowIFCCodePageName()

bool HPS::Exchange::ImportOptionsKit::ShowIFCCodePageName ( UTF8 & out_name ) const

Shows the IFC code page name setting.

Parameters

out_name The code page name for an IFC file.

Returns: true if an IFC code page name setting was specified, false otherwise.

◆ ShowIFCEdges()

bool HPS::Exchange::ImportOptionsKit::ShowIFCEdges ( bool & out_state ) const

Shows the IFC edges setting.

Parameters

out_state Whether to import edges for an IFC file.

Returns: true if an IFC edge setting was specified, false otherwise.

◆ ShowIFCFaceOptimization()

bool HPS::Exchange::ImportOptionsKit::ShowIFCFaceOptimization ( bool & out_state ) const

Shows the IFC face optimization setting.

Parameters

out_state Whether to optimize face import for an IFC file.

Returns: true if an IFC face optimization setting was specified, false otherwise.

◆ ShowIFCMetadata()

bool HPS::Exchange::ImportOptionsKit::ShowIFCMetadata ( bool & out_state ) const

Shows the IFC metadata setting.

Parameters

out_state Whether to import all IFC metadata or just each part's GloablID

Returns: true if an IFC metadata setting was specified, false otherwise.

◆ ShowIFCOwnerHistoryOptimization()

bool HPS::Exchange::ImportOptionsKit::ShowIFCOwnerHistoryOptimization ( bool & out_state ) const

Shows the IFC owner history optimization setting.

Parameters

out_state Whether to optimize the setting of IFCOWNERHISTORY for an IFC file.

Returns: true if an IFC owner history optimization setting was specified, false otherwise.

◆ ShowIncrementalComponentPaths()

bool HPS::Exchange::ImportOptionsKit::ShowIncrementalComponentPaths ( HPS::ComponentPathArray & out_paths ) const

Shows the incremental component paths setting.

Parameters

out_paths The paths to the product occurrences to load.

Returns: true if an incremental component paths setting was specified, false otherwise.

◆ ShowInventorEmbeddedTessellation()

bool HPS::Exchange::ImportOptionsKit::ShowInventorEmbeddedTessellation ( bool & out_state ) const

Shows the Inventor embedded tessellation setting.

Parameters

out_state The embedded tessellation setting for Inventor files.

Returns: true if an Inventor embedded tessellation setting was specified, false otherwise.

◆ ShowJTTessellationLevel()

bool HPS::Exchange::ImportOptionsKit::ShowJTTessellationLevel ( JT::TessellationLevel & out_tessellation_level ) const

Shows the JT tessellation level setting.

Parameters

out_tessellation_level The tessellation level used when loading the JT file

Returns: true if a JT tessellation level setting was specified, false otherwise.

◆ ShowLocation()

bool HPS::Exchange::ImportOptionsKit::ShowLocation	(	ComponentPath &	out_path,
		MatrixKit &	out_transform
	)		const

Shows the location setting.

Parameters

out_path	The path describing the location to insert the imported file into.
out_transform	The transform to apply to the components being added to the existing CADModel.

Returns: true if a location setting was specified, false otherwise.

◆ ShowMode()

bool HPS::Exchange::ImportOptionsKit::ShowMode ( ImportMode & out_mode ) const

Shows the mode setting.

Parameters

out_mode The type of import to perform.

Returns: true if a mode setting was specified, false otherwise.

◆ ShowMultiProcessCount()

bool HPS::Exchange::ImportOptionsKit::ShowMultiProcessCount ( unsigned int & out_count ) const

Shows the multi-process count setting.

Parameters

out_count The number of processes to use when performing the import.

Returns: true if a multi-process count setting was specified, false otherwise.

◆ ShowNURBSConversion()

bool HPS::Exchange::ImportOptionsKit::ShowNURBSConversion ( HPS::Exchange::NURBSConversionOptionsKit & out_nurbs_conversion_options ) const

Shows the NURBS conversion setting.

Parameters

out_nurbs_conversion_options The options to be used during the conversion.

Returns: true if NURBS conversion setting was specified, false otherwise.

◆ ShowPDF3DStreamIndex()

bool HPS::Exchange::ImportOptionsKit::ShowPDF3DStreamIndex ( size_t & out_index ) const

Shows the PDF 3D stream index setting.

Parameters

out_index The index into the list of 3D stream contained in a PDF to load.

Returns: true if a PDF 3D stream index setting was specified, false otherwise.

◆ ShowPMI()

bool HPS::Exchange::ImportOptionsKit::ShowPMI ( bool & out_state ) const

Shows the PMI import setting.

Parameters

out_state Whether to import PMI from the CAD file.

Returns: true if a PMI import setting was specified, false otherwise.

◆ ShowPMIDefaultColor()

bool HPS::Exchange::ImportOptionsKit::ShowPMIDefaultColor	(	RGBColor &	out_color,
		bool &	out_override
	)		const

Shows the PMI default color setting.

Parameters

out_color	The PMI default color setting.
out_override	Whether out_color overrides all PMI color

Returns: true if a PMI default color setting was specified, false otherwise.

◆ ShowPMIDefaultUnits()

bool HPS::Exchange::ImportOptionsKit::ShowPMIDefaultUnits ( Units & out_units ) const

Shows the PMI default units setting.

Parameters

out_units The PMI default units setting.

Returns: true if a PMI default units setting was specified, false otherwise.

◆ ShowPMIFlipping()

bool HPS::Exchange::ImportOptionsKit::ShowPMIFlipping ( bool & out_pmi_flipping ) const

Shows the pmi flipping setting.

Parameters

out_pmi_flipping The pmi flipping setting that was specified.

Returns: true if a pmi flipping setting was specified, false otherwise.

◆ ShowPMIPrecision()

bool HPS::Exchange::ImportOptionsKit::ShowPMIPrecision ( size_t & out_precision ) const

Shows the PMI precision setting.

Parameters

out_precision The precision to use for PMI which has no precision information in the CAD file.

Returns: true if a PMI precision setting was specified, false otherwise.

◆ ShowPMISubstitutionFont()

bool HPS::Exchange::ImportOptionsKit::ShowPMISubstitutionFont	(	UTF8 &	out_font_name,
		bool &	out_always_substitute
	)		const

Shows the PMI substitution font setting.

Parameters

out_font_name	UTF8-encoded name of the font to use to replaced those referenced by the CAD file but which are not present on the system.
out_always_substitute	Whether to always use this font even in place of those which are present on the system.

Returns: true if a PMI substitution font setting was specified, false otherwise.

◆ ShowPRCReadHelper()

bool HPS::Exchange::ImportOptionsKit::ShowPRCReadHelper ( bool & out_use_helper ) const

Shows the PRC read helper setting.

Parameters

out_use_helper Whether to create an A3DRWParamsPrcReadHelper during import.

Returns: true if a PRC read helper setting was specified, false otherwise.

◆ ShowProECodePageName()

bool HPS::Exchange::ImportOptionsKit::ShowProECodePageName ( UTF8 & out_name ) const

Shows the Pro/E code page name setting.

Parameters

out_name The code page name for a Pro/E file.

Returns: true if a Pro/E code page name setting was specified, false otherwise.

◆ ShowProEConstructionEntities()

bool HPS::Exchange::ImportOptionsKit::ShowProEConstructionEntities ( ProE::ConstructionEntities & out_state ) const

Shows the Pro/E construction entities setting.

Parameters

out_state How to import construction entities, for a Pro/E file.

Returns: true if a Pro/E construction entities setting was specified, false otherwise.

◆ ShowProEDatum()

bool HPS::Exchange::ImportOptionsKit::ShowProEDatum ( bool & out_state ) const

Shows the Pro/E datum setting.

Parameters

out_state Whether datums are visible, for a Pro/E file.

Returns: true if a Pro/E datum setting was specified, false otherwise.

◆ ShowProEDimensionTolerance()

bool HPS::Exchange::ImportOptionsKit::ShowProEDimensionTolerance ( bool & out_state ) const

Shows the Pro/E dimension tolerance setting.

Parameters

out_state Whether to import dimension tolerances for a Pro/E file.

Returns: true if a Pro/E dimension tolerance setting was specified, false otherwise.

◆ ShowProEExplodedViews()

bool HPS::Exchange::ImportOptionsKit::ShowProEExplodedViews ( bool & out_state ) const

Shows the Pro/E exploded views setting.

Parameters

out_state Whether to create one view for each exploded state, for a Pro/E file.

Returns: true if a Pro/E exploded views setting was specified, false otherwise.

◆ ShowProEFamilyTableSource()

bool HPS::Exchange::ImportOptionsKit::ShowProEFamilyTableSource ( ProE::FamilyTable & out_source ) const

Shows the Pro/E family table setting.

Parameters

out_source How to import family tables, for a Pro/E file.

Returns: true if a Pro/E family table setting was specified, false otherwise.

◆ ShowProEHomeView()

bool HPS::Exchange::ImportOptionsKit::ShowProEHomeView ( bool & out_state ) const

Shows the Pro/E home view setting.

Parameters

out_state Whether to create a home view, for a Pro/E file.

Returns: true if a Pro/E home view setting was specified, false otherwise.

◆ ShowProEMissingBoolean()

bool HPS::Exchange::ImportOptionsKit::ShowProEMissingBoolean ( bool & out_state ) const

Shows the Pro/E missing boolean setting.

Parameters

out_state Whether to import boolean entities when their tessellation is missing, for a Pro/E file.

Returns: true if a Pro/E missing boolean setting was specified, false otherwise.

◆ ShowProEMissingFlexibleComponent()

bool HPS::Exchange::ImportOptionsKit::ShowProEMissingFlexibleComponent ( bool & out_state ) const

Shows the Pro/E missing flexible setting.

Parameters

out_state Whether to import flexible entities when their tessellation is missing, for a Pro/E file.

Returns: true if a Pro/E missing flexible setting was specified, false otherwise.

◆ ShowProESessionColor()

bool HPS::Exchange::ImportOptionsKit::ShowProESessionColor ( ProE::SessionColor & out_type ) const

Shows the Pro/E session color setting.

Parameters

out_type The session color for a Pro/E file.

Returns: true if a Pro/E session color setting was specified, false otherwise.

◆ ShowProESkeletons()

bool HPS::Exchange::ImportOptionsKit::ShowProESkeletons ( bool & out_state ) const

Shows the Pro/E skeletons setting.

Parameters

out_state Whether to import skeletons, for a Pro/E file.

Returns: true if a Pro/E skeletons setting was specified, false otherwise.

◆ ShowProESubpartPMI()

bool HPS::Exchange::ImportOptionsKit::ShowProESubpartPMI ( bool & out_state ) const

Shows the Pro/E subpart PMI setting.

Parameters

out_state Whether to import subpart PMI for a Pro/E file.

Returns: true if a Pro/E subpart PMI setting was specified, false otherwise.

◆ ShowSearchDirectories()

bool HPS::Exchange::ImportOptionsKit::ShowSearchDirectories	(	UTF8Array &	out_directories,
		UTF8Array &	out_logical_names,
		BoolArray &	out_recurse_flags
	)		const

Shows the search directories setting.

Parameters

out_directories	The directories to search for files referenced by a CAD assembly.
out_logical_names	The logical names for each corresponding directory. If there are no logical names for the directories, this array can be empty.
out_recurse_flags	Whether to search recursively in each of the corresponding directories.

Returns: true if a search directories setting was specified, false otherwise.

◆ ShowSearchDirectoriesByFile()

bool HPS::Exchange::ImportOptionsKit::ShowSearchDirectoriesByFile ( UTF8Array & out_file_names ) const

Shows the search directories by file setting.

Parameters

out_file_names The names of text files containing the lists of directories to search to find files referenced by a CAD assembly.

Returns: true if a search directories by file setting was specified, false otherwise.

◆ ShowSearchRootDirectory()

bool HPS::Exchange::ImportOptionsKit::ShowSearchRootDirectory	(	bool &	out_state,
		bool &	out_recursive
	)		const

Shows the search root directory setting.

Parameters

out_state	Whether to search the CAD file root directory for sub-parts
out_recursive	Whether to search subdirectories of the CAD file root directory for sub-parts, if they are not found in the root directory.

Returns: true if a root search setting was specified, false otherwise.

◆ ShowSewingTolerance()

bool HPS::Exchange::ImportOptionsKit::ShowSewingTolerance ( double & out_tolerance ) const

Shows the sewing tolerance setting.

Parameters

out_tolerance The sewing tolerance to use on the A3DAsmModelFile after importing a file.

Returns: true if a sewing tolerance setting was specified, false otherwise.

◆ ShowSolids()

bool HPS::Exchange::ImportOptionsKit::ShowSolids ( bool & out_state ) const

Shows the solid import setting.

Parameters

out_state Whether to import solids from the CAD file.

Returns: true if a solid import setting was specified, false otherwise.

◆ ShowSTEPCodePageName()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPCodePageName ( UTF8 & out_name ) const

Shows the STEP code page name setting.

Parameters

out_name The code page name for a STEP file.

Returns: true if a STEP code page name setting was specified, false otherwise.

◆ ShowSTEPFirstColorPreference()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPFirstColorPreference ( bool & out_state ) const

Shows the STEP first color preference setting.

Parameters

out_state Whether to prefer the first color if geometry has several colors for a STEP file.

Returns: true if a STEP first color preference setting was specified, false otherwise.

◆ ShowSTEPNamePreference()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPNamePreference ( STEP::Field & out_field ) const

Shows the STEP name preference setting.

Parameters

out_field The field to get the occurrence name from for a STEP file.

Returns: true if a STEP name preference setting was specified, false otherwise.

◆ ShowSTEPOrientationHealing()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPOrientationHealing ( bool & out_state ) const

Shows the STEP orientation healing setting.

Parameters

out_state The orientation healing setting for a STEP file.

Returns: true if a STEP orientation healing setting was specified, false otherwise.

◆ ShowSTEPShellBasedSurfaceModelSplitting()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPShellBasedSurfaceModelSplitting ( bool & out_state ) const

Shows the STEP shell based surface model splitting setting.

Parameters

out_state Whether to split SHELL_BASED_SURFACE_MODEL with several OPEN_SHELLs into several bodies for a STEP file.

Returns: true if a STEP shell based surface model splitting setting was specified, false otherwise.

◆ ShowSTEPValidationProperties()

bool HPS::Exchange::ImportOptionsKit::ShowSTEPValidationProperties ( bool & out_state ) const

Shows the STEP validation properties setting.

Parameters

out_state The validation properties setting for a STEP file.

Returns: true if a STEP validation property setting was specified, false otherwise.

◆ ShowSurfaces()

bool HPS::Exchange::ImportOptionsKit::ShowSurfaces ( bool & out_state ) const

Shows the surface import setting.

Parameters

out_state Whether to import surfaces from the CAD file.

Returns: true if a surface import setting was specified, false otherwise.

◆ ShowTessellationAccuracy()

bool HPS::Exchange::ImportOptionsKit::ShowTessellationAccuracy	(	Tessellation::Accuracy &	out_type,
		bool &	out_accurate_normals
	)		const

Shows the tessellation accuracy setting.

Parameters

out_type	The type of the tessellation accuracy which was specified.
out_accurate_normals	Whether to compute surface normals when performing accurate tessellation. This only applies if out_type is Tessellation::Accuracy::Accurate.

Returns: true if a tessellation accuracy setting was specified, false otherwise.

◆ ShowTessellationCleanup()

bool HPS::Exchange::ImportOptionsKit::ShowTessellationCleanup ( bool & out_cleanup ) const

Shows the tessellation cleanup setting.

Parameters

out_cleanup The tesselation cleanup setting that was specified.

Returns: true if a tessellation cleanup setting was specified, false otherwise.

◆ ShowTessellationLevel()

bool HPS::Exchange::ImportOptionsKit::ShowTessellationLevel	(	Tessellation::Type &	out_type,
		Tessellation::Level &	out_level,
		Tessellation::Chord::Limit &	out_limit_type,
		double &	out_limit,
		double &	out_angle_tolerance
	)		const

Shows the tessellation level setting.

Parameters

out_type	The type of the tessellation level setting which was specified.
out_level	The predefined quality of the tessellation that will be generated for BRep data. This is only valid if out_type is Tessellation::Type::Standard.
out_limit_type	The type of chord limit which was specified. This is only valid if out_type is Tessellation::Type::Custom.
out_limit	The chord limit to use to generate tessellation for BRep data. Its interpretation depends on the preceding argument. This is only valid if out_type is Tessellation::Type::Custom.
out_angle_tolerance	The maximum angle in degrees between two consecutive wire elements in the generated tessellation. This is only valid if out_type is Tessellation::Type::Custom.

Returns: true if a tessellation level setting was specified, false otherwise.

◆ ShowTessellationMaximumEdgeLength()

bool HPS::Exchange::ImportOptionsKit::ShowTessellationMaximumEdgeLength ( double & out_length ) const

Shows the tessellation maximum edge length setting.

Parameters

out_length The tessellation maximum edge length setting.

Returns: true if a tessellation maximum edge length setting was specified, false otherwise.

◆ ShowTessellationPreservesUVPoints()

bool HPS::Exchange::ImportOptionsKit::ShowTessellationPreservesUVPoints ( bool & out_state ) const

Shows the tessellation UV preservation setting.

Parameters

out_state Whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

Returns: true if a tessellation UV preservation setting was specified, false otherwise.

◆ ShowTextureDirectories()

bool HPS::Exchange::ImportOptionsKit::ShowTextureDirectories ( UTF8Array & out_directories ) const

Shows the texture search directories setting.

Parameters

out_directories The directories to search for textures referenced by a CAD assembly.

Returns: true if a texture search directories setting was specified, false otherwise.

◆ ShowUnigraphicsFittedCamera()

bool HPS::Exchange::ImportOptionsKit::ShowUnigraphicsFittedCamera ( bool & out_state ) const

Shows the Unigraphics fitted camera setting.

Parameters

out_state Whether to make view cameras fit all visible geometry for a Unigraphics file.

Returns: true if a Unigraphics fitted camera setting was specified, false otherwise.

◆ ShowUnigraphicsPreferredReferenceSets()

bool HPS::Exchange::ImportOptionsKit::ShowUnigraphicsPreferredReferenceSets	(	UTF8Array &	out_reference_sets,
		bool &	out_apply_to_all_levels
	)		const

Shows the Unigraphics preferred reference sets setting.

Parameters

out_reference_sets	List of preferred references sets for a Unigraphics file.
out_apply_to_all_levels	Whether the reference sets will apply to subassemblies for a Unigraphics file.

Returns: true if a Unigraphics preferred reference sets setting was specified, false otherwise.

◆ ShowWireframes()

bool HPS::Exchange::ImportOptionsKit::ShowWireframes ( bool & out_state ) const

Shows the wireframe import setting.

Parameters

out_state Whether to import wireframes from the CAD file.

Returns: true if a wireframe import setting was specified, false otherwise.

◆ Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

◆ UnsetActiveFilter()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetActiveFilter ( )

Removes the active filter import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetAnnotationCaptureFitting()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetAnnotationCaptureFitting ( )

Removes the annotation capture fitting setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetAttributes()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetAttributes ( )

Removes the attribute import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetBRepMode()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetBRepMode ( )

Removes the BRep mode import setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetCatiaV4LogicalNameForRootDirectory()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetCatiaV4LogicalNameForRootDirectory ( )

Removes the Catia V4 logical name for the root directory setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetCatiaV4LogicalNameSearching()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetCatiaV4LogicalNameSearching ( )

Removes the Catia V4 logical name searching setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetCatiaV5Cache()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetCatiaV5Cache ( )

Removes the Catia V5 cache setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetConfiguration()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetConfiguration ( )

Removes the configuration setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetConstructionAndReferences()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetConstructionAndReferences ( )

Removes the construction and references import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetDefaultUnits()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetDefaultUnits ( )

Removes the default units setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetDrawings()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetDrawings ( )

Removes the drawing state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetEverything()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetEverything ( )

Removes all settings from this ImportOptionsKit.

Returns: A reference to this ImportOptionsKit.

◆ UnsetFeatureTrees()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetFeatureTrees ( )

Removes the feature trees import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetGeometryDefaultColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetGeometryDefaultColor ( )

Removes the geometry default color setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetHiddenObjects()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetHiddenObjects ( )

Removes the hidden objects import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCAttributeXMLFile()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCAttributeXMLFile ( )

Removes the IFC attribute XML file setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCCodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCCodePageName ( )

Removes the IFC code page name setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCEdges()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCEdges ( )

Removes the IFC edges setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCFaceOptimization()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCFaceOptimization ( )

Removes the IFC face optimization setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCMetadata()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCMetadata ( )

Removes the IFC metadata setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIFCOwnerHistoryOptimization()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIFCOwnerHistoryOptimization ( )

Removes the IFC owner history optimization setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetIncrementalComponentPaths()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetIncrementalComponentPaths ( )

Removes the incremental component paths setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetInventorEmbeddedTessellation()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetInventorEmbeddedTessellation ( )

Removes the Inventor embedded tessellation setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetJTTessellationLevel()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetJTTessellationLevel ( )

Removes the JT tessellation level setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetLocation()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetLocation ( )

Removes the location setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetMode()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetMode ( )

Removes the mode setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetMultiProcessCount()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetMultiProcessCount ( )

Removes the multi-process count setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetNURBSConversion()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetNURBSConversion ( )

Removes the NURBS conversion setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPDF3DStreamIndex()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPDF3DStreamIndex ( )

Removes the PDF 3D stream index setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMI()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMI ( )

Removes the PMI import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMIDefaultColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMIDefaultColor ( )

Removes the PMI default color setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMIDefaultUnits()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMIDefaultUnits ( )

Removes the PMI default units setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMIFlipping()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMIFlipping ( )

Removes the pmi flipping setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMIPrecision()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMIPrecision ( )

Removes the PMI precision setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPMISubstitutionFont()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPMISubstitutionFont ( )

Removes the PMI substitution font setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetPRCReadHelper()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetPRCReadHelper ( )

Removes the PRC read helper setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProECodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProECodePageName ( )

Removes the Pro/E code page name setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEConstructionEntities()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEConstructionEntities ( )

Removes the Pro/E construction entities setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEDatum()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEDatum ( )

Removes the Pro/E datum setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEDimensionTolerance()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEDimensionTolerance ( )

Removes the Pro/E dimension tolerance setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEExplodedViews()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEExplodedViews ( )

Removes the Pro/E exploded views setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEFamilyTreeSource()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEFamilyTreeSource ( )

Removes the Pro/E family table setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEHomeView()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEHomeView ( )

Removes the Pro/E home view setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEMissingBoolean()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEMissingBoolean ( )

Removes the Pro/E missing boolean setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProEMissingFlexibleComponent()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProEMissingFlexibleComponent ( )

Removes the Pro/E missing flexible setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProESessionColor()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProESessionColor ( )

Removes the Pro/E session color setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProESkeletons()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProESkeletons ( )

Removes the Pro/E skeletons setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetProESubpartPMI()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetProESubpartPMI ( )

Removes the Pro/E subpart PMI setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSearchDirectories()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSearchDirectories ( )

Removes the search directories setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSearchDirectoriesByFile()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSearchDirectoriesByFile ( )

Removes the search directories by file setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSearchRootDirectory()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSearchRootDirectory ( )

Removes the search root directory setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSewingTolerance()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSewingTolerance ( )

Removes the sewing tolerance setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSolids()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSolids ( )

Removes the solid import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPCodePageName()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPCodePageName ( )

Removes the STEP code page name setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPFirstColorPreference()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPFirstColorPreference ( )

Removes the STEP first color preference setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPNamePreference()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPNamePreference ( )

Removes the STEP name preference setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPOrientationHealing()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPOrientationHealing ( )

Removes the STEP orientation healing setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPShellBasedSurfaceModelSplitting()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPShellBasedSurfaceModelSplitting ( )

Removes the STEP shell based surface model splitting setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSTEPValidationProperties()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSTEPValidationProperties ( )

Removes the STEP validation properties setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetSurfaces()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetSurfaces ( )

Removes the surface import state.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTessellationAccuracy()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTessellationAccuracy ( )

Removes the tessellation accuracy setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTessellationCleanup()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTessellationCleanup ( )

Removes the tessellation cleanup setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTessellationLevel()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTessellationLevel ( )

Removes the tessellation level setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTessellationMaximumEdgeLength()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTessellationMaximumEdgeLength ( )

Removes the tessellation maximum edge length setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTessellationPreservesUVPoints()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTessellationPreservesUVPoints ( )

Removes the tessellation UV preservation setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetTextureDirectories()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetTextureDirectories ( )

Removes the texture search directories setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetUnigraphicsFittedCamera()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetUnigraphicsFittedCamera ( )

Removes the Unigraphics fitted camera setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetUnigraphicsPreferredReferenceSets()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetUnigraphicsPreferredReferenceSets ( )

Removes the Unigraphics preferred reference sets setting.

Returns: A reference to this ImportOptionsKit.

◆ UnsetWireframes()

ImportOptionsKit& HPS::Exchange::ImportOptionsKit::UnsetWireframes ( )

Removes the wireframe import state.

Returns: A reference to this ImportOptionsKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::Exchange::ImportOptionsKit::staticType = HPS::Type::ExchangeImportOptionsKit

static

The documentation for this class was generated from the following file:

sprk_exchange.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ImportOptionsKit() [1/3]

◆ ImportOptionsKit() [2/3]

◆ ImportOptionsKit() [3/3]

◆ ~ImportOptionsKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetActiveFilter()

◆ SetAnnotationCaptureFitting()

◆ SetAttributes()

◆ SetBRepMode()

◆ SetCatiaV4LogicalNameForRootDirectory()

◆ SetCatiaV4LogicalNameSearching()

◆ SetCatiaV5Cache()

◆ SetConfiguration() [1/3]

◆ SetConfiguration() [2/3]

◆ SetConfiguration() [3/3]

◆ SetConstructionAndReferences()

◆ SetDefaultUnits()

◆ SetDrawings()

◆ SetFeatureTrees()

◆ SetGeometryDefaultColor()

◆ SetHiddenObjects()

◆ SetIFCAttributeXMLFile()

◆ SetIFCCodePageName()

◆ SetIFCEdges()

◆ SetIFCFaceOptimization()

◆ SetIFCMetadata()

◆ SetIFCOwnerHistoryOptimization()

◆ SetIncrementalComponentPath()

◆ SetIncrementalComponentPaths() [1/2]

◆ SetIncrementalComponentPaths() [2/2]

◆ SetInventorEmbeddedTessellation()

◆ SetJTTessellationLevel()

◆ SetLocation()

◆ SetMode()

◆ SetMultiProcessCount()

◆ SetNURBSConversion()

◆ SetPDF3DStreamIndex()

◆ SetPMI()

◆ SetPMIDefaultColor()

◆ SetPMIDefaultUnits()

◆ SetPMIFlipping()

◆ SetPMIPrecision()

◆ SetPMISubstitutionFont()

◆ SetPRCReadHelper()

◆ SetProECodePageName()

◆ SetProEConstructionEntities()

◆ SetProEDatum()

◆ SetProEDimensionTolerance()

◆ SetProEExplodedViews()

◆ SetProEFamilyTableSource()

◆ SetProEHomeView()

◆ SetProEMissingBoolean()

◆ SetProEMissingFlexibleComponent()

◆ SetProESessionColor()

◆ SetProESkeletons()

◆ SetProESubpartPMI()

◆ SetSearchDirectories() [1/4]

◆ SetSearchDirectories() [2/4]

◆ SetSearchDirectories() [3/4]

◆ SetSearchDirectories() [4/4]

◆ SetSearchDirectoriesByFile() [1/2]
