HPS::StyleControl Class Reference

The StyleControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::StyleControl:

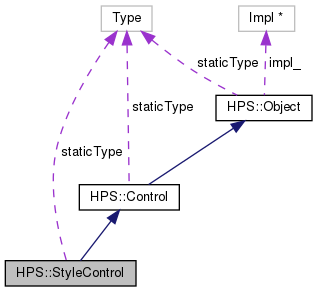

Collaboration diagram for HPS::StyleControl:

Public Member Functions
	StyleControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	StyleControl (StyleControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	StyleControl (StyleControl &&in_that)
	The move constructor creates a StyleControl by transferring the underlying impl of the rvalue reference to this StyleControl thereby avoiding a copy and allocation. More...
StyleControl &	operator= (StyleControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this StyleControl thereby avoiding a copy. More...
	~StyleControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
StyleControl &	operator= (StyleControl const &in_that)
	Share the underlying smart-pointer of the StyleControl source. More...
size_t	GetCount () const
	Returns the number of styles set here. More...
StyleKey	PushNamed (char const *in_style_name)
	Adds a named style to the top of the style stack. More...
StyleKey	PushNamed (char const *in_style_name, ConditionalExpression const &in_conditional)
	Adds a conditional named style to the top of the style stack. More...
StyleKey	AppendNamed (char const *in_style_name, ConditionalExpression const &in_conditional, Style::AppendMode in_mode=Style::AppendMode::Or)
	Appends a conditional expression to an existing style or conditional style. More...
StyleKey	PushSegment (SegmentKey const &in_style_source)
	Creates a new style based on in_style_source and places it on the top of the style stack. More...
StyleKey	PushSegment (SegmentKey const &in_style_source, ConditionalExpression const &in_conditional)
	Creates a new style based on in_style_source and places it on the top of the style stack. More...
StyleKey	AppendSegment (SegmentKey const &in_style_source, ConditionalExpression const &in_conditional, Style::AppendMode in_mode=Style::AppendMode::Or)
	Appends a conditional expression to an existing style or conditional style. More...
bool	Pop ()
	Removes the most recent style. More...
bool	Pop (Style::Type &out_type, SegmentKey &out_segment_source, UTF8 &out_style_name, ConditionalExpression &out_conditional)
	Removes the most recent style and gives information about it to the user. More...
void	Flush (SegmentKey const &in_style_source)
	Removes any styles on the associated segment which refer to the provided style source. More...
void	Flush (SegmentKey const &in_style_source, ConditionalExpression const &in_conditional)
	Removes any styles on the associated segment which refer to the provided style source with the provided condition. More...
void	Flush (char const *in_style_name)
	Removes any styles on the associated segment which refer to the provided style name. More...
void	Flush (char const *in_style_name, ConditionalExpression const &in_conditional)
	Removes any styles on the associated segment which refer to the provided style name with the provided condition. More...
StyleKey	SetNamed (char const *in_style_name)
	Sets in_style_name as the only active style, replacing any existing styles. More...
StyleKey	SetNamed (char const *in_style_name, ConditionalExpression const &in_conditional)
	Sets in_style_name as the only active style, replacing any existing styles. More...
StyleKey	SetSegment (SegmentKey const &in_style_source)
	Sets in_style_source as the only active style, replacing any existing styles. More...
StyleKey	SetSegment (SegmentKey const &in_style_source, ConditionalExpression const &in_conditional)
	Sets in_style_source as the only active style, replacing any existing styles. More...
void	Set (StyleTypeArray const &in_types, SegmentKeyArray const &in_segment_sources, UTF8Array const &in_style_names, ConditionalExpressionArray const &in_conditions)
	Sets a collection of styles, replacing any existing styles. More...
void	Set (StyleTypeArray const &in_types, SegmentKeyArray const &in_segment_sources, UTF8Array const &in_style_names)
	Sets a collection of styles, replacing any existing styles. More...
void	Set (size_t in_count, Style::Type const in_types[], SegmentKey const in_segment_sources[], UTF8 const in_style_names[], ConditionalExpression const in_conditions[])
	Sets a collection of styles, replacing any existing styles. More...
void	UnsetTop ()
	Unsets the most recent style on this segment. More...
void	UnsetAllSegment ()
	Unsets all segment styles on this segment. More...
void	UnsetAllNamed ()
	Unsets all named styles on this segment. More...
void	UnsetEverything ()
	Unsets all styles on this segment. More...
bool	ShowTop (Style::Type &out_type, SegmentKey &out_segment_source, UTF8 &out_style_name, ConditionalExpression &out_conditional) const
	Shows the most recent style applied to this segment. More...
bool	ShowTop (StyleKey &out_style) const
	Shows the most recent style applied to this segment. More...
bool	Show (StyleTypeArray &out_types, SegmentKeyArray &out_segment_sources, UTF8Array &out_style_names, ConditionalExpressionArray &out_conditions) const
	Shows all styles on this segment. More...
bool	Show (StyleKeyArray &out_styles) const
	Shows the all styles on this segment. More...
bool	ShowAllSegment (SegmentKeyArray &out_segments, HPS::ConditionalExpressionArray &out_conditions) const
	Shows all segment styles on this segment. More...
bool	ShowAllSegment (StyleKeyArray &out_styles) const
	Shows the all segment styles on this segment. More...
bool	ShowAllNamed (UTF8Array &out_names, HPS::ConditionalExpressionArray &out_conditions) const
	Shows all named styles on this segment. More...
bool	ShowAllNamed (StyleKeyArray &out_styles) const
	Shows the all named styles on this segment. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::StyleControl

Private Member Functions
	StyleControl ()

Detailed Description

The StyleControl class is a smart pointer that is tied to a database object.

Controls are used for manipulating settings within the database.

Constructor & Destructor Documentation

StyleControl() [1/4]

HPS::StyleControl::StyleControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

StyleControl() [2/4]

HPS::StyleControl::StyleControl

(

StyleControl const &

in_that

)

Initializes a control tied to the same object as in_that.

StyleControl() [3/4]

HPS::StyleControl::StyleControl

(

StyleControl &&

in_that

)

The move constructor creates a StyleControl by transferring the underlying impl of the rvalue reference to this StyleControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a StyleControl to take the impl from.

~StyleControl()

HPS::StyleControl::~StyleControl

(

)

Releases a reference to the database object this control is tied to.

StyleControl() [4/4]

HPS::StyleControl::StyleControl ( )

private

Member Function Documentation

AppendNamed()

StyleKey HPS::StyleControl::AppendNamed	(	char const *	in_style_name,
		ConditionalExpression const &	in_conditional,
		Style::AppendMode	in_mode = Style::AppendMode::Or
	)

Appends a conditional expression to an existing style or conditional style.

If the style does not currently exist, a new conditional style is pushed. Conditional styles are only applied if their condition(s) are satisfied.

Parameters

in_style_name	The name of the named style which should be defined in an accessible portfolio.
in_conditional	A conditional expression that must be satisfied in order for the style to be applied.
in_mode	The behavior of the conditional expression if another conditional style is currently applied with the same style.

Returns

a StyleKey that can be used to interact with the style.

AppendSegment()

StyleKey HPS::StyleControl::AppendSegment	(	SegmentKey const &	in_style_source,
		ConditionalExpression const &	in_conditional,
		Style::AppendMode	in_mode = Style::AppendMode::Or
	)

Appends a conditional expression to an existing style or conditional style.

If the style does not currently exist, a new conditional style is pushed. Conditional styles are only applied if their condition(s) are satisfied.

Parameters

in_style_source	The segment to use as the source for the attributes that should be styled.
in_conditional	A conditional expression that must be satisfied in order for the style to be applied.
in_mode	The behavior of the conditional expression if another conditional style is currently applied with the same style.

Returns

a StyleKey that can be used to interact with the style.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Flush() [1/4]

void HPS::StyleControl::Flush

(

SegmentKey const &

in_style_source

)

Removes any styles on the associated segment which refer to the provided style source.

The styles will be removed regardless if there is a conditional expression associated with the style or not.

Parameters

in_style_source

The style source used to identify which styles to remove.

Flush() [2/4]

void HPS::StyleControl::Flush	(	SegmentKey const &	in_style_source,
		ConditionalExpression const &	in_conditional
	)

Removes any styles on the associated segment which refer to the provided style source with the provided condition.

If a style is found which references the style source and has an associated conditional expression which contains the provided conditional expression, the provided conditional expression will be removed from the conditional expression associated with the style. If removing the provided conditional expression from the style results in the complete removal of the conditional expression for the style, the style itself will be completely removed.

Parameters

in_style_source	The style source used to identify which styles to remove or modify.
in_conditional	The conditional expression to remove from styles which refer to the provided style source.

Flush() [3/4]

void HPS::StyleControl::Flush

(

char const *

in_style_name

)

Removes any styles on the associated segment which refer to the provided style name.

The styles will be removed regardless if there is a conditional expression associated with the style or not.

Parameters

in_style_name

The style name used to identify which styles to remove.

Flush() [4/4]

void HPS::StyleControl::Flush	(	char const *	in_style_name,
		ConditionalExpression const &	in_conditional
	)

Removes any styles on the associated segment which refer to the provided style name with the provided condition.

If a style is found which references the style name and has an associated conditional expression which contains the provided conditional expression, the provided conditional expression will be removed from the conditional expression associated with the style. If removing the provided conditional expression from the style results in the complete removal of the conditional expression for the style, the style itself will be completely removed.

Parameters

in_style_name	The style name used to identify which styles to remove or modify.
in_conditional	The conditional expression to remove from styles which refer to the provided style name.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetCount()

size_t HPS::StyleControl::GetCount

(

)

const

Returns the number of styles set here.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::StyleControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

StyleControl& HPS::StyleControl::operator=

(

StyleControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this StyleControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a StyleControl to take the impl from.

Returns

A reference to this StyleControl.

operator=() [2/2]

StyleControl& HPS::StyleControl::operator=

(

StyleControl const &

in_that

)

Share the underlying smart-pointer of the StyleControl source.

Parameters

in_that

The StyleControl source of the assignment.

Returns

A reference to this StyleControl.

Pop() [1/2]

bool HPS::StyleControl::Pop

(

)

Removes the most recent style.

Returns

true if a style was present, false otherwise.

Pop() [2/2]

bool HPS::StyleControl::Pop	(	Style::Type &	out_type,
		SegmentKey &	out_segment_source,
		UTF8 &	out_style_name,
		ConditionalExpression &	out_conditional
	)

Removes the most recent style and gives information about it to the user.

Parameters

out_type	Indicates the type of the style.
out_segment_source	If out_type was Segment, this value contains the source segment for the style.
out_style_name	If out_type was Named, this value contains the name of the style (defined in a portfolio).
out_conditional	The conditions, if any, set on the style when it was applied.

Returns

true if a style was present, false otherwise.

PushNamed() [1/2]

StyleKey HPS::StyleControl::PushNamed

(

char const *

in_style_name

)

Adds a named style to the top of the style stack.

Existing styles are unmodified but styles on top take precedence if there are duplicate settings.

PushNamed() [2/2]

StyleKey HPS::StyleControl::PushNamed	(	char const *	in_style_name,
		ConditionalExpression const &	in_conditional
	)

Adds a conditional named style to the top of the style stack.

Existing styles are unmodified but styles on top take precedence if there are duplicate settings. Conditional styles are only applied if their condition(s) are satisfied.

Parameters

in_style_name	The name of the named style which should be defined in an accessible portfolio.
in_conditional	A conditional expression that must be satisfied in order for the style to be applied.

Returns

a StyleKey that can be used to interact with the style.

PushSegment() [1/2]

StyleKey HPS::StyleControl::PushSegment

(

SegmentKey const &

in_style_source

)

Creates a new style based on in_style_source and places it on the top of the style stack.

Existing styles are unmodified but styles on top take precedence if there are duplicate settings.

Parameters

in_style_source

The segment to use as the source for the attributes that should be styled.

Returns

a StyleKey that can be used to interact with the style.

PushSegment() [2/2]

StyleKey HPS::StyleControl::PushSegment	(	SegmentKey const &	in_style_source,
		ConditionalExpression const &	in_conditional
	)

Creates a new style based on in_style_source and places it on the top of the style stack.

Existing styles are unmodified but styles on top take precedence if there are duplicate settings.

Parameters

in_style_source	The segment to use as the source for the attributes that should be styled.
in_conditional	A conditional expression that must be satisfied in order for the style to be applied.

Returns

a StyleKey that can be used to interact with the style.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set() [1/3]

void HPS::StyleControl::Set	(	StyleTypeArray const &	in_types,
		SegmentKeyArray const &	in_segment_sources,
		UTF8Array const &	in_style_names,
		ConditionalExpressionArray const &	in_conditions
	)

Sets a collection of styles, replacing any existing styles.

Parameters

in_types	Indicates the type of each style.
in_segment_sources	For each entry, if in_type was Segment, this value must contain the source segment for the style.
in_style_names	For each entry, if in_type was Named, this value must contain the name of the style (defined in a portfolio).
in_conditions	The conditions to set on each style.

Set() [2/3]

void HPS::StyleControl::Set	(	StyleTypeArray const &	in_types,
		SegmentKeyArray const &	in_segment_sources,
		UTF8Array const &	in_style_names
	)

Sets a collection of styles, replacing any existing styles.

Parameters

in_types	Indicates the type of each style.
in_segment_sources	For each entry, if in_type was Segment, this value must contain the source segment for the style.
in_style_names	For each entry, if in_type was Named, this value must contain the name of the style (defined in a portfolio).

Set() [3/3]

void HPS::StyleControl::Set	(	size_t	in_count,
		Style::Type const	in_types[],
		SegmentKey const	in_segment_sources[],
		UTF8 const	in_style_names[],
		ConditionalExpression const	in_conditions[]
	)

Sets a collection of styles, replacing any existing styles.

Parameters

in_count	The length of all arrays
in_types	Indicates the type of each style.
in_segment_sources	For each entry, if in_type was Segment, this value must contain the source segment for the style.
in_style_names	For each entry, if in_type was Named, this value must contain the name of the style (defined in a portfolio).
in_conditions	The conditions, if any, to set on each style. Passing a null pointer indicates no conditions are requested.

SetNamed() [1/2]

StyleKey HPS::StyleControl::SetNamed

(

char const *

in_style_name

)

Sets in_style_name as the only active style, replacing any existing styles.

Parameters

in_style_name

The name of the style to apply. If the name does not exist in the active portfolio, no style is applied.

SetNamed() [2/2]

StyleKey HPS::StyleControl::SetNamed	(	char const *	in_style_name,
		ConditionalExpression const &	in_conditional
	)

Sets in_style_name as the only active style, replacing any existing styles.

Parameters

in_style_name	The name of the style to apply. If the name does not exist in the active portfolio, no style is applied.
in_conditional	A condition or conditions that must be met for a style to be activated.

SetSegment() [1/2]

StyleKey HPS::StyleControl::SetSegment

(

SegmentKey const &

in_style_source

)

Sets in_style_source as the only active style, replacing any existing styles.

Parameters

in_style_source

A segment containing attributes that should be styled.

SetSegment() [2/2]

StyleKey HPS::StyleControl::SetSegment	(	SegmentKey const &	in_style_source,
		ConditionalExpression const &	in_conditional
	)

Sets in_style_source as the only active style, replacing any existing styles.

Parameters

in_style_source	A segment containing attributes that should be styled.
in_conditional	A condition or conditions that must be met for a style to be activated.

Show() [1/2]

bool HPS::StyleControl::Show	(	StyleTypeArray &	out_types,
		SegmentKeyArray &	out_segment_sources,
		UTF8Array &	out_style_names,
		ConditionalExpressionArray &	out_conditions
	)		const

Shows all styles on this segment.

Parameters

out_types	Indicates the type of each style.
out_segment_sources	For each entry, if out_type was Style::Type::Segment, this value contains the source segment for the style.
out_style_names	For each entry, if out_type was Style::Type::Named, this value contains the name of the style (defined in a portfolio).
out_conditions	The conditions, if any, set on each style when it was applied.

Returns

true if any style was present, false otherwise.

Show() [2/2]

bool HPS::StyleControl::Show

(

StyleKeyArray &

out_styles

)

const

Shows the all styles on this segment.

Parameters

out_styles

The StyleKey for each style on this segment.

Returns

true if any style was present, false otherwise.

ShowAllNamed() [1/2]

bool HPS::StyleControl::ShowAllNamed	(	UTF8Array &	out_names,
		HPS::ConditionalExpressionArray &	out_conditions
	)		const

Shows all named styles on this segment.

Parameters

out_names	Names of all named styles set on this segment.
out_conditions	The conditions, if any, set on each style when it was applied.

Returns

true if any style of the correct type was present, false otherwise.

ShowAllNamed() [2/2]

bool HPS::StyleControl::ShowAllNamed

(

StyleKeyArray &

out_styles

)

const

Shows the all named styles on this segment.

Parameters

out_styles

The StyleKey for each named style on this segment.

Returns

true if any named style was present, false otherwise.

ShowAllSegment() [1/2]

bool HPS::StyleControl::ShowAllSegment	(	SegmentKeyArray &	out_segments,
		HPS::ConditionalExpressionArray &	out_conditions
	)		const

Shows all segment styles on this segment.

Parameters

out_segments	Keys to all segments styled onto this segment.
out_conditions	The conditions, if any, set on each style when it was applied.

Returns

true if any style of the correct type was present, false otherwise.

ShowAllSegment() [2/2]

bool HPS::StyleControl::ShowAllSegment

(

StyleKeyArray &

out_styles

)

const

Shows the all segment styles on this segment.

Parameters

out_styles

The StyleKey for each segment style on this segment.

Returns

true if any segment style was present, false otherwise.

ShowTop() [1/2]

bool HPS::StyleControl::ShowTop	(	Style::Type &	out_type,
		SegmentKey &	out_segment_source,
		UTF8 &	out_style_name,
		ConditionalExpression &	out_conditional
	)		const

Shows the most recent style applied to this segment.

Parameters

out_type	Indicates the type of the style.
out_segment_source	If out_type was Style::Type::Segment, this value contains the source segment for the style.
out_style_name	If out_type was Style::Type::Named, this value contains the name of the style (defined in a portfolio).
out_conditional	The conditions, if any, set on the style when it was applied.

Returns

true if a style was present, false otherwise.

ShowTop() [2/2]

bool HPS::StyleControl::ShowTop

(

StyleKey &

out_style

)

const

Shows the most recent style applied to this segment.

Parameters

out_style

The StyleKey for the most recent style applied to this segment.

Returns

true if a style was present, false otherwise.

Type()

virtual HPS::Type HPS::StyleControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetAllNamed()

void HPS::StyleControl::UnsetAllNamed

(

)

Unsets all named styles on this segment.

UnsetAllSegment()

void HPS::StyleControl::UnsetAllSegment

(

)

Unsets all segment styles on this segment.

UnsetEverything()

void HPS::StyleControl::UnsetEverything

(

)

Unsets all styles on this segment.

UnsetTop()

void HPS::StyleControl::UnsetTop

(

)

Unsets the most recent style on this segment.

Member Data Documentation

staticType

const HPS::Type HPS::StyleControl::staticType = HPS::Type::StyleControl

static

---

The documentation for this class was generated from the following file:

• hps.h
