The HPS::Stream::ExportOptionsKit class contains settings controlling the export of HSF files. More...

#include <hps.h>

Inheritance diagram for HPS::Stream::ExportOptionsKit:

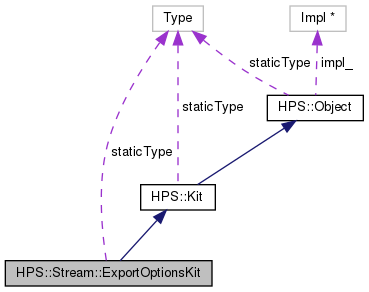

Collaboration diagram for HPS::Stream::ExportOptionsKit:

Public Member Functions
	ExportOptionsKit ()
	The default constructor creates an empty ExportOptionsKit object. More...

	ExportOptionsKit (ExportOptionsKit const &in_kit)
	The copy constructor creates a new ExportOptionsKit object that contains the same settings as the source ExportOptionsKit. More...

	ExportOptionsKit (ExportOptionsKit &&in_that)
	The move constructor creates an ExportOptionsKit by transferring the underlying impl of the rvalue reference to this ExportOptionsKit thereby avoiding a copy and allocation. More...

ExportOptionsKit &	operator= (ExportOptionsKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ExportOptionsKit thereby avoiding a copy. More...

virtual	~ExportOptionsKit ()

HPS::Type	ObjectType () const

void	Set (ExportOptionsKit const &in_kit)
	Copies the source ExportOptionsKit into this ExportOptionsKit. More...

void	Show (ExportOptionsKit &out_kit) const
	Copies this ExportOptionsKit into the given ExportOptionsKit. More...

ExportOptionsKit &	operator= (ExportOptionsKit const &in_kit)
	Copies the source ExportOptionsKit into this ExportOptionsKit. More...

bool	Empty () const
	Indicates whether this ExportOptionsKit has any values set on it. More...

bool	Equals (ExportOptionsKit const &in_kit) const
	Check if the source ExportOptionsKit is equivalent to this ExportOptionsKit. More...

bool	operator== (ExportOptionsKit const &in_kit) const
	Check if the source ExportOptionsKit is equivalent to this ExportOptionsKit. More...

bool	operator!= (ExportOptionsKit const &in_kit) const
	Check if the source ExportOptionsKit is not equivalent to this ExportOptionsKit. More...

ExportOptionsKit &	SetToolkit (Toolkit const &in_toolkit)
	Sets the toolkit used for the export process. More...

ExportOptionsKit &	SetDefaultCamera (CameraKit const &in_camera)
	Sets the default camera used for the export process. More...

ExportOptionsKit &	SetVertexCompression (bool in_state, unsigned int in_bits_per_vertex=24)
	Sets vertex compression state and maximum number of bits to use for each (x,y,z) vertex. More...

ExportOptionsKit &	SetNormalCompression (bool in_state, unsigned int in_bits_per_normal=10)
	Sets normal compression state and maximum number of bits to use for each (x,y,z) normal. More...

ExportOptionsKit &	SetParameterCompression (bool in_state, unsigned int in_bits_per_parameter=8)
	Sets vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter. More...

ExportOptionsKit &	SetColorCompression (bool in_state, unsigned int in_bits_per_color=24)
	Sets color compression state and maximum number of bits to use for each (r,g,b) color. More...

ExportOptionsKit &	SetIndexCompression (bool in_state, unsigned int in_bits_per_index=8)
	Sets color index compression state and maximum number of bits to use for each float index. More...

ExportOptionsKit &	SetConnectivityCompression (bool in_state)
	Sets connectivity (face list) compression state. More...

ExportOptionsKit &	SetSerializeTristrips (bool in_state)
	Sets tristrips serialization state. More...

ExportOptionsKit &	SetImageCompression (bool in_state, float in_quality=0.75f)
	Sets image compression state for uncompressed images in segment tree. More...

ExportOptionsKit &	UnsetToolkit ()
	Removes the toolkit used for the export process. More...

ExportOptionsKit &	UnsetDefaultCamera ()
	Removes the default camera used for the export process. More...

ExportOptionsKit &	UnsetVertexCompression ()
	Removes vertex compression state and maximum number of bits to use for each (x,y,z) vertex. More...

ExportOptionsKit &	UnsetNormalCompression ()
	Removes normal compression state and maximum number of bits to use for each (x,y,z) normal. More...

ExportOptionsKit &	UnsetParameterCompression ()
	Removes vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter. More...

ExportOptionsKit &	UnsetColorCompression ()
	Removes color compression state and maximum number of bits to use for each (r,g,b) color. More...

ExportOptionsKit &	UnsetIndexCompression ()
	Removes color index compression state and maximum number of bits to use for each float index. More...

ExportOptionsKit &	UnsetConnectivityCompression ()
	Removes connectivity (face list) compression state. More...

ExportOptionsKit &	UnsetImageCompression ()
	Removes image compression state for uncompressed images in segment tree. More...

ExportOptionsKit &	UnsetSerializeTristrips ()
	Removes tristrips serialization state. More...

ExportOptionsKit &	UnsetEverything ()
	Removes all settings from this ExportOptionsKit. More...

bool	ShowToolkit (HPS::Stream::Toolkit &out_toolkit) const
	Shows the root toolkit used for the export process. More...

bool	ShowDefaultCamera (CameraKit &out_camera) const
	Shows the default camera used for the export process. More...

bool	ShowVertexCompression (bool &out_state, unsigned int &out_bits_per_vertex) const
	Shows vertex compression state and maximum number of bits to use for each (x,y,z) vertex. More...

bool	ShowNormalCompression (bool &out_state, unsigned int &out_bits_per_normal) const
	Shows normal compression state and maximum number of bits to use for each (x,y,z) normal. More...

bool	ShowParameterCompression (bool &out_state, unsigned int &out_bits_per_parameter) const
	Shows vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter. More...

bool	ShowColorCompression (bool &out_state, unsigned int &out_bits_per_color) const
	Shows color compression state and maximum number of bits to use for each (r,g,b) color. More...

bool	ShowIndexCompression (bool &out_state, unsigned int &out_bits_per_index) const
	Shows color index compression state and maximum number of bits to use for each float index. More...

bool	ShowConnectivityCompression (bool &out_state) const
	Shows connectivity (face list) compression state. More...

bool	ShowImageCompression (bool &out_state, float &out_quality) const
	Shows image compression state for uncompressed images in segment tree. More...

bool	ShowSerializeTristrips (bool &out_state) const
	Shows tristrips serialization state. More...

ExportOptionsKit &	SetEventHandler (HPS::Stream::ExportEventHandler &in_handler, intptr_t in_type)
	Sets the specified ExportEventHandler for the indicated ExportEvent type. More...

ExportOptionsKit &	UnsetEventHandler (intptr_t in_type)
	Unsets the ExportEventHandler for the indicated ExportEvent type. More...

ExportOptionsKit &	UnsetEventHandlers ()
	Unsets the ExportEventHandler for all ExportEvent types. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ExportOptionsKit	GetDefault ()
	Creates a ExportOptionsKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::StreamExportOptionsKit

Detailed Description

The HPS::Stream::ExportOptionsKit class contains settings controlling the export of HSF files.

Calling HPS::Stream::ExportOptionsKit::GetDefault() will return an options kit with values found in this table.

Constructor & Destructor Documentation

◆ ExportOptionsKit() [1/3]

HPS::Stream::ExportOptionsKit::ExportOptionsKit ( )

The default constructor creates an empty ExportOptionsKit object.

◆ ExportOptionsKit() [2/3]

HPS::Stream::ExportOptionsKit::ExportOptionsKit ( ExportOptionsKit const & in_kit )

The copy constructor creates a new ExportOptionsKit object that contains the same settings as the source ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to copy.

◆ ExportOptionsKit() [3/3]

HPS::Stream::ExportOptionsKit::ExportOptionsKit ( ExportOptionsKit && in_that )

The move constructor creates an ExportOptionsKit by transferring the underlying impl of the rvalue reference to this ExportOptionsKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to an ExportOptionsKit to take the impl from.

◆ ~ExportOptionsKit()

virtual HPS::Stream::ExportOptionsKit::~ExportOptionsKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::Stream::ExportOptionsKit::Empty ( ) const

virtual

Indicates whether this ExportOptionsKit has any values set on it.

Returns: true if no values are set on this ExportOptionsKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::Stream::ExportOptionsKit::Equals ( ExportOptionsKit const & in_kit ) const

Check if the source ExportOptionsKit is equivalent to this ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to compare to this ExportOptionsKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static ExportOptionsKit HPS::Stream::ExportOptionsKit::GetDefault ( )

static

Creates a ExportOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A ExportOptionsKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::Stream::ExportOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

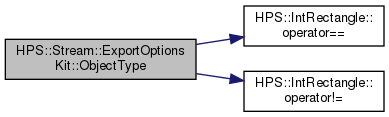

Here is the call graph for this function:

◆ operator!=()

bool HPS::Stream::ExportOptionsKit::operator!= ( ExportOptionsKit const & in_kit ) const

Check if the source ExportOptionsKit is not equivalent to this ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to compare to this ExportOptionsKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

ExportOptionsKit& HPS::Stream::ExportOptionsKit::operator= ( ExportOptionsKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this ExportOptionsKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to an ExportOptionsKit to take the impl from.

Returns: A reference to this ExportOptionsKit.

◆ operator=() [2/2]

ExportOptionsKit& HPS::Stream::ExportOptionsKit::operator= ( ExportOptionsKit const & in_kit )

Copies the source ExportOptionsKit into this ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to copy.

Returns: A reference to this ExportOptionsKit.

◆ operator==()

bool HPS::Stream::ExportOptionsKit::operator== ( ExportOptionsKit const & in_kit ) const

Check if the source ExportOptionsKit is equivalent to this ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to compare to this ExportOptionsKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::Stream::ExportOptionsKit::Set ( ExportOptionsKit const & in_kit )

Copies the source ExportOptionsKit into this ExportOptionsKit.

Parameters

in_kit The source ExportOptionsKit to copy.

◆ SetColorCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetColorCompression	(	bool	in_state,
		unsigned int	in_bits_per_color = `24`
	)

Sets color compression state and maximum number of bits to use for each (r,g,b) color.

Defaults to no compression.

Parameters

in_state	Whether color compression is enabled or not.
in_bits_per_color	Number of bits to use per color when performing color compression. Value must be in the range [0, 72]. Defaults to 24.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetConnectivityCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetConnectivityCompression ( bool in_state )

Sets connectivity (face list) compression state.

Defaults to no compression.

Parameters

in_state Whether color index compression is enabled or not.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetDefaultCamera()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetDefaultCamera ( CameraKit const & in_camera )

Sets the default camera used for the export process.

If no camera is specified, no default camera will be used during export.

Parameters

in_camera The camera to apply as default.

Returns: A reference to this ExportOptionsKit.

◆ SetEventHandler()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetEventHandler	(	HPS::Stream::ExportEventHandler &	in_handler,
		intptr_t	in_type
	)

Sets the specified ExportEventHandler for the indicated ExportEvent type.

Parameters

in_handler	An ExportEventHandler to be set.
in_type	The type of the Stream ExportEvent for which the given event handler will be used.

Returns: A reference to this ExportOptionsKit.

◆ SetImageCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetImageCompression	(	bool	in_state,
		float	in_quality = `0.75f`
	)

Sets image compression state for uncompressed images in segment tree.

Defaults to no compression, though the images will be converted to lossless PNG data within the file.

Parameters

in_state	Whether to compress uncompressed images. If false, uncompressed images will be exported as lossless PNG, if true, they are exported as JPEG with the specified quality.
in_quality	Float in the range [0,1] indicating the quality of the JPEG image. Defaults to 0.75f.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetIndexCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetIndexCompression	(	bool	in_state,
		unsigned int	in_bits_per_index = `8`
	)

Sets color index compression state and maximum number of bits to use for each float index.

Defaults to no compression.

Parameters

in_state	Whether color index compression is enabled or not.
in_bits_per_index	Number of bits to use per index when performing color index compression. Value must be in the range [0, 24]. Defaults to 8.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetNormalCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetNormalCompression	(	bool	in_state,
		unsigned int	in_bits_per_normal = `10`
	)

Sets normal compression state and maximum number of bits to use for each (x,y,z) normal.

Defaults to no compression.

Parameters

in_state	Whether normal compression is enabled or not.
in_bits_per_normal	Number of bits to use per normal when performing normal compression. Value must be in the range [0, 72]. Defaults to 10.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetParameterCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetParameterCompression	(	bool	in_state,
		unsigned int	in_bits_per_parameter = `8`
	)

Sets vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter.

Defaults to no compression.

Parameters

in_state	Whether parameter compression is enabled or not.
in_bits_per_parameter	Number of bits to use per parameter when performing parameter compression. Value must be in the range [0, 24]. Defaults to 8.

Returns: A reference to this ExportOptionsKit.

◆ SetSerializeTristrips()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetSerializeTristrips ( bool in_state )

Sets tristrips serialization state.

Defaults to tristrips are serialized.

Parameters

in_state Whether tristrips serialization is enabled or not.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ SetToolkit()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetToolkit ( Toolkit const & in_toolkit )

Sets the toolkit used for the export process.

If no toolkit is specified, a default tookit will be used during export.

Returns: A reference to this ExportOptionsKit.

◆ SetVertexCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::SetVertexCompression	(	bool	in_state,
		unsigned int	in_bits_per_vertex = `24`
	)

Sets vertex compression state and maximum number of bits to use for each (x,y,z) vertex.

Defaults to no compression.

Parameters

in_state	Whether vertex compression is enabled or not.
in_bits_per_vertex	Number of bits to use per vertex when performing vertex compression. Value must be in the range [0, 72]. Defaults to 24.

Returns: A reference to this ExportOptionsKit.

See also: Default value

◆ Show()

void HPS::Stream::ExportOptionsKit::Show ( ExportOptionsKit & out_kit ) const

Copies this ExportOptionsKit into the given ExportOptionsKit.

Parameters

out_kit The ExportOptionsKit to populate with the contents of this ExportOptionsKit.

◆ ShowColorCompression()

bool HPS::Stream::ExportOptionsKit::ShowColorCompression	(	bool &	out_state,
		unsigned int &	out_bits_per_color
	)		const

Shows color compression state and maximum number of bits to use for each (r,g,b) color.

Parameters

out_state	Whether color compression is enabled or not.
out_bits_per_color	Number of bits to use per color when performing color compression.

Returns: true if a color compression setting was specified, false otherwise.

◆ ShowConnectivityCompression()

bool HPS::Stream::ExportOptionsKit::ShowConnectivityCompression ( bool & out_state ) const

Shows connectivity (face list) compression state.

Parameters

out_state Whether connectivity compression is enabled or not.

Returns: true if a connectivity compression setting was specified, false otherwise.

◆ ShowDefaultCamera()

bool HPS::Stream::ExportOptionsKit::ShowDefaultCamera ( CameraKit & out_camera ) const

Shows the default camera used for the export process.

Parameters

out_camera The camera being used as default.

Returns: A reference to this ExportOptionsKit.

◆ ShowImageCompression()

bool HPS::Stream::ExportOptionsKit::ShowImageCompression	(	bool &	out_state,
		float &	out_quality
	)		const

Shows image compression state for uncompressed images in segment tree.

Parameters

out_state	Whether image compression is enabled or not.
out_quality	Float in the range [0,1] indicating the quality of the JPEG image.

Returns: true if an image compression setting was specified, false otherwise.

◆ ShowIndexCompression()

bool HPS::Stream::ExportOptionsKit::ShowIndexCompression	(	bool &	out_state,
		unsigned int &	out_bits_per_index
	)		const

Shows color index compression state and maximum number of bits to use for each float index.

Parameters

out_state	Whether color index compression is enabled or not.
out_bits_per_index	Number of bits to use per index when performing color index compression.

Returns: true if a color index compression setting was specified, false otherwise.

◆ ShowNormalCompression()

bool HPS::Stream::ExportOptionsKit::ShowNormalCompression	(	bool &	out_state,
		unsigned int &	out_bits_per_normal
	)		const

Shows normal compression state and maximum number of bits to use for each (x,y,z) normal.

Parameters

out_state	Whether normal compression is enabled or not.
out_bits_per_normal	Number of bits to use per normal when performing normal compression.

Returns: true if a normal compression setting was specified, false otherwise.

◆ ShowParameterCompression()

bool HPS::Stream::ExportOptionsKit::ShowParameterCompression	(	bool &	out_state,
		unsigned int &	out_bits_per_parameter
	)		const

Shows vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter.

Parameters

out_state	Whether parameter compression is enabled or not.
out_bits_per_parameter	Number of bits to use per parameter when performing parameter compression.

Returns: true if a parameter compression setting was specified, false otherwise.

◆ ShowSerializeTristrips()

bool HPS::Stream::ExportOptionsKit::ShowSerializeTristrips ( bool & out_state ) const

Shows tristrips serialization state.

Parameters

out_state Whether tristrips serialization is enabled or not.

Returns: true if a tristrips serialization setting was specified, false otherwise.

◆ ShowToolkit()

bool HPS::Stream::ExportOptionsKit::ShowToolkit ( HPS::Stream::Toolkit & out_toolkit ) const

Shows the root toolkit used for the export process.

Parameters

out_toolkit The Toolkit used for the export process.

Returns: true if a toolkit was specified, false otherwise.

◆ ShowVertexCompression()

bool HPS::Stream::ExportOptionsKit::ShowVertexCompression	(	bool &	out_state,
		unsigned int &	out_bits_per_vertex
	)		const

Shows vertex compression state and maximum number of bits to use for each (x,y,z) vertex.

Parameters

out_state	Whether vertex compression is enabled or not.
out_bits_per_vertex	Number of bits to use per vertex when performing vertex compression.

Returns: true if a vertex compression setting was specified, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetColorCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetColorCompression ( )

Removes color compression state and maximum number of bits to use for each (r,g,b) color.

Returns: A reference to this ExportOptionsKit.

◆ UnsetConnectivityCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetConnectivityCompression ( )

Removes connectivity (face list) compression state.

Returns: A reference to this ExportOptionsKit.

◆ UnsetDefaultCamera()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetDefaultCamera ( )

Removes the default camera used for the export process.

Returns: A reference to this ExportOptionsKit.

◆ UnsetEventHandler()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetEventHandler ( intptr_t in_type )

Unsets the ExportEventHandler for the indicated ExportEvent type.

Parameters

in_type The type of the Stream ExportEvent to unset.

Returns: A reference to this ExportOptionsKit.

◆ UnsetEventHandlers()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetEventHandlers ( )

Unsets the ExportEventHandler for all ExportEvent types.

Returns: A reference to this ExportOptionsKit.

◆ UnsetEverything()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetEverything ( )

Removes all settings from this ExportOptionsKit.

Returns: A reference to this ExportOptionsKit.

◆ UnsetImageCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetImageCompression ( )

Removes image compression state for uncompressed images in segment tree.

Returns: A reference to this ExportOptionsKit.

◆ UnsetIndexCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetIndexCompression ( )

Removes color index compression state and maximum number of bits to use for each float index.

Returns: A reference to this ExportOptionsKit.

◆ UnsetNormalCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetNormalCompression ( )

Removes normal compression state and maximum number of bits to use for each (x,y,z) normal.

Returns: A reference to this ExportOptionsKit.

◆ UnsetParameterCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetParameterCompression ( )

Removes vertex parameter compression state and maximum number of bits to use for each (single) vertex parameter.

Returns: A reference to this ExportOptionsKit.

◆ UnsetSerializeTristrips()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetSerializeTristrips ( )

Removes tristrips serialization state.

Returns: A reference to this ExportOptionsKit.

◆ UnsetToolkit()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetToolkit ( )

Removes the toolkit used for the export process.

Returns: A reference to this ExportOptionsKit.

◆ UnsetVertexCompression()

ExportOptionsKit& HPS::Stream::ExportOptionsKit::UnsetVertexCompression ( )

Removes vertex compression state and maximum number of bits to use for each (x,y,z) vertex.

Returns: A reference to this ExportOptionsKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::Stream::ExportOptionsKit::staticType = HPS::Type::StreamExportOptionsKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ExportOptionsKit() [1/3]

◆ ExportOptionsKit() [2/3]

◆ ExportOptionsKit() [3/3]

◆ ~ExportOptionsKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetColorCompression()

◆ SetConnectivityCompression()

◆ SetDefaultCamera()

◆ SetEventHandler()

◆ SetImageCompression()

◆ SetIndexCompression()

◆ SetNormalCompression()

◆ SetParameterCompression()

◆ SetSerializeTristrips()

◆ SetToolkit()

◆ SetVertexCompression()

◆ Show()

◆ ShowColorCompression()

◆ ShowConnectivityCompression()

◆ ShowDefaultCamera()

◆ ShowImageCompression()

◆ ShowIndexCompression()

◆ ShowNormalCompression()

◆ ShowParameterCompression()

◆ ShowSerializeTristrips()

◆ ShowToolkit()

◆ ShowVertexCompression()

◆ Type()

◆ UnsetColorCompression()

◆ UnsetConnectivityCompression()

◆ UnsetDefaultCamera()

◆ UnsetEventHandler()

◆ UnsetEventHandlers()

◆ UnsetEverything()

◆ UnsetImageCompression()

◆ UnsetIndexCompression()

◆ UnsetNormalCompression()

◆ UnsetParameterCompression()

◆ UnsetSerializeTristrips()

◆ UnsetToolkit()

◆ UnsetVertexCompression()

Member Data Documentation

◆ staticType
