HPS::Exchange::ExportXMLOptionsKit Class Reference

The HPS::Exchange::ExportXMLOptionsKit class is a user space object. More...

#include <sprk_exchange.h>

Inheritance diagram for HPS::Exchange::ExportXMLOptionsKit:

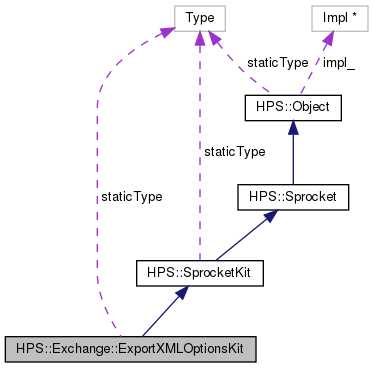

Collaboration diagram for HPS::Exchange::ExportXMLOptionsKit:

Public Member Functions
	ExportXMLOptionsKit ()
	The default constructor creates an empty ExportXMLOptionsKit object. More...
	ExportXMLOptionsKit (ExportXMLOptionsKit const &in_kit)
	The copy constructor creates a new ExportXMLOptionsKit object that contains the same settings as the source ExportXMLOptionsKit. More...
	ExportXMLOptionsKit (ExportXMLOptionsKit &&in_that)
	The move constructor creates an ExportXMLOptionsKit by transferring the underlying object of the rvalue reference to this ExportXMLOptionsKit. More...
virtual	~ExportXMLOptionsKit ()
HPS::Type	ObjectType () const
void	Set (ExportXMLOptionsKit const &in_kit)
	Copies the source ExportXMLOptionsKit into this ExportXMLOptionsKit. More...
void	Show (ExportXMLOptionsKit &out_kit) const
	Copies this ExportXMLOptionsKit into the given ExportXMLOptionsKit. More...
ExportXMLOptionsKit &	operator= (ExportXMLOptionsKit const &in_kit)
	Copies the source ExportXMLOptionsKit into this ExportXMLOptionsKit. More...
ExportXMLOptionsKit &	operator= (ExportXMLOptionsKit &&in_that)
	The move assignment operator transfers the underlying object of the rvalue reference to this ExportXMLOptionsKit. More...
bool	Empty () const
	Indicates whether this ExportXMLOptionsKit has any values set on it. More...
bool	Equals (ExportXMLOptionsKit const &in_kit) const
	Check if the source ExportXMLOptionsKit is equivalent to this ExportXMLOptionsKit. More...
bool	operator== (ExportXMLOptionsKit const &in_kit) const
	Check if the source ExportXMLOptionsKit is equivalent to this ExportXMLOptionsKit. More...
bool	operator!= (ExportXMLOptionsKit const &in_kit) const
	Check if the source ExportXMLOptionsKit is not equivalent to this ExportXMLOptionsKit. More...
ExportXMLOptionsKit &	SetMetadata (bool in_state)
	Sets whether to export metadata. More...
ExportXMLOptionsKit &	SetTransformations (bool in_state)
	Sets whether to export transformations. More...
ExportXMLOptionsKit &	SetMaterials (bool in_state)
	Sets whether to export materials. More...
ExportXMLOptionsKit &	UnsetMetadata ()
	Removes the metadata export setting. More...
ExportXMLOptionsKit &	UnsetTransformations ()
	Removes the transformation export setting. More...
ExportXMLOptionsKit &	UnsetMaterials ()
	Removes the material export setting. More...
ExportXMLOptionsKit &	UnsetEverything ()
	Removes all settings from this ExportXMLOptionsKit. More...
bool	ShowMetadata (bool &out_state) const
	Shows the metadata export setting. More...
bool	ShowTransformations (bool &out_state) const
	Shows the transformation export setting. More...
bool	ShowMaterials (bool &out_state) const
	Shows the material export setting. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ExportXMLOptionsKit	GetDefault ()
	Creates an ExportXMLOptionsKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ExchangeExportXMLOptionsKit

Detailed Description

The HPS::Exchange::ExportXMLOptionsKit class is a user space object.

It contains settings controlling how XML data is exported via Exchange. Calling HPS::Exchange::ExportXMLOptionsKit::GetDefault() will return an options kit with values found in here.

Constructor & Destructor Documentation

ExportXMLOptionsKit() [1/3]

HPS::Exchange::ExportXMLOptionsKit::ExportXMLOptionsKit

(

)

The default constructor creates an empty ExportXMLOptionsKit object.

ExportXMLOptionsKit() [2/3]

HPS::Exchange::ExportXMLOptionsKit::ExportXMLOptionsKit

(

ExportXMLOptionsKit const &

in_kit

)

The copy constructor creates a new ExportXMLOptionsKit object that contains the same settings as the source ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to copy.

ExportXMLOptionsKit() [3/3]

HPS::Exchange::ExportXMLOptionsKit::ExportXMLOptionsKit

(

ExportXMLOptionsKit &&

in_that

)

The move constructor creates an ExportXMLOptionsKit by transferring the underlying object of the rvalue reference to this ExportXMLOptionsKit.

Parameters

in_that

An rvalue reference to an ExportXMLOptionsKit to take the underlying object from.

~ExportXMLOptionsKit()

virtual HPS::Exchange::ExportXMLOptionsKit::~ExportXMLOptionsKit ( )

virtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Exchange::ExportXMLOptionsKit::Empty ( ) const

virtual

Indicates whether this ExportXMLOptionsKit has any values set on it.

Returns

true if no values are set on this ExportXMLOptionsKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Exchange::ExportXMLOptionsKit::Equals

(

ExportXMLOptionsKit const &

in_kit

)

const

Check if the source ExportXMLOptionsKit is equivalent to this ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to compare to this ExportXMLOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static ExportXMLOptionsKit HPS::Exchange::ExportXMLOptionsKit::GetDefault ( )

static

Creates an ExportXMLOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default. These values will be used for import unless an option is overridden by the options passed to File::ExportXML.

Returns

An ExportXMLOptionsKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Exchange::ExportXMLOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Exchange::ExportXMLOptionsKit::operator!=

(

ExportXMLOptionsKit const &

in_kit

)

const

Check if the source ExportXMLOptionsKit is not equivalent to this ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to compare to this ExportXMLOptionsKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::operator=

(

ExportXMLOptionsKit const &

in_kit

)

Copies the source ExportXMLOptionsKit into this ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to copy.

Returns

A reference to this ExportXMLOptionsKit.

operator=() [2/2]

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::operator=

(

ExportXMLOptionsKit &&

in_that

)

The move assignment operator transfers the underlying object of the rvalue reference to this ExportXMLOptionsKit.

Parameters

in_that

An rvalue reference to an ExportXMLOptionsKit to take the underlying object from.

Returns

A reference to this ExportXMLOptionsKit.

operator==()

bool HPS::Exchange::ExportXMLOptionsKit::operator==

(

ExportXMLOptionsKit const &

in_kit

)

const

Check if the source ExportXMLOptionsKit is equivalent to this ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to compare to this ExportXMLOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Exchange::ExportXMLOptionsKit::Set

(

ExportXMLOptionsKit const &

in_kit

)

Copies the source ExportXMLOptionsKit into this ExportXMLOptionsKit.

Parameters

in_kit

The source ExportXMLOptionsKit to copy.

SetMaterials()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::SetMaterials

(

bool

in_state

)

Sets whether to export materials.

This corresponds to the value that will be passed to A3DRWParamsExportXMLData::m_bExportColorMaterial.

Parameters

in_state

Whether to export materials.

Returns

A reference to this ExportXMLOptionsKit.

See also

Default value

SetMetadata()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::SetMetadata

(

bool

in_state

)

Sets whether to export metadata.

This corresponds to the value that will be passed to A3DRWParamsExportXMLData::m_bExportMetadata.

Parameters

in_state

Whether to export metadata.

Returns

A reference to this ExportXMLOptionsKit.

See also

Default value

SetTransformations()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::SetTransformations

(

bool

in_state

)

Sets whether to export transformations.

This corresponds to the value that will be passed to A3DRWParamsExportXMLData::m_bExportTransformations.

Parameters

in_state

Whether to export transformations.

Returns

A reference to this ExportXMLOptionsKit.

See also

Default value

Show()

void HPS::Exchange::ExportXMLOptionsKit::Show

(

ExportXMLOptionsKit &

out_kit

)

const

Copies this ExportXMLOptionsKit into the given ExportXMLOptionsKit.

Parameters

out_kit

The ExportXMLOptionsKit to populate with the contents of this ExportXMLOptionsKit.

ShowMaterials()

bool HPS::Exchange::ExportXMLOptionsKit::ShowMaterials

(

bool &

out_state

)

const

Shows the material export setting.

Parameters

out_state

Whether to export materials.

Returns

true if a material export setting was specified, false otherwise.

ShowMetadata()

bool HPS::Exchange::ExportXMLOptionsKit::ShowMetadata

(

bool &

out_state

)

const

Shows the metadata export setting.

Parameters

out_state

Whether to export metadata.

Returns

true if a metadata export setting was specified, false otherwise.

ShowTransformations()

bool HPS::Exchange::ExportXMLOptionsKit::ShowTransformations

(

bool &

out_state

)

const

Shows the transformation export setting.

Parameters

out_state

Whether to export transformations.

Returns

true if a transformation export setting was specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetEverything()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::UnsetEverything

(

)

Removes all settings from this ExportXMLOptionsKit.

Returns

A reference to this ExportXMLOptionsKit.

UnsetMaterials()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::UnsetMaterials

(

)

Removes the material export setting.

Returns

A reference to this ExportXMLOptionsKit.

UnsetMetadata()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::UnsetMetadata

(

)

Removes the metadata export setting.

Returns

A reference to this ExportXMLOptionsKit.

UnsetTransformations()

ExportXMLOptionsKit& HPS::Exchange::ExportXMLOptionsKit::UnsetTransformations

(

)

Removes the transformation export setting.

Returns

A reference to this ExportXMLOptionsKit.

Member Data Documentation

staticType

const HPS::Type HPS::Exchange::ExportXMLOptionsKit::staticType = HPS::Type::ExchangeExportXMLOptionsKit

static

---

The documentation for this class was generated from the following file:

• sprk_exchange.h
