HPS::BoundingControl Class Reference

The HPS::BoundingControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::BoundingControl:

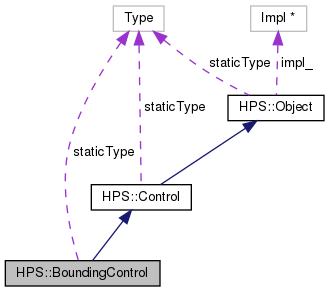

Collaboration diagram for HPS::BoundingControl:

Public Member Functions
	BoundingControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	BoundingControl (BoundingControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	BoundingControl (BoundingControl &&in_that)
	The move constructor creates a BoundingControl by transferring the underlying impl of the rvalue reference to this BoundingControl thereby avoiding a copy and allocation. More...
BoundingControl &	operator= (BoundingControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this BoundingControl thereby avoiding a copy. More...
	~BoundingControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
BoundingControl &	operator= (BoundingControl const &in_that)
	Share the underlying smart-pointer of the BoundingControl source. More...
BoundingControl &	SetVolume (SimpleSphere const &in_sphere, SimpleCuboid const &in_cuboid)
	Explicitly sets the local bounding. More...
BoundingControl &	SetVolume (SimpleSphere const &in_sphere)
	Explicitly sets the local bounding. More...
BoundingControl &	SetVolume (SimpleCuboid const &in_cuboid)
	Explicitly sets the local bounding. More...
BoundingControl &	SetExclusion (bool in_exclusion)
	Controls whether this segment should be excluded when computing bounding volumes. More...
BoundingControl &	UnsetVolume ()
	Removes an explicitly set bounding, reverting to the automatically generated one. More...
BoundingControl &	UnsetExclusion ()
	Removes a bounding exclusion setting. More...
BoundingControl &	UnsetEverything ()
	Removes all bounding settings from this object. More...
bool	ShowVolume (SimpleSphere &out_sphere, SimpleCuboid &out_cuboid) const
	Shows the bounding volume. More...
bool	ShowExclusion (bool &out_exclusion) const
	Shows the bounding exclusion setting. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::BoundingControl

Private Member Functions
	BoundingControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::BoundingControl class is a smart pointer that is tied to a database object.

This object allows you to manipulate settings related to bounding, such as volume and exclusion. This table lists default values for the various segment attributes accessible from HPS::BoundingControl.

Constructor & Destructor Documentation

BoundingControl() [1/4]

HPS::BoundingControl::BoundingControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

BoundingControl() [2/4]

HPS::BoundingControl::BoundingControl

(

BoundingControl const &

in_that

)

Initializes a control tied to the same object as in_that.

BoundingControl() [3/4]

HPS::BoundingControl::BoundingControl

(

BoundingControl &&

in_that

)

The move constructor creates a BoundingControl by transferring the underlying impl of the rvalue reference to this BoundingControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a BoundingControl to take the impl from.

~BoundingControl()

HPS::BoundingControl::~BoundingControl

(

)

Releases a reference to the database object this control is tied to.

BoundingControl() [4/4]

HPS::BoundingControl::BoundingControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::BoundingControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

BoundingControl& HPS::BoundingControl::operator=

(

BoundingControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this BoundingControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a BoundingControl to take the impl from.

Returns

A reference to this BoundingControl.

operator=() [2/2]

BoundingControl& HPS::BoundingControl::operator=

(

BoundingControl const &

in_that

)

Share the underlying smart-pointer of the BoundingControl source.

Parameters

in_that

The BoundingControl source of the assignment.

Returns

A reference to this BoundingControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetExclusion()

BoundingControl& HPS::BoundingControl::SetExclusion

(

bool

in_exclusion

)

Controls whether this segment should be excluded when computing bounding volumes.

Parameters

in_exclude

Whether to exclude this segment when computing bounding volumes.

Returns

A reference to this object.

SetVolume() [1/3]

BoundingControl& HPS::BoundingControl::SetVolume	(	SimpleSphere const &	in_sphere,
		SimpleCuboid const &	in_cuboid
	)

Explicitly sets the local bounding.

Parameters

in_sphere	The SimpleSphere to set the bounding volume to.
in_cuboid	The SimpleCuboid to set the bounding volume to.

Returns

A reference to this object.

SetVolume() [2/3]

BoundingControl& HPS::BoundingControl::SetVolume

(

SimpleSphere const &

in_sphere

)

Explicitly sets the local bounding.

Parameters

in_sphere

The SimpleSphere to set the bounding volume to.

Returns

A reference to this object.

SetVolume() [3/3]

BoundingControl& HPS::BoundingControl::SetVolume

(

SimpleCuboid const &

in_cuboid

)

Explicitly sets the local bounding.

Parameters

in_cuboid

The SimpleCuboid to set the bounding volume to.

Returns

A reference to this object.

ShowExclusion()

bool HPS::BoundingControl::ShowExclusion

(

bool &

out_exclusion

)

const

Shows the bounding exclusion setting.

Parameters

out_exclusion

Whether to exclude this segment when computing bounding volumes.

Returns

true if the setting is valid, false otherwise.

ShowVolume()

bool HPS::BoundingControl::ShowVolume	(	SimpleSphere &	out_sphere,
		SimpleCuboid &	out_cuboid
	)		const

Shows the bounding volume.

Parameters

out_sphere	A sphere to show the volume into. If the bounding is not a sphere, this argument will be invalidated.
out_cuboid	A cuboid to show the volume into. If the bounding is not a cuboid, this argument will be invalidated.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::BoundingControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetEverything()

BoundingControl& HPS::BoundingControl::UnsetEverything

(

)

Removes all bounding settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by BoundingKit::GetDefault().

Returns

A reference to this object.

UnsetExclusion()

BoundingControl& HPS::BoundingControl::UnsetExclusion

(

)

Removes a bounding exclusion setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by BoundingKit::GetDefault().

Returns

A reference to this object.

UnsetVolume()

BoundingControl& HPS::BoundingControl::UnsetVolume

(

)

Removes an explicitly set bounding, reverting to the automatically generated one.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by BoundingKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::BoundingControl::staticType = HPS::Type::BoundingControl

static

---

The documentation for this class was generated from the following file:

• hps.h
