HPS::Event Class Reference

The Event class is the common base class of all events. More...

#include <hps.h>

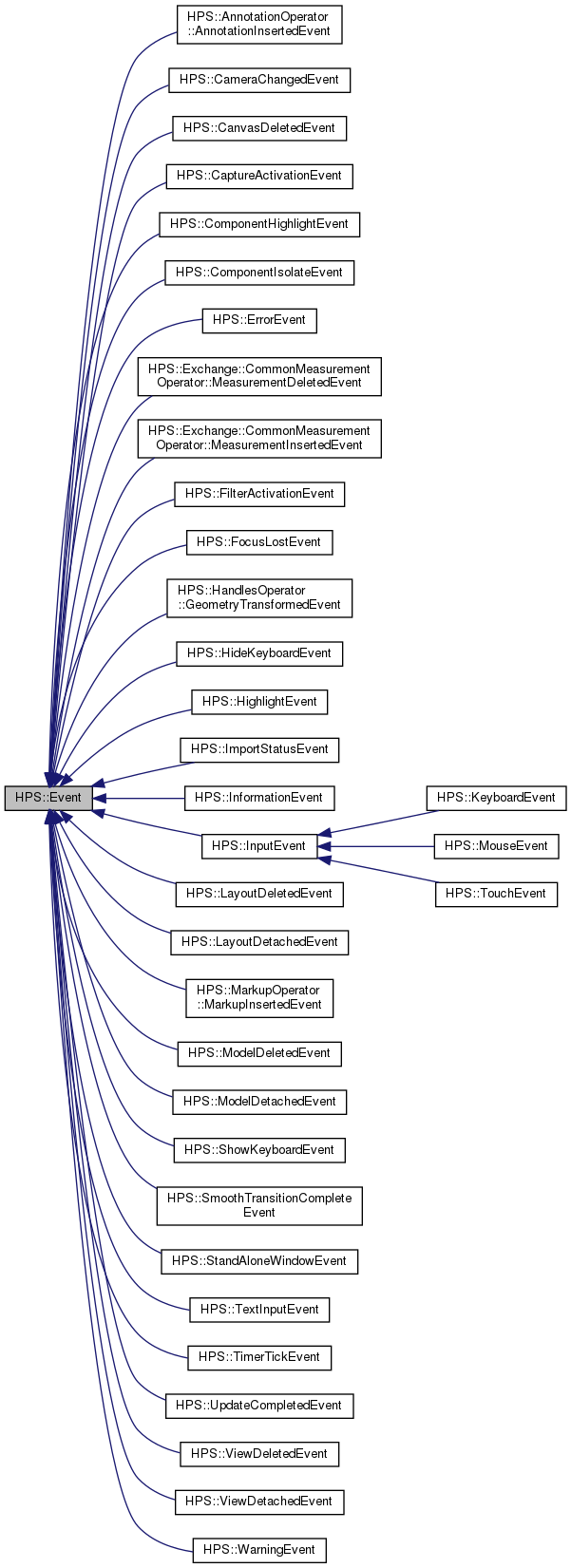

Inheritance diagram for HPS::Event:

Collaboration diagram for HPS::Event:

Public Types
enum	Status : uint32_t {   Status::InProgress,   Status::Completed,   Status::Failed }
	Event Status - returned from a notifier to give the status of the event. More...

Public Member Functions
	Event (intptr_t in_channel=0)
	A constructor for generating events from built-in or custom event ID's. More...
virtual	~Event ()
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
virtual Event *	Clone () const =0
	This function is used to copy custom events classes. More...
virtual bool	Drop (Event const *in_that_event) const
	This optional function is used to determine if the current event can be dropped based on the following event in the queue. More...
virtual intptr_t	Freshen () const
	This optional function is used to determine if the current event can be dropped in favor of newer event of the same type if one is available. More...
intptr_t	GetChannel () const
	Returns the channel ID assigned to an event. More...
Time	GetTimeStamp () const
	Returns the time an event was injected into the event queue. More...
bool	IsConsumable () const
	Indicates whether an event will be consumed when it is handled or passed on to the next handler anyway. More...

Static Public Member Functions
static void *	operator new (size_t in_size)
static void	operator delete (void *in_ptr, size_t in_size) throw ()

Protected Attributes
intptr_t	channel
bool	consumable

Private Attributes
Time	time_stamp

Friends
class	HPSI::EventDispatcherImpl

Detailed Description

The Event class is the common base class of all events.

An event can be an error, input event, or a custom event. Events occur asynchronously and are processed in order from an event queue.

Member Enumeration Documentation

Status

enum HPS::Event::Status : uint32_t

strong

Event Status - returned from a notifier to give the status of the event.

Enumerator
InProgress	Event is still in progress.
Completed	Event has completed.
Failed	Event failed.

Constructor & Destructor Documentation

Event()

HPS::Event::Event ( intptr_t  in_channel = 0 )

inline

A constructor for generating events from built-in or custom event ID's.

~Event()

virtual HPS::Event::~Event ( )

virtual

Member Function Documentation

Clone()

virtual Event* HPS::Event::Clone ( ) const

pure virtual

This function is used to copy custom events classes.

Users that create custom event classes must override this function to provide the proper copying behavior.

Implemented in HPS::KeyboardEvent, HPS::MouseEvent, HPS::TouchEvent, HPS::InputEvent, HPS::HideKeyboardEvent, HPS::ShowKeyboardEvent, HPS::ImportStatusEvent, HPS::UpdateCompletedEvent, HPS::TextInputEvent, HPS::FocusLostEvent, HPS::StandAloneWindowEvent, HPS::ErrorEvent, HPS::WarningEvent, HPS::InformationEvent, HPS::HighlightEvent, HPS::TimerTickEvent, HPS::Exchange::CommonMeasurementOperator::MeasurementDeletedEvent, HPS::Exchange::CommonMeasurementOperator::MeasurementInsertedEvent, HPS::SmoothTransitionCompleteEvent, HPS::CaptureActivationEvent, HPS::FilterActivationEvent, HPS::ComponentHighlightEvent, HPS::ComponentIsolateEvent, HPS::HandlesOperator::GeometryTransformedEvent, HPS::AnnotationOperator::AnnotationInsertedEvent, HPS::MarkupOperator::MarkupInsertedEvent, HPS::CameraChangedEvent, HPS::ModelDeletedEvent, HPS::ModelDetachedEvent, HPS::ViewDeletedEvent, HPS::ViewDetachedEvent, HPS::LayoutDeletedEvent, HPS::LayoutDetachedEvent, and HPS::CanvasDeletedEvent.

Drop()

virtual bool HPS::Event::Drop ( Event const *  in_that_event ) const

inlinevirtual

This optional function is used to determine if the current event can be dropped based on the following event in the queue.

Reimplemented in HPS::MouseEvent, HPS::TouchEvent, HPS::TimerTickEvent, HPS::SmoothTransitionCompleteEvent, and HPS::CameraChangedEvent.

Freshen()

virtual intptr_t HPS::Event::Freshen ( ) const

inlinevirtual

This optional function is used to determine if the current event can be dropped in favor of newer event of the same type if one is available.

Returns

A cookie representing the freshen category. Zero indicates a non-freshening event.

Reimplemented in HPS::MouseEvent, HPS::TimerTickEvent, and HPS::CameraChangedEvent.

GetChannel()

intptr_t HPS::Event::GetChannel ( ) const

inline

Returns the channel ID assigned to an event.

Here is the caller graph for this function:

GetClassID()

intptr_t HPS::Event::GetClassID

(

)

const

Returns a unique identifier that is shared by all objects of the same class.

Here is the caller graph for this function:

GetTimeStamp()

Time HPS::Event::GetTimeStamp ( ) const

inline

Returns the time an event was injected into the event queue.

IsConsumable()

bool HPS::Event::IsConsumable ( ) const

inline

Indicates whether an event will be consumed when it is handled or passed on to the next handler anyway.

operator delete()

static void HPS::Event::operator delete ( void *  in_ptr, size_t  in_size  ) throw ( )

inlinestatic

Here is the call graph for this function:

operator new()

static void* HPS::Event::operator new ( size_t  in_size )

inlinestatic

Here is the call graph for this function:

Friends And Related Function Documentation

HPSI::EventDispatcherImpl

friend class HPSI::EventDispatcherImpl

friend

Member Data Documentation

channel

intptr_t HPS::Event::channel

protected

consumable

bool HPS::Event::consumable

protected

time_stamp

Time HPS::Event::time_stamp

private

---

The documentation for this class was generated from the following file:

• hps.h
