The MouseEvent class is the event generated for each mouse action. More...

#include <hps.h>

Inheritance diagram for HPS::MouseEvent:

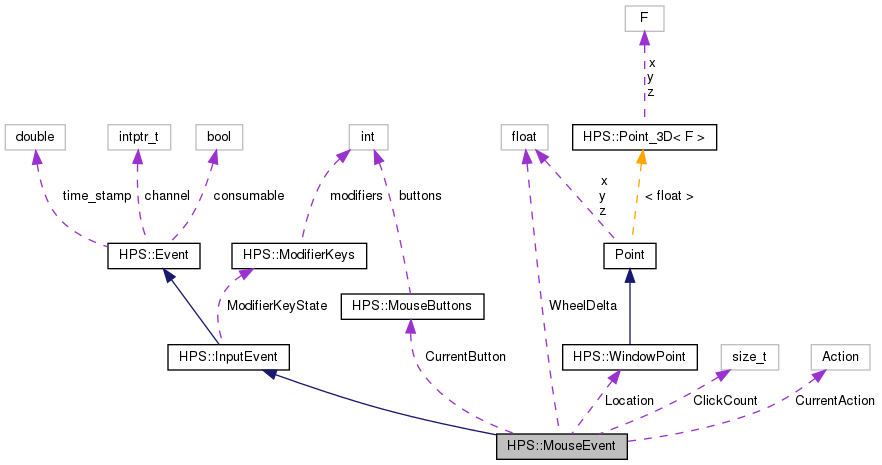

Collaboration diagram for HPS::MouseEvent:

[legend]

Public Types
enum	Action : uint32_t { Action::ButtonUp, Action::ButtonDown, Action::Move, Action::Scroll, Action::Enter, Action::Leave }
	Enumeration of various actions a mouse can undergo for a MouseEvent. More...

enum	Status : uint32_t { Status::InProgress, Status::Completed, Status::Failed }
	Event Status - returned from a notifier to give the status of the event. More...

Public Member Functions
	MouseEvent ()
	The default constructor creates an uninitialized MouseEvent object. More...

	MouseEvent (Action in_action, WindowPoint in_location, MouseButtons in_button=MouseButtons(), ModifierKeys in_modifier=ModifierKeys(), size_t in_click_count=0)
	This constructor creates a MouseEvent object for a given action. More...

	MouseEvent (Action in_action, float in_wheel_delta, WindowPoint in_location=WindowPoint(0, 0, 0), ModifierKeys in_modifier=ModifierKeys(), size_t in_click_count=0)
	This constructor creates a MouseEvent object, most useful for a wheel action. More...

	MouseEvent (Event const &in_event)
	This constructor converts an Event Object to a MouseEvent object. More...

	~MouseEvent ()

Event *	Clone () const
	Allocates and returns a copy of this MouseEvent. More...

virtual bool	Equals (InputEvent const &in_that) const
	Check if the source object is equivalent to this object. More...

virtual bool	Equals (MouseEvent const &in_that) const
	Check if the source object is equivalent to this object. More...

virtual bool	operator== (MouseEvent const &in_that) const
	Check if the source object is equivalent to this object. More...

virtual bool	operator!= (MouseEvent const &in_that) const
	Check if the source object is not equivalent to this object. More...

virtual bool	Drop (Event const *in_that_event) const
	Determines if this MouseEvent can be dropped in favor of the following mouse event. More...

virtual intptr_t	Freshen () const
	This optional function is used to determine if the current event can be dropped in favor of newer event of the same type if one is available. More...

virtual bool	operator== (InputEvent const &in_that) const
	Check if the source object is equivalent to this object. More...

virtual bool	operator!= (InputEvent const &in_that) const
	Check if the source object is not equivalent to this object. More...

ModifierKeys	GetModifierKeys () const
	Queries which modifier keys are active. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetChannel () const
	Returns the channel ID assigned to an event. More...

Time	GetTimeStamp () const
	Returns the time an event was injected into the event queue. More...

bool	IsConsumable () const
	Indicates whether an event will be consumed when it is handled or passed on to the next handler anyway. More...

Static Public Member Functions
static void *	operator new (size_t in_size)

static void	operator delete (void *in_ptr, size_t in_size) throw ()

Public Attributes
HPS::MouseEvent::Action	CurrentAction
	The action for this MouseEvent. More...

WindowPoint	Location
	Location in window space of the mouse cursor. More...

HPS::MouseButtons	CurrentButton
	If the action involves a button, this is the button. More...

float	WheelDelta
	If the action involves the mouse wheel, this is the amount the wheel moved. More...

size_t	ClickCount
	The number of clicks received. More...

ModifierKeys	ModifierKeyState
	The modifier keys which are active for this InputEvent. More...

Protected Attributes
intptr_t	channel

bool	consumable

Detailed Description

The MouseEvent class is the event generated for each mouse action.

Member Enumeration Documentation

◆ Action

enum HPS::MouseEvent::Action : uint32_t

strong

Enumeration of various actions a mouse can undergo for a MouseEvent.

Enumerator
ButtonUp
ButtonDown	A mouse button has been released.
Move	A mouse button has been pressed.
Scroll	The mouse location has changed.
Enter	The scroll wheel has been moved.
Leave	The mouse cursor has moved into the active window. The mouse cursor has moved out of the active window.

◆ Status

enum HPS::Event::Status : uint32_t

stronginherited

Event Status - returned from a notifier to give the status of the event.

Enumerator
InProgress	Event is still in progress.
Completed	Event has completed.
Failed	Event failed.

Constructor & Destructor Documentation

◆ MouseEvent() [1/4]

HPS::MouseEvent::MouseEvent ( )

inline

The default constructor creates an uninitialized MouseEvent object.

◆ MouseEvent() [2/4]

HPS::MouseEvent::MouseEvent	(	Action	in_action,
		WindowPoint	in_location,
		MouseButtons	in_button = `MouseButtons()`,
		ModifierKeys	in_modifier = `ModifierKeys()`,
		size_t	in_click_count = `0`
	)

inline

This constructor creates a MouseEvent object for a given action.

Parameters

in_action	Action of this MouseEvent.
in_location	The location in window space of the mouse cursor.
in_button	If the action is a button event, this is the button.
in_modifier	The modifier keys for this MouseEvent.
in_click_count	The number of clicks received.

◆ MouseEvent() [3/4]

HPS::MouseEvent::MouseEvent	(	Action	in_action,
		float	in_wheel_delta,
		WindowPoint	in_location = `WindowPoint(0,0,0)`,
		ModifierKeys	in_modifier = `ModifierKeys()`,
		size_t	in_click_count = `0`
	)

inline

This constructor creates a MouseEvent object, most useful for a wheel action.

Parameters

in_action	Action of the mouse for this MouseEvent.
in_wheel_delta	If the action involves the mouse wheel, this is the amount the wheel moved. It is positive if the mouse wheel is moved forward (away from the user) or negative if the mouse wheel is moved downward (toward the user).
in_location	The location in window space of the mouse cursor.
in_modifier	The modifier keys for this MouseEvent.
in_click_count	The number of clicks received.

◆ MouseEvent() [4/4]

HPS::MouseEvent::MouseEvent ( Event const & in_event )

inline

This constructor converts an Event Object to a MouseEvent object.

Parameters

in_event The Event Object to be converted.

Here is the call graph for this function:

◆ ~MouseEvent()

HPS::MouseEvent::~MouseEvent ( )

Member Function Documentation

◆ Clone()

Event* HPS::MouseEvent::Clone ( ) const

inlinevirtual

Allocates and returns a copy of this MouseEvent.

Returns: A copy of this MouseEvent.

Reimplemented from HPS::InputEvent.

◆ Drop()

virtual bool HPS::MouseEvent::Drop ( Event const * in_that_event ) const

inlinevirtual

Determines if this MouseEvent can be dropped in favor of the following mouse event.

Parameters

in_that_event Event to compare with this MouseEvent.

Returns: true if this event can be dropped, false otherwise.

Reimplemented from HPS::Event.

◆ Equals() [1/2]

virtual bool HPS::MouseEvent::Equals ( InputEvent const & in_that ) const

inlinevirtual

Check if the source object is equivalent to this object.

Parameters

in_kit The source object to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

Reimplemented from HPS::InputEvent.

Here is the call graph for this function:

◆ Equals() [2/2]

virtual bool HPS::MouseEvent::Equals ( MouseEvent const & in_that ) const

inlinevirtual

Check if the source object is equivalent to this object.

Parameters

in_that The source object to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

Here is the call graph for this function:

◆ Freshen()

virtual intptr_t HPS::MouseEvent::Freshen ( ) const

inlinevirtual

This optional function is used to determine if the current event can be dropped in favor of newer event of the same type if one is available.

Returns: A cookie representing the freshen category. Zero indicates a non-freshening event.

Reimplemented from HPS::Event.

◆ GetChannel()

intptr_t HPS::Event::GetChannel ( ) const

inlineinherited

Returns the channel ID assigned to an event.

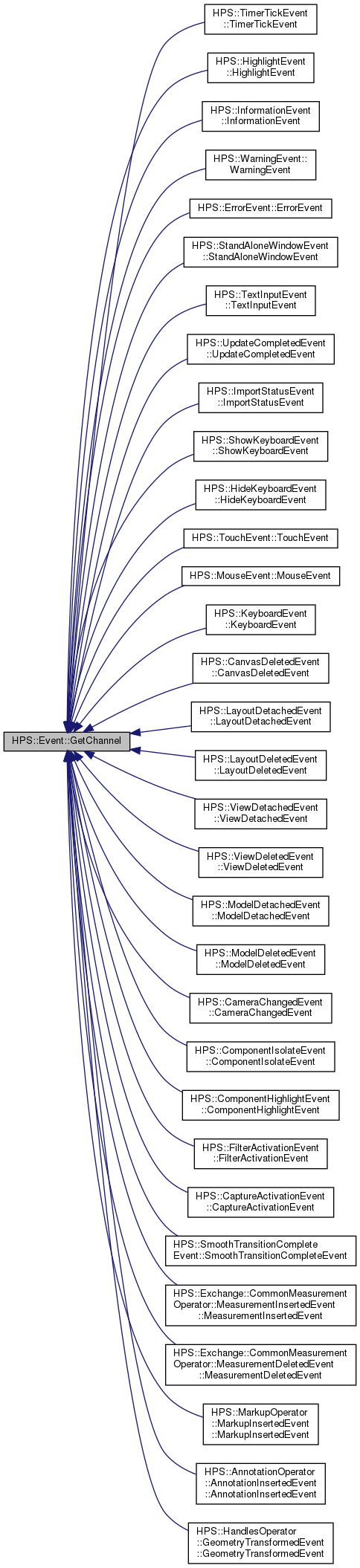

Here is the caller graph for this function:

◆ GetClassID()

intptr_t HPS::Event::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

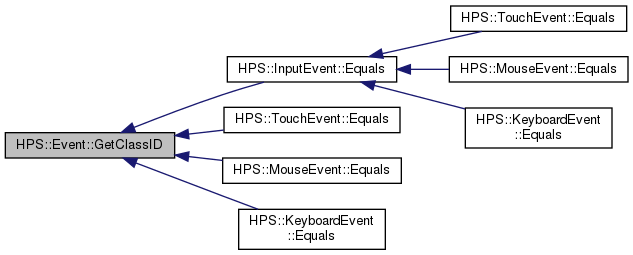

Here is the caller graph for this function:

◆ GetModifierKeys()

ModifierKeys HPS::InputEvent::GetModifierKeys ( ) const

inlineinherited

Queries which modifier keys are active.

Returns: A ModifierKeys object, which represents which modifier keys are active

◆ GetTimeStamp()

Time HPS::Event::GetTimeStamp ( ) const

inlineinherited

Returns the time an event was injected into the event queue.

◆ IsConsumable()

bool HPS::Event::IsConsumable ( ) const

inlineinherited

Indicates whether an event will be consumed when it is handled or passed on to the next handler anyway.

◆ operator delete()

static void HPS::Event::operator delete	(	void *	in_ptr,
		size_t	in_size
	)
throw	(
	)

inlinestaticinherited

Here is the call graph for this function:

◆ operator new()

static void* HPS::Event::operator new ( size_t in_size )

inlinestaticinherited

Here is the call graph for this function:

◆ operator!=() [1/2]

virtual bool HPS::InputEvent::operator!= ( InputEvent const & in_that ) const

inlinevirtualinherited

Check if the source object is not equivalent to this object.

Parameters

in_that The source object to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator!=() [2/2]

virtual bool HPS::MouseEvent::operator!= ( MouseEvent const & in_that ) const

inlinevirtual

Check if the source object is not equivalent to this object.

Parameters

in_kit The source object to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator==() [1/2]

virtual bool HPS::InputEvent::operator== ( InputEvent const & in_that ) const

inlinevirtualinherited

Check if the source object is equivalent to this object.

Parameters

in_that The source object to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ operator==() [2/2]

virtual bool HPS::MouseEvent::operator== ( MouseEvent const & in_that ) const

inlinevirtual

Check if the source object is equivalent to this object.

Parameters

in_kit The source object to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

Member Data Documentation

◆ channel

intptr_t HPS::Event::channel

protectedinherited

◆ ClickCount

size_t HPS::MouseEvent::ClickCount

The number of clicks received.

◆ consumable

bool HPS::Event::consumable

protectedinherited

◆ CurrentAction

HPS::MouseEvent::Action HPS::MouseEvent::CurrentAction

The action for this MouseEvent.

◆ CurrentButton

HPS::MouseButtons HPS::MouseEvent::CurrentButton

If the action involves a button, this is the button.

◆ Location

WindowPoint HPS::MouseEvent::Location

Location in window space of the mouse cursor.

◆ ModifierKeyState

ModifierKeys HPS::InputEvent::ModifierKeyState

inherited

The modifier keys which are active for this InputEvent.

◆ WheelDelta

float HPS::MouseEvent::WheelDelta

If the action involves the mouse wheel, this is the amount the wheel moved.

It is positive if the mouse wheel is moved forward (away from the user) or negative if the mouse wheel is moved downward (toward the user).

The documentation for this class was generated from the following file:

hps.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ Action

◆ Status

Constructor & Destructor Documentation

◆ MouseEvent() [1/4]

◆ MouseEvent() [2/4]

◆ MouseEvent() [3/4]

◆ MouseEvent() [4/4]

◆ ~MouseEvent()

Member Function Documentation

◆ Clone()

◆ Drop()

◆ Equals() [1/2]

◆ Equals() [2/2]

◆ Freshen()

◆ GetChannel()

◆ GetClassID()

◆ GetModifierKeys()

◆ GetTimeStamp()

◆ IsConsumable()

◆ operator delete()

◆ operator new()

◆ operator!=() [1/2]

◆ operator!=() [2/2]

◆ operator==() [1/2]

◆ operator==() [2/2]

Member Data Documentation

◆ channel

◆ ClickCount

◆ consumable

◆ CurrentAction

◆ CurrentButton

◆ Location

◆ ModifierKeyState

◆ WheelDelta
