Provides a base for classes that can store and draw scaled views of an audio waveform. More...

#include <juce_AudioThumbnailBase.h>

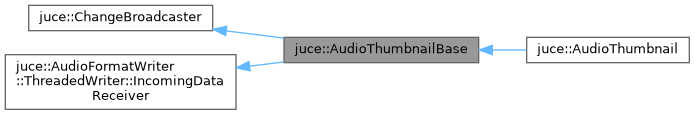

Inheritance diagram for juce::AudioThumbnailBase:

[legend]

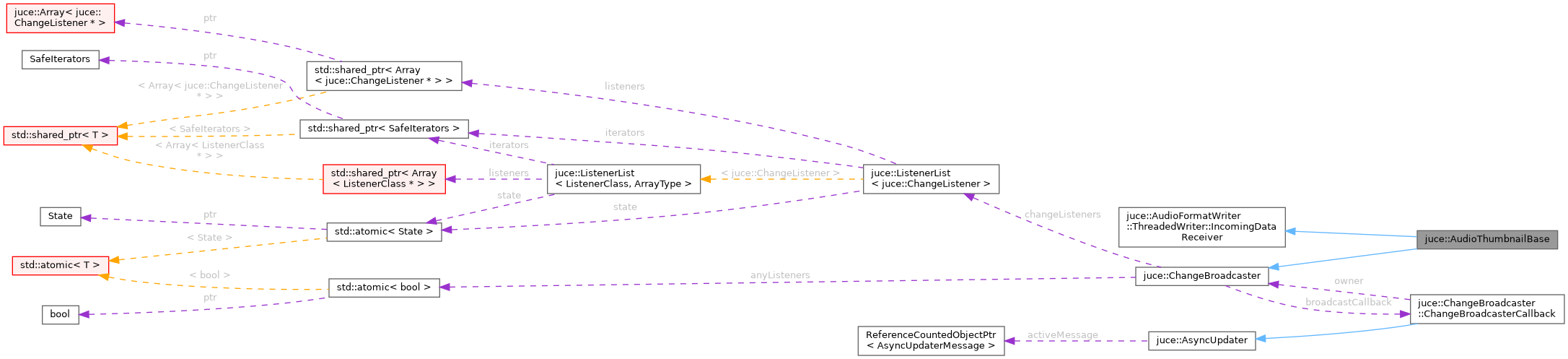

Collaboration diagram for juce::AudioThumbnailBase:

[legend]

Public Member Functions
	AudioThumbnailBase ()=default

	~AudioThumbnailBase () override=default

virtual void	addBlock (int64 sampleNumberInSource, const AudioBuffer< float > &newData, int startOffsetInBuffer, int numSamples)=0

void	addChangeListener (ChangeListener *listener)
	Registers a listener to receive change callbacks from this broadcaster. More...

virtual void	clear ()=0
	Clears and resets the thumbnail. More...

void	dispatchPendingMessages ()
	If a change message has been sent but not yet dispatched, this will call sendSynchronousChangeMessage() to make the callback immediately. More...

virtual void	drawChannel (Graphics &g, const Rectangle< int > &area, double startTimeSeconds, double endTimeSeconds, int channelNum, float verticalZoomFactor)=0
	Draws the waveform for a channel. More...

virtual void	drawChannels (Graphics &g, const Rectangle< int > &area, double startTimeSeconds, double endTimeSeconds, float verticalZoomFactor)=0
	Draws the waveforms for all channels in the thumbnail. More...

virtual void	getApproximateMinMax (double startTime, double endTime, int channelIndex, float &minValue, float &maxValue) const noexcept=0
	Reads the approximate min and max levels from a section of the thumbnail. More...

virtual float	getApproximatePeak () const =0
	Returns the highest level in the thumbnail. More...

virtual int64	getHashCode () const =0
	Returns the hash code that was set by setSource() or setReader(). More...

virtual int	getNumChannels () const noexcept=0
	Returns the number of channels in the file. More...

virtual int64	getNumSamplesFinished () const noexcept=0
	Returns the number of samples that have been set in the thumbnail. More...

virtual double	getTotalLength () const noexcept=0
	Returns the length of the audio file, in seconds. More...

virtual bool	isFullyLoaded () const noexcept=0
	Returns true if the low res preview is fully generated. More...

virtual bool	loadFrom (InputStream &input)=0
	Reloads the low res thumbnail data from an input stream. More...

void	removeAllChangeListeners ()
	Removes all listeners from the list. More...

void	removeChangeListener (ChangeListener *listener)
	Unregisters a listener from the list. More...

virtual void	reset (int numChannels, double sampleRate, int64 totalSamplesInSource)=0

virtual void	saveTo (OutputStream &output) const =0
	Saves the low res thumbnail data to an output stream. More...

void	sendChangeMessage ()
	Causes an asynchronous change message to be sent to all the registered listeners. More...

void	sendSynchronousChangeMessage ()
	Sends a synchronous change message to all the registered listeners. More...

virtual void	setReader (AudioFormatReader *newReader, int64 hashCode)=0
	Gives the thumbnail an AudioFormatReader to use directly. More...

virtual bool	setSource (InputSource *newSource)=0
	Specifies the file or stream that contains the audio file. More...

Private Member Functions
void	callListeners ()

Private Attributes
std::atomic< bool >	anyListeners { false }

ChangeBroadcasterCallback	broadcastCallback

ListenerList< ChangeListener >	changeListeners

Detailed Description

Provides a base for classes that can store and draw scaled views of an audio waveform.

Typically, you'll want to use the derived class AudioThumbnail, which provides a concrete implementation.

See also: AudioThumbnail, AudioThumbnailCache

@tags{Audio}

Constructor & Destructor Documentation

◆ AudioThumbnailBase()

juce::AudioThumbnailBase::AudioThumbnailBase ( )

default

◆ ~AudioThumbnailBase()

juce::AudioThumbnailBase::~AudioThumbnailBase ( )

overridedefault

Member Function Documentation

◆ addBlock()

virtual void juce::AudioFormatWriter::ThreadedWriter::IncomingDataReceiver::addBlock	(	int64	sampleNumberInSource,
		const AudioBuffer< float > &	newData,
		int	startOffsetInBuffer,
		int	numSamples
	)

pure virtualinherited

Implemented in juce::AudioThumbnail.

◆ addChangeListener()

void juce::ChangeBroadcaster::addChangeListener ( ChangeListener * listener )

inherited

Registers a listener to receive change callbacks from this broadcaster.

Trying to add a listener that's already on the list will have no effect.

◆ callListeners()

void juce::ChangeBroadcaster::callListeners ( )

privateinherited

◆ clear()

virtual void juce::AudioThumbnailBase::clear ( )

pure virtual

Clears and resets the thumbnail.

Implemented in juce::AudioThumbnail.

◆ dispatchPendingMessages()

void juce::ChangeBroadcaster::dispatchPendingMessages ( )

inherited

If a change message has been sent but not yet dispatched, this will call sendSynchronousChangeMessage() to make the callback immediately.

For thread-safety reasons, you must only call this method on the main message thread.

◆ drawChannel()

virtual void juce::AudioThumbnailBase::drawChannel	(	Graphics &	g,
		const Rectangle< int > &	area,
		double	startTimeSeconds,
		double	endTimeSeconds,
		int	channelNum,
		float	verticalZoomFactor
	)

pure virtual

Draws the waveform for a channel.

The waveform will be drawn within the specified rectangle, where startTime and endTime specify the times within the audio file that should be positioned at the left and right edges of the rectangle.

The waveform will be scaled vertically so that a full-volume sample will fill the rectangle vertically, but you can also specify an extra vertical scale factor with the verticalZoomFactor parameter.

Implemented in juce::AudioThumbnail.

◆ drawChannels()

virtual void juce::AudioThumbnailBase::drawChannels	(	Graphics &	g,
		const Rectangle< int > &	area,
		double	startTimeSeconds,
		double	endTimeSeconds,
		float	verticalZoomFactor
	)

pure virtual

Draws the waveforms for all channels in the thumbnail.

This will call drawChannel() to render each of the thumbnail's channels, stacked above each other within the specified area.

See also: drawChannel

Implemented in juce::AudioThumbnail.

◆ getApproximateMinMax()

virtual void juce::AudioThumbnailBase::getApproximateMinMax	(	double	startTime,
		double	endTime,
		int	channelIndex,
		float &	minValue,
		float &	maxValue
	)		const

pure virtualnoexcept

Reads the approximate min and max levels from a section of the thumbnail.

The lowest and highest samples are returned in minValue and maxValue, but obviously because the thumb only stores low-resolution data, these numbers will only be a rough approximation of the true values.

Implemented in juce::AudioThumbnail.

◆ getApproximatePeak()

virtual float juce::AudioThumbnailBase::getApproximatePeak ( ) const

pure virtual

Returns the highest level in the thumbnail.

Note that because the thumb only stores low-resolution data, this isn't an accurate representation of the highest value, it's only a rough approximation.

Implemented in juce::AudioThumbnail.

◆ getHashCode()

virtual int64 juce::AudioThumbnailBase::getHashCode ( ) const

pure virtual

Returns the hash code that was set by setSource() or setReader().

Implemented in juce::AudioThumbnail.

◆ getNumChannels()

virtual int juce::AudioThumbnailBase::getNumChannels ( ) const

pure virtualnoexcept

Returns the number of channels in the file.

Implemented in juce::AudioThumbnail.

◆ getNumSamplesFinished()

virtual int64 juce::AudioThumbnailBase::getNumSamplesFinished ( ) const

pure virtualnoexcept

Returns the number of samples that have been set in the thumbnail.

Implemented in juce::AudioThumbnail.

◆ getTotalLength()

virtual double juce::AudioThumbnailBase::getTotalLength ( ) const

pure virtualnoexcept

Returns the length of the audio file, in seconds.

Implemented in juce::AudioThumbnail.

◆ isFullyLoaded()

virtual bool juce::AudioThumbnailBase::isFullyLoaded ( ) const

pure virtualnoexcept

Returns true if the low res preview is fully generated.

Implemented in juce::AudioThumbnail.

◆ loadFrom()

virtual bool juce::AudioThumbnailBase::loadFrom ( InputStream & input )

pure virtual

Reloads the low res thumbnail data from an input stream.

This is not an audio file stream! It takes a stream of thumbnail data that would previously have been created by the saveTo() method.

See also: saveTo

Implemented in juce::AudioThumbnail.

◆ removeAllChangeListeners()

void juce::ChangeBroadcaster::removeAllChangeListeners ( )

inherited

Removes all listeners from the list.

◆ removeChangeListener()

void juce::ChangeBroadcaster::removeChangeListener ( ChangeListener * listener )

inherited

Unregisters a listener from the list.

If the listener isn't on the list, this won't have any effect.

◆ reset()

virtual void juce::AudioFormatWriter::ThreadedWriter::IncomingDataReceiver::reset	(	int	numChannels,
		double	sampleRate,
		int64	totalSamplesInSource
	)

pure virtualinherited

Implemented in juce::AudioThumbnail.

◆ saveTo()

virtual void juce::AudioThumbnailBase::saveTo ( OutputStream & output ) const

pure virtual

Saves the low res thumbnail data to an output stream.

The data that is written can later be reloaded using loadFrom().

See also: loadFrom

Implemented in juce::AudioThumbnail.

◆ sendChangeMessage()

void juce::ChangeBroadcaster::sendChangeMessage ( )

inherited

Causes an asynchronous change message to be sent to all the registered listeners.

The message will be delivered asynchronously by the main message thread, so this method will return immediately. To call the listeners synchronously use sendSynchronousChangeMessage().

Referenced by juce::SelectedItemSet< SelectableItemType >::changed().

◆ sendSynchronousChangeMessage()

void juce::ChangeBroadcaster::sendSynchronousChangeMessage ( )

inherited

Sends a synchronous change message to all the registered listeners.

This will immediately call all the listeners that are registered. For thread-safety reasons, you must only call this method on the main message thread.

See also: dispatchPendingMessages

Referenced by juce::SelectedItemSet< SelectableItemType >::changed().

◆ setReader()

virtual void juce::AudioThumbnailBase::setReader	(	AudioFormatReader *	newReader,
		int64	hashCode
	)

pure virtual

Gives the thumbnail an AudioFormatReader to use directly.

This will start parsing the audio in a background thread (unless the hash code can be looked-up successfully in the thumbnail cache). Note that the reader object will be held by the thumbnail and deleted later when no longer needed. The thumbnail will actually keep hold of this reader until you clear the thumbnail or change the input source, so the file will be held open for all this time. If you don't want the thumbnail to keep a file handle open continuously, you should use the setSource() method instead, which will only open the file when it needs to.

Implemented in juce::AudioThumbnail.

◆ setSource()

virtual bool juce::AudioThumbnailBase::setSource ( InputSource * newSource )

pure virtual

Specifies the file or stream that contains the audio file.

For a file, just call

setSource (new FileInputSource (file))

You can pass a nullptr in here to clear the thumbnail. The source that is passed in will be deleted by this object when it is no longer needed.

Returns: true if the source could be opened as a valid audio file, false if this failed for some reason.

Implemented in juce::AudioThumbnail.

Member Data Documentation

◆ anyListeners

std::atomic<bool> juce::ChangeBroadcaster::anyListeners { false }

privateinherited

◆ broadcastCallback

ChangeBroadcasterCallback juce::ChangeBroadcaster::broadcastCallback

privateinherited

◆ changeListeners

ListenerList<ChangeListener> juce::ChangeBroadcaster::changeListeners

privateinherited

The documentation for this class was generated from the following file:

juce_AudioThumbnailBase.h
