Manages a rectangle and allows geometric operations to be performed on it. More...

#include <juce_Rectangle.h>

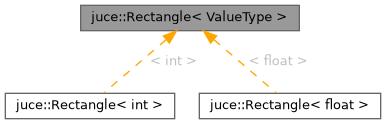

Inheritance diagram for juce::Rectangle< ValueType >:

Collaboration diagram for juce::Rectangle< ValueType >:

Public Member Functions
	Rectangle ()=default
	Creates a rectangle of zero size. More...

	Rectangle (const Rectangle &)=default
	Creates a copy of another rectangle. More...

	Rectangle (Point< ValueType > corner1, Point< ValueType > corner2) noexcept
	Creates a Rectangle from the positions of two opposite corners. More...

	Rectangle (ValueType initialX, ValueType initialY, ValueType width, ValueType height) noexcept
	Creates a rectangle with a given position and size. More...

	Rectangle (ValueType width, ValueType height) noexcept
	Creates a rectangle with a given size, and a position of (0, 0). More...

	~Rectangle ()=default
	Destructor. More...

Rectangle	constrainedWithin (Rectangle areaToFitWithin) const noexcept
	Tries to fit this rectangle within a target area, returning the result. More...

bool	contains (Point< ValueType > point) const noexcept
	Returns true if this coordinate is inside the rectangle. More...

bool	contains (Rectangle other) const noexcept
	Returns true if this other rectangle is completely inside this one. More...

bool	contains (ValueType xCoord, ValueType yCoord) const noexcept
	Returns true if this coordinate is inside the rectangle. More...

bool	enlargeIfAdjacent (Rectangle other) noexcept
	If this rectangle merged with another one results in a simple rectangle, this will set this rectangle to the result, and return true. More...

void	expand (ValueType deltaX, ValueType deltaY) noexcept
	Expands the rectangle by a given amount. More...

Rectangle	expanded (ValueType delta) const noexcept
	Returns a rectangle that is larger than this one by a given amount. More...

Rectangle	expanded (ValueType deltaX, ValueType deltaY) const noexcept
	Returns a rectangle that is larger than this one by a given amount. More...

ValueType	getAspectRatio (bool widthOverHeight=true) const noexcept
	Returns the aspect ratio of the rectangle's width / height. More...

ValueType	getBottom () const noexcept
	Returns the y coordinate of the rectangle's bottom edge. More...

Point< ValueType >	getBottomLeft () const noexcept
	Returns the rectangle's bottom-left position as a Point. More...

Point< ValueType >	getBottomRight () const noexcept
	Returns the rectangle's bottom-right position as a Point. More...

Point< ValueType >	getCentre () const noexcept
	Returns the centre point of the rectangle. More...

ValueType	getCentreX () const noexcept
	Returns the x coordinate of the rectangle's centre. More...

ValueType	getCentreY () const noexcept
	Returns the y coordinate of the rectangle's centre. More...

Point< ValueType >	getConstrainedPoint (Point< ValueType > point) const noexcept
	Returns the nearest point to the specified point that lies within this rectangle. More...

ValueType	getHeight () const noexcept
	Returns the height of the rectangle. More...

Range< ValueType >	getHorizontalRange () const noexcept
	Returns the rectangle's left and right positions as a Range. More...

Rectangle	getIntersection (Rectangle other) const noexcept
	Returns the region that is the overlap between this and another rectangle. More...

Point< ValueType >	getPosition () const noexcept
	Returns the rectangle's top-left position as a Point. More...

template<typename FloatType >
Rectangle	getProportion (Rectangle< FloatType > proportionalRect) const noexcept
	Returns a rectangle based on some proportional coordinates relative to this one. More...

template<typename FloatType >
Point< ValueType >	getRelativePoint (FloatType relativeX, FloatType relativeY) const noexcept
	Returns a point within this rectangle, specified as proportional coordinates. More...

ValueType	getRight () const noexcept
	Returns the x coordinate of the rectangle's right-hand-side. More...

Rectangle< int >	getSmallestIntegerContainer () const noexcept
	Returns the smallest integer-aligned rectangle that completely contains this one. More...

Point< ValueType >	getTopLeft () const noexcept
	Returns the rectangle's top-left position as a Point. More...

Point< ValueType >	getTopRight () const noexcept
	Returns the rectangle's top-right position as a Point. More...

Rectangle	getUnion (Rectangle other) const noexcept
	Returns the smallest rectangle that contains both this one and the one passed-in. More...

Range< ValueType >	getVerticalRange () const noexcept
	Returns the rectangle's top and bottom positions as a Range. More...

ValueType	getWidth () const noexcept
	Returns the width of the rectangle. More...

ValueType	getX () const noexcept
	Returns the x coordinate of the rectangle's left-hand-side. More...

ValueType	getY () const noexcept
	Returns the y coordinate of the rectangle's top edge. More...

bool	intersectRectangle (Rectangle< ValueType > &rectangleToClip) const noexcept
	Clips a rectangle so that it lies only within this one. More...

bool	intersectRectangle (ValueType &otherX, ValueType &otherY, ValueType &otherW, ValueType &otherH) const noexcept
	Clips a set of rectangle coordinates so that they lie only within this one. More...

bool	intersects (const Line< ValueType > &line) const noexcept
	Returns true if any part of the given line lies inside this rectangle. More...

bool	intersects (Rectangle other) const noexcept
	Returns true if any part of another rectangle overlaps this one. More...

bool	isEmpty () const noexcept
	Returns true if the rectangle's width or height are zero or less. More...

bool	isFinite () const noexcept
	Returns true if the rectangle's values are all finite numbers, i.e. More...

bool	operator!= (const Rectangle &other) const noexcept
	Returns true if the two rectangles are not identical. More...

template<typename FloatType >
Rectangle	operator* (FloatType scaleFactor) const noexcept
	Returns a rectangle that has been scaled by the given amount, centred around the origin. More...

template<typename FloatType >
Rectangle	operator*= (FloatType scaleFactor) noexcept
	Scales this rectangle by the given amount, centred around the origin. More...

template<typename FloatType >
Rectangle	operator*= (Point< FloatType > scaleFactor) noexcept
	Scales this rectangle by the given X and Y factors, centred around the origin. More...

Rectangle	operator+ (Point< ValueType > deltaPosition) const noexcept
	Returns a rectangle which is the same as this one moved by a given amount. More...

Rectangle &	operator+= (Point< ValueType > deltaPosition) noexcept
	Moves this rectangle by a given amount. More...

Rectangle	operator- (Point< ValueType > deltaPosition) const noexcept
	Returns a rectangle which is the same as this one moved by a given amount. More...

Rectangle &	operator-= (Point< ValueType > deltaPosition) noexcept
	Moves this rectangle by a given amount. More...

template<typename FloatType >
Rectangle	operator/ (FloatType scaleFactor) const noexcept
	Scales this rectangle by the given amount, centred around the origin. More...

template<typename FloatType >
Rectangle	operator/= (FloatType scaleFactor) noexcept
	Scales this rectangle by the given amount, centred around the origin. More...

template<typename FloatType >
Rectangle	operator/= (Point< FloatType > scaleFactor) noexcept
	Scales this rectangle by the given X and Y factors, centred around the origin. More...

Rectangle &	operator= (const Rectangle &)=default
	Creates a copy of another rectangle. More...

bool	operator== (const Rectangle &other) const noexcept
	Returns true if the two rectangles are identical. More...

template<typename FloatType >
ValueType	proportionOfHeight (FloatType proportion) const noexcept
	Returns a proportion of the height of this rectangle. More...

template<typename FloatType >
ValueType	proportionOfWidth (FloatType proportion) const noexcept
	Returns a proportion of the width of this rectangle. More...

void	reduce (ValueType deltaX, ValueType deltaY) noexcept
	Shrinks the rectangle by a given amount. More...

Rectangle	reduced (ValueType delta) const noexcept
	Returns a rectangle that is smaller than this one by a given amount. More...

Rectangle	reduced (ValueType deltaX, ValueType deltaY) const noexcept
	Returns a rectangle that is smaller than this one by a given amount. More...

bool	reduceIfPartlyContainedIn (Rectangle other) noexcept
	If after removing another rectangle from this one the result is a simple rectangle, this will set this object's bounds to be the result, and return true. More...

Rectangle	removeFromBottom (ValueType amountToRemove) noexcept
	Removes a strip from the bottom of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed. More...

Rectangle	removeFromLeft (ValueType amountToRemove) noexcept
	Removes a strip from the left-hand edge of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed. More...

Rectangle	removeFromRight (ValueType amountToRemove) noexcept
	Removes a strip from the right-hand edge of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed. More...

Rectangle	removeFromTop (ValueType amountToRemove) noexcept
	Removes a strip from the top of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed. More...

void	setBottom (ValueType newBottom) noexcept
	Adjusts the height so that the bottom edge of the rectangle has this new value. More...

void	setBounds (ValueType newX, ValueType newY, ValueType newWidth, ValueType newHeight) noexcept
	Changes all the rectangle's coordinates. More...

void	setCentre (Point< ValueType > newCentre) noexcept
	Changes the position of the rectangle's centre (leaving its size unchanged). More...

void	setCentre (ValueType newCentreX, ValueType newCentreY) noexcept
	Changes the position of the rectangle's centre (leaving its size unchanged). More...

void	setHeight (ValueType newHeight) noexcept
	Changes the rectangle's height. More...

void	setHorizontalRange (Range< ValueType > range) noexcept
	Changes the position of the rectangle's left and right edges. More...

void	setLeft (ValueType newLeft) noexcept
	Moves the x position, adjusting the width so that the right-hand edge remains in the same place. More...

void	setPosition (Point< ValueType > newPos) noexcept
	Changes the position of the rectangle's top-left corner (leaving its size unchanged). More...

void	setPosition (ValueType newX, ValueType newY) noexcept
	Changes the position of the rectangle's top-left corner (leaving its size unchanged). More...

void	setRight (ValueType newRight) noexcept
	Adjusts the width so that the right-hand edge of the rectangle has this new value. More...

void	setSize (ValueType newWidth, ValueType newHeight) noexcept
	Changes the rectangle's size, leaving the position of its top-left corner unchanged. More...

void	setTop (ValueType newTop) noexcept
	Moves the y position, adjusting the height so that the bottom edge remains in the same place. More...

void	setVerticalRange (Range< ValueType > range) noexcept
	Changes the position of the rectangle's top and bottom edges. More...

void	setWidth (ValueType newWidth) noexcept
	Changes the rectangle's width. More...

void	setX (ValueType newX) noexcept
	Changes the rectangle's X coordinate. More...

void	setY (ValueType newY) noexcept
	Changes the rectangle's Y coordinate. More...

Rectangle< double >	toDouble () const noexcept
	Casts this rectangle to a Rectangle<double>. More...

Rectangle< float >	toFloat () const noexcept
	Casts this rectangle to a Rectangle<float>. More...

Rectangle< int >	toNearestInt () const noexcept
	Casts this rectangle to a Rectangle<int>. More...

Rectangle< int >	toNearestIntEdges () const noexcept
	Casts this rectangle to a Rectangle<int>. More...

String	toString () const
	Creates a string describing this rectangle. More...

template<typename TargetType >
Rectangle< TargetType >	toType () const noexcept
	Casts this rectangle to a Rectangle with the given type. More...

Rectangle	transformedBy (const AffineTransform &transform) const noexcept
	Returns the smallest rectangle that can contain the shape created by applying a transform to this rectangle. More...

void	translate (ValueType deltaX, ValueType deltaY) noexcept
	Moves the rectangle's position by adding amount to its x and y coordinates. More...

Rectangle	translated (ValueType deltaX, ValueType deltaY) const noexcept
	Returns a rectangle which is the same as this one moved by a given amount. More...

JUCE_NODISCARD Rectangle	withBottom (ValueType newBottom) const noexcept
	Returns a new rectangle with a different bottom edge position, but the same top edge as this one. More...

JUCE_NODISCARD Rectangle	withBottomY (ValueType newBottomY) const noexcept
	Returns a rectangle which has the same size and x-position as this one, but whose bottom edge has the given position. More...

JUCE_NODISCARD Rectangle	withCentre (Point< ValueType > newCentre) const noexcept
	Returns a rectangle with the same size as this one, but a new centre position. More...

JUCE_NODISCARD Rectangle	withHeight (ValueType newHeight) const noexcept
	Returns a rectangle which has the same position and width as this one, but with a different height. More...

JUCE_NODISCARD Rectangle	withLeft (ValueType newLeft) const noexcept
	Returns a new rectangle with a different x position, but the same right-hand edge as this one. More...

JUCE_NODISCARD Rectangle	withPosition (Point< ValueType > newPos) const noexcept
	Returns a rectangle with the same size as this one, but a new position. More...

JUCE_NODISCARD Rectangle	withPosition (ValueType newX, ValueType newY) const noexcept
	Returns a rectangle with the same size as this one, but a new position. More...

JUCE_NODISCARD Rectangle	withRight (ValueType newRight) const noexcept
	Returns a new rectangle with a different right-hand edge position, but the same left-hand edge as this one. More...

JUCE_NODISCARD Rectangle	withRightX (ValueType newRightX) const noexcept
	Returns a rectangle which has the same size and y-position as this one, but whose right-hand edge has the given position. More...

JUCE_NODISCARD Rectangle	withSize (ValueType newWidth, ValueType newHeight) const noexcept
	Returns a rectangle with the same top-left position as this one, but a new size. More...

JUCE_NODISCARD Rectangle	withSizeKeepingCentre (ValueType newWidth, ValueType newHeight) const noexcept
	Returns a rectangle with the same centre position as this one, but a new size. More...

JUCE_NODISCARD Rectangle	withTop (ValueType newTop) const noexcept
	Returns a new rectangle with a different y position, but the same bottom edge as this one. More...

JUCE_NODISCARD Rectangle	withTrimmedBottom (ValueType amountToRemove) const noexcept
	Returns a version of this rectangle with the given amount removed from its bottom edge. More...

JUCE_NODISCARD Rectangle	withTrimmedLeft (ValueType amountToRemove) const noexcept
	Returns a version of this rectangle with the given amount removed from its left-hand edge. More...

JUCE_NODISCARD Rectangle	withTrimmedRight (ValueType amountToRemove) const noexcept
	Returns a version of this rectangle with the given amount removed from its right-hand edge. More...

JUCE_NODISCARD Rectangle	withTrimmedTop (ValueType amountToRemove) const noexcept
	Returns a version of this rectangle with the given amount removed from its top edge. More...

JUCE_NODISCARD Rectangle	withWidth (ValueType newWidth) const noexcept
	Returns a rectangle which has the same position and height as this one, but with a different width. More...

JUCE_NODISCARD Rectangle	withX (ValueType newX) const noexcept
	Returns a rectangle which has the same size and y-position as this one, but with a different x-position. More...

JUCE_NODISCARD Rectangle	withY (ValueType newY) const noexcept
	Returns a rectangle which has the same size and x-position as this one, but with a different y-position. More...

JUCE_NODISCARD Rectangle	withZeroOrigin () const noexcept
	Returns a rectangle whose size is the same as this one, but whose top-left position is (0, 0). More...

Static Public Member Functions
static Rectangle	findAreaContainingPoints (const Point< ValueType > *points, int numPoints) noexcept
	Returns the smallest Rectangle that can contain a set of points. More...

static Rectangle	fromString (StringRef stringVersion)
	Parses a string containing a rectangle's details. More...

static bool	intersectRectangles (ValueType &x1, ValueType &y1, ValueType &w1, ValueType &h1, ValueType x2, ValueType y2, ValueType w2, ValueType h2) noexcept
	Static utility to intersect two sets of rectangular coordinates. More...

static Rectangle	leftTopRightBottom (ValueType left, ValueType top, ValueType right, ValueType bottom) noexcept
	Creates a Rectangle from a set of left, right, top, bottom coordinates. More...

Private Member Functions
void	copyWithRounding (Rectangle< double > &result) const noexcept

void	copyWithRounding (Rectangle< float > &result) const noexcept

void	copyWithRounding (Rectangle< int > &result) const noexcept

Private Attributes
ValueType	h {}

Point< ValueType >	pos

ValueType	w {}

Friends
template<typename OtherType >
class	Rectangle

Detailed Description

template<typename ValueType>
class juce::Rectangle< ValueType >

Manages a rectangle and allows geometric operations to be performed on it.

See also: RectangleList, Path, Line, Point

@tags{Graphics}

Constructor & Destructor Documentation

◆ Rectangle() [1/5]

template<typename ValueType >

juce::Rectangle< ValueType >::Rectangle ( )

default

Creates a rectangle of zero size.

The default coordinates will be (0, 0, 0, 0).

◆ Rectangle() [2/5]

template<typename ValueType >

juce::Rectangle< ValueType >::Rectangle ( const Rectangle< ValueType > & )

default

Creates a copy of another rectangle.

◆ Rectangle() [3/5]

template<typename ValueType >

juce::Rectangle< ValueType >::Rectangle	(	ValueType	initialX,
		ValueType	initialY,
		ValueType	width,
		ValueType	height
	)

inlinenoexcept

Creates a rectangle with a given position and size.

◆ Rectangle() [4/5]

template<typename ValueType >

juce::Rectangle< ValueType >::Rectangle	(	ValueType	width,
		ValueType	height
	)

inlinenoexcept

Creates a rectangle with a given size, and a position of (0, 0).

◆ Rectangle() [5/5]

template<typename ValueType >

juce::Rectangle< ValueType >::Rectangle	(	Point< ValueType >	corner1,
		Point< ValueType >	corner2
	)

inlinenoexcept

Creates a Rectangle from the positions of two opposite corners.

◆ ~Rectangle()

template<typename ValueType >

juce::Rectangle< ValueType >::~Rectangle ( )

default

Destructor.

Member Function Documentation

◆ constrainedWithin()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::constrainedWithin ( Rectangle< ValueType > areaToFitWithin ) const

inlinenoexcept

Tries to fit this rectangle within a target area, returning the result.

If this rectangle is not completely inside the target area, then it'll be shifted (without changing its size) so that it lies within the target. If it is larger than the target rectangle in either dimension, then that dimension will be reduced to fit within the target.

◆ contains() [1/3]

template<typename ValueType >

bool juce::Rectangle< ValueType >::contains ( Point< ValueType > point ) const

inlinenoexcept

Returns true if this coordinate is inside the rectangle.

◆ contains() [2/3]

template<typename ValueType >

bool juce::Rectangle< ValueType >::contains ( Rectangle< ValueType > other ) const

inlinenoexcept

Returns true if this other rectangle is completely inside this one.

◆ contains() [3/3]

template<typename ValueType >

bool juce::Rectangle< ValueType >::contains	(	ValueType	xCoord,
		ValueType	yCoord
	)		const

inlinenoexcept

Returns true if this coordinate is inside the rectangle.

Referenced by juce::RectangleList< int >::add(), and juce::Rectangle< int >::intersects().

◆ copyWithRounding() [1/3]

template<typename ValueType >

void juce::Rectangle< ValueType >::copyWithRounding ( Rectangle< double > & result ) const

inlineprivatenoexcept

◆ copyWithRounding() [2/3]

template<typename ValueType >

void juce::Rectangle< ValueType >::copyWithRounding ( Rectangle< float > & result ) const

inlineprivatenoexcept

◆ copyWithRounding() [3/3]

template<typename ValueType >

void juce::Rectangle< ValueType >::copyWithRounding ( Rectangle< int > & result ) const

inlineprivatenoexcept

Referenced by juce::Rectangle< int >::operator*=(), juce::Rectangle< int >::operator/=(), juce::Rectangle< int >::toType(), and juce::Rectangle< int >::transformedBy().

◆ enlargeIfAdjacent()

template<typename ValueType >

bool juce::Rectangle< ValueType >::enlargeIfAdjacent ( Rectangle< ValueType > other )

inlinenoexcept

If this rectangle merged with another one results in a simple rectangle, this will set this rectangle to the result, and return true.

Returns false and does nothing to this rectangle if the two rectangles don't overlap, or if they form a complex region.

◆ expand()

template<typename ValueType >

void juce::Rectangle< ValueType >::expand	(	ValueType	deltaX,
		ValueType	deltaY
	)

inlinenoexcept

Expands the rectangle by a given amount.

Effectively, its new size is (x - deltaX, y - deltaY, w + deltaX * 2, h + deltaY * 2).

See also: expanded, reduce, reduced

Referenced by juce::Rectangle< int >::reduce().

◆ expanded() [1/2]

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::expanded ( ValueType delta ) const

inlinenoexcept

Returns a rectangle that is larger than this one by a given amount.

Effectively, the rectangle returned is (x - delta, y - delta, w + delta * 2, h + delta * 2).

See also: expand, reduce, reduced

◆ expanded() [2/2]

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::expanded	(	ValueType	deltaX,
		ValueType	deltaY
	)		const

inlinenoexcept

Returns a rectangle that is larger than this one by a given amount.

Effectively, the rectangle returned is (x - deltaX, y - deltaY, w + deltaX * 2, h + deltaY * 2).

See also: expand, reduce, reduced

Referenced by juce::Rectangle< int >::expanded(), and juce::Rectangle< int >::reduced().

◆ findAreaContainingPoints()

template<typename ValueType >

static Rectangle juce::Rectangle< ValueType >::findAreaContainingPoints	(	const Point< ValueType > *	points,
		int	numPoints
	)

inlinestaticnoexcept

Returns the smallest Rectangle that can contain a set of points.

Referenced by juce::Parallelogram< float >::getBoundingBox().

◆ fromString()

template<typename ValueType >

static Rectangle juce::Rectangle< ValueType >::fromString ( StringRef stringVersion )

inlinestatic

Parses a string containing a rectangle's details.

The string should contain 4 numeric tokens, in the form "x y width height". They can be comma or whitespace separated.

This method is intended to go with the toString() method, to form an easy way of saving/loading rectangles as strings.

See also: toString

◆ getAspectRatio()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getAspectRatio ( bool widthOverHeight = true ) const

inlinenoexcept

Returns the aspect ratio of the rectangle's width / height.

If widthOverHeight is true, it returns width / height; if widthOverHeight is false, it returns height / width.

◆ getBottom()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getBottom ( ) const

inlinenoexcept

Returns the y coordinate of the rectangle's bottom edge.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds(), juce::Rectangle< int >::enlargeIfAdjacent(), juce::CarbonViewWrapperComponent::setEmbeddedWindowToOurSize(), juce::Rectangle< int >::toNearestIntEdges(), and juce::ColourGradient::vertical().

◆ getBottomLeft()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getBottomLeft ( ) const

inlinenoexcept

Returns the rectangle's bottom-left position as a Point.

Referenced by juce::Rectangle< int >::intersects().

◆ getBottomRight()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getBottomRight ( ) const

inlinenoexcept

Returns the rectangle's bottom-right position as a Point.

Referenced by juce::Rectangle< int >::intersects().

◆ getCentre()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getCentre ( ) const

inlinenoexcept

Returns the centre point of the rectangle.

◆ getCentreX()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getCentreX ( ) const

inlinenoexcept

Returns the x coordinate of the rectangle's centre.

Referenced by juce::Draggable3DOrientation::mousePosToProportion().

◆ getCentreY()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getCentreY ( ) const

inlinenoexcept

Returns the y coordinate of the rectangle's centre.

Referenced by juce::Draggable3DOrientation::mousePosToProportion().

◆ getConstrainedPoint()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getConstrainedPoint ( Point< ValueType > point ) const

inlinenoexcept

Returns the nearest point to the specified point that lies within this rectangle.

Referenced by juce::Rectangle< int >::constrainedWithin().

◆ getHeight()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getHeight ( ) const

inlinenoexcept

Returns the height of the rectangle.

Referenced by juce::Path::addRoundedRectangle(), juce::Draggable3DOrientation::mousePosToProportion(), juce::RectangleList< int >::subtract(), and juce::OpenGLContext::NativeContext::updateWindowPosition().

◆ getHorizontalRange()

template<typename ValueType >

Range<ValueType> juce::Rectangle< ValueType >::getHorizontalRange ( ) const

inlinenoexcept

Returns the rectangle's left and right positions as a Range.

◆ getIntersection()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::getIntersection ( Rectangle< ValueType > other ) const

inlinenoexcept

Returns the region that is the overlap between this and another rectangle.

If the two rectangles don't overlap, the rectangle returned will be empty.

Referenced by juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::renderImage().

◆ getPosition()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getPosition ( ) const

inlinenoexcept

Returns the rectangle's top-left position as a Point.

◆ getProportion()

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::getProportion ( Rectangle< FloatType > proportionalRect ) const

inlinenoexcept

Returns a rectangle based on some proportional coordinates relative to this one.

So for example getProportion ({ 0.25f, 0.25f, 0.5f, 0.5f }) would return a rectangle of half the original size, with the same centre.

◆ getRelativePoint()

template<typename ValueType >

template<typename FloatType >

Point<ValueType> juce::Rectangle< ValueType >::getRelativePoint	(	FloatType	relativeX,
		FloatType	relativeY
	)		const

inlinenoexcept

Returns a point within this rectangle, specified as proportional coordinates.

The relative X and Y values should be between 0 and 1, where 0 is the left or top of this rectangle, and 1 is the right or bottom. (Out-of-bounds values will return a point outside the rectangle).

◆ getRight()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getRight ( ) const

inlinenoexcept

Returns the x coordinate of the rectangle's right-hand-side.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds(), juce::Rectangle< int >::enlargeIfAdjacent(), juce::ColourGradient::horizontal(), juce::CarbonViewWrapperComponent::setEmbeddedWindowToOurSize(), and juce::Rectangle< int >::toNearestIntEdges().

◆ getSmallestIntegerContainer()

template<typename ValueType >

Rectangle<int> juce::Rectangle< ValueType >::getSmallestIntegerContainer ( ) const

inlinenoexcept

Returns the smallest integer-aligned rectangle that completely contains this one.

This is only relevant for floating-point rectangles, of course.

See also: toFloat(), toNearestInt(), toNearestIntEdges()

Referenced by juce::Rectangle< int >::copyWithRounding().

◆ getTopLeft()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getTopLeft ( ) const

inlinenoexcept

Returns the rectangle's top-left position as a Point.

Referenced by juce::Rectangle< int >::intersects().

◆ getTopRight()

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::getTopRight ( ) const

inlinenoexcept

Returns the rectangle's top-right position as a Point.

Referenced by juce::Rectangle< int >::intersects().

◆ getUnion()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::getUnion ( Rectangle< ValueType > other ) const

inlinenoexcept

Returns the smallest rectangle that contains both this one and the one passed-in.

If either this or the other rectangle are empty, they will not be counted as part of the resulting region.

◆ getVerticalRange()

template<typename ValueType >

Range<ValueType> juce::Rectangle< ValueType >::getVerticalRange ( ) const

inlinenoexcept

Returns the rectangle's top and bottom positions as a Range.

◆ getWidth()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getWidth ( ) const

inlinenoexcept

Returns the width of the rectangle.

Referenced by juce::Path::addRoundedRectangle(), juce::Draggable3DOrientation::mousePosToProportion(), juce::RectangleList< int >::subtract(), juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::transformedClipImage(), and juce::OpenGLContext::NativeContext::updateWindowPosition().

◆ getX()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getX ( ) const

inlinenoexcept

Returns the x coordinate of the rectangle's left-hand-side.

Referenced by juce::Path::addRoundedRectangle(), juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds(), juce::ColourGradient::horizontal(), juce::CarbonViewWrapperComponent::setEmbeddedWindowToOurSize(), juce::RectangleList< int >::subtract(), juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::transformedClipImage(), and juce::OpenGLContext::NativeContext::updateWindowPosition().

◆ getY()

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::getY ( ) const

inlinenoexcept

Returns the y coordinate of the rectangle's top edge.

Referenced by juce::Path::addRoundedRectangle(), juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds(), juce::CarbonViewWrapperComponent::setEmbeddedWindowToOurSize(), juce::RectangleList< int >::subtract(), juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::transformedClipImage(), juce::OpenGLContext::NativeContext::updateWindowPosition(), and juce::ColourGradient::vertical().

◆ intersectRectangle() [1/2]

template<typename ValueType >

bool juce::Rectangle< ValueType >::intersectRectangle ( Rectangle< ValueType > & rectangleToClip ) const

inlinenoexcept

Clips a rectangle so that it lies only within this one.

Returns false if the two rectangles didn't overlap.

◆ intersectRectangle() [2/2]

template<typename ValueType >

bool juce::Rectangle< ValueType >::intersectRectangle	(	ValueType &	otherX,
		ValueType &	otherY,
		ValueType &	otherW,
		ValueType &	otherH
	)		const

inlinenoexcept

Clips a set of rectangle coordinates so that they lie only within this one.

This is a non-static version of intersectRectangles(). Returns false if the two rectangles didn't overlap.

Referenced by juce::RectangleList< int >::clipTo(), juce::RectangleList< int >::getIntersectionWith(), and juce::Rectangle< int >::intersectRectangle().

◆ intersectRectangles()

template<typename ValueType >

static bool juce::Rectangle< ValueType >::intersectRectangles	(	ValueType &	x1,
		ValueType &	y1,
		ValueType &	w1,
		ValueType &	h1,
		ValueType	x2,
		ValueType	y2,
		ValueType	w2,
		ValueType	h2
	)

inlinestaticnoexcept

Static utility to intersect two sets of rectangular coordinates.

Returns false if the two regions didn't overlap.

See also: intersectRectangle

◆ intersects() [1/2]

template<typename ValueType >

bool juce::Rectangle< ValueType >::intersects ( const Line< ValueType > & line ) const

inlinenoexcept

Returns true if any part of the given line lies inside this rectangle.

◆ intersects() [2/2]

template<typename ValueType >

bool juce::Rectangle< ValueType >::intersects ( Rectangle< ValueType > other ) const

inlinenoexcept

Returns true if any part of another rectangle overlaps this one.

Referenced by juce::RectangleList< int >::add().

◆ isEmpty()

template<typename ValueType >

bool juce::Rectangle< ValueType >::isEmpty ( ) const

inlinenoexcept

Returns true if the rectangle's width or height are zero or less.

Referenced by juce::RectangleList< int >::add(), juce::RectangleList< int >::addWithoutMerging(), juce::RectangleList< int >::clipTo(), juce::RectangleList< int >::getIntersectionWith(), juce::Rectangle< int >::getUnion(), and juce::RenderingHelpers::SavedStateBase< SoftwareRendererSavedState >::renderImage().

◆ isFinite()

template<typename ValueType >

bool juce::Rectangle< ValueType >::isFinite ( ) const

inlinenoexcept

Returns true if the rectangle's values are all finite numbers, i.e.

not NaN or infinity.

Referenced by juce::RectangleList< int >::add(), juce::RectangleList< int >::addWithoutMerging(), juce::RectangleList< int >::clipTo(), and juce::RectangleList< int >::getIntersectionWith().

◆ leftTopRightBottom()

template<typename ValueType >

static Rectangle juce::Rectangle< ValueType >::leftTopRightBottom	(	ValueType	left,
		ValueType	top,
		ValueType	right,
		ValueType	bottom
	)

inlinestaticnoexcept

Creates a Rectangle from a set of left, right, top, bottom coordinates.

The right and bottom values must be larger than the left and top ones, or the resulting rectangle will have a negative size.

Referenced by juce::Rectangle< int >::getSmallestIntegerContainer(), juce::UIATransformProvider::Move(), and juce::Rectangle< int >::toNearestIntEdges().

◆ operator!=()

template<typename ValueType >

bool juce::Rectangle< ValueType >::operator!= ( const Rectangle< ValueType > & other ) const

inlinenoexcept

Returns true if the two rectangles are not identical.

◆ operator*()

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator* ( FloatType scaleFactor ) const

inlinenoexcept

Returns a rectangle that has been scaled by the given amount, centred around the origin.

Note that if the rectangle has int coordinates and it's scaled by a floating-point amount, then the result will be converted back to integer coordinates using getSmallestIntegerContainer().

◆ operator*=() [1/2]

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator*= ( FloatType scaleFactor )

inlinenoexcept

Scales this rectangle by the given amount, centred around the origin.

Note that if the rectangle has int coordinates and it's scaled by a floating-point amount, then the result will be converted back to integer coordinates using getSmallestIntegerContainer().

◆ operator*=() [2/2]

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator*= ( Point< FloatType > scaleFactor )

inlinenoexcept

Scales this rectangle by the given X and Y factors, centred around the origin.

Note that if the rectangle has int coordinates and it's scaled by a floating-point amount, then the result will be converted back to integer coordinates using getSmallestIntegerContainer().

◆ operator+()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::operator+ ( Point< ValueType > deltaPosition ) const

inlinenoexcept

Returns a rectangle which is the same as this one moved by a given amount.

◆ operator+=()

template<typename ValueType >

Rectangle& juce::Rectangle< ValueType >::operator+= ( Point< ValueType > deltaPosition )

inlinenoexcept

Moves this rectangle by a given amount.

◆ operator-()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::operator- ( Point< ValueType > deltaPosition ) const

inlinenoexcept

Returns a rectangle which is the same as this one moved by a given amount.

◆ operator-=()

template<typename ValueType >

Rectangle& juce::Rectangle< ValueType >::operator-= ( Point< ValueType > deltaPosition )

inlinenoexcept

Moves this rectangle by a given amount.

◆ operator/()

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator/ ( FloatType scaleFactor ) const

inlinenoexcept

Scales this rectangle by the given amount, centred around the origin.

◆ operator/=() [1/2]

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator/= ( FloatType scaleFactor )

inlinenoexcept

Scales this rectangle by the given amount, centred around the origin.

◆ operator/=() [2/2]

template<typename ValueType >

template<typename FloatType >

Rectangle juce::Rectangle< ValueType >::operator/= ( Point< FloatType > scaleFactor )

inlinenoexcept

Scales this rectangle by the given X and Y factors, centred around the origin.

◆ operator=()

template<typename ValueType >

Rectangle& juce::Rectangle< ValueType >::operator= ( const Rectangle< ValueType > & )

default

Creates a copy of another rectangle.

◆ operator==()

template<typename ValueType >

bool juce::Rectangle< ValueType >::operator== ( const Rectangle< ValueType > & other ) const

inlinenoexcept

Returns true if the two rectangles are identical.

◆ proportionOfHeight()

template<typename ValueType >

template<typename FloatType >

ValueType juce::Rectangle< ValueType >::proportionOfHeight ( FloatType proportion ) const

inlinenoexcept

Returns a proportion of the height of this rectangle.

Referenced by juce::Rectangle< int >::getProportion().

◆ proportionOfWidth()

template<typename ValueType >

template<typename FloatType >

ValueType juce::Rectangle< ValueType >::proportionOfWidth ( FloatType proportion ) const

inlinenoexcept

Returns a proportion of the width of this rectangle.

Referenced by juce::Rectangle< int >::getProportion().

◆ reduce()

template<typename ValueType >

void juce::Rectangle< ValueType >::reduce	(	ValueType	deltaX,
		ValueType	deltaY
	)

inlinenoexcept

Shrinks the rectangle by a given amount.

Effectively, its new size is (x + deltaX, y + deltaY, w - deltaX * 2, h - deltaY * 2).

See also: reduced, expand, expanded

◆ reduced() [1/2]

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::reduced ( ValueType delta ) const

inlinenoexcept

Returns a rectangle that is smaller than this one by a given amount.

Effectively, the rectangle returned is (x + delta, y + delta, w - delta * 2, h - delta * 2).

See also: reduce, expand, expanded

◆ reduced() [2/2]

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::reduced	(	ValueType	deltaX,
		ValueType	deltaY
	)		const

inlinenoexcept

Returns a rectangle that is smaller than this one by a given amount.

Effectively, the rectangle returned is (x + deltaX, y + deltaY, w - deltaX * 2, h - deltaY * 2).

See also: reduce, expand, expanded

Referenced by juce::Rectangle< int >::reduced(), and juce::StandaloneFilterWindow::MainContentComponent::NotificationArea::resized().

◆ reduceIfPartlyContainedIn()

template<typename ValueType >

bool juce::Rectangle< ValueType >::reduceIfPartlyContainedIn ( Rectangle< ValueType > other )

inlinenoexcept

If after removing another rectangle from this one the result is a simple rectangle, this will set this object's bounds to be the result, and return true.

Returns false and does nothing to this rectangle if the two rectangles don't overlap, or if removing the other one would form a complex region.

◆ removeFromBottom()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::removeFromBottom ( ValueType amountToRemove )

inlinenoexcept

Removes a strip from the bottom of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed.

E.g. if this rectangle is (100, 100, 300, 300) and amountToRemove is 50, this will return (100, 350, 300, 50) and leave this rectangle as (100, 100, 300, 250).

If amountToRemove is greater than the height of this rectangle, it'll be clipped to that value.

◆ removeFromLeft()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::removeFromLeft ( ValueType amountToRemove )

inlinenoexcept

Removes a strip from the left-hand edge of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed.

E.g. if this rectangle is (100, 100, 300, 300) and amountToRemove is 50, this will return (100, 100, 50, 300) and leave this rectangle as (150, 100, 250, 300).

If amountToRemove is greater than the width of this rectangle, it'll be clipped to that value.

◆ removeFromRight()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::removeFromRight ( ValueType amountToRemove )

inlinenoexcept

Removes a strip from the right-hand edge of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed.

E.g. if this rectangle is (100, 100, 300, 300) and amountToRemove is 50, this will return (350, 100, 50, 300) and leave this rectangle as (100, 100, 250, 300).

If amountToRemove is greater than the width of this rectangle, it'll be clipped to that value.

◆ removeFromTop()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::removeFromTop ( ValueType amountToRemove )

inlinenoexcept

Removes a strip from the top of this rectangle, reducing this rectangle by the specified amount and returning the section that was removed.

E.g. if this rectangle is (100, 100, 300, 300) and amountToRemove is 50, this will return (100, 100, 300, 50) and leave this rectangle as (100, 150, 300, 250).

If amountToRemove is greater than the height of this rectangle, it'll be clipped to that value.

◆ setBottom()

template<typename ValueType >

void juce::Rectangle< ValueType >::setBottom ( ValueType newBottom )

inlinenoexcept

Adjusts the height so that the bottom edge of the rectangle has this new value.

If the new bottom is lower than the current Y value, the Y will be pushed down to match it.

See also: getBottom, withBottom

◆ setBounds()

template<typename ValueType >

void juce::Rectangle< ValueType >::setBounds	(	ValueType	newX,
		ValueType	newY,
		ValueType	newWidth,
		ValueType	newHeight
	)

inlinenoexcept

Changes all the rectangle's coordinates.

Referenced by juce::Rectangle< int >::expand().

◆ setCentre() [1/2]

template<typename ValueType >

void juce::Rectangle< ValueType >::setCentre ( Point< ValueType > newCentre )

inlinenoexcept

Changes the position of the rectangle's centre (leaving its size unchanged).

Referenced by juce::Rectangle< int >::setCentre().

◆ setCentre() [2/2]

template<typename ValueType >

void juce::Rectangle< ValueType >::setCentre	(	ValueType	newCentreX,
		ValueType	newCentreY
	)

inlinenoexcept

Changes the position of the rectangle's centre (leaving its size unchanged).

◆ setHeight()

template<typename ValueType >

void juce::Rectangle< ValueType >::setHeight ( ValueType newHeight )

inlinenoexcept

Changes the rectangle's height.

◆ setHorizontalRange()

template<typename ValueType >

void juce::Rectangle< ValueType >::setHorizontalRange ( Range< ValueType > range )

inlinenoexcept

Changes the position of the rectangle's left and right edges.

◆ setLeft()

template<typename ValueType >

void juce::Rectangle< ValueType >::setLeft ( ValueType newLeft )

inlinenoexcept

Moves the x position, adjusting the width so that the right-hand edge remains in the same place.

If the x is moved to be on the right of the current right-hand edge, the width will be set to zero.

See also: withLeft

◆ setPosition() [1/2]

template<typename ValueType >

void juce::Rectangle< ValueType >::setPosition ( Point< ValueType > newPos )

inlinenoexcept

Changes the position of the rectangle's top-left corner (leaving its size unchanged).

◆ setPosition() [2/2]

template<typename ValueType >

void juce::Rectangle< ValueType >::setPosition	(	ValueType	newX,
		ValueType	newY
	)

inlinenoexcept

Changes the position of the rectangle's top-left corner (leaving its size unchanged).

◆ setRight()

template<typename ValueType >

void juce::Rectangle< ValueType >::setRight ( ValueType newRight )

inlinenoexcept

Adjusts the width so that the right-hand edge of the rectangle has this new value.

If the new right is below the current X value, the X will be pushed down to match it.

See also: getRight, withRight

◆ setSize()

template<typename ValueType >

void juce::Rectangle< ValueType >::setSize	(	ValueType	newWidth,
		ValueType	newHeight
	)

inlinenoexcept

Changes the rectangle's size, leaving the position of its top-left corner unchanged.

◆ setTop()

template<typename ValueType >

void juce::Rectangle< ValueType >::setTop ( ValueType newTop )

inlinenoexcept

Moves the y position, adjusting the height so that the bottom edge remains in the same place.

If the y is moved to be below the current bottom edge, the height will be set to zero.

See also: withTop

◆ setVerticalRange()

template<typename ValueType >

void juce::Rectangle< ValueType >::setVerticalRange ( Range< ValueType > range )

inlinenoexcept

Changes the position of the rectangle's top and bottom edges.

◆ setWidth()

template<typename ValueType >

void juce::Rectangle< ValueType >::setWidth ( ValueType newWidth )

inlinenoexcept

Changes the rectangle's width.

◆ setX()

template<typename ValueType >

void juce::Rectangle< ValueType >::setX ( ValueType newX )

inlinenoexcept

Changes the rectangle's X coordinate.

◆ setY()

template<typename ValueType >

void juce::Rectangle< ValueType >::setY ( ValueType newY )

inlinenoexcept

Changes the rectangle's Y coordinate.

◆ toDouble()

template<typename ValueType >

Rectangle<double> juce::Rectangle< ValueType >::toDouble ( ) const

inlinenoexcept

Casts this rectangle to a Rectangle<double>.

See also: getSmallestIntegerContainer

Referenced by juce::Rectangle< int >::copyWithRounding(), and juce::OpenGLContext::NativeContext::updateWindowPosition().

◆ toFloat()

template<typename ValueType >

Rectangle<float> juce::Rectangle< ValueType >::toFloat ( ) const

inlinenoexcept

Casts this rectangle to a Rectangle<float>.

See also: getSmallestIntegerContainer

Referenced by juce::Rectangle< int >::copyWithRounding().

◆ toNearestInt()

template<typename ValueType >

Rectangle<int> juce::Rectangle< ValueType >::toNearestInt ( ) const

inlinenoexcept

Casts this rectangle to a Rectangle<int>.

This uses roundToInt to snap x, y, width and height to the nearest integer (losing precision). If the rectangle already uses integers, this will simply return a copy.

See also: getSmallestIntegerContainer(), toNearestIntEdges()

◆ toNearestIntEdges()

template<typename ValueType >

Rectangle<int> juce::Rectangle< ValueType >::toNearestIntEdges ( ) const

inlinenoexcept

Casts this rectangle to a Rectangle<int>.

This uses roundToInt to snap top, left, right and bottom to the nearest integer (losing precision). If the rectangle already uses integers, this will simply return a copy.

See also: getSmallestIntegerContainer(), toNearestInt()

◆ toString()

template<typename ValueType >

String juce::Rectangle< ValueType >::toString ( ) const

inline

Creates a string describing this rectangle.

The string will be of the form "x y width height", e.g. "100 100 400 200".

Coupled with the fromString() method, this is very handy for things like storing rectangles (particularly component positions) in XML attributes.

See also: fromString

◆ toType()

template<typename ValueType >

template<typename TargetType >

Rectangle<TargetType> juce::Rectangle< ValueType >::toType ( ) const

inlinenoexcept

Casts this rectangle to a Rectangle with the given type.

If the target type is a conversion from float to int, then the conversion will be done using getSmallestIntegerContainer().

◆ transformedBy()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::transformedBy ( const AffineTransform & transform ) const

inlinenoexcept

Returns the smallest rectangle that can contain the shape created by applying a transform to this rectangle.

This should only be used on floating point rectangles.

◆ translate()

template<typename ValueType >

void juce::Rectangle< ValueType >::translate	(	ValueType	deltaX,
		ValueType	deltaY
	)

inlinenoexcept

Moves the rectangle's position by adding amount to its x and y coordinates.

◆ translated()

template<typename ValueType >

Rectangle juce::Rectangle< ValueType >::translated	(	ValueType	deltaX,
		ValueType	deltaY
	)		const

inlinenoexcept

Returns a rectangle which is the same as this one moved by a given amount.

◆ withBottom()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withBottom ( ValueType newBottom ) const

inlinenoexcept

Returns a new rectangle with a different bottom edge position, but the same top edge as this one.

If the new y is beyond the bottom of the current rectangle, the height will be set to zero.

See also: setBottom

◆ withBottomY()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withBottomY ( ValueType newBottomY ) const

inlinenoexcept

Returns a rectangle which has the same size and x-position as this one, but whose bottom edge has the given position.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds().

◆ withCentre()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withCentre ( Point< ValueType > newCentre ) const

inlinenoexcept

Returns a rectangle with the same size as this one, but a new centre position.

◆ withHeight()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withHeight ( ValueType newHeight ) const

inlinenoexcept

Returns a rectangle which has the same position and width as this one, but with a different height.

Referenced by juce::Rectangle< int >::withTrimmedBottom().

◆ withLeft()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withLeft ( ValueType newLeft ) const

inlinenoexcept

Returns a new rectangle with a different x position, but the same right-hand edge as this one.

If the new x is beyond the right of the current right-hand edge, the width will be set to zero.

See also: setLeft

Referenced by juce::Rectangle< int >::withTrimmedLeft().

◆ withPosition() [1/2]

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withPosition ( Point< ValueType > newPos ) const

inlinenoexcept

Returns a rectangle with the same size as this one, but a new position.

◆ withPosition() [2/2]

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withPosition	(	ValueType	newX,
		ValueType	newY
	)		const

inlinenoexcept

Returns a rectangle with the same size as this one, but a new position.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds().

◆ withRight()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withRight ( ValueType newRight ) const

inlinenoexcept

Returns a new rectangle with a different right-hand edge position, but the same left-hand edge as this one.

If the new right edge is below the current left-hand edge, the width will be set to zero.

See also: setRight

◆ withRightX()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withRightX ( ValueType newRightX ) const

inlinenoexcept

Returns a rectangle which has the same size and y-position as this one, but whose right-hand edge has the given position.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds().

◆ withSize()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withSize	(	ValueType	newWidth,
		ValueType	newHeight
	)		const

inlinenoexcept

Returns a rectangle with the same top-left position as this one, but a new size.

Referenced by juce::Rectangle< int >::constrainedWithin().

◆ withSizeKeepingCentre()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withSizeKeepingCentre	(	ValueType	newWidth,
		ValueType	newHeight
	)		const

inlinenoexcept

Returns a rectangle with the same centre position as this one, but a new size.

◆ withTop()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withTop ( ValueType newTop ) const

inlinenoexcept

Returns a new rectangle with a different y position, but the same bottom edge as this one.

If the new y is beyond the bottom of the current rectangle, the height will be set to zero.

See also: setTop

Referenced by juce::Rectangle< int >::withTrimmedTop().

◆ withTrimmedBottom()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withTrimmedBottom ( ValueType amountToRemove ) const

inlinenoexcept

Returns a version of this rectangle with the given amount removed from its bottom edge.

◆ withTrimmedLeft()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withTrimmedLeft ( ValueType amountToRemove ) const

inlinenoexcept

Returns a version of this rectangle with the given amount removed from its left-hand edge.

◆ withTrimmedRight()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withTrimmedRight ( ValueType amountToRemove ) const

inlinenoexcept

Returns a version of this rectangle with the given amount removed from its right-hand edge.

◆ withTrimmedTop()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withTrimmedTop ( ValueType amountToRemove ) const

inlinenoexcept

Returns a version of this rectangle with the given amount removed from its top edge.

◆ withWidth()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withWidth ( ValueType newWidth ) const

inlinenoexcept

Returns a rectangle which has the same position and height as this one, but with a different width.

Referenced by juce::Rectangle< int >::withTrimmedRight().

◆ withX()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withX ( ValueType newX ) const

inlinenoexcept

Returns a rectangle which has the same size and y-position as this one, but with a different x-position.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds().

◆ withY()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withY ( ValueType newY ) const

inlinenoexcept

Returns a rectangle which has the same size and x-position as this one, but with a different y-position.

Referenced by juce::StandaloneFilterWindow::DecoratorConstrainer::checkBounds().

◆ withZeroOrigin()

template<typename ValueType >

JUCE_NODISCARD Rectangle juce::Rectangle< ValueType >::withZeroOrigin ( ) const

inlinenoexcept

Returns a rectangle whose size is the same as this one, but whose top-left position is (0, 0).

Friends And Related Function Documentation

◆ Rectangle

template<typename ValueType >

template<typename OtherType >

friend class Rectangle

friend

Member Data Documentation

◆ h

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::h {}

private

◆ pos

template<typename ValueType >

Point<ValueType> juce::Rectangle< ValueType >::pos

private

◆ w

template<typename ValueType >

ValueType juce::Rectangle< ValueType >::w {}

private

The documentation for this class was generated from the following file:

juce_Rectangle.h

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

template<typename ValueType> class juce::Rectangle< ValueType >

Constructor & Destructor Documentation

◆ Rectangle() [1/5]

◆ Rectangle() [2/5]

◆ Rectangle() [3/5]

◆ Rectangle() [4/5]

◆ Rectangle() [5/5]

◆ ~Rectangle()

Member Function Documentation

◆ constrainedWithin()

◆ contains() [1/3]

◆ contains() [2/3]

◆ contains() [3/3]

◆ copyWithRounding() [1/3]

◆ copyWithRounding() [2/3]

◆ copyWithRounding() [3/3]

◆ enlargeIfAdjacent()

◆ expand()

◆ expanded() [1/2]

◆ expanded() [2/2]

◆ findAreaContainingPoints()

◆ fromString()

◆ getAspectRatio()

◆ getBottom()

◆ getBottomLeft()

◆ getBottomRight()

◆ getCentre()

◆ getCentreX()

◆ getCentreY()

◆ getConstrainedPoint()

◆ getHeight()

◆ getHorizontalRange()

◆ getIntersection()

◆ getPosition()

◆ getProportion()

◆ getRelativePoint()

◆ getRight()

◆ getSmallestIntegerContainer()

◆ getTopLeft()

◆ getTopRight()

◆ getUnion()

◆ getVerticalRange()

◆ getWidth()

◆ getX()

◆ getY()

◆ intersectRectangle() [1/2]

◆ intersectRectangle() [2/2]

◆ intersectRectangles()

◆ intersects() [1/2]

◆ intersects() [2/2]

◆ isEmpty()

◆ isFinite()

◆ leftTopRightBottom()

◆ operator!=()

◆ operator*()

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator+()

◆ operator+=()

◆ operator-()

◆ operator-=()

◆ operator/()

◆ operator/=() [1/2]

◆ operator/=() [2/2]

◆ operator=()

◆ operator==()

◆ proportionOfHeight()

◆ proportionOfWidth()

◆ reduce()

◆ reduced() [1/2]

◆ reduced() [2/2]

◆ reduceIfPartlyContainedIn()

◆ removeFromBottom()

◆ removeFromLeft()

template<typename ValueType>
class juce::Rectangle< ValueType >
