juce::Draggable3DOrientation Class Reference

Stores a 3D orientation, which can be rotated by dragging with the mouse. More...

#include <juce_Draggable3DOrientation.h>

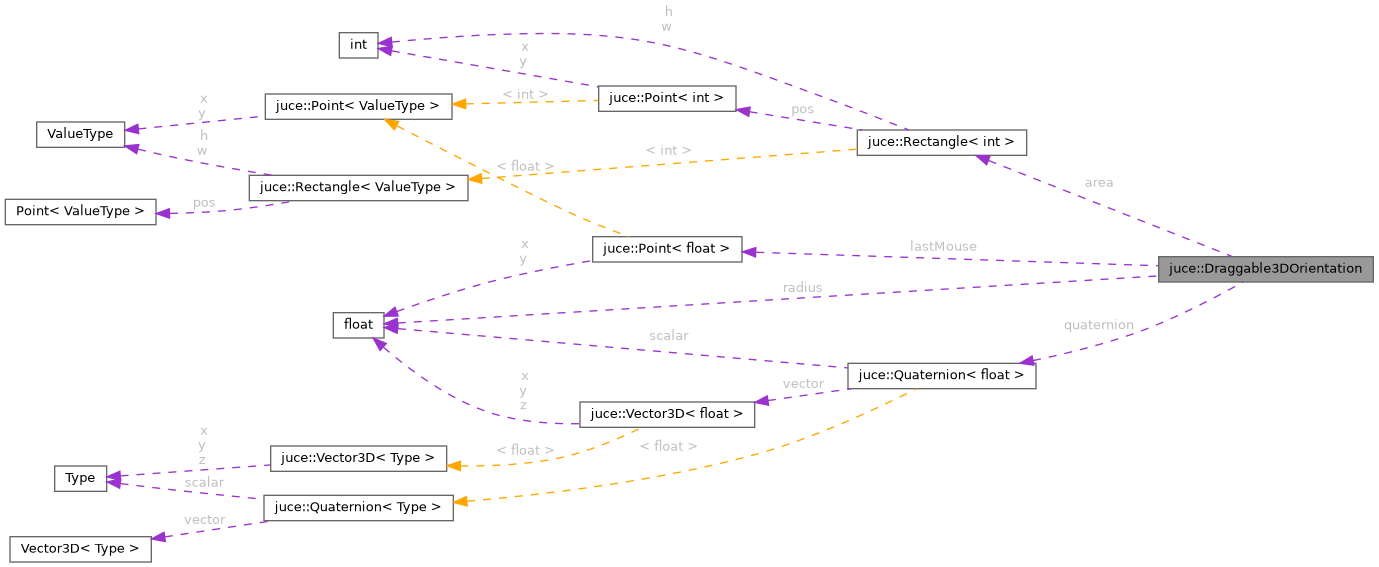

Collaboration diagram for juce::Draggable3DOrientation:

Public Types
using	QuaternionType = Quaternion< float >
using	VectorType = Vector3D< float >

Public Member Functions
	Draggable3DOrientation (const Quaternion< float > &quaternionToUse, float objectRadius=0.5f) noexcept
	Creates a Draggable3DOrientation from a user-supplied quaternion. More...
	Draggable3DOrientation (float objectRadius=0.5f) noexcept
	Creates a Draggable3DOrientation, initially set up to be aligned along the X axis. More...
QuaternionType &	getQuaternion () noexcept
	Provides direct access to the quaternion. More...
Matrix3D< float >	getRotationMatrix () const noexcept
	Returns the matrix that should be used to apply the current orientation. More...
template<typename Type >
void	mouseDown (Point< Type > mousePos) noexcept
	Begins a mouse-drag operation. More...
template<typename Type >
void	mouseDrag (Point< Type > mousePos) noexcept
	Continues a mouse-drag operation. More...
void	reset (const VectorType &axis) noexcept
	Resets the orientation, specifying the axis to align it along. More...
void	setRadius (float newRadius) noexcept
	Sets the size of the rotated object, as a proportion of the viewport's size. More...
void	setViewport (Rectangle< int > newArea) noexcept
	Sets the viewport area within which mouse-drag positions will occur. More...

Private Member Functions
Point< float >	mousePosToProportion (Point< float > mousePos) const noexcept
VectorType	projectOnSphere (Point< float > pos) const noexcept
QuaternionType	rotationFromMove (const VectorType &from, const VectorType &to) const noexcept

Private Attributes
Rectangle< int >	area
Point< float >	lastMouse
QuaternionType	quaternion
float	radius

Detailed Description

Stores a 3D orientation, which can be rotated by dragging with the mouse.

@tags{OpenGL}

Member Typedef Documentation

QuaternionType

using juce::Draggable3DOrientation::QuaternionType = Quaternion<float>

VectorType

using juce::Draggable3DOrientation::VectorType = Vector3D<float>

Constructor & Destructor Documentation

Draggable3DOrientation() [1/2]

juce::Draggable3DOrientation::Draggable3DOrientation ( float  objectRadius = 0.5f )

inlinenoexcept

Creates a Draggable3DOrientation, initially set up to be aligned along the X axis.

Draggable3DOrientation() [2/2]

juce::Draggable3DOrientation::Draggable3DOrientation ( const Quaternion< float > &  quaternionToUse, float  objectRadius = 0.5f  )

inlinenoexcept

Creates a Draggable3DOrientation from a user-supplied quaternion.

Member Function Documentation

getQuaternion()

QuaternionType& juce::Draggable3DOrientation::getQuaternion ( )

inlinenoexcept

Provides direct access to the quaternion.

References quaternion.

getRotationMatrix()

Matrix3D<float> juce::Draggable3DOrientation::getRotationMatrix ( ) const

inlinenoexcept

Returns the matrix that should be used to apply the current orientation.

See also

applyToOpenGLMatrix

References juce::Quaternion< Type >::getRotationMatrix(), and quaternion.

mouseDown()

template<typename Type >

void juce::Draggable3DOrientation::mouseDown ( Point< Type >  mousePos )

inlinenoexcept

Begins a mouse-drag operation.

You must call this before any calls to mouseDrag(). The position that is supplied will be treated as being relative to the centre of the rectangle passed to setViewport().

References lastMouse, and mousePosToProportion().

mouseDrag()

template<typename Type >

void juce::Draggable3DOrientation::mouseDrag ( Point< Type >  mousePos )

inlinenoexcept

Continues a mouse-drag operation.

After calling mouseDown() to begin a drag sequence, you can call this method to continue it.

References lastMouse, mousePosToProportion(), projectOnSphere(), quaternion, and rotationFromMove().

mousePosToProportion()

Point<float> juce::Draggable3DOrientation::mousePosToProportion ( Point< float >  mousePos ) const

inlineprivatenoexcept

References area, juce::Rectangle< ValueType >::getCentreX(), juce::Rectangle< ValueType >::getCentreY(), juce::Rectangle< ValueType >::getHeight(), juce::Rectangle< ValueType >::getWidth(), jassert, juce::jmin(), and juce::gl::scale.

Referenced by mouseDown(), and mouseDrag().

projectOnSphere()

VectorType juce::Draggable3DOrientation::projectOnSphere ( Point< float >  pos ) const

inlineprivatenoexcept

References radius.

Referenced by mouseDrag().

reset()

void juce::Draggable3DOrientation::reset ( const VectorType &  axis )

inlinenoexcept

Resets the orientation, specifying the axis to align it along.

References quaternion.

rotationFromMove()

QuaternionType juce::Draggable3DOrientation::rotationFromMove ( const VectorType &  from, const VectorType &  to  ) const

inlineprivatenoexcept

References juce::gl::f, juce::Quaternion< float >::fromAngle(), juce::jlimit(), juce::gl::length, radius, and juce::Vector3D< float >::xAxis().

Referenced by mouseDrag().

setRadius()

void juce::Draggable3DOrientation::setRadius ( float  newRadius )

inlinenoexcept

Sets the size of the rotated object, as a proportion of the viewport's size.

See also

setViewport

References juce::gl::f, juce::jmax(), and radius.

setViewport()

void juce::Draggable3DOrientation::setViewport ( Rectangle< int >  newArea )

inlinenoexcept

Sets the viewport area within which mouse-drag positions will occur.

You'll need to set this rectangle before calling mouseDown. The centre of the rectangle is assumed to be the centre of the object that will be rotated, and the size of the rectangle will be used to scale the object radius - see setRadius().

References area.

Member Data Documentation

area

Rectangle<int> juce::Draggable3DOrientation::area

private

Referenced by mousePosToProportion(), and setViewport().

lastMouse

Point<float> juce::Draggable3DOrientation::lastMouse

private

Referenced by mouseDown(), and mouseDrag().

quaternion

QuaternionType juce::Draggable3DOrientation::quaternion

private

Referenced by getQuaternion(), getRotationMatrix(), mouseDrag(), and reset().

radius

float juce::Draggable3DOrientation::radius

private

Referenced by projectOnSphere(), rotationFromMove(), and setRadius().

---

The documentation for this class was generated from the following file:

• juce_Draggable3DOrientation.h
