Defines an item in a Grid. More...

#include <juce_GridItem.h>

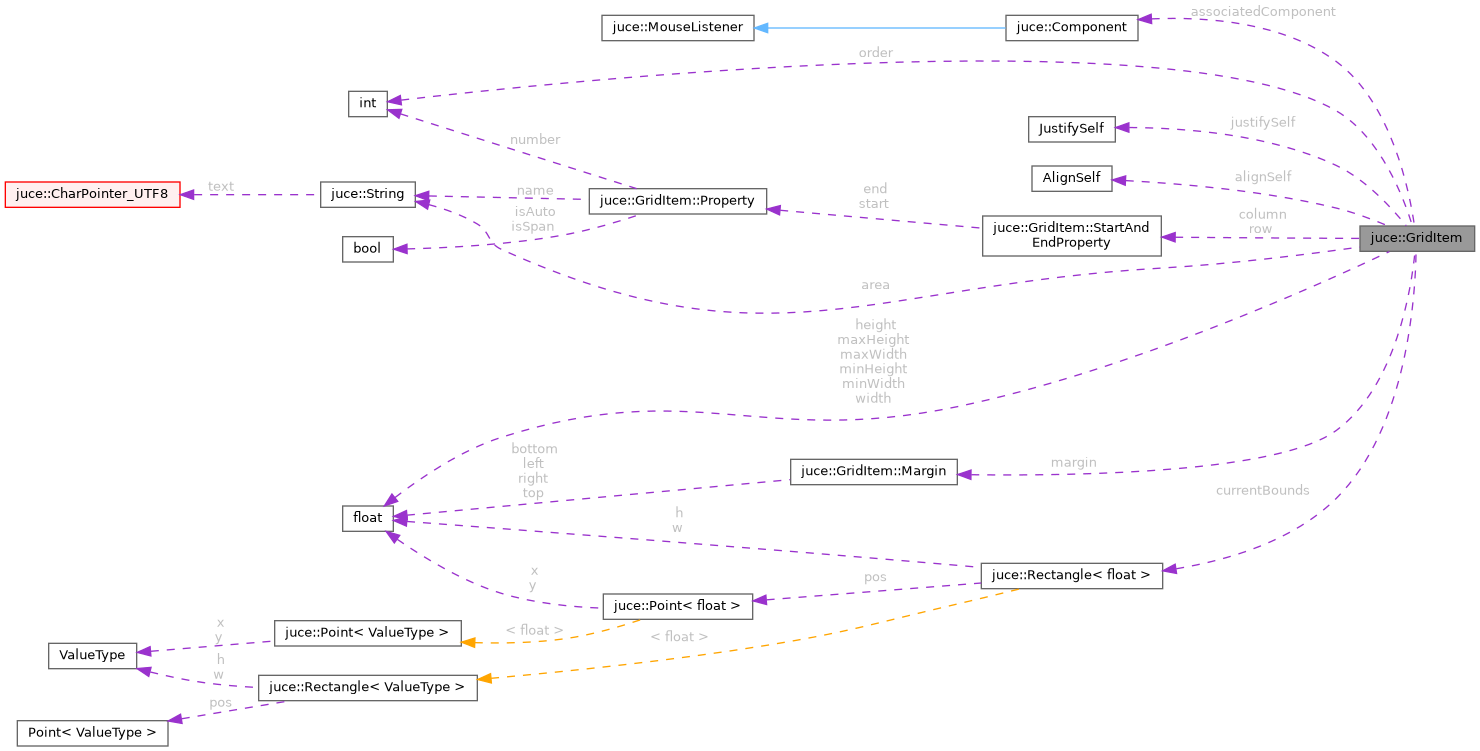

Collaboration diagram for juce::GridItem:

[legend]

Classes
struct	Margin
	Represents a margin. More...

struct	Property
	Represents a property. More...

struct	Span
	Represents a span. More...

struct	StartAndEndProperty
	Represents start and end properties. More...

Public Types
enum	{ useDefaultValue = -2, notAssigned = -1 }

enum	AlignSelf : int { AlignSelf::start = 0, AlignSelf::end, AlignSelf::center, AlignSelf::stretch, AlignSelf::autoValue }
	Possible values for the alignSelf property. More...

enum	JustifySelf : int { JustifySelf::start = 0, JustifySelf::end, JustifySelf::center, JustifySelf::stretch, JustifySelf::autoValue }
	Possible values for the justifySelf property. More...

enum	Keyword { Keyword::autoValue }

Public Member Functions
	GridItem () noexcept
	Creates an item with default parameters. More...

	GridItem (Component &componentToUse) noexcept
	Creates an item with a given Component to use. More...

	GridItem (Component *componentToUse) noexcept
	Creates an item with a given Component to use. More...

void	setArea (const String &areaName)
	Short-hand. More...

void	setArea (Property rowStart, Property columnStart)
	Short-hand, span of 1 by default. More...

void	setArea (Property rowStart, Property columnStart, Property rowEnd, Property columnEnd)
	Short-hand. More...

GridItem	withAlignSelf (AlignSelf newAlignSelf) const noexcept
	Returns a copy of this object with a new alignSelf property. More...

GridItem	withArea (const String &areaName) const noexcept
	Short-hand. More...

GridItem	withArea (Property rowStart, Property columnStart) const noexcept
	Short-hand, span of 1 by default. More...

GridItem	withArea (Property rowStart, Property columnStart, Property rowEnd, Property columnEnd) const noexcept
	Short-hand. More...

GridItem	withColumn (StartAndEndProperty column) const noexcept
	Returns a copy of this object with a new column property. More...

GridItem	withHeight (float newHeight) const noexcept
	Returns a copy of this object with a new height. More...

GridItem	withJustifySelf (JustifySelf newJustifySelf) const noexcept
	Returns a copy of this object with a new justifySelf property. More...

GridItem	withMargin (Margin newMargin) const noexcept
	Returns a copy of this object with a new margin. More...

GridItem	withOrder (int newOrder) const noexcept
	Returns a copy of this object with a new order. More...

GridItem	withRow (StartAndEndProperty row) const noexcept
	Returns a copy of this object with a new row property. More...

GridItem	withSize (float newWidth, float newHeight) const noexcept
	Returns a copy of this object with a new size. More...

GridItem	withWidth (float newWidth) const noexcept
	Returns a copy of this object with a new width. More...

Public Attributes
AlignSelf	alignSelf = AlignSelf::autoValue
	This is the align-self property of the item. More...

String	area

Component *	associatedComponent = nullptr
	If this is non-null, it represents a Component whose bounds are controlled by this item. More...

StartAndEndProperty	column = { Keyword::autoValue, Keyword::autoValue }
	These are the start and end properties of the column. More...

Rectangle< float >	currentBounds
	The item's current bounds. More...

float	height = notAssigned

JustifySelf	justifySelf = JustifySelf::autoValue
	This is the justify-self property of the item. More...

Margin	margin
	The margin to leave around this item. More...

float	maxHeight = notAssigned

float	maxWidth = notAssigned

float	minHeight = 0.0f

float	minWidth = 0.0f

int	order = 0
	Determines the order used to lay out items in their grid container. More...

StartAndEndProperty	row = { Keyword::autoValue, Keyword::autoValue }
	These are the start and end properties of the row. More...

float	width = notAssigned

Detailed Description

Defines an item in a Grid.

See also: Grid

@tags{GUI}

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
useDefaultValue
notAssigned

◆ AlignSelf

enum juce::GridItem::AlignSelf : int

strong

Possible values for the alignSelf property.

Enumerator
start	Content inside the item is aligned towards the top.
end	Content inside the item is aligned towards the bottom.
center	Content inside the item is aligned towards the center.
stretch	Content inside the item is stretched from top to bottom.
autoValue	Follows the Grid container's alignItems property.

◆ JustifySelf

enum juce::GridItem::JustifySelf : int

strong

Possible values for the justifySelf property.

Enumerator
start	Content inside the item is justified towards the left.
end	Content inside the item is justified towards the right.
center	Content inside the item is justified towards the center.
stretch	Content inside the item is stretched from left to right.
autoValue	Follows the Grid container's justifyItems property.

◆ Keyword

enum juce::GridItem::Keyword

strong

Enumerator
autoValue

Constructor & Destructor Documentation

◆ GridItem() [1/3]

juce::GridItem::GridItem ( )

noexcept

Creates an item with default parameters.

◆ GridItem() [2/3]

juce::GridItem::GridItem ( Component & componentToUse )

noexcept

Creates an item with a given Component to use.

◆ GridItem() [3/3]

juce::GridItem::GridItem ( Component * componentToUse )

noexcept

Creates an item with a given Component to use.

Member Function Documentation

◆ setArea() [1/3]

void juce::GridItem::setArea ( const String & areaName )

Short-hand.

◆ setArea() [2/3]

void juce::GridItem::setArea	(	Property	rowStart,
		Property	columnStart
	)

Short-hand, span of 1 by default.

◆ setArea() [3/3]

void juce::GridItem::setArea	(	Property	rowStart,
		Property	columnStart,
		Property	rowEnd,
		Property	columnEnd
	)

Short-hand.

◆ withAlignSelf()

GridItem juce::GridItem::withAlignSelf ( AlignSelf newAlignSelf ) const

noexcept

Returns a copy of this object with a new alignSelf property.

◆ withArea() [1/3]

GridItem juce::GridItem::withArea ( const String & areaName ) const

noexcept

Short-hand.

◆ withArea() [2/3]

GridItem juce::GridItem::withArea	(	Property	rowStart,
		Property	columnStart
	)		const

noexcept

Short-hand, span of 1 by default.

◆ withArea() [3/3]

GridItem juce::GridItem::withArea	(	Property	rowStart,
		Property	columnStart,
		Property	rowEnd,
		Property	columnEnd
	)		const

noexcept

Short-hand.

◆ withColumn()

GridItem juce::GridItem::withColumn ( StartAndEndProperty column ) const

noexcept

Returns a copy of this object with a new column property.

◆ withHeight()

GridItem juce::GridItem::withHeight ( float newHeight ) const

noexcept

Returns a copy of this object with a new height.

◆ withJustifySelf()

GridItem juce::GridItem::withJustifySelf ( JustifySelf newJustifySelf ) const

noexcept

Returns a copy of this object with a new justifySelf property.

◆ withMargin()

GridItem juce::GridItem::withMargin ( Margin newMargin ) const

noexcept

Returns a copy of this object with a new margin.

◆ withOrder()

GridItem juce::GridItem::withOrder ( int newOrder ) const

noexcept

Returns a copy of this object with a new order.

◆ withRow()

GridItem juce::GridItem::withRow ( StartAndEndProperty row ) const

noexcept

Returns a copy of this object with a new row property.

◆ withSize()

GridItem juce::GridItem::withSize	(	float	newWidth,
		float	newHeight
	)		const

noexcept

Returns a copy of this object with a new size.

◆ withWidth()

GridItem juce::GridItem::withWidth ( float newWidth ) const

noexcept

Returns a copy of this object with a new width.

Member Data Documentation

◆ alignSelf

AlignSelf juce::GridItem::alignSelf = AlignSelf::autoValue

This is the align-self property of the item.

This determines the alignment of the item along the column.

◆ area

String juce::GridItem::area

◆ associatedComponent

Component* juce::GridItem::associatedComponent = nullptr

If this is non-null, it represents a Component whose bounds are controlled by this item.

◆ column

StartAndEndProperty juce::GridItem::column = { Keyword::autoValue, Keyword::autoValue }

These are the start and end properties of the column.

◆ currentBounds

Rectangle<float> juce::GridItem::currentBounds

The item's current bounds.

◆ height

float juce::GridItem::height = notAssigned

◆ justifySelf

JustifySelf juce::GridItem::justifySelf = JustifySelf::autoValue

This is the justify-self property of the item.

This determines the alignment of the item along the row.

◆ margin

Margin juce::GridItem::margin

The margin to leave around this item.

◆ maxHeight

float juce::GridItem::maxHeight = notAssigned

◆ maxWidth

float juce::GridItem::maxWidth = notAssigned

◆ minHeight

float juce::GridItem::minHeight = 0.0f

◆ minWidth

float juce::GridItem::minWidth = 0.0f

◆ order

int juce::GridItem::order = 0

Determines the order used to lay out items in their grid container.

◆ row

StartAndEndProperty juce::GridItem::row = { Keyword::autoValue, Keyword::autoValue }

These are the start and end properties of the row.

◆ width

float juce::GridItem::width = notAssigned

The documentation for this class was generated from the following file:

juce_GridItem.h
