An IIR filter that can perform low, high, or band-pass filtering on an audio signal, and which attempts to implement basic thread-safety. More...

#include <juce_IIRFilter.h>

Inheritance diagram for juce::IIRFilter:

[legend]

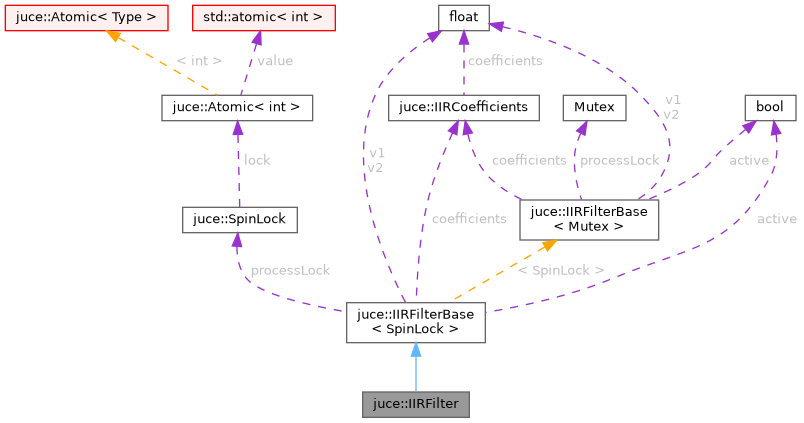

Collaboration diagram for juce::IIRFilter:

[legend]

Public Member Functions
IIRCoefficients	getCoefficients () const noexcept
	Returns the coefficients that this filter is using. More...

	IIRFilterBase () noexcept
	Creates a filter. More...

	IIRFilterBase (const IIRFilterBase &) noexcept
	Creates a copy of another filter. More...

void	makeInactive () noexcept
	Clears the filter so that any incoming data passes through unchanged. More...

void	processSamples (float *samples, int numSamples) noexcept
	Performs the filter operation on the given set of samples. More...

float	processSingleSampleRaw (float sample) noexcept
	Processes a single sample, without any locking or checking. More...

void	reset () noexcept
	Resets the filter's processing pipeline, ready to start a new stream of data. More...

void	setCoefficients (const IIRCoefficients &newCoefficients) noexcept
	Applies a set of coefficients to this filter. More...

Protected Attributes
bool	active

IIRCoefficients	coefficients

SpinLock	processLock

float	v1

float	v2

Detailed Description

An IIR filter that can perform low, high, or band-pass filtering on an audio signal, and which attempts to implement basic thread-safety.

This class synchronises calls to some of its member functions, making it safe (although not necessarily real-time-safe) to reset the filter or apply new coefficients while the filter is processing on another thread. In most cases this style of internal locking should not be used, and you should attempt to provide thread-safety at a higher level in your program. If you can guarantee that calls to the filter will be synchronised externally, you could consider switching to SingleThreadedIIRFilter instead.

See also: SingleThreadedIIRFilter, IIRCoefficient, IIRFilterAudioSource

@tags{Audio}

Member Function Documentation

◆ getCoefficients()

IIRCoefficients juce::IIRFilterBase< SpinLock >::getCoefficients

inlinenoexceptinherited

Returns the coefficients that this filter is using.

◆ IIRFilterBase() [1/2]

juce::IIRFilterBase< Mutex >::IIRFilterBase

noexcept

Creates a filter.

Initially the filter is inactive, so will have no effect on samples that you process with it. Use the setCoefficients() method to turn it into the type of filter needed.

◆ IIRFilterBase() [2/2]

juce::IIRFilterBase< Mutex >::IIRFilterBase

noexcept

Creates a copy of another filter.

◆ makeInactive()

void juce::IIRFilterBase< SpinLock >::makeInactive

noexceptinherited

Clears the filter so that any incoming data passes through unchanged.

◆ processSamples()

void juce::IIRFilterBase< SpinLock >::processSamples	(	float *	samples,
		int	numSamples
	)

noexceptinherited

Performs the filter operation on the given set of samples.

◆ processSingleSampleRaw()

float juce::IIRFilterBase< SpinLock >::processSingleSampleRaw ( float sample )

noexceptinherited

Processes a single sample, without any locking or checking.

Use this if you need fast processing of a single value, but be aware that this isn't thread-safe in the way that processSamples() is.

◆ reset()

void juce::IIRFilterBase< SpinLock >::reset

noexceptinherited

Resets the filter's processing pipeline, ready to start a new stream of data.

Note that this clears the processing state, but the type of filter and its coefficients aren't changed. To put a filter into an inactive state, use the makeInactive() method.
