juce::IIRFilterAudioSource Class Reference

An AudioSource that performs an IIR filter on another source. More...

#include <juce_IIRFilterAudioSource.h>

Inheritance diagram for juce::IIRFilterAudioSource:

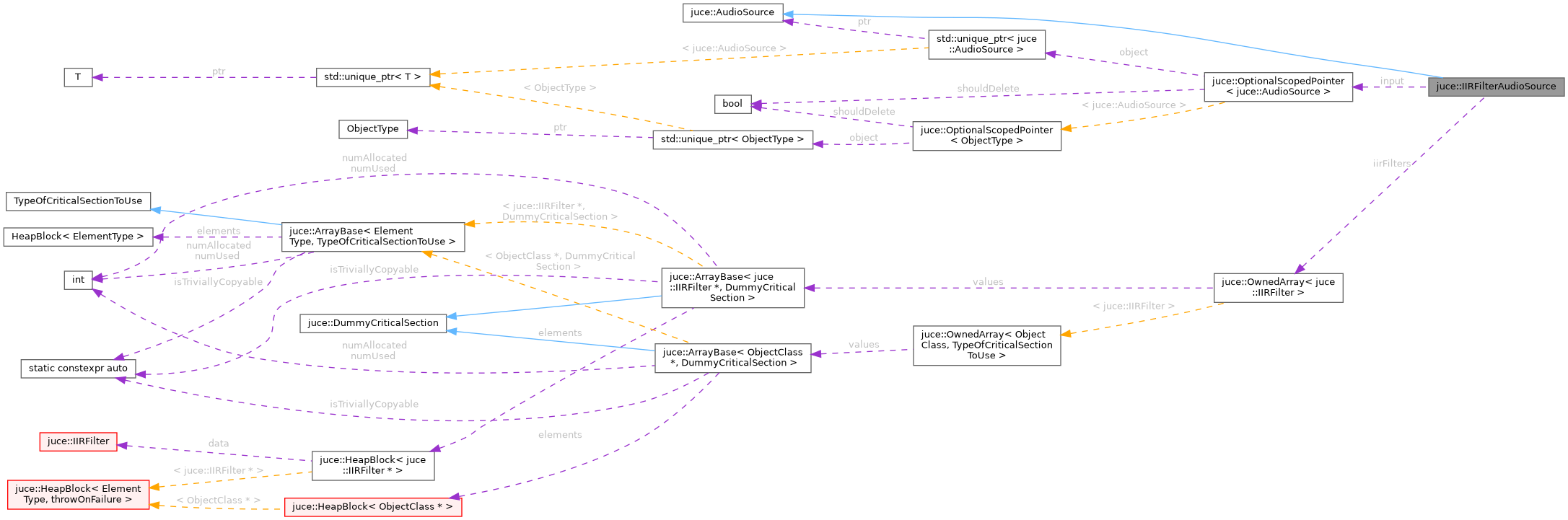

Collaboration diagram for juce::IIRFilterAudioSource:

Public Member Functions

 IIRFilterAudioSource (AudioSource *inputSource, bool deleteInputWhenDeleted)
 Creates a IIRFilterAudioSource for a given input source. More...

 ~IIRFilterAudioSource () override
 Destructor. More...

void getNextAudioBlock (const AudioSourceChannelInfo &) override
 Called repeatedly to fetch subsequent blocks of audio data. More...

void makeInactive ()
 Calls IIRFilter::makeInactive() on all the filters being used internally. More...

void prepareToPlay (int samplesPerBlockExpected, double sampleRate) override
 Tells the source to prepare for playing. More...

void releaseResources () override
 Allows the source to release anything it no longer needs after playback has stopped. More...

void setCoefficients (const IIRCoefficients &newCoefficients)
 Changes the filter to use the same parameters as the one being passed in. More...


Private Attributes

OwnedArray< IIRFilteriirFilters

OptionalScopedPointer< AudioSourceinput


Detailed Description

An AudioSource that performs an IIR filter on another source.

@tags{Audio}

Constructor & Destructor Documentation

◆ IIRFilterAudioSource()

juce::IIRFilterAudioSource::IIRFilterAudioSource ( AudioSource inputSource,
bool  deleteInputWhenDeleted
)

Creates a IIRFilterAudioSource for a given input source.

Parameters
inputSourcethe input source to read from - this must not be null
deleteInputWhenDeletedif true, the input source will be deleted when this object is deleted

◆ ~IIRFilterAudioSource()

juce::IIRFilterAudioSource::~IIRFilterAudioSource ( )
override

Destructor.

Member Function Documentation

◆ getNextAudioBlock()

void juce::IIRFilterAudioSource::getNextAudioBlock ( const AudioSourceChannelInfo bufferToFill)
overridevirtual

Called repeatedly to fetch subsequent blocks of audio data.

After calling the prepareToPlay() method, this callback will be made each time the audio playback hardware (or whatever other destination the audio data is going to) needs another block of data.

It will generally be called on a high-priority system thread, or possibly even an interrupt, so be careful not to do too much work here, as that will cause audio glitches!

See also
AudioSourceChannelInfo, prepareToPlay, releaseResources

Implements juce::AudioSource.

◆ makeInactive()

void juce::IIRFilterAudioSource::makeInactive ( )

Calls IIRFilter::makeInactive() on all the filters being used internally.

◆ prepareToPlay()

void juce::IIRFilterAudioSource::prepareToPlay ( int  samplesPerBlockExpected,
double  sampleRate
)
overridevirtual

Tells the source to prepare for playing.

An AudioSource has two states: prepared and unprepared.

The prepareToPlay() method is guaranteed to be called at least once on an 'unprepared' source to put it into a 'prepared' state before any calls will be made to getNextAudioBlock(). This callback allows the source to initialise any resources it might need when playing.

Once playback has finished, the releaseResources() method is called to put the stream back into an 'unprepared' state.

Note that this method could be called more than once in succession without a matching call to releaseResources(), so make sure your code is robust and can handle that kind of situation.

Parameters
samplesPerBlockExpectedthe number of samples that the source will be expected to supply each time its getNextAudioBlock() method is called. This number may vary slightly, because it will be dependent on audio hardware callbacks, and these aren't guaranteed to always use a constant block size, so the source should be able to cope with small variations.
sampleRatethe sample rate that the output will be used at - this is needed by sources such as tone generators.
See also
releaseResources, getNextAudioBlock

Implements juce::AudioSource.

◆ releaseResources()

void juce::IIRFilterAudioSource::releaseResources ( )
overridevirtual

Allows the source to release anything it no longer needs after playback has stopped.

This will be called when the source is no longer going to have its getNextAudioBlock() method called, so it should release any spare memory, etc. that it might have allocated during the prepareToPlay() call.

Note that there's no guarantee that prepareToPlay() will actually have been called before releaseResources(), and it may be called more than once in succession, so make sure your code is robust and doesn't make any assumptions about when it will be called.

See also
prepareToPlay, getNextAudioBlock

Implements juce::AudioSource.

◆ setCoefficients()

void juce::IIRFilterAudioSource::setCoefficients ( const IIRCoefficients newCoefficients)

Changes the filter to use the same parameters as the one being passed in.

Member Data Documentation

◆ iirFilters

OwnedArray<IIRFilter> juce::IIRFilterAudioSource::iirFilters
private

◆ input

OptionalScopedPointer<AudioSource> juce::IIRFilterAudioSource::input
private

The documentation for this class was generated from the following file:
