juce::Image::BitmapData Class Reference

Retrieves a section of an image as raw pixel data, so it can be read or written to. More...

#include <juce_Image.h>

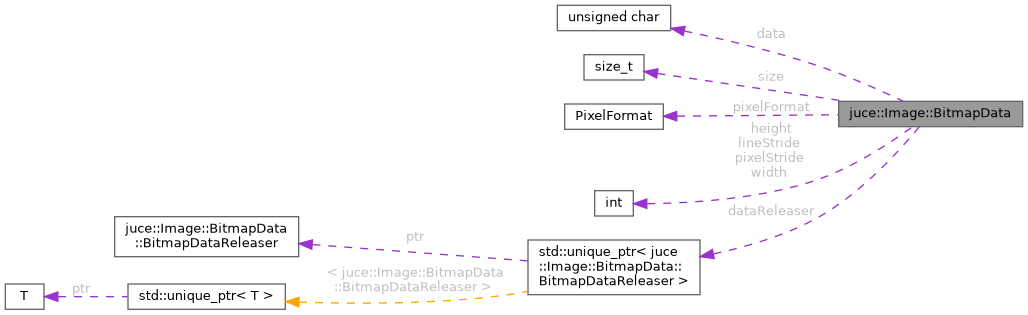

Collaboration diagram for juce::Image::BitmapData:

Classes
class	BitmapDataReleaser
	Used internally by custom image types to manage pixel data lifetime. More...

Public Types
enum	ReadWriteMode {   readOnly,   writeOnly,   readWrite }

Public Member Functions
	BitmapData (const Image &image, int x, int y, int w, int h)
	BitmapData (const Image &image, ReadWriteMode mode)
	BitmapData (Image &image, int x, int y, int w, int h, ReadWriteMode mode)
	~BitmapData ()
Rectangle< int >	getBounds () const noexcept
	Returns the size of the bitmap. More...
uint8 *	getLinePointer (int y) const noexcept
	Returns a pointer to the start of a line in the image. More...
Colour	getPixelColour (int x, int y) const noexcept
	Returns the colour of a given pixel. More...
uint8 *	getPixelPointer (int x, int y) const noexcept
	Returns a pointer to a pixel in the image. More...
void	setPixelColour (int x, int y, Colour colour) const noexcept
	Sets the colour of a given pixel. More...

Public Attributes
uint8 *	data
	The raw pixel data, packed according to the image's pixel format. More...
std::unique_ptr< BitmapDataReleaser >	dataReleaser
int	height
int	lineStride
	The number of bytes between each line. More...
PixelFormat	pixelFormat
	The format of the data. More...
int	pixelStride
	The number of bytes between each pixel. More...
size_t	size
	The number of valid/allocated bytes after data. More...
int	width

Detailed Description

Retrieves a section of an image as raw pixel data, so it can be read or written to.

You should only use this class as a last resort - messing about with the internals of an image is only recommended for people who really know what they're doing!

A BitmapData object should be used as a temporary, stack-based object. Don't keep one hanging around while the image is being used elsewhere.

Depending on the way the image class is implemented, this may create a temporary buffer which is copied back to the image when the object is deleted, or it may just get a pointer directly into the image's raw data.

You can use the stride and data values in this class directly, but don't alter them! The actual format of the pixel data depends on the image's format - see Image::getFormat(), and the PixelRGB, PixelARGB and PixelAlpha classes for more info.

Member Enumeration Documentation

ReadWriteMode

enum juce::Image::BitmapData::ReadWriteMode

Enumerator
readOnly
writeOnly
readWrite

Constructor & Destructor Documentation

BitmapData() [1/3]

juce::Image::BitmapData::BitmapData	(	Image &	image,
		int	x,
		int	y,
		int	w,
		int	h,
		ReadWriteMode	mode
	)

BitmapData() [2/3]

juce::Image::BitmapData::BitmapData	(	const Image &	image,
		int	x,
		int	y,
		int	w,
		int	h
	)

BitmapData() [3/3]

juce::Image::BitmapData::BitmapData	(	const Image &	image,
		ReadWriteMode	mode
	)

~BitmapData()

juce::Image::BitmapData::~BitmapData

(

)

Member Function Documentation

getBounds()

Rectangle<int> juce::Image::BitmapData::getBounds ( ) const

inlinenoexcept

Returns the size of the bitmap.

References juce::gl::height, and juce::gl::width.

getLinePointer()

uint8* juce::Image::BitmapData::getLinePointer ( int  y ) const

inlinenoexcept

Returns a pointer to the start of a line in the image.

The coordinate you provide here isn't checked, so it's the caller's responsibility to make sure it's not out-of-range.

References juce::gl::data, and juce::gl::y.

getPixelColour()

Colour juce::Image::BitmapData::getPixelColour ( int  x, int  y  ) const

noexcept

Returns the colour of a given pixel.

For performance reasons, this won't do any bounds-checking on the coordinates, so it's the caller's responsibility to make sure they're within the image's size.

getPixelPointer()

uint8* juce::Image::BitmapData::getPixelPointer ( int  x, int  y  ) const

inlinenoexcept

Returns a pointer to a pixel in the image.

The coordinates you give here are not checked, so it's the caller's responsibility to make sure they're not out-of-range.

References juce::gl::data, juce::gl::x, and juce::gl::y.

setPixelColour()

void juce::Image::BitmapData::setPixelColour ( int  x, int  y, Colour  colour  ) const

noexcept

Sets the colour of a given pixel.

For performance reasons, this won't do any bounds-checking on the coordinates, so it's the caller's responsibility to make sure they're within the image's size.

Member Data Documentation

data

uint8* juce::Image::BitmapData::data

The raw pixel data, packed according to the image's pixel format.

dataReleaser

std::unique_ptr<BitmapDataReleaser> juce::Image::BitmapData::dataReleaser

height

int juce::Image::BitmapData::height

Referenced by juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::clipToImageAlpha(), and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::straightClipImage().

lineStride

int juce::Image::BitmapData::lineStride

The number of bytes between each line.

pixelFormat

PixelFormat juce::Image::BitmapData::pixelFormat

The format of the data.

Referenced by juce::RenderingHelpers::EdgeTableFillers::ImageFill< DestPixelType, SrcPixelType, repeatPattern >::copyRow(), juce::RenderingHelpers::SoftwareRendererSavedState::fillWithGradient(), juce::RenderingHelpers::SoftwareRendererSavedState::fillWithSolidColour(), juce::RenderingHelpers::EdgeTableFillers::renderImageTransformed(), and juce::RenderingHelpers::EdgeTableFillers::renderImageUntransformed().

pixelStride

int juce::Image::BitmapData::pixelStride

The number of bytes between each pixel.

Referenced by juce::RenderingHelpers::EdgeTableFillers::ImageFill< DestPixelType, SrcPixelType, repeatPattern >::copyRow(), juce::RenderingHelpers::EdgeTableFillers::ImageFill< DestPixelType, SrcPixelType, repeatPattern >::getDestPixel(), juce::RenderingHelpers::EdgeTableFillers::SolidColour< PixelType, replaceExisting >::getPixel(), juce::RenderingHelpers::EdgeTableFillers::Gradient< PixelType, GradientType >::getPixel(), juce::RenderingHelpers::EdgeTableFillers::ImageFill< DestPixelType, SrcPixelType, repeatPattern >::getSrcPixel(), and juce::RenderingHelpers::EdgeTableFillers::SolidColour< PixelType, replaceExisting >::replaceLine().

size

size_t juce::Image::BitmapData::size

The number of valid/allocated bytes after data.

May be smaller than "lineStride * height" if this is a section of a larger image.

width

int juce::Image::BitmapData::width

Referenced by juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::clipToImageAlpha(), and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion::straightClipImage().

---

The documentation for this class was generated from the following file:

• juce_Image.h
