juce::MidiDataConcatenator Class Reference

Helper class that takes chunks of incoming midi bytes, packages them into messages, and dispatches them to a midi callback. More...

#include <juce_MidiDataConcatenator.h>

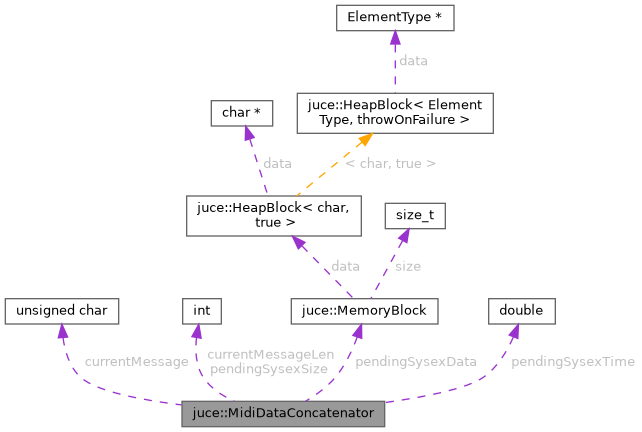

Collaboration diagram for juce::MidiDataConcatenator:

Public Member Functions
	MidiDataConcatenator (int initialBufferSize)
template<typename UserDataType , typename CallbackType >
void	pushMidiData (const void *inputData, int numBytes, double time, UserDataType *input, CallbackType &callback)
void	reset ()

Private Member Functions
template<typename UserDataType , typename CallbackType >
void	processSysex (const uint8 *&d, int &numBytes, double time, UserDataType *input, CallbackType &callback)

Static Private Member Functions
static bool	isInitialByte (uint8 byte)
static bool	isRealtimeMessage (uint8 byte)
static bool	isStatusByte (uint8 byte)

Private Attributes
uint8	currentMessage [3]
int	currentMessageLen = 0
MemoryBlock	pendingSysexData
int	pendingSysexSize = 0
double	pendingSysexTime = 0

Detailed Description

Helper class that takes chunks of incoming midi bytes, packages them into messages, and dispatches them to a midi callback.

@tags{Audio}

Constructor & Destructor Documentation

MidiDataConcatenator()

juce::MidiDataConcatenator::MidiDataConcatenator ( int  initialBufferSize )

inline

Member Function Documentation

isInitialByte()

static bool juce::MidiDataConcatenator::isInitialByte ( uint8  byte )

inlinestaticprivate

References isStatusByte().

Referenced by pushMidiData().

isRealtimeMessage()

static bool juce::MidiDataConcatenator::isRealtimeMessage ( uint8  byte )

inlinestaticprivate

Referenced by pushMidiData().

isStatusByte()

static bool juce::MidiDataConcatenator::isStatusByte ( uint8  byte )

inlinestaticprivate

Referenced by isInitialByte(), and processSysex().

processSysex()

template<typename UserDataType , typename CallbackType >

void juce::MidiDataConcatenator::processSysex ( const uint8 *&  d, int &  numBytes, double  time, UserDataType *  input, CallbackType &  callback  )

inlineprivate

References juce::MemoryBlock::ensureSize(), juce::MemoryBlock::getData(), juce::gl::input, isStatusByte(), juce::gl::m, pendingSysexData, pendingSysexSize, pendingSysexTime, and juce::UnitTestCategories::time.

Referenced by pushMidiData().

pushMidiData()

template<typename UserDataType , typename CallbackType >

void juce::MidiDataConcatenator::pushMidiData ( const void *  inputData, int  numBytes, double  time, UserDataType *  input, CallbackType &  callback  )

inline

References currentMessage, currentMessageLen, juce::MidiMessage::getMessageLengthFromFirstByte(), juce::gl::input, isInitialByte(), isRealtimeMessage(), pendingSysexSize, processSysex(), and juce::UnitTestCategories::time.

reset()

void juce::MidiDataConcatenator::reset ( )

inline

References currentMessageLen, pendingSysexSize, and pendingSysexTime.

Member Data Documentation

currentMessage

uint8 juce::MidiDataConcatenator::currentMessage[3]

private

Referenced by pushMidiData().

currentMessageLen

int juce::MidiDataConcatenator::currentMessageLen = 0

private

Referenced by pushMidiData(), and reset().

pendingSysexData

MemoryBlock juce::MidiDataConcatenator::pendingSysexData

private

Referenced by processSysex().

pendingSysexSize

int juce::MidiDataConcatenator::pendingSysexSize = 0

private

Referenced by processSysex(), pushMidiData(), and reset().

pendingSysexTime

double juce::MidiDataConcatenator::pendingSysexTime = 0

private

Referenced by processSysex(), and reset().

---

The documentation for this class was generated from the following file:

• juce_MidiDataConcatenator.h
