juce::Reverb Class Reference

Performs a simple reverb effect on a stream of audio data. More...

#include <juce_Reverb.h>

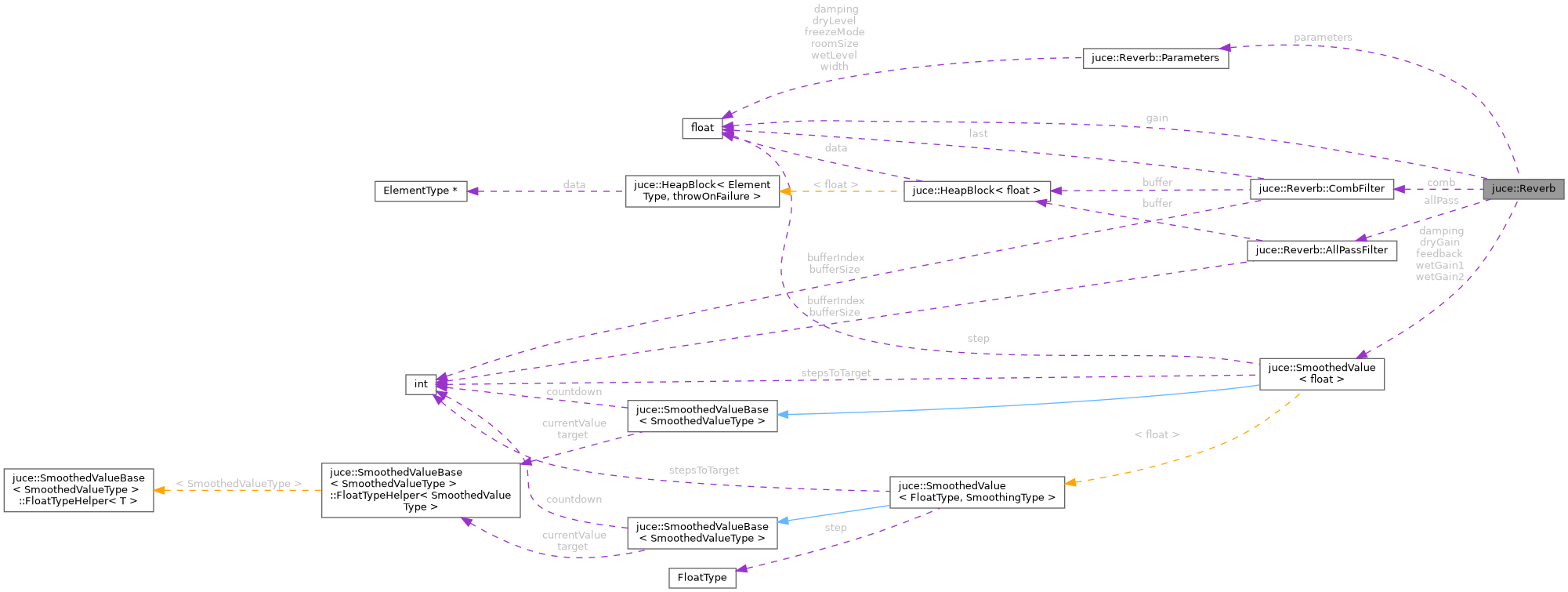

Collaboration diagram for juce::Reverb:

Classes
class	AllPassFilter
class	CombFilter
struct	Parameters
	Holds the parameters being used by a Reverb object. More...

Public Member Functions
	Reverb ()
const Parameters &	getParameters () const noexcept
	Returns the reverb's current parameters. More...
void	processMono (float *const samples, const int numSamples) noexcept
	Applies the reverb to a single mono channel of audio data. More...
void	processStereo (float *const left, float *const right, const int numSamples) noexcept
	Applies the reverb to two stereo channels of audio data. More...
void	reset ()
	Clears the reverb's buffers. More...
void	setParameters (const Parameters &newParams)
	Applies a new set of parameters to the reverb. More...
void	setSampleRate (const double sampleRate)
	Sets the sample rate that will be used for the reverb. More...

Private Types
enum	{   numCombs = 8,   numAllPasses = 4,   numChannels = 2 }

Private Member Functions
void	setDamping (const float dampingToUse, const float roomSizeToUse) noexcept
void	updateDamping () noexcept

Static Private Member Functions
static bool	isFrozen (const float freezeMode) noexcept

Private Attributes
AllPassFilter	allPass [numChannels][numAllPasses]
CombFilter	comb [numChannels][numCombs]
SmoothedValue< float >	damping
SmoothedValue< float >	dryGain
SmoothedValue< float >	feedback
float	gain
Parameters	parameters
SmoothedValue< float >	wetGain1
SmoothedValue< float >	wetGain2

Detailed Description

Performs a simple reverb effect on a stream of audio data.

This is a simple stereo reverb, based on the technique and tunings used in FreeVerb. Use setSampleRate() to prepare it, and then call processStereo() or processMono() to apply the reverb to your audio data.

See also

ReverbAudioSource

@tags{Audio}

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
numCombs
numAllPasses
numChannels

Constructor & Destructor Documentation

Reverb()

juce::Reverb::Reverb ( )

inline

References setParameters(), and setSampleRate().

Member Function Documentation

getParameters()

const Parameters& juce::Reverb::getParameters ( ) const

inlinenoexcept

Returns the reverb's current parameters.

References parameters.

Referenced by juce::dsp::Reverb::getParameters().

isFrozen()

static bool juce::Reverb::isFrozen ( const float  freezeMode )

inlinestaticprivatenoexcept

Referenced by setParameters(), and updateDamping().

processMono()

void juce::Reverb::processMono ( float *const  samples, const int  numSamples  )

inlinenoexcept

Applies the reverb to a single mono channel of audio data.

References allPass, comb, damping, dryGain, feedback, gain, juce::SmoothedValue< FloatType, SmoothingType >::getNextValue(), juce::gl::input, juce::gl::j, jassert, JUCE_BEGIN_IGNORE_WARNINGS_MSVC, JUCE_END_IGNORE_WARNINGS_MSVC, numAllPasses, numCombs, juce::gl::output, juce::gl::samples, and wetGain1.

Referenced by juce::dsp::Reverb::process().

processStereo()

void juce::Reverb::processStereo ( float *const  left, float *const  right, const int  numSamples  )

inlinenoexcept

Applies the reverb to two stereo channels of audio data.

References allPass, comb, damping, dryGain, feedback, gain, juce::SmoothedValue< FloatType, SmoothingType >::getNextValue(), juce::gl::input, juce::gl::j, jassert, JUCE_BEGIN_IGNORE_WARNINGS_MSVC, JUCE_END_IGNORE_WARNINGS_MSVC, juce::gl::left, numAllPasses, numCombs, juce::Reverb::CombFilter::process(), juce::Reverb::AllPassFilter::process(), juce::gl::right, wetGain1, and wetGain2.

Referenced by juce::dsp::Reverb::process().

reset()

void juce::Reverb::reset ( )

inline

Clears the reverb's buffers.

References allPass, juce::VariantHelpers::clear(), comb, juce::gl::j, numAllPasses, numChannels, and numCombs.

Referenced by juce::dsp::Reverb::reset().

setDamping()

void juce::Reverb::setDamping ( const float  dampingToUse, const float  roomSizeToUse  )

inlineprivatenoexcept

References damping, feedback, and juce::SmoothedValue< FloatType, SmoothingType >::setTargetValue().

Referenced by updateDamping().

setParameters()

void juce::Reverb::setParameters ( const Parameters &  newParams )

inline

Applies a new set of parameters to the reverb.

Note that this doesn't attempt to lock the reverb, so if you call this in parallel with the process method, you may get artifacts.

References dryGain, juce::Reverb::Parameters::dryLevel, juce::gl::f, juce::Reverb::Parameters::freezeMode, gain, isFrozen(), parameters, juce::SmoothedValue< FloatType, SmoothingType >::setTargetValue(), updateDamping(), wetGain1, wetGain2, juce::Reverb::Parameters::wetLevel, and juce::Reverb::Parameters::width.

Referenced by Reverb(), and juce::dsp::Reverb::setParameters().

setSampleRate()

void juce::Reverb::setSampleRate ( const double  sampleRate )

inline

Sets the sample rate that will be used for the reverb.

You must call this before the process methods, in order to tell it the correct sample rate.

References allPass, comb, damping, dryGain, feedback, int(), jassert, numAllPasses, numCombs, juce::SmoothedValue< FloatType, SmoothingType >::reset(), juce::Reverb::CombFilter::setSize(), juce::Reverb::AllPassFilter::setSize(), wetGain1, and wetGain2.

Referenced by juce::dsp::Reverb::prepare(), and Reverb().

updateDamping()

void juce::Reverb::updateDamping ( )

inlineprivatenoexcept

References juce::Reverb::Parameters::damping, juce::gl::f, juce::Reverb::Parameters::freezeMode, isFrozen(), parameters, juce::Reverb::Parameters::roomSize, and setDamping().

Referenced by setParameters().

Member Data Documentation

allPass

AllPassFilter juce::Reverb::allPass[numChannels][numAllPasses]

private

Referenced by processMono(), processStereo(), reset(), and setSampleRate().

comb

CombFilter juce::Reverb::comb[numChannels][numCombs]

private

Referenced by processMono(), processStereo(), reset(), and setSampleRate().

damping

SmoothedValue<float> juce::Reverb::damping

private

Referenced by processMono(), processStereo(), setDamping(), and setSampleRate().

dryGain

SmoothedValue<float> juce::Reverb::dryGain

private

Referenced by processMono(), processStereo(), setParameters(), and setSampleRate().

feedback

SmoothedValue<float> juce::Reverb::feedback

private

Referenced by processMono(), processStereo(), setDamping(), and setSampleRate().

gain

float juce::Reverb::gain

private

Referenced by processMono(), processStereo(), and setParameters().

parameters

Parameters juce::Reverb::parameters

private

Referenced by getParameters(), setParameters(), and updateDamping().

wetGain1

SmoothedValue<float> juce::Reverb::wetGain1

private

Referenced by processMono(), processStereo(), setParameters(), and setSampleRate().

wetGain2

SmoothedValue<float> juce::Reverb::wetGain2

private

Referenced by processStereo(), setParameters(), and setSampleRate().

---

The documentation for this class was generated from the following file:

• juce_audio_basics/utilities/juce_Reverb.h
