juce::dsp::NoiseGate< SampleType > Class Template Reference

A simple noise gate with standard threshold, ratio, attack time and release time controls. More...

#include <juce_NoiseGate.h>

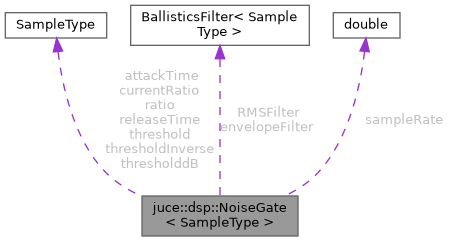

Collaboration diagram for juce::dsp::NoiseGate< SampleType >:

Public Member Functions
	NoiseGate ()
	Constructor. More...
void	prepare (const ProcessSpec &spec)
	Initialises the processor. More...
template<typename ProcessContext >
void	process (const ProcessContext &context) noexcept
	Processes the input and output samples supplied in the processing context. More...
SampleType	processSample (int channel, SampleType inputValue)
	Performs the processing operation on a single sample at a time. More...
void	reset ()
	Resets the internal state variables of the processor. More...
void	setAttack (SampleType newAttack)
	Sets the attack time in milliseconds of the noise-gate. More...
void	setRatio (SampleType newRatio)
	Sets the ratio of the noise-gate (must be higher or equal to 1). More...
void	setRelease (SampleType newRelease)
	Sets the release time in milliseconds of the noise-gate. More...
void	setThreshold (SampleType newThreshold)
	Sets the threshold in dB of the noise-gate. More...

Private Member Functions
void	update ()

Private Attributes
SampleType	attackTime = 1.0
SampleType	currentRatio
BallisticsFilter< SampleType >	envelopeFilter
SampleType	ratio = 10.0
SampleType	releaseTime = 100.0
BallisticsFilter< SampleType >	RMSFilter
double	sampleRate = 44100.0
SampleType	threshold
SampleType	thresholddB = -100
SampleType	thresholdInverse

Detailed Description

template<typename SampleType>
class juce::dsp::NoiseGate< SampleType >

A simple noise gate with standard threshold, ratio, attack time and release time controls.

Can be used as an expander if the ratio is low.

@tags{DSP}

Constructor & Destructor Documentation

NoiseGate()

template<typename SampleType >

juce::dsp::NoiseGate< SampleType >::NoiseGate

(

)

Constructor.

Member Function Documentation

prepare()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::prepare

(

const ProcessSpec &

spec

)

Initialises the processor.

process()

template<typename SampleType >

template<typename ProcessContext >

void juce::dsp::NoiseGate< SampleType >::process ( const ProcessContext &  context )

inlinenoexcept

Processes the input and output samples supplied in the processing context.

References jassert, and juce::dsp::NoiseGate< SampleType >::processSample().

processSample()

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::processSample	(	int	channel,
		SampleType	inputValue
	)

Performs the processing operation on a single sample at a time.

Referenced by juce::dsp::NoiseGate< SampleType >::process().

reset()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::reset

(

)

Resets the internal state variables of the processor.

setAttack()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::setAttack

(

SampleType

newAttack

)

Sets the attack time in milliseconds of the noise-gate.

setRatio()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::setRatio

(

SampleType

newRatio

)

Sets the ratio of the noise-gate (must be higher or equal to 1).

setRelease()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::setRelease

(

SampleType

newRelease

)

Sets the release time in milliseconds of the noise-gate.

setThreshold()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::setThreshold

(

SampleType

newThreshold

)

Sets the threshold in dB of the noise-gate.

update()

template<typename SampleType >

void juce::dsp::NoiseGate< SampleType >::update ( )

private

Member Data Documentation

attackTime

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::attackTime = 1.0

private

currentRatio

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::currentRatio

private

envelopeFilter

template<typename SampleType >

BallisticsFilter<SampleType> juce::dsp::NoiseGate< SampleType >::envelopeFilter

private

ratio

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::ratio = 10.0

private

releaseTime

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::releaseTime = 100.0

private

RMSFilter

template<typename SampleType >

BallisticsFilter<SampleType> juce::dsp::NoiseGate< SampleType >::RMSFilter

private

sampleRate

template<typename SampleType >

double juce::dsp::NoiseGate< SampleType >::sampleRate = 44100.0

private

threshold

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::threshold

private

thresholddB

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::thresholddB = -100

private

thresholdInverse

template<typename SampleType >

SampleType juce::dsp::NoiseGate< SampleType >::thresholdInverse

private

---

The documentation for this class was generated from the following file:

• juce_NoiseGate.h
