#include <juce_ios_Audio.h>

Inheritance diagram for juce::iOSAudioIODevice:

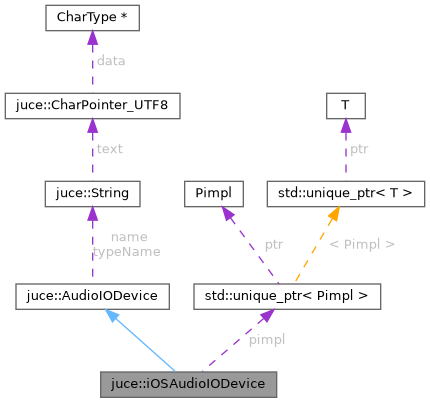

Collaboration diagram for juce::iOSAudioIODevice:

[legend]

Public Member Functions
void	close () override
	Closes and releases the device if it's open. More...

BigInteger	getActiveInputChannels () const override
	Returns a mask showing which of the available input channels are currently enabled. More...

BigInteger	getActiveOutputChannels () const override
	Returns a mask showing which of the available output channels are currently enabled. More...

AudioPlayHead *	getAudioPlayHead () const

Array< int >	getAvailableBufferSizes () override
	Returns the set of buffer sizes that are available. More...

Array< double >	getAvailableSampleRates () override
	Returns the set of sample-rates this device supports. More...

int	getCurrentBitDepth () override
	Returns the device's current physical bit-depth. More...

int	getCurrentBufferSizeSamples () override
	Returns the buffer size that the device is currently using. More...

double	getCurrentSampleRate () override
	Returns the sample rate that the device is currently using. More...

int	getDefaultBufferSize () override
	Returns the default buffer-size to use. More...

StringArray	getInputChannelNames () override
	Returns the names of all the available input channels on this device. More...

int	getInputLatencyInSamples () override
	Returns the device's input latency. More...

String	getLastError () override
	Returns the last error that happened if anything went wrong. More...

const String &	getName () const noexcept
	Returns the device's name, (as set in the constructor). More...

StringArray	getOutputChannelNames () override
	Returns the names of all the available output channels on this device. More...

int	getOutputLatencyInSamples () override
	Returns the device's output latency. More...

const String &	getTypeName () const noexcept
	Returns the type of the device. More...

int	getXRunCount () const noexcept override
	Returns the number of under- or over runs reported by the OS since playback/recording has started. More...

virtual bool	hasControlPanel () const
	True if this device can show a pop-up control panel for editing its settings. More...

bool	isInterAppAudioConnected () const

bool	isOpen () override
	Returns true if the device is still open. More...

bool	isPlaying () override
	Returns true if the device is still calling back. More...

String	open (const BigInteger &, const BigInteger &, double, int) override
	Tries to open the device ready to play. More...

bool	setAudioPreprocessingEnabled (bool) override
	On devices which support it, this allows automatic gain control or other mic processing to be disabled. More...

void	setMidiMessageCollector (MidiMessageCollector *)

virtual bool	showControlPanel ()
	Shows a device-specific control panel if there is one. More...

void	start (AudioIODeviceCallback *) override
	Starts the device actually playing. More...

void	stop () override
	Stops the device playing. More...

void	switchApplication ()

Protected Attributes
String	name

String	typeName

Private Member Functions
	iOSAudioIODevice (iOSAudioIODeviceType *, const String &, const String &)

Private Attributes
std::unique_ptr< Pimpl >	pimpl

Friends
struct	AudioSessionHolder

class	iOSAudioIODeviceType

Constructor & Destructor Documentation

◆ iOSAudioIODevice()

juce::iOSAudioIODevice::iOSAudioIODevice	(	iOSAudioIODeviceType *	,
		const String &	,
		const String &
	)

private

Member Function Documentation

◆ close()

void juce::iOSAudioIODevice::close ( )

overridevirtual

Closes and releases the device if it's open.

Implements juce::AudioIODevice.

◆ getActiveInputChannels()

BigInteger juce::iOSAudioIODevice::getActiveInputChannels ( ) const

overridevirtual

Returns a mask showing which of the available input channels are currently enabled.

See also: getInputChannelNames

Implements juce::AudioIODevice.

◆ getActiveOutputChannels()

BigInteger juce::iOSAudioIODevice::getActiveOutputChannels ( ) const

overridevirtual

Returns a mask showing which of the available output channels are currently enabled.

See also: getOutputChannelNames

Implements juce::AudioIODevice.

◆ getAudioPlayHead()

AudioPlayHead* juce::iOSAudioIODevice::getAudioPlayHead ( ) const

◆ getAvailableBufferSizes()

Array<int> juce::iOSAudioIODevice::getAvailableBufferSizes ( )

overridevirtual

Returns the set of buffer sizes that are available.

See also: getCurrentBufferSizeSamples, getDefaultBufferSize

Implements juce::AudioIODevice.

◆ getAvailableSampleRates()

Array<double> juce::iOSAudioIODevice::getAvailableSampleRates ( )

overridevirtual

Returns the set of sample-rates this device supports.

See also: getCurrentSampleRate

Implements juce::AudioIODevice.

◆ getCurrentBitDepth()

int juce::iOSAudioIODevice::getCurrentBitDepth ( )

overridevirtual

Returns the device's current physical bit-depth.

If the device isn't actually open, this value doesn't really mean much.

Implements juce::AudioIODevice.

◆ getCurrentBufferSizeSamples()

int juce::iOSAudioIODevice::getCurrentBufferSizeSamples ( )

overridevirtual

Returns the buffer size that the device is currently using.

If the device isn't actually open, this value doesn't really mean much.

Implements juce::AudioIODevice.

◆ getCurrentSampleRate()

double juce::iOSAudioIODevice::getCurrentSampleRate ( )

overridevirtual

Returns the sample rate that the device is currently using.

If the device isn't actually open, this value doesn't really mean much.

Implements juce::AudioIODevice.

◆ getDefaultBufferSize()

int juce::iOSAudioIODevice::getDefaultBufferSize ( )

overridevirtual

Returns the default buffer-size to use.

Returns: a number of samples

See also: getAvailableBufferSizes

Implements juce::AudioIODevice.

◆ getInputChannelNames()

StringArray juce::iOSAudioIODevice::getInputChannelNames ( )

overridevirtual

Returns the names of all the available input channels on this device.

To find out which of these are currently in use, call getActiveInputChannels().

Implements juce::AudioIODevice.

◆ getInputLatencyInSamples()

int juce::iOSAudioIODevice::getInputLatencyInSamples ( )

overridevirtual

Returns the device's input latency.

This is the delay in samples between some audio actually arriving at the soundcard, and the callback getting passed this block of data.

Implements juce::AudioIODevice.

◆ getLastError()

String juce::iOSAudioIODevice::getLastError ( )

overridevirtual

Returns the last error that happened if anything went wrong.

Implements juce::AudioIODevice.

◆ getName()

const String& juce::AudioIODevice::getName ( ) const

inlinenoexceptinherited

Returns the device's name, (as set in the constructor).

References juce::gl::name.

◆ getOutputChannelNames()

StringArray juce::iOSAudioIODevice::getOutputChannelNames ( )

overridevirtual

Returns the names of all the available output channels on this device.

To find out which of these are currently in use, call getActiveOutputChannels().

Implements juce::AudioIODevice.

◆ getOutputLatencyInSamples()

int juce::iOSAudioIODevice::getOutputLatencyInSamples ( )

overridevirtual

Returns the device's output latency.

This is the delay in samples between a callback getting a block of data, and that data actually getting played.

Implements juce::AudioIODevice.

◆ getTypeName()

const String& juce::AudioIODevice::getTypeName ( ) const

inlinenoexceptinherited

Returns the type of the device.

E.g. "CoreAudio", "ASIO", etc. - this comes from the AudioIODeviceType that created it.

◆ getXRunCount()

int juce::iOSAudioIODevice::getXRunCount ( ) const

overridevirtualnoexcept

Returns the number of under- or over runs reported by the OS since playback/recording has started.

This number may be different than determining the Xrun count manually (by measuring the time spent in the audio callback) as the OS may be doing some buffering internally - especially on mobile devices.

Returns -1 if playback/recording has not started yet or if getting the underrun count is not supported for this device (Android SDK 23 and lower).

Reimplemented from juce::AudioIODevice.

◆ hasControlPanel()

virtual bool juce::AudioIODevice::hasControlPanel ( ) const

virtualinherited

True if this device can show a pop-up control panel for editing its settings.

This is generally just true of ASIO devices. If true, you can call showControlPanel() to display it.

◆ isInterAppAudioConnected()

bool juce::iOSAudioIODevice::isInterAppAudioConnected ( ) const

◆ isOpen()

bool juce::iOSAudioIODevice::isOpen ( )

overridevirtual

Returns true if the device is still open.

A device might spontaneously close itself if something goes wrong, so this checks if it's still open.

Implements juce::AudioIODevice.

◆ isPlaying()

bool juce::iOSAudioIODevice::isPlaying ( )

overridevirtual

Returns true if the device is still calling back.

The device might mysteriously stop, so this checks whether it's still playing.

Implements juce::AudioIODevice.

◆ open()

String juce::iOSAudioIODevice::open	(	const BigInteger &	inputChannels,
		const BigInteger &	outputChannels,
		double	sampleRate,
		int	bufferSizeSamples
	)

overridevirtual

Tries to open the device ready to play.

Parameters

inputChannels	a BigInteger in which a set bit indicates that the corresponding input channel should be enabled
outputChannels	a BigInteger in which a set bit indicates that the corresponding output channel should be enabled
sampleRate	the sample rate to try to use - to find out which rates are available, see getAvailableSampleRates()
bufferSizeSamples	the size of i/o buffer to use - to find out the available buffer sizes, see getAvailableBufferSizes()

Returns: an error description if there's a problem, or an empty string if it succeeds in opening the device

See also: close

Implements juce::AudioIODevice.

◆ setAudioPreprocessingEnabled()

bool juce::iOSAudioIODevice::setAudioPreprocessingEnabled ( bool shouldBeEnabled )

overridevirtual

On devices which support it, this allows automatic gain control or other mic processing to be disabled.

If the device doesn't support this operation, it'll return false.

Reimplemented from juce::AudioIODevice.

◆ setMidiMessageCollector()

void juce::iOSAudioIODevice::setMidiMessageCollector ( MidiMessageCollector * )

◆ showControlPanel()

virtual bool juce::AudioIODevice::showControlPanel ( )

virtualinherited

Shows a device-specific control panel if there is one.

This should only be called for devices which return true from hasControlPanel().

◆ start()

void juce::iOSAudioIODevice::start ( AudioIODeviceCallback * callback )

overridevirtual

Starts the device actually playing.

This must be called after the device has been opened.

Parameters

callback the callback to use for streaming the data.

See also: AudioIODeviceCallback, open

Implements juce::AudioIODevice.

◆ stop()

void juce::iOSAudioIODevice::stop ( )

overridevirtual

Stops the device playing.

Once a device has been started, this will stop it. Any pending calls to the callback class will be flushed before this method returns.

Implements juce::AudioIODevice.

◆ switchApplication()

void juce::iOSAudioIODevice::switchApplication ( )

Friends And Related Function Documentation

◆ AudioSessionHolder

friend struct AudioSessionHolder

friend

◆ iOSAudioIODeviceType

friend class iOSAudioIODeviceType

friend

Member Data Documentation

◆ name

String juce::AudioIODevice::name

protectedinherited

◆ pimpl

std::unique_ptr<Pimpl> juce::iOSAudioIODevice::pimpl

private

◆ typeName

String juce::AudioIODevice::typeName

protectedinherited

The documentation for this class was generated from the following file:

juce_ios_Audio.h

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Constructor & Destructor Documentation

◆ iOSAudioIODevice()

Member Function Documentation

◆ close()

◆ getActiveInputChannels()

◆ getActiveOutputChannels()

◆ getAudioPlayHead()

◆ getAvailableBufferSizes()

◆ getAvailableSampleRates()

◆ getCurrentBitDepth()

◆ getCurrentBufferSizeSamples()

◆ getCurrentSampleRate()

◆ getDefaultBufferSize()

◆ getInputChannelNames()

◆ getInputLatencyInSamples()

◆ getLastError()

◆ getName()

◆ getOutputChannelNames()

◆ getOutputLatencyInSamples()

◆ getTypeName()

◆ getXRunCount()

◆ hasControlPanel()

◆ isInterAppAudioConnected()

◆ isOpen()

◆ isPlaying()

◆ open()

◆ setAudioPreprocessingEnabled()

◆ setMidiMessageCollector()

◆ showControlPanel()

◆ start()

◆ stop()

◆ switchApplication()

Friends And Related Function Documentation

◆ AudioSessionHolder

◆ iOSAudioIODeviceType

Member Data Documentation

◆ name

◆ pimpl

◆ typeName
