juce::ApplicationCommandInfo Struct Reference

Holds information describing an application command. More...

#include <juce_ApplicationCommandInfo.h>

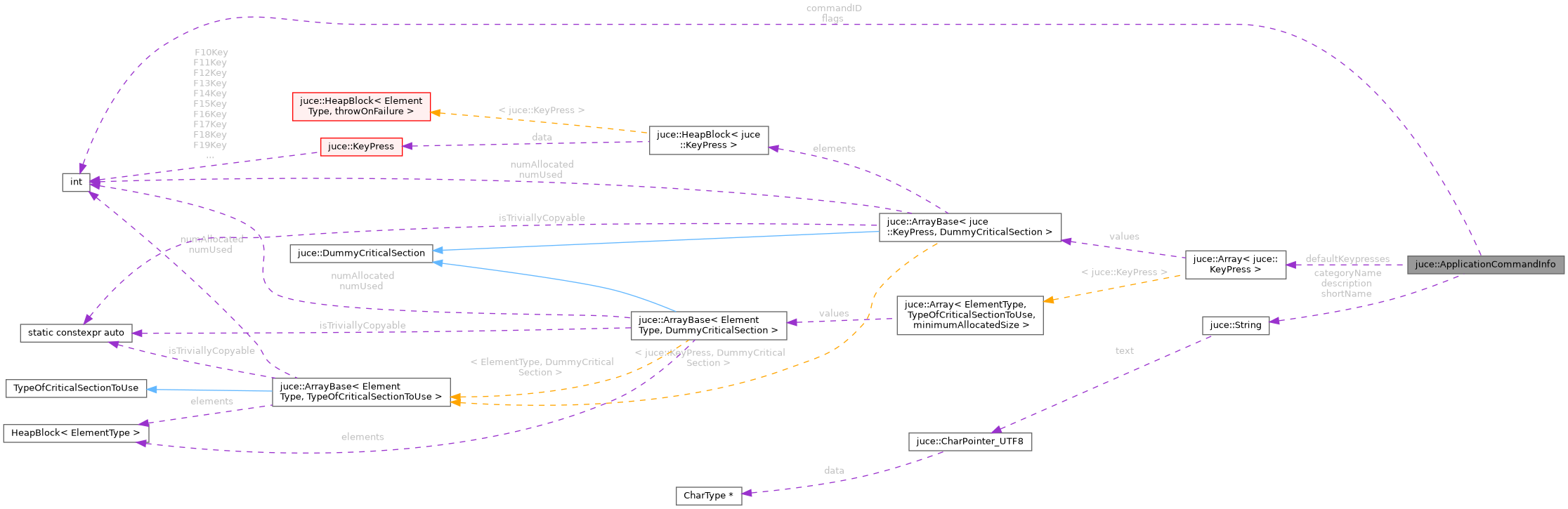

Collaboration diagram for juce::ApplicationCommandInfo:

Public Types

enum  CommandFlags {
  isDisabled = 1 << 0,
  isTicked = 1 << 1,
  wantsKeyUpDownCallbacks = 1 << 2,
  hiddenFromKeyEditor = 1 << 3,
  readOnlyInKeyEditor = 1 << 4,
  dontTriggerVisualFeedback = 1 << 5
}
 Flags describing the ways in which this command should be used. More...


Public Member Functions

 ApplicationCommandInfo (CommandID commandID) noexcept

void addDefaultKeypress (int keyCode, ModifierKeys modifiers) noexcept
 Handy method for adding a keypress to the defaultKeypresses array. More...

void setActive (bool isActive) noexcept
 An easy way to set or remove the isDisabled bit in the structure's flags field. More...

void setInfo (const String &shortName, const String &description, const String &categoryName, int flags) noexcept
 Sets a number of the structures values at once. More...

void setTicked (bool isTicked) noexcept
 An easy way to set or remove the isTicked bit in the structure's flags field. More...


Public Attributes

String categoryName
 A named category that the command fits into. More...

CommandID commandID
 The command's unique ID number. More...

Array< KeyPressdefaultKeypresses
 A list of zero or more keypresses that should be used as the default keys for this command. More...

String description
 A longer description of the command. More...

int flags
 A bitwise-OR of the values specified in the CommandFlags enum. More...

String shortName
 A short name to describe the command. More...


Detailed Description

Holds information describing an application command.

This object is used to pass information about a particular command, such as its name, description and other usage flags.

When an ApplicationCommandTarget is asked to provide information about the commands it can perform, this is the structure gets filled-in to describe each one.

See also
ApplicationCommandTarget, ApplicationCommandTarget::getCommandInfo(), ApplicationCommandManager

@tags{GUI}

Member Enumeration Documentation

◆ CommandFlags

Flags describing the ways in which this command should be used.

A bitwise-OR of these values is stored in the ApplicationCommandInfo::flags variable.

Enumerator
isDisabled

Indicates that the command can't currently be performed.

    The ApplicationCommandTarget::getCommandInfo() method must set this flag if it's
    not currently permissible to perform the command. If the flag is set, then
    components that trigger the command, e.g. PopupMenu, may choose to grey-out the
    command or show themselves as not being enabled.

    @see ApplicationCommandInfo::setActive
isTicked

Indicates that the command should have a tick next to it on a menu.

    If your command is shown on a menu and this is set, it'll show a tick next to
    it. Other components such as buttons may also use this flag to indicate that it
    is a value that can be toggled, and is currently in the 'on' state.

    @see ApplicationCommandInfo::setTicked
wantsKeyUpDownCallbacks

If this flag is present, then when a KeyPressMappingSet invokes the command, it will call the command twice, once on key-down and again on key-up.

See also
ApplicationCommandTarget::InvocationInfo
hiddenFromKeyEditor

If this flag is present, then a KeyMappingEditorComponent will not display the command in its list.

readOnlyInKeyEditor

If this flag is present, then a KeyMappingEditorComponent will display the command in its list, but won't allow the assigned keypress to be changed.

dontTriggerVisualFeedback

If this flag is present and the command is invoked from a keypress, then any buttons or menus that are also connected to the command will not flash to indicate that they've been triggered.

Constructor & Destructor Documentation

◆ ApplicationCommandInfo()

juce::ApplicationCommandInfo::ApplicationCommandInfo ( CommandID  commandID)
explicitnoexcept

Member Function Documentation

◆ addDefaultKeypress()

void juce::ApplicationCommandInfo::addDefaultKeypress ( int  keyCode,
ModifierKeys  modifiers
)
noexcept

Handy method for adding a keypress to the defaultKeypresses array.

This is just so you can write things like:

myinfo.addDefaultKeypress ('s', ModifierKeys::commandModifier);

instead of

myinfo.defaultKeypresses.add (KeyPress ('s', ModifierKeys::commandModifier));

◆ setActive()

void juce::ApplicationCommandInfo::setActive ( bool  isActive)
noexcept

An easy way to set or remove the isDisabled bit in the structure's flags field.

If isActive is true, the flags member has the isDisabled bit cleared; if isActive is false, the bit is set.

◆ setInfo()

void juce::ApplicationCommandInfo::setInfo ( const String shortName,
const String description,
const String categoryName,
int  flags
)
noexcept

Sets a number of the structures values at once.

The meanings of each of the parameters is described below, in the appropriate member variable's description.

◆ setTicked()

void juce::ApplicationCommandInfo::setTicked ( bool  isTicked)
noexcept

An easy way to set or remove the isTicked bit in the structure's flags field.

Member Data Documentation

◆ categoryName

String juce::ApplicationCommandInfo::categoryName

A named category that the command fits into.

You can give your commands any category you like, and these will be displayed in contexts such as the KeyMappingEditorComponent, where the category is used to group commands together.

You can use the setInfo() method to quickly set this and some of the command's other properties.

◆ commandID

CommandID juce::ApplicationCommandInfo::commandID

The command's unique ID number.

◆ defaultKeypresses

Array<KeyPress> juce::ApplicationCommandInfo::defaultKeypresses

A list of zero or more keypresses that should be used as the default keys for this command.

Methods such as KeyPressMappingSet::resetToDefaultMappings() will use the keypresses in this list to initialise the default set of key-to-command mappings.

See also
addDefaultKeypress

◆ description

String juce::ApplicationCommandInfo::description

A longer description of the command.

This should be suitable for use in contexts such as a KeyMappingEditorComponent or pop-up tooltip describing what the command does.

You can use the setInfo() method to quickly set this and some of the command's other properties.

◆ flags

int juce::ApplicationCommandInfo::flags

A bitwise-OR of the values specified in the CommandFlags enum.

You can use the setInfo() method to quickly set this and some of the command's other properties.

◆ shortName

String juce::ApplicationCommandInfo::shortName

A short name to describe the command.

This should be suitable for use in menus, on buttons that trigger the command, etc.

You can use the setInfo() method to quickly set this and some of the command's other properties.


The documentation for this struct was generated from the following file:
